Brand: Yanmis

Model: Yanmiseicv7dz5wp

Specification:
Condition: 100% Brand New
Model: TK14S40A-10M/V1
Single Overcharge Protection Voltage: 5.24±0.025V
Single Overcharge Release Voltage: 4.19±0.05V
Rated Charging Current: 40A
Single-Chip Over-Discharge Protection Voltage: 2.8±0.08V
Single-Chip Over-Discharge Release Voltage: 3.0±0.08V
Discharge Protection Current: 120±10A
With Or Without Short Circuit Protection: Yes
Short Circuit Protection Recovery Condition: Load-Disconnect
Equilibrium Voltage: 4.25V
Equilibrium Current: 26Ma
Internal Resistance: 3.5mΩ
Self-Consumption: 50uA
Weight: Approx. 108g / 3.8oz
Size: Approx. 60 * 90 * 10.1mm / 2.4 * 3.5 * 0.4in

Package List:

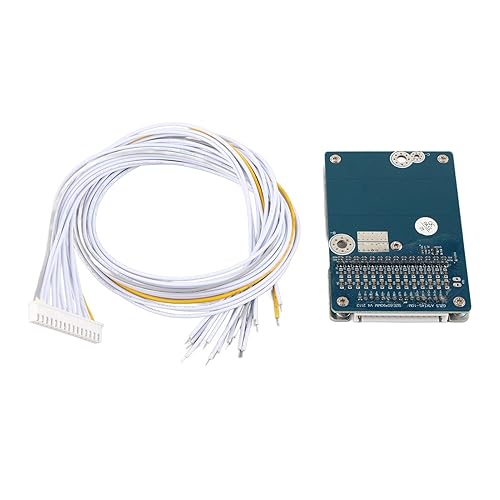

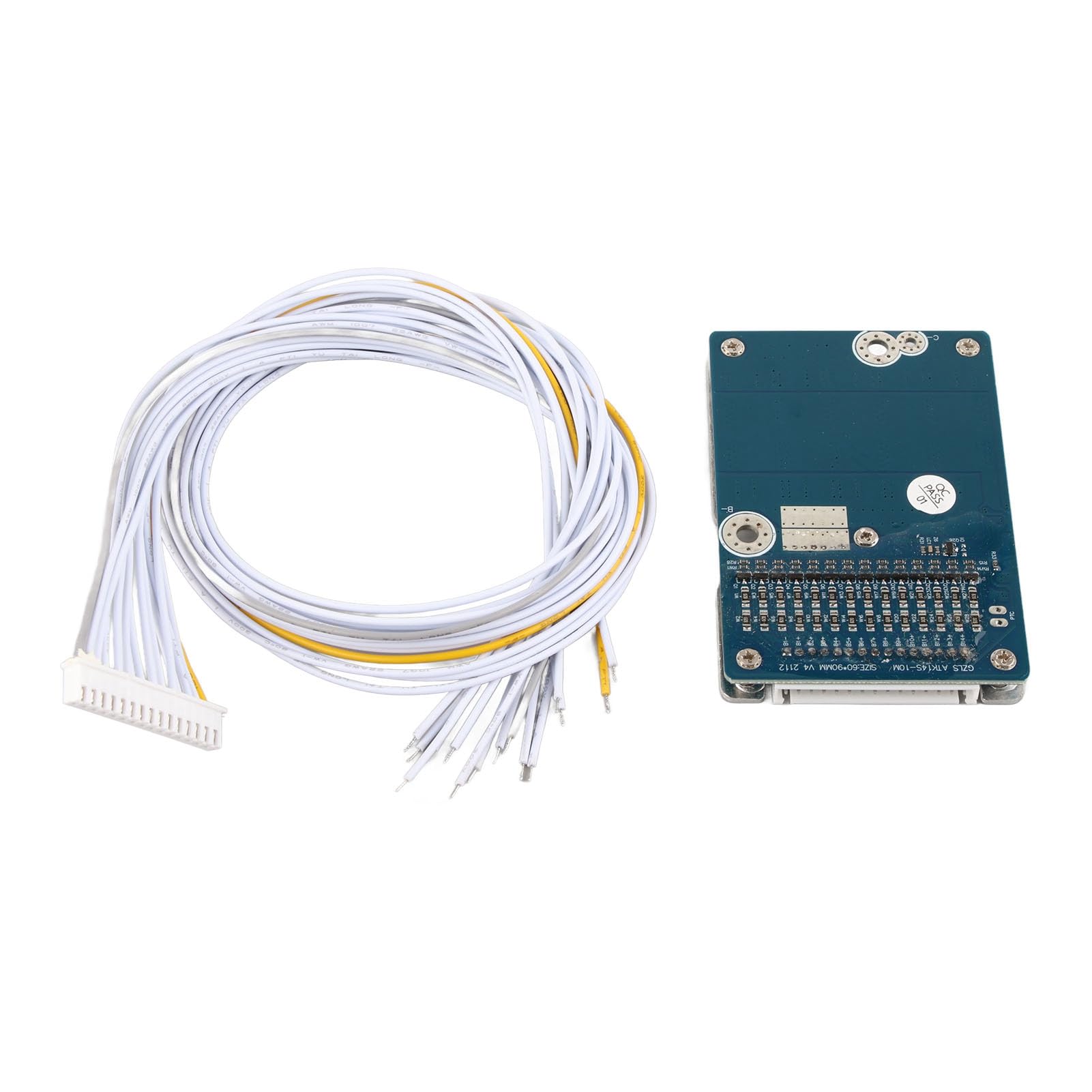

1 * Lithium Battery Protection Board Module
1 * Connecting Cable

Note:
1. The difference between the split port and the same port: the split port: when charging and discharging, the positive and negative poles are separated; the same port: charging current is the same as the discharge current, and charging and discharging are in the same place.
2. Without and : : when the high-voltage battery is discharged with a resistor, waiting for the low-voltage battery to charge the voltage to achieve the same voltage and improve the performance of the whole battery.

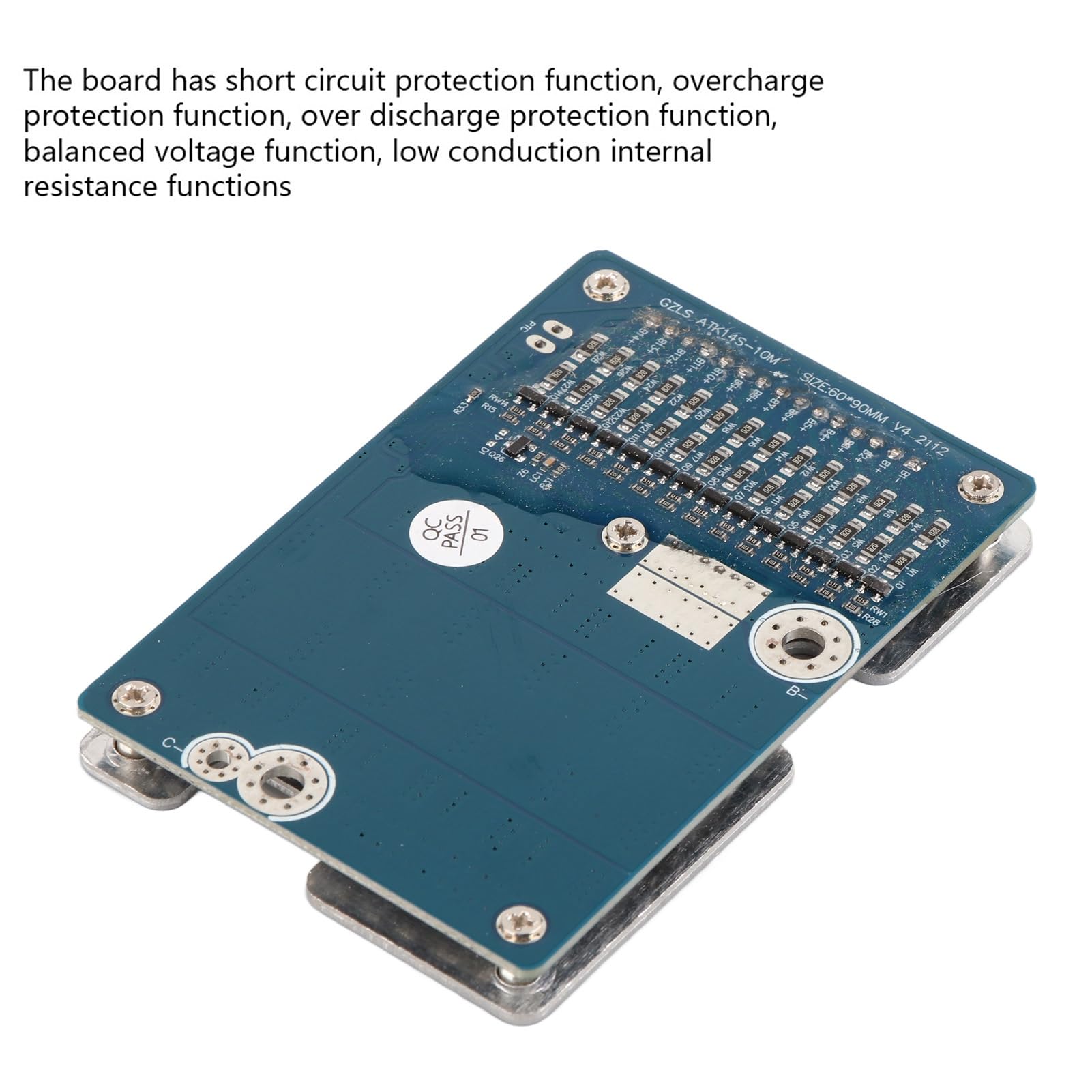

• 【Safe】 The board has short circuit protection function, overcharge protection function, over discharge protection function, d voltage function, low conduction internal resistance functions.
• 【Model】 TK14S40A-10M / V1
• 【Application】 Suitable for lithium batteries with nominal voltage 3.7V 10-14 strings, Applied to rechargeable lithium ion battery, lithium polymer battery.
• 【High Quality】 The internal components are brushed with three anti-adhesive (waterproof, anti-static, anti-interference), stable years of reliable quality.
• 【Service】 100% brand new product. If you are not satisfied with the product, please feel free to contact us, we will provide you with quality after-sales service

Color: white
