Brand: Yasoca

Model: 723722197055

The 24v10a power supply is a reliable and efficient solution for powering various electrical devices.
With a wide range of operating voltage and voltage adjustment,
this power supply ensures stability and consistency in power output.
It also features automatic overload cut-off, over voltage cut-off, and short circuit protection with built-in cooling fan and temperature detector,
ensuring safe operation even in challenging environments. AC Input: 110V/220V; Output: 24V10A.240W

Specifications
Brand：Yasoca
Safety Compliance: CCC/ FCC / CE
Input: AC110V/220V
Output: DC 24V 10A
Output Power: 240W
Frequency: 50/60Hz
Screw Terminal Number: 7
Fix Screw Hole Diameter: 2.5mm(0.1 inch)
Working temperature: -40~65 degreeCelsius
Storage Temperature: -20C~60C
Humidity: 20%~90%RH Non-Condensation
Start Rise Hold Time:200ms 100ms 30ms
Material: Metal, Electronic Parts
Size:7.87 inch x 4.33 inch x 1.96 inch(L*W*H)
Main Color: Silver Tone
Net Weight: 600g

Connection
L: FireWire
N: zero line
G: ground wire
- V: load negative
+ V: load positive

Notes
1.High Voltage inside ,do not remove the cover. Qualified service personnel only
2.In-door use only, for this switch power supply is not waterproof
3.110V/230V is selected by switch. Before power on please check input voltage avoiding damage

• Voltage Adjustment: Input: 110V/220V AC
• Output: DC 24V 10A max. (If draws more than 10A, only 10A will be supplied and power supply will be damaged soon. NEVER OVERLOAD !)

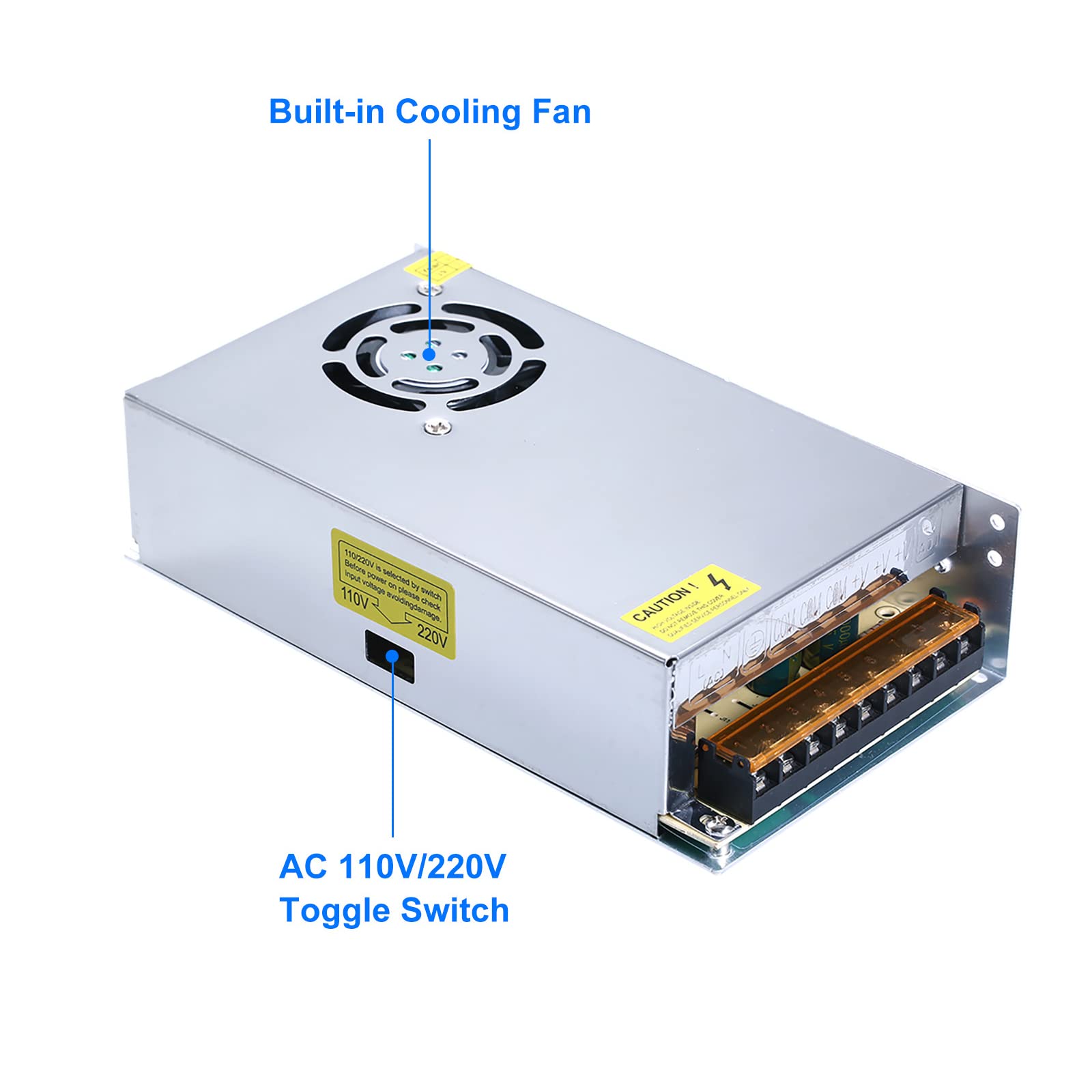

• The shell is made of aluminum. Cellular structure design can enhance air convection and speed up heat dissipation.
• Safety features:The 24v10amp power supply is a reliable source of power for any device, featuring automatic overload, over voltage, and thermal cut-off as well as short circuit protection for safe and efficient use.
• This power supply box offers a wide range of operating voltage and Output voltage ±10% voltage adjustment ,from 21.6V to 26.4V. Three sets of output channels available.
• Applicable to LED Strips, 3D Printer, ham radio transceiver, CCTV cameras, Display device ,audio amplifier, wireless router, ADSL Cats, HUB, audio/ video power supply. Indoor use only!

Color: Silvery
