- Lazmin 36V 35A 10S Li ion Battery Board PCB with Balancing for Ternary Cobalt Cells, Manganese Batteries and Cobalt Batteries.
Description
Brand: Lazmin
Model: Lazmintgypf1507i
Specifications:
Continuous Discharge Current 35A
Momentary Discharge Current 100A
Voltage 42V
Current 8A(.)
Overcharge Detection Voltage 4.28±0.05V
Overcharge Delay 100mS
Overcharge Cancel Voltage 4.08±0.05V
Balance Balance Detection Voltage 4.2±0.025V
Balance Cancel Voltage 4.2±0.05V
Balance Current 56±5mA
Over discharge Over discharge Detection Voltage 2.55±0.08V
Over discharge Detection Delay 50mS
Over discharge Cancel Voltage 3.0±0.1V
Overcurrent Overcurrent Detection Voltage 150mV
Overcurrent Detection Delay 15mS
Overcurrent Current 120±5A
Cancel Condition Disconnect Load
Short Circuit Short Circuit Condition Outside Load Short Circuit
Short Circuit Detection Delay 200uS
Cancel Condition Disconnect Load
Internal Main Circuit Conduction Internal 15mΩ
Self Power Consumption Working Current 50uA
Sleeping Current(Battery Over discharge) 10uA
Operating Temperature
to 30~+80
Size
69*51.5*10mm/2.71*2.02*0.39"
Package Includes:
1 x Board
1 x Cable

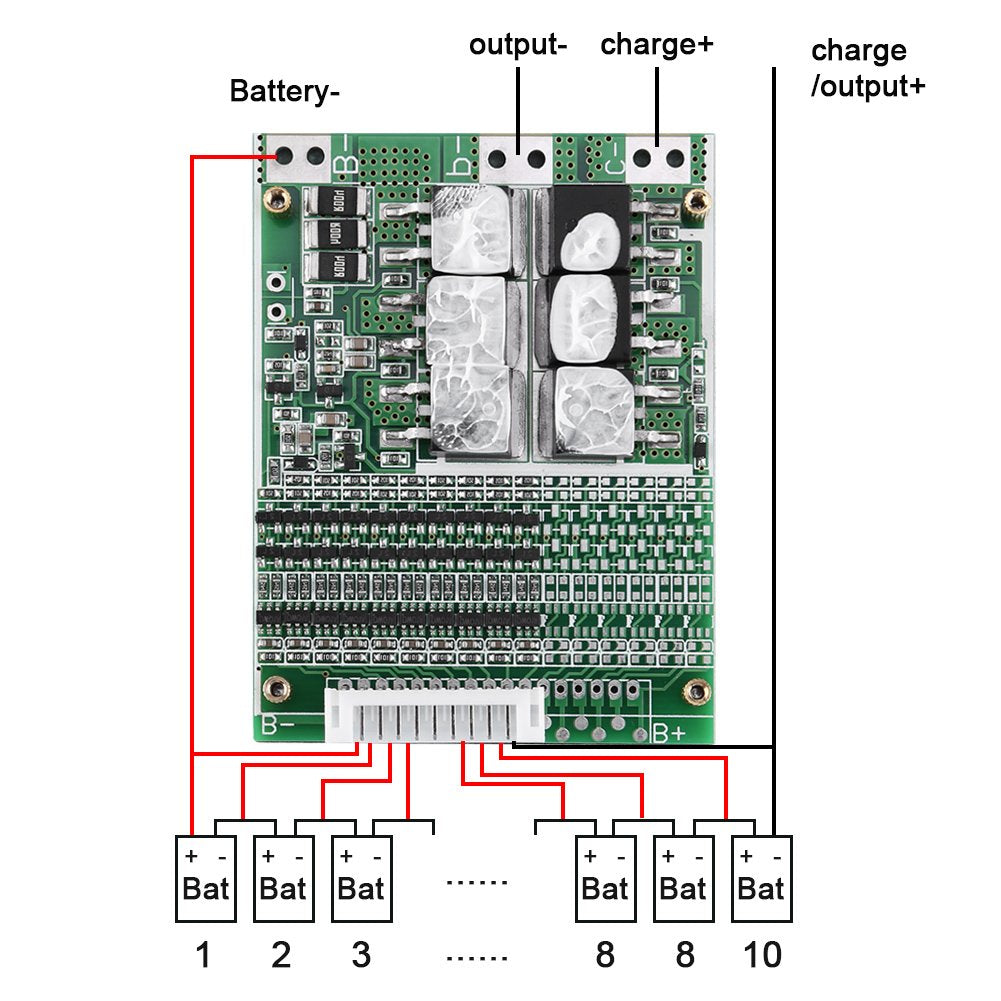

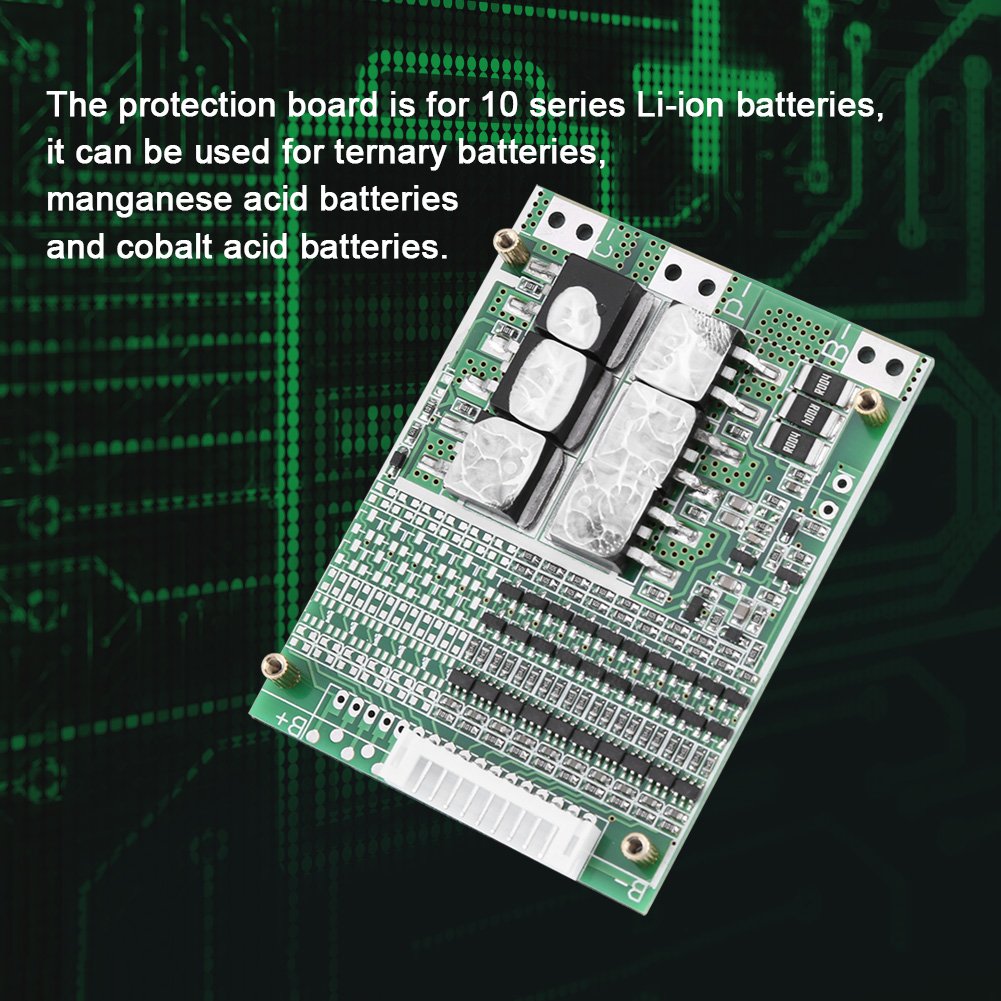

• The board is for 10 series cell Li ion batteries, it can be used for ternary batteries, manganese batteries and cobalt batteries
• Charging connector and discharging connector are separated, discharging current is 35A
• Stable various protective functions for charging and discharging, such as overcharge , over discharge and short circuit
• It has balance function which would ensure each battery cell being fully charged at same time
• Choosing the correct board and applying it appropriately is to the longevity your batteries
Color: default
Model: Lazmintgypf1507i
Specifications:
Continuous Discharge Current 35A
Momentary Discharge Current 100A
Voltage 42V
Current 8A(.)
Overcharge Detection Voltage 4.28±0.05V
Overcharge Delay 100mS
Overcharge Cancel Voltage 4.08±0.05V
Balance Balance Detection Voltage 4.2±0.025V
Balance Cancel Voltage 4.2±0.05V
Balance Current 56±5mA
Over discharge Over discharge Detection Voltage 2.55±0.08V
Over discharge Detection Delay 50mS
Over discharge Cancel Voltage 3.0±0.1V
Overcurrent Overcurrent Detection Voltage 150mV
Overcurrent Detection Delay 15mS
Overcurrent Current 120±5A
Cancel Condition Disconnect Load
Short Circuit Short Circuit Condition Outside Load Short Circuit
Short Circuit Detection Delay 200uS
Cancel Condition Disconnect Load
Internal Main Circuit Conduction Internal 15mΩ
Self Power Consumption Working Current 50uA
Sleeping Current(Battery Over discharge) 10uA
Operating Temperature
to 30~+80
Size
69*51.5*10mm/2.71*2.02*0.39"
Package Includes:
1 x Board
1 x Cable
• The board is for 10 series cell Li ion batteries, it can be used for ternary batteries, manganese batteries and cobalt batteries
• Charging connector and discharging connector are separated, discharging current is 35A
• Stable various protective functions for charging and discharging, such as overcharge , over discharge and short circuit
• It has balance function which would ensure each battery cell being fully charged at same time
• Choosing the correct board and applying it appropriately is to the longevity your batteries
Color: default
