Brand: Vikye

Model: Vikyepy5wqethb3

specifications:
Discharge Continuous discharge current 35A
Momentary discharge current 100A
Charge charging voltage 42V
Charging current 8A (Max.)
Overload protection
Overload detection voltage
4.28 ± 0.05V
Overload protection delay
100mS
Overload Disconnect voltage
4:08 ± 0.05V
Balance detection voltage
4.2 ± 0.025V
Balance break tension
4.2 ± 0.05V
Balance current 56 ± 5mA
Over discharge protection
Over-discharge detection voltage
2:55 ± 0.08V
Over-discharge detection delay
50mS
Over-discharge Stop the voltage
3.0 ± 0.1V
Overcurrent protection overcurrent detection voltage 150mV
Overcurrent detection delay
15mS
Overcurrent current protect 120 ± 5A
Protection Cancel Condition Disconnect load
Short circuit protection Short circuit protection State Short circuit outside load
Short circuit detection delay 200uS
Protection condition reserved
Disconnect load
Internal resistance
Internal resistance of the main circuit 15mΩ
Self-consumption working current 50uA
Sleep current (battery overdischarged) 10uA
operating temperatur
-30 ~ + 80
size
69 * 51.5 * 10mm / 2.71 * 2.02 * 0.39 "

Package contents:

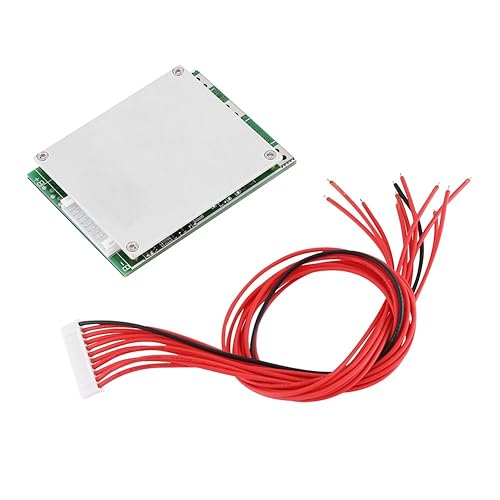

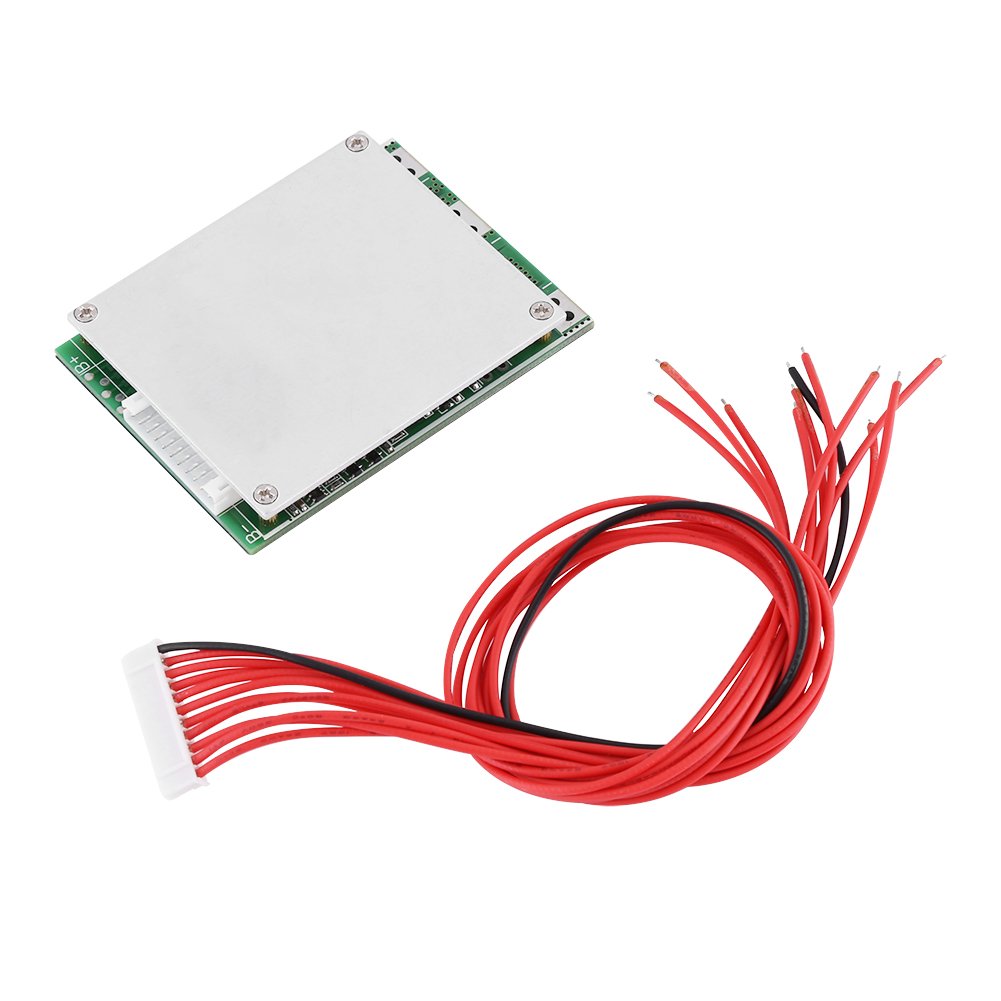

1 x protection board
1 x cable

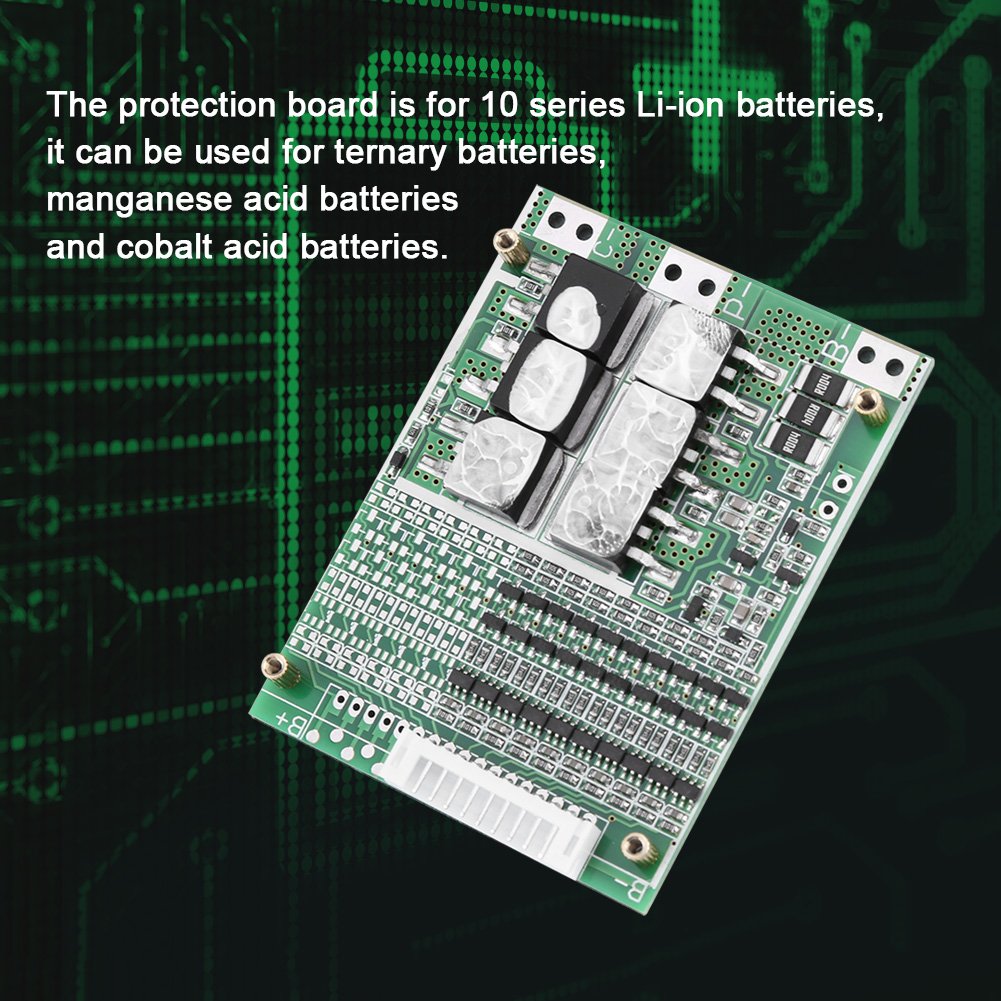

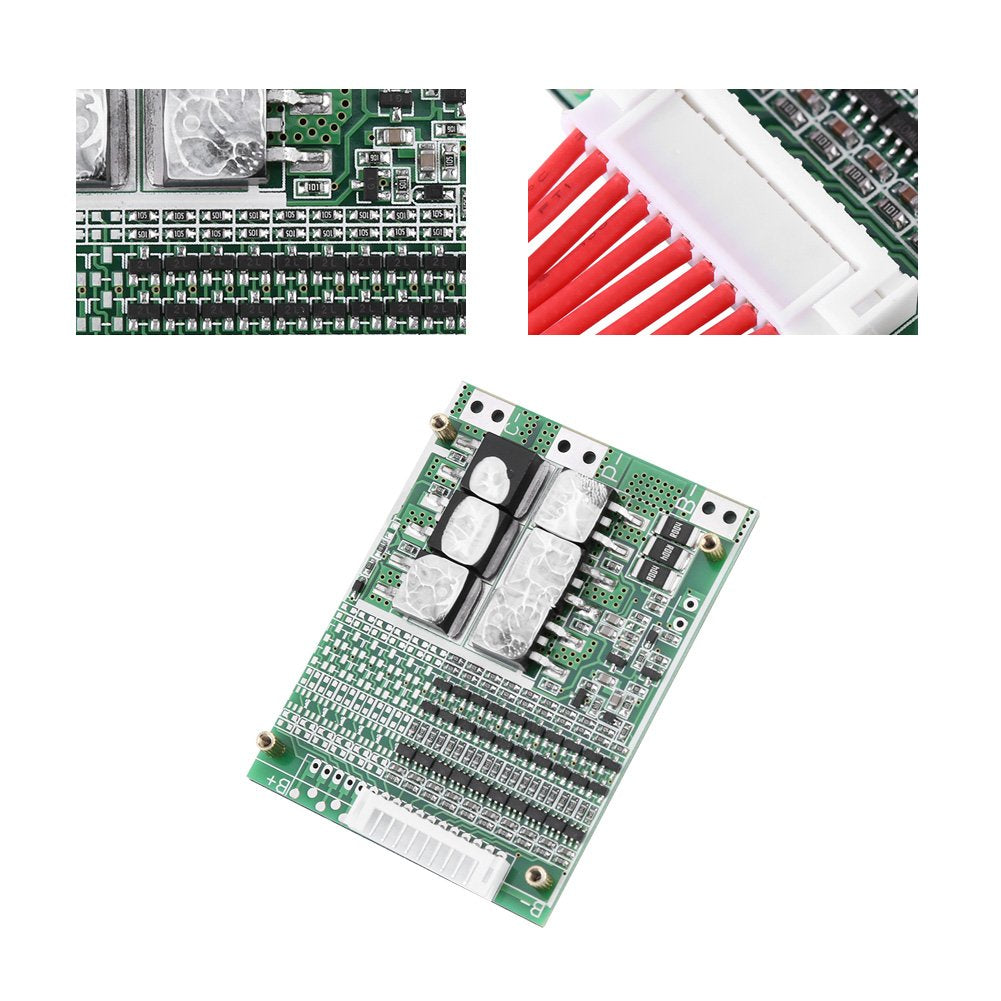

• 【Usage】: The protection board is for 10 series cell Li-ion batteries, it can be used for ternary batteries, manganese acid batteries and cobalt acid batteries.
• 【Protective Functions】: Stable various protective functions for charging and discharging, such as overcharge protection, over-discharge protection and short circuit protection.
• 【Balance Functions】: It has balance function which would ensure each battery cell being fully charged at same time.

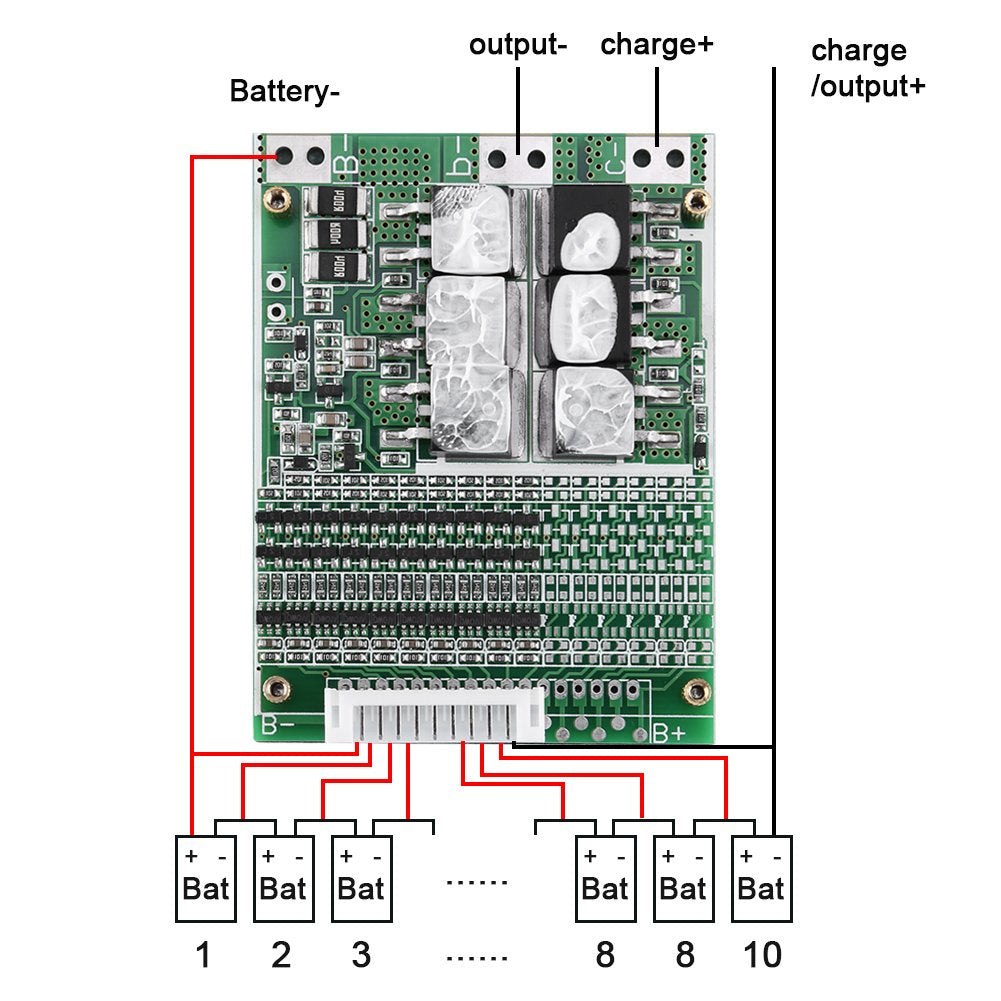

• 【Feature 】: Charging connector and discharging connector are separated, discharging current is 35A. Choosing the correct protection board and applying it appropriately is vital to the longevity your batteries.
• 【Size】: 69×51.5×10mm/2.71×2.02×0.39"

Color: Multicolor
