Description
Brand: ZDTECH

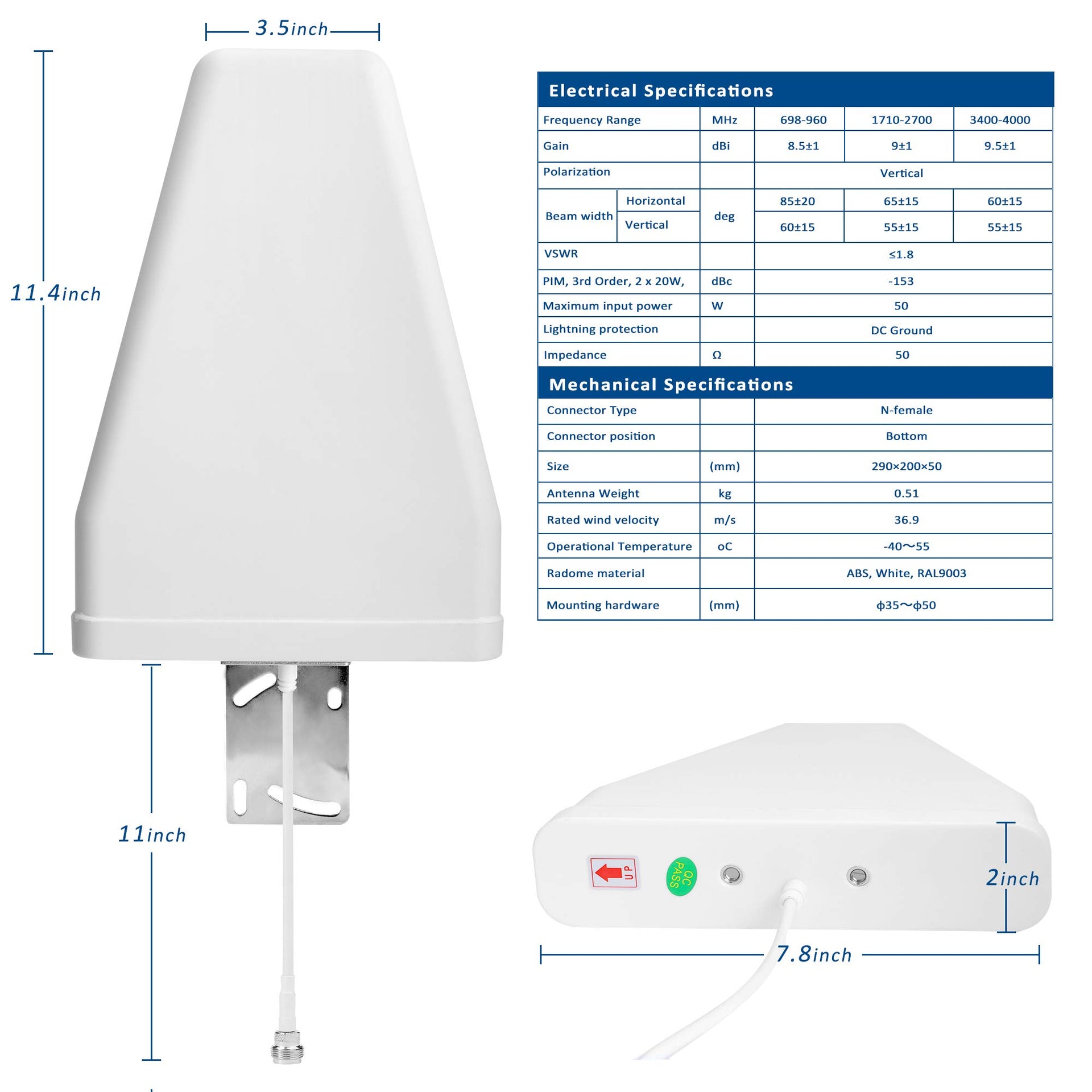

<p><b>1-Port Outdoor 8/9dBi LPDA Antenna:</b></p> <p>Frequency Range/Gain: 698-960MHz/7.5±1dBi; 1710-2700MHz/8.5±1dBi; 3400-4000MHz/9±1 dBi;</p> <p>Maximum input power: 50W<p> <p>Impedance: 50?<p> <p><b>Mechanical Specification</b></p> <p>Connector Type: N-female<p> <p>Connector position: Bottom<p> <p>Size: 290×200×50(mm)<p> <p>Antenna Weight: 0.51kg<p> <p>Rated wind velocity: 36.9m/s<p> <p>Operational Temperature: -40°C?55°C<p> <p>Radome material: ABS<p> <p>Mounting hardware: ?35??50(mm)<p>
• ?High Gain?The directional yagi-style antenna features 8dB-9dB gain, work with all 50 Ohm cellular amplifier systems, compatible with all US carriers, and it supports multiple devices so you could enhance your 3G/4G/5G LTE signals.
• ?Outside Cellular Antenna?The Directional Roof Antenna is designed for use on stationary objects such as buildings or houses by capturing existing outdoor cellular signal in a directional, 45-degree pattern. It features N-Type connectors for easy transfer of high-frequency information.
• ?Highest Quality?The cell antenna frequencies range is 698-960mhz & 1710-2700mhz &3400-4000mhz. This Wideband antenna features an N-Female connector that facilitates the transfer of high-frequency information. IMPORTANT NOTE: This product is outdoor antenna only, it must work together with signal booster/repeater, It will need extension cable to connect the outdoor antenna to signal booster.

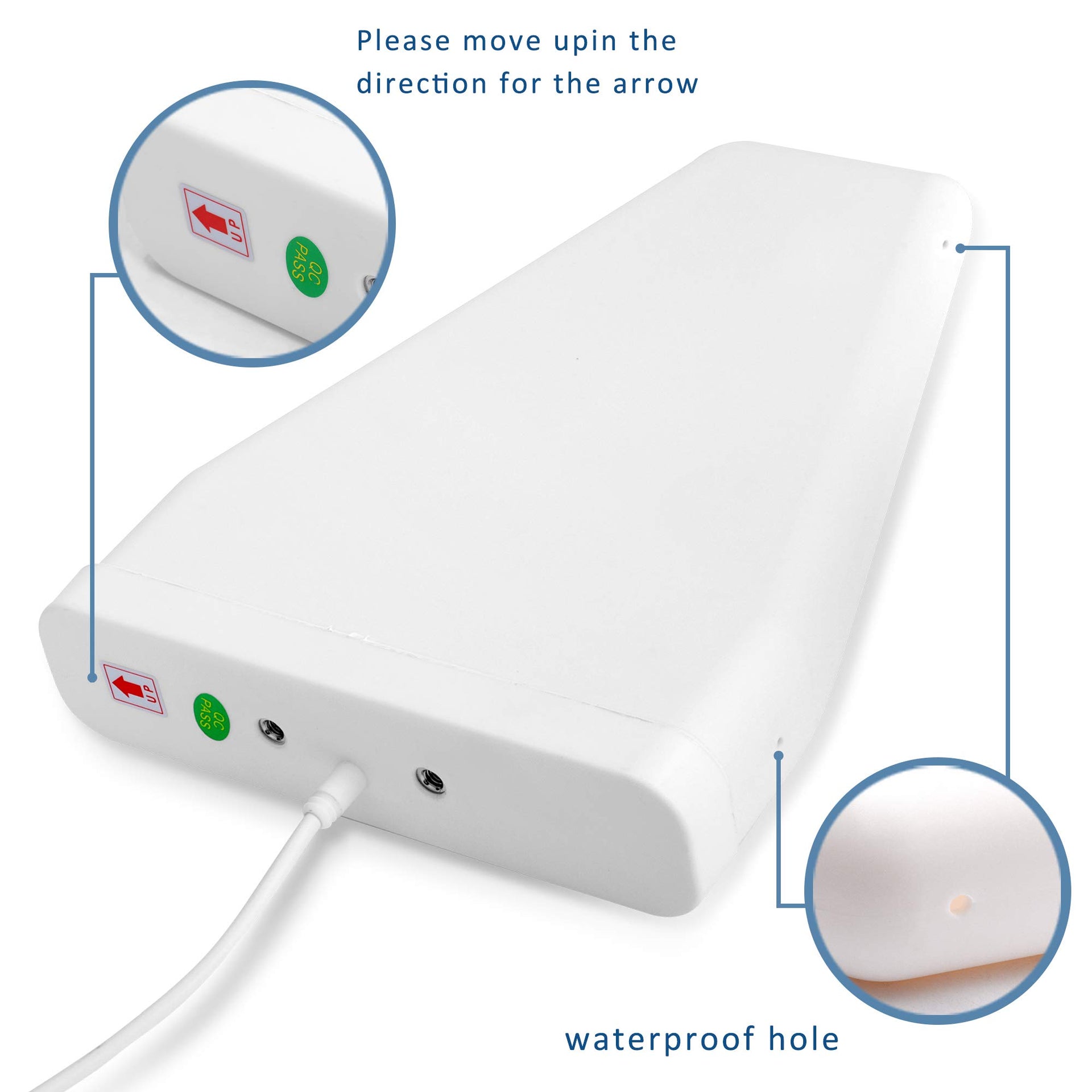

• ?Waterproof Structure?This Wideband directional antenna from features a rugged waterproof structure that’s designed to withstand damage from the elements. This directional antenna must be pointed toward a cell tower. The antenna does not come with mast pole mount.
• ?Compatible?Compatible with 2G, 3G, 4G,5G,LTE, xLTE, AWS, GSM & CDMA Broadband Router, Modem, etc. Enhance the network signal on Verizon, AT&T, Sprint, T-Mobile, Telus, Bell Canada, Rogers, DigiCel and more. Also compatible with 2.4 GHz Wi-Fi and 900 MHz radio systems.
Model: ZD-LPDA-5G-S
Color: White 698 - 4000
<p><b>1-Port Outdoor 8/9dBi LPDA Antenna:</b></p> <p>Frequency Range/Gain: 698-960MHz/7.5±1dBi; 1710-2700MHz/8.5±1dBi; 3400-4000MHz/9±1 dBi;</p> <p>Maximum input power: 50W<p> <p>Impedance: 50?<p> <p><b>Mechanical Specification</b></p> <p>Connector Type: N-female<p> <p>Connector position: Bottom<p> <p>Size: 290×200×50(mm)<p> <p>Antenna Weight: 0.51kg<p> <p>Rated wind velocity: 36.9m/s<p> <p>Operational Temperature: -40°C?55°C<p> <p>Radome material: ABS<p> <p>Mounting hardware: ?35??50(mm)<p>
• ?High Gain?The directional yagi-style antenna features 8dB-9dB gain, work with all 50 Ohm cellular amplifier systems, compatible with all US carriers, and it supports multiple devices so you could enhance your 3G/4G/5G LTE signals.
• ?Outside Cellular Antenna?The Directional Roof Antenna is designed for use on stationary objects such as buildings or houses by capturing existing outdoor cellular signal in a directional, 45-degree pattern. It features N-Type connectors for easy transfer of high-frequency information.
• ?Highest Quality?The cell antenna frequencies range is 698-960mhz & 1710-2700mhz &3400-4000mhz. This Wideband antenna features an N-Female connector that facilitates the transfer of high-frequency information. IMPORTANT NOTE: This product is outdoor antenna only, it must work together with signal booster/repeater, It will need extension cable to connect the outdoor antenna to signal booster.
• ?Waterproof Structure?This Wideband directional antenna from features a rugged waterproof structure that’s designed to withstand damage from the elements. This directional antenna must be pointed toward a cell tower. The antenna does not come with mast pole mount.
• ?Compatible?Compatible with 2G, 3G, 4G,5G,LTE, xLTE, AWS, GSM & CDMA Broadband Router, Modem, etc. Enhance the network signal on Verizon, AT&T, Sprint, T-Mobile, Telus, Bell Canada, Rogers, DigiCel and more. Also compatible with 2.4 GHz Wi-Fi and 900 MHz radio systems.
Model: ZD-LPDA-5G-S
Color: White 698 - 4000
