Description
Brand: YWBL-WH
Feature:
1. DC-DC boost converter module, working frequency 600KHZ.
2. Conversion efficiency 94% (usually 75-91%).
3. Over temperature shutdown, input under voltage and short circuit .
4. On-board capacitors stabilize output voltage.
5. Reasonable component layout, easy to wire and use.
Specification:

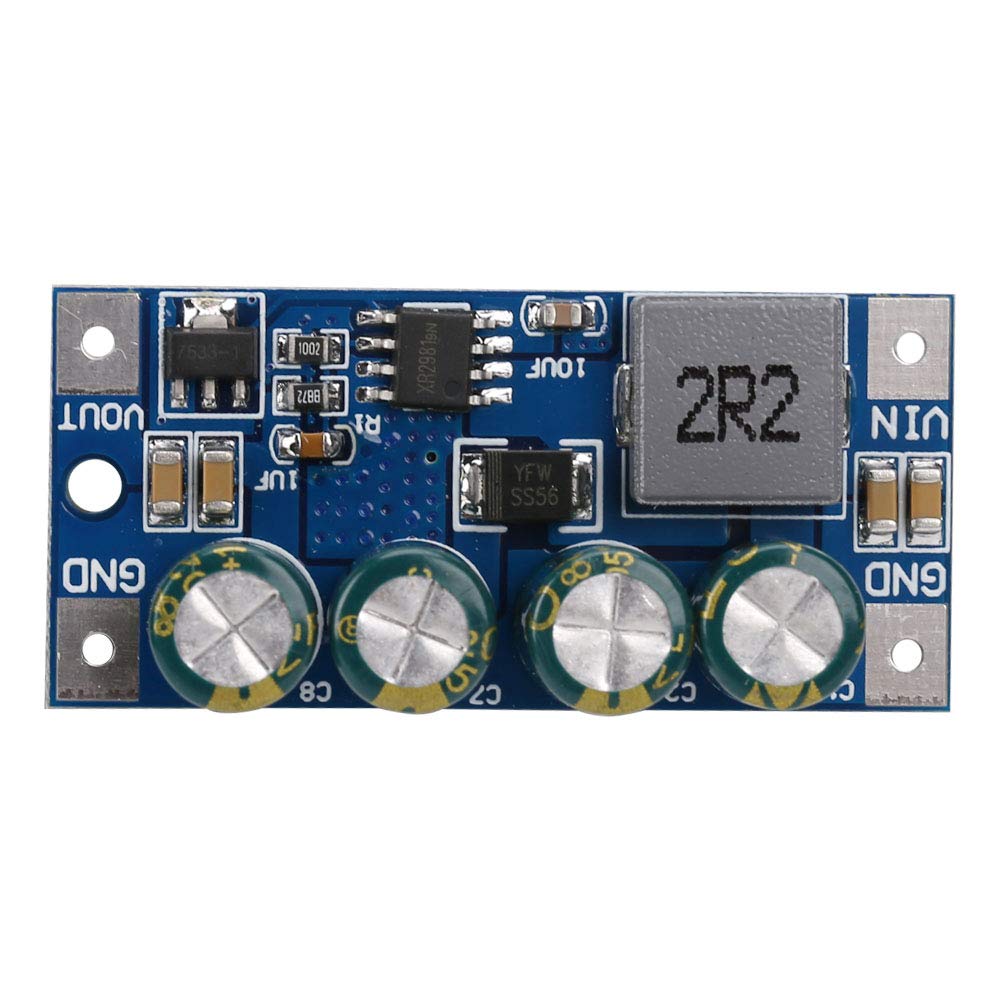

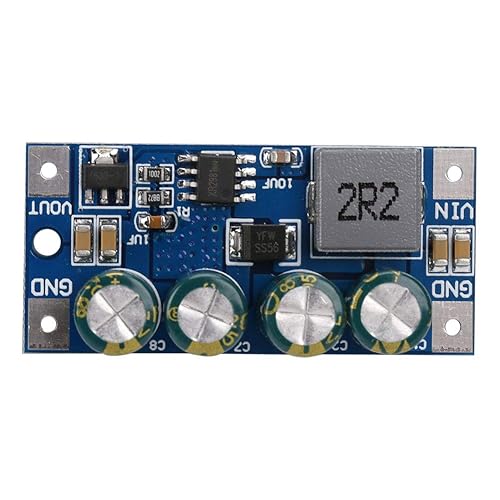

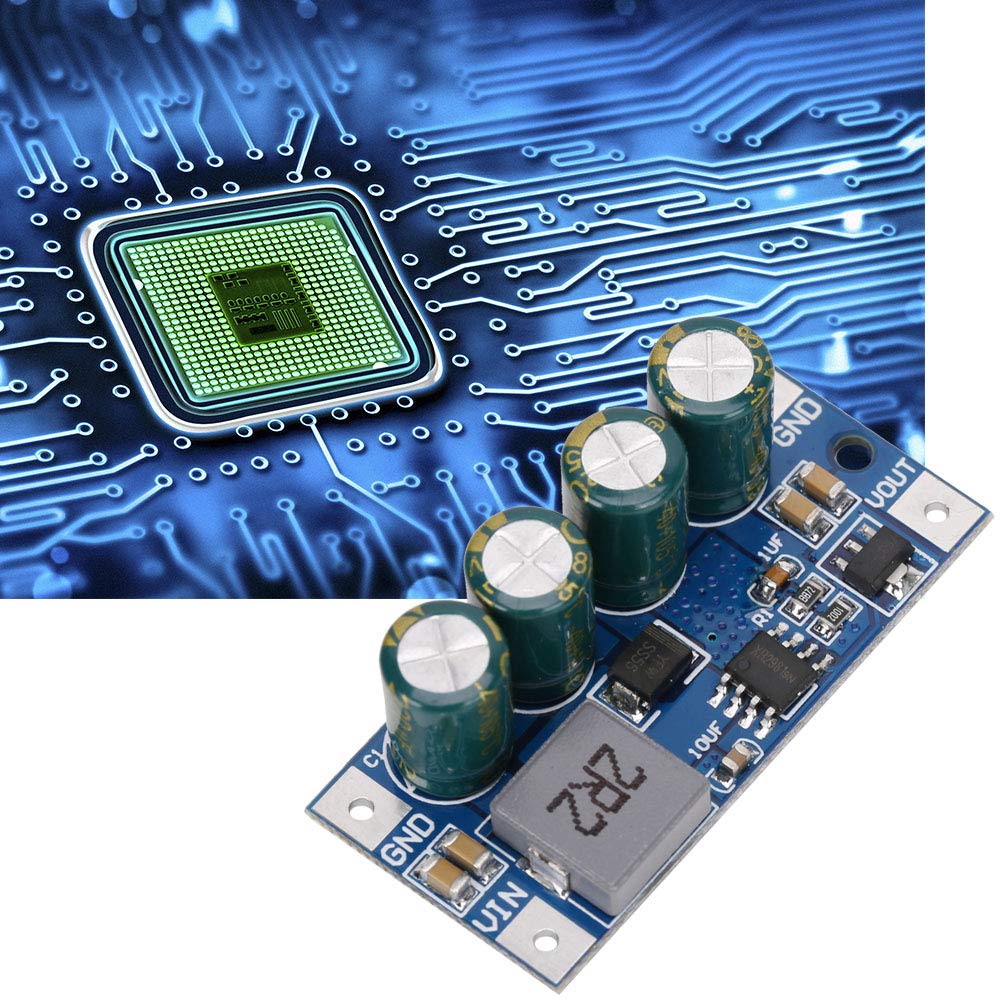

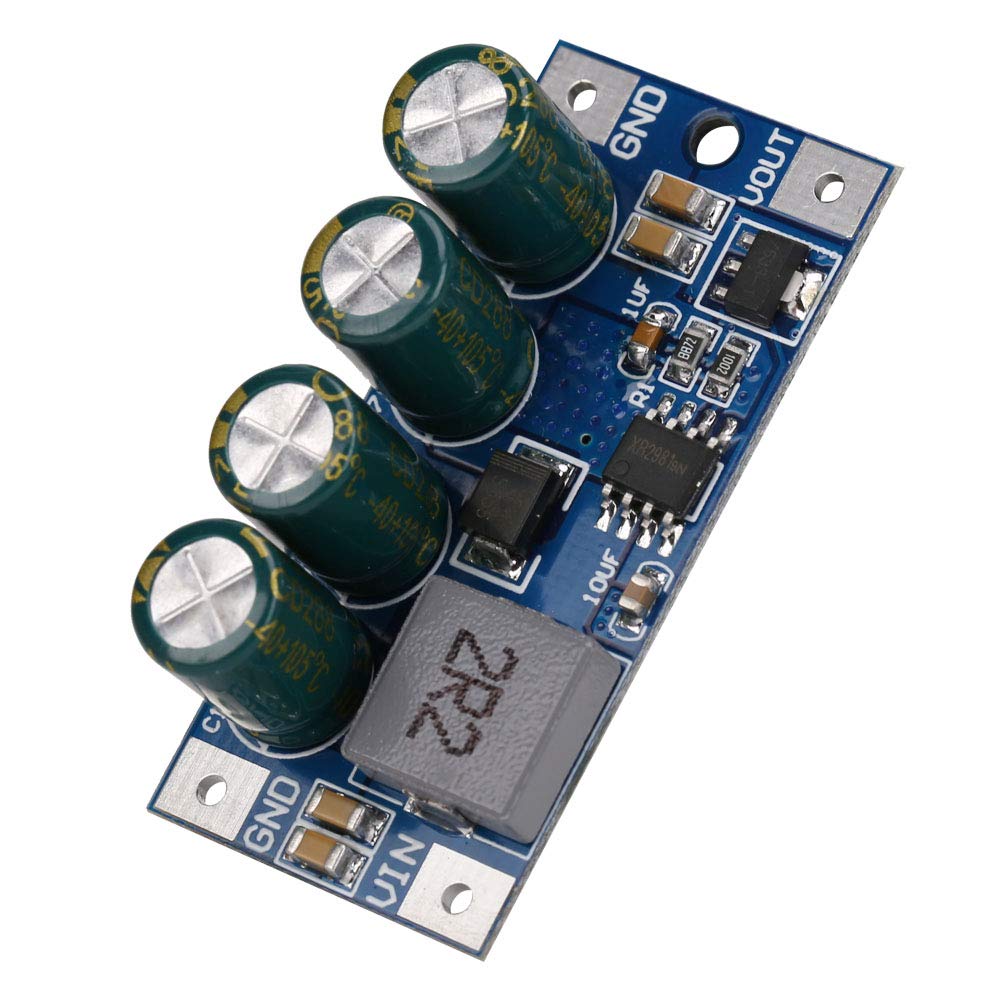

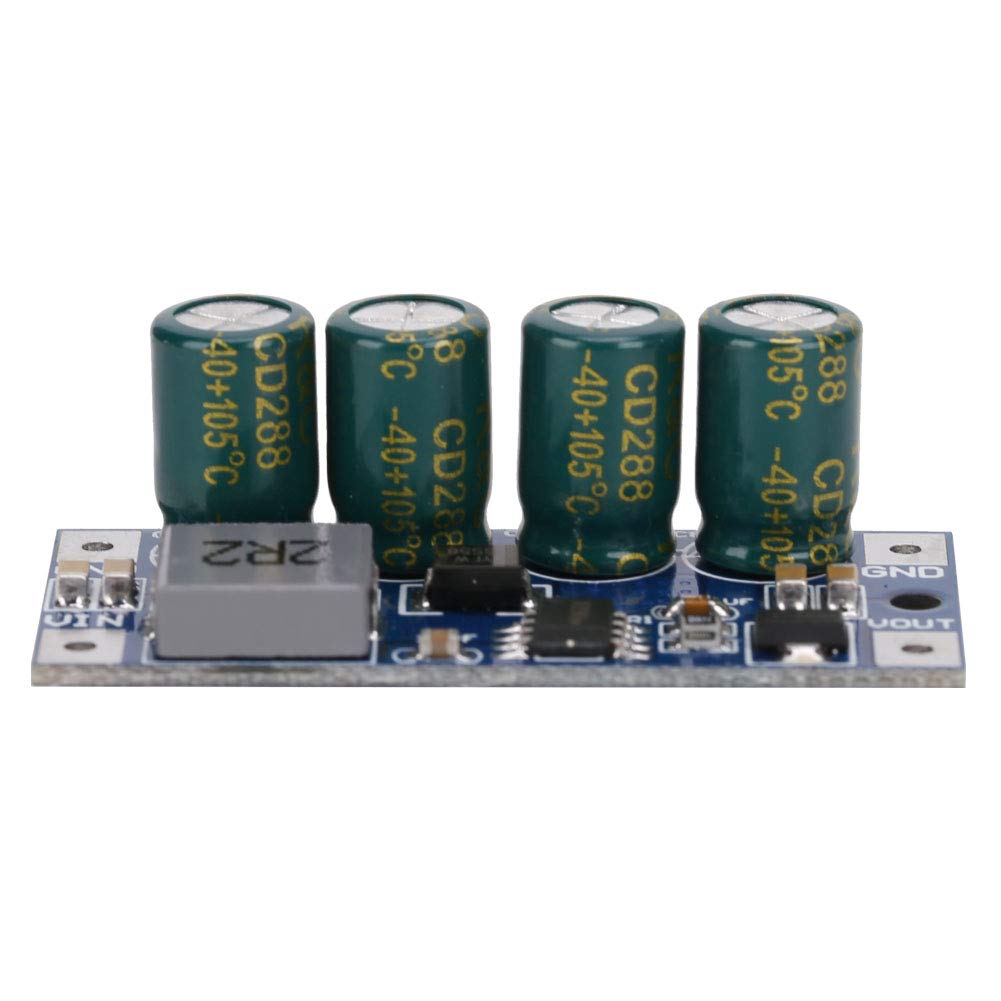

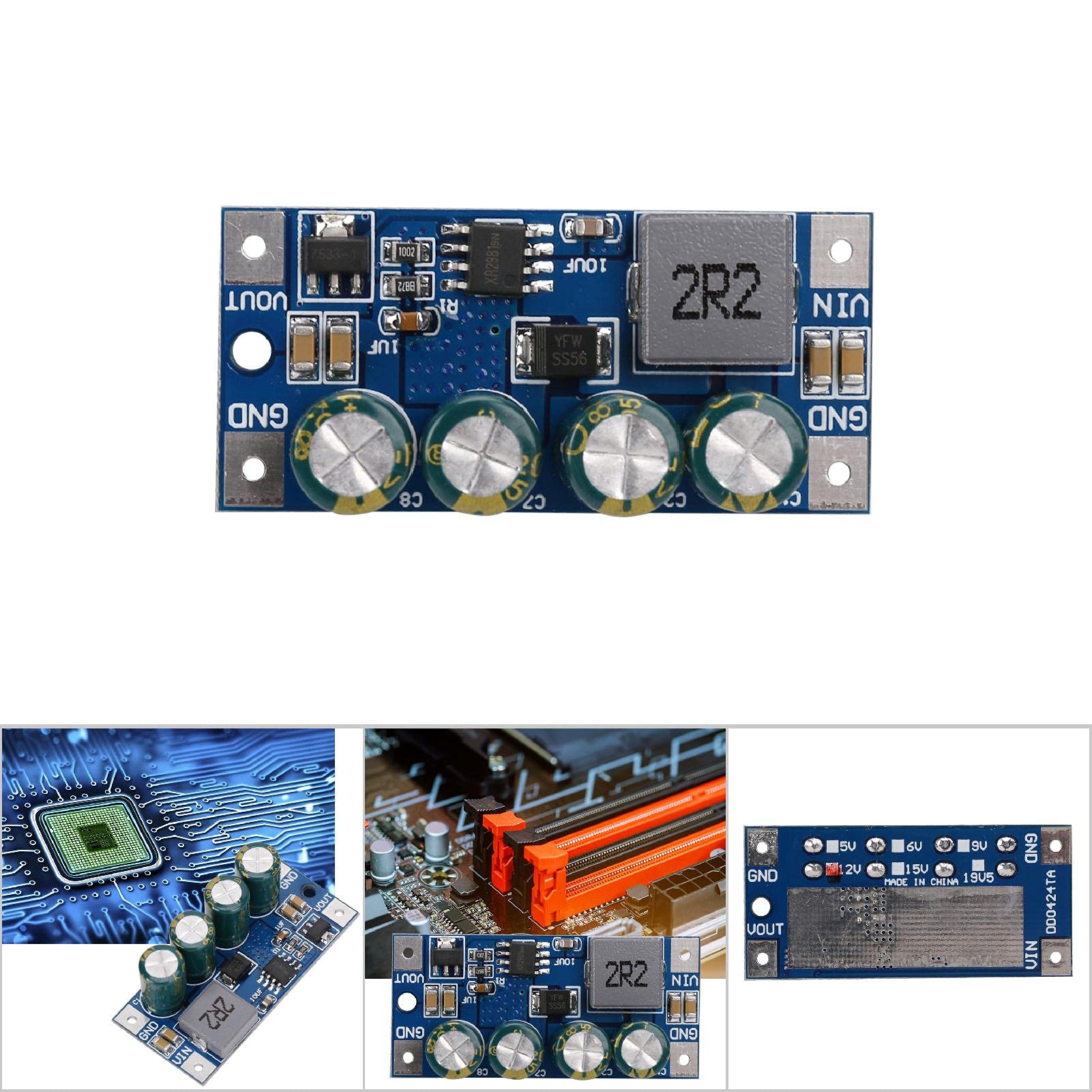

Item Type: DC-DC Boost Converter
Output Voltage: 5V 6V 9V 12V 15V 19.5V (Optional)
Working Frequency: 600KHZ
Maximum Conversion Efficiency: 94%(Normally 75%-91%)
Quiescent Current: About 1MA
Operating Temperature: -40~+85
Storage Temperature: -65~+150
Size : Approx 45x21x15mm / 1.77x0.83x0.59in
Weight : 9g
Output 5V:
Input voltage DC 3.7~4.5V, output DC 5V±3%
Maximum output: 5V / 3.5A (maximum power 17W, see picture for more details)
Output 6V:
Input voltage DC 3.7~5V, output DC 6V±3%
Maximum output: 6V / 4A (maximum power 24W, see picture for more details)
Output 9V:
Input voltage DC 3.7~8V, output DC 9V±3%
Maximum output: 9V / 5A (maximum power 45W, see picture for more details)
Output 12V:
Input voltage DC 3.7~11V, output DC 12V±3%
Maximum output: 12V / 5A (maximum power 60W, see picture for more details)
Output 15V:
Input voltage DC 3.7~14V, output DC 15V±3%
Maximum output: 15V / 4.5A (maximum power 67W, see picture for more details)
Output 19.5V:
Input voltage DC 9~18V, output DC 19.5V±3%
Maximum output: 19.5V / 3A (maximum power 58W, see picture for more details)
Package List:
1 x Boost Converter
• Conversion efficiency 94% (usually 75-91%).
• Over temperature shutdown, input under voltage and short circuit .
• On-board capacitors stabilize output voltage.
• DC-DC boost converter module, working frequency 600KHZ.
• Reasonable component layout, easy to wire and use.
Feature:
1. DC-DC boost converter module, working frequency 600KHZ.
2. Conversion efficiency 94% (usually 75-91%).
3. Over temperature shutdown, input under voltage and short circuit .
4. On-board capacitors stabilize output voltage.
5. Reasonable component layout, easy to wire and use.
Specification:
Item Type: DC-DC Boost Converter
Output Voltage: 5V 6V 9V 12V 15V 19.5V (Optional)
Working Frequency: 600KHZ
Maximum Conversion Efficiency: 94%(Normally 75%-91%)
Quiescent Current: About 1MA
Operating Temperature: -40~+85
Storage Temperature: -65~+150
Size : Approx 45x21x15mm / 1.77x0.83x0.59in
Weight : 9g
Output 5V:
Input voltage DC 3.7~4.5V, output DC 5V±3%
Maximum output: 5V / 3.5A (maximum power 17W, see picture for more details)
Output 6V:
Input voltage DC 3.7~5V, output DC 6V±3%
Maximum output: 6V / 4A (maximum power 24W, see picture for more details)
Output 9V:
Input voltage DC 3.7~8V, output DC 9V±3%
Maximum output: 9V / 5A (maximum power 45W, see picture for more details)
Output 12V:
Input voltage DC 3.7~11V, output DC 12V±3%
Maximum output: 12V / 5A (maximum power 60W, see picture for more details)
Output 15V:
Input voltage DC 3.7~14V, output DC 15V±3%
Maximum output: 15V / 4.5A (maximum power 67W, see picture for more details)
Output 19.5V:
Input voltage DC 9~18V, output DC 19.5V±3%
Maximum output: 19.5V / 3A (maximum power 58W, see picture for more details)
Package List:
1 x Boost Converter
• Conversion efficiency 94% (usually 75-91%).
• Over temperature shutdown, input under voltage and short circuit .
• On-board capacitors stabilize output voltage.
• DC-DC boost converter module, working frequency 600KHZ.
• Reasonable component layout, easy to wire and use.
