Description
Brand: YWBL-WH
Model: YWBL-WHibv12ku90n
Description:

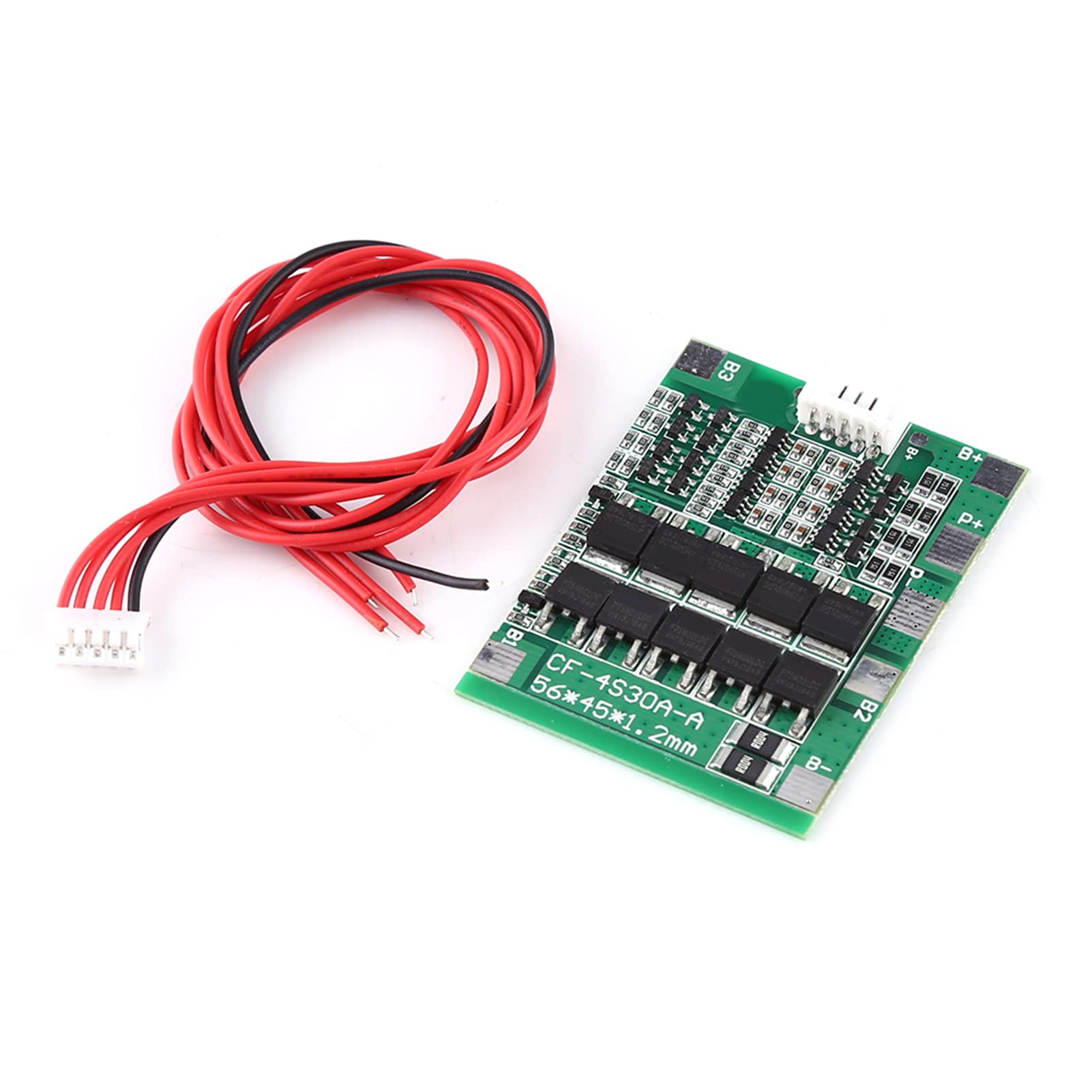

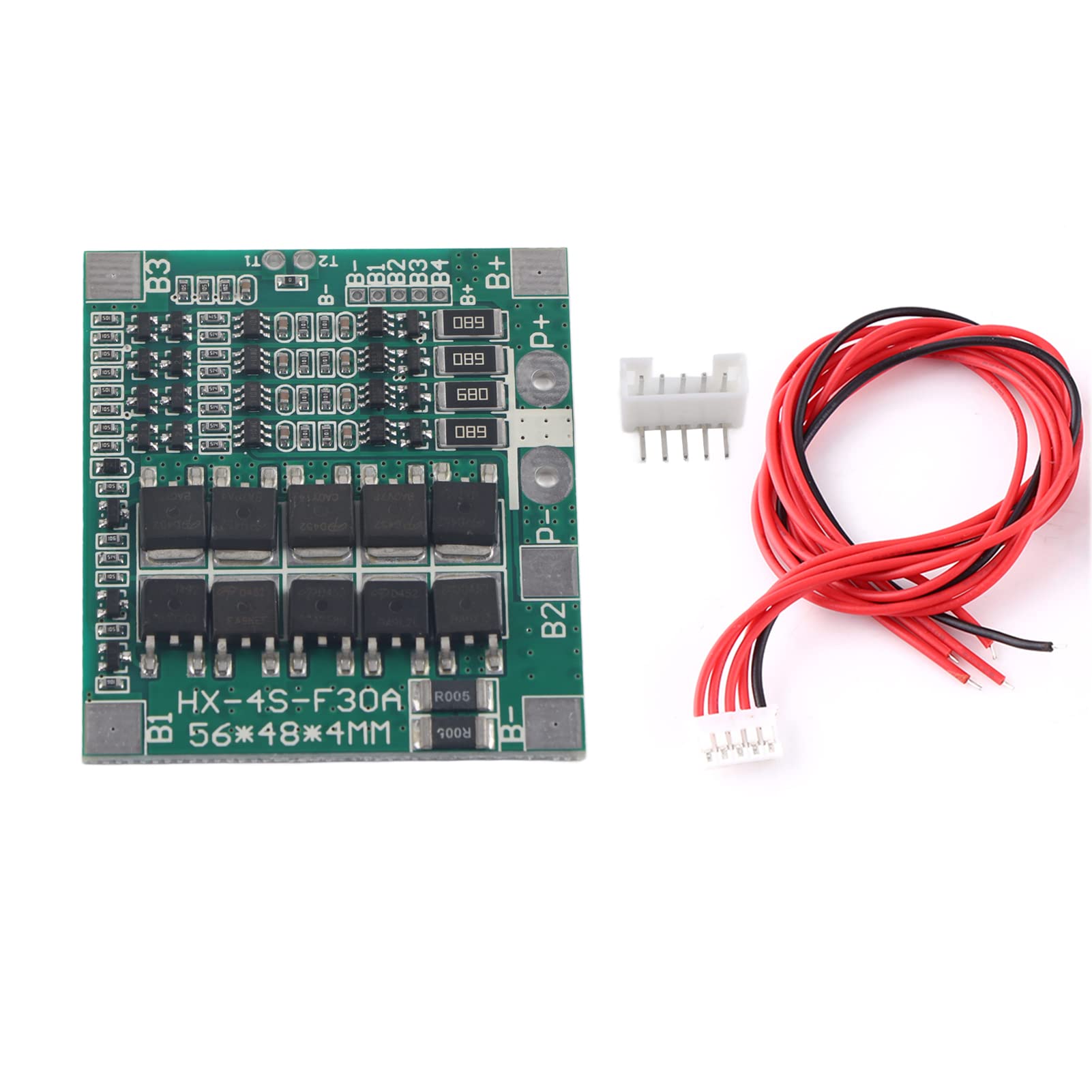

This board is 4 string 30A 14.8V lithium battery board, high current board, continuous 30A currrent, with balance circuit
Specifications:
Working current:30A
Balanced current:60mA
Over current:60A
Temperature range: -30 - +80
Over detection voltage: 4.28+ 0.05 V
Over charging voltage: 4.095-4.195V
Over discharge voltage: 2.55±0.08
Over detection delay time:0.1s
Short circuit detection delay time:100ms
Over current detection delay time:500 ms

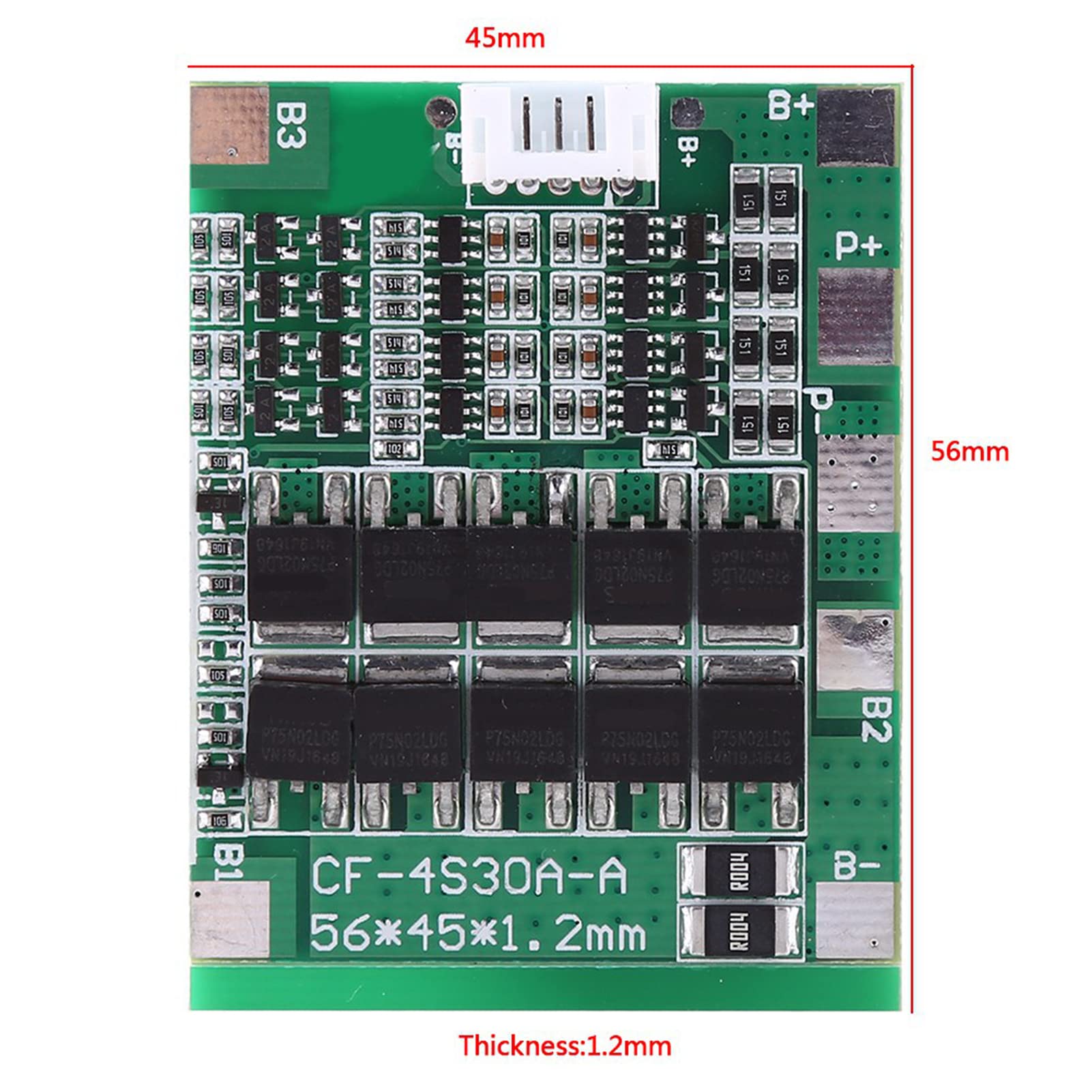

Size:56×45×1.2mm
Weight:18g
Main function:
Over , over discharge function, short circuit
function, over current function, balance.
Interface definition:
Charging port of the plate and the discharge port is the same, both positive and B- connecting
battery"-", P- charging port and port on the negative electrode;
B-, N-, P- pads are all over the hole, the hole diameter of the pad is 3.5mm;
The battery charging detection interface with DC output in the form of needle. Do the same mouth
when the N- is not wiring.
Package Includes:
1×4S 30A 14.8V board
Note:
1.Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same
2. The cable color is random, please take the real one as standard
• Specification Features: Working current: 30A
• balance current: 60mA
• overcurrent: 60A
• overcharge detection delay: 0.1s.
• High Balance: The battery circuit board adopts chip, high power internal , only for the safety and stability of lithium batteries, and also has the function of balancing the control voltage, to ensure that each battery is fully charged at the same time, to improve the overall performance of the battery.
• and Safety: The circuit board will the battery pack from overcharging, over-discharging, over-current and short-circuit, the circuit board is the heart of the battery pack, it must be there in order to avoid the battery pack from exploding, and being damaged.
• Battery: Choosing the right board and using it reasonably is crucial to the life of the battery.
• Brand new and high quality.
Color: Green
