Description
Brand: Yjntoximc
<p><b>Features:</b></p> <p> </p> <p><b>1. 5 x 10/100/1000BASE-T ports</b></p> <p> </p> <p>2. 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with PoE Injector (Port-1 to Port-4)</p> <p> </p> <p><b>3. 12~24VDC range power input, 24V PoE output</b></p> <p> </p> <p>4. Supports DIN-Rail and Wall-mount installation</p> <p> </p> <p>5. Industry standard design, dustproof and close design IP40, rugged high-strength metal case</p> <p> </p> <p>6. -40°C to 80°C (-40°F to 176°F) operating temperature</p> <p> </p> <p><br></p> <p><br></p> <p><b>Specifications:</b></p> <p> </p> <p>Packet Buffer: 1Mbits</p> <p> </p> <p>Packet Length: 9K </p> <p> </p> <p>MAC Address Table: 4K</p> <p> </p> <p>Forward & Filtering Rate: 14,880pps (10Mbps)/148,800pps (100Mbps)/1,488,000pps (1000Mbps)</p> <p> </p> <p>Power Pin Assignment: 4/5(+), 7/8(-)</p> <p> </p> <p><b>Input Power: 12~24VDC (Terminal Block)</b></p> <p> </p> <p>Power Input Overload: Automatic Resettable</p> <p> </p> <p>Reverse Polarity: Present</p> <p> </p> <p><b>Power Consumption: 78W Max. (PoE in use) & <5W (Non-PoE)</b></p> <p> </p> <p>Material: Aluminum Case</p> <p> </p> <p>ltem Dimensions LxWxH : 3.74x 2.76 x 1.15

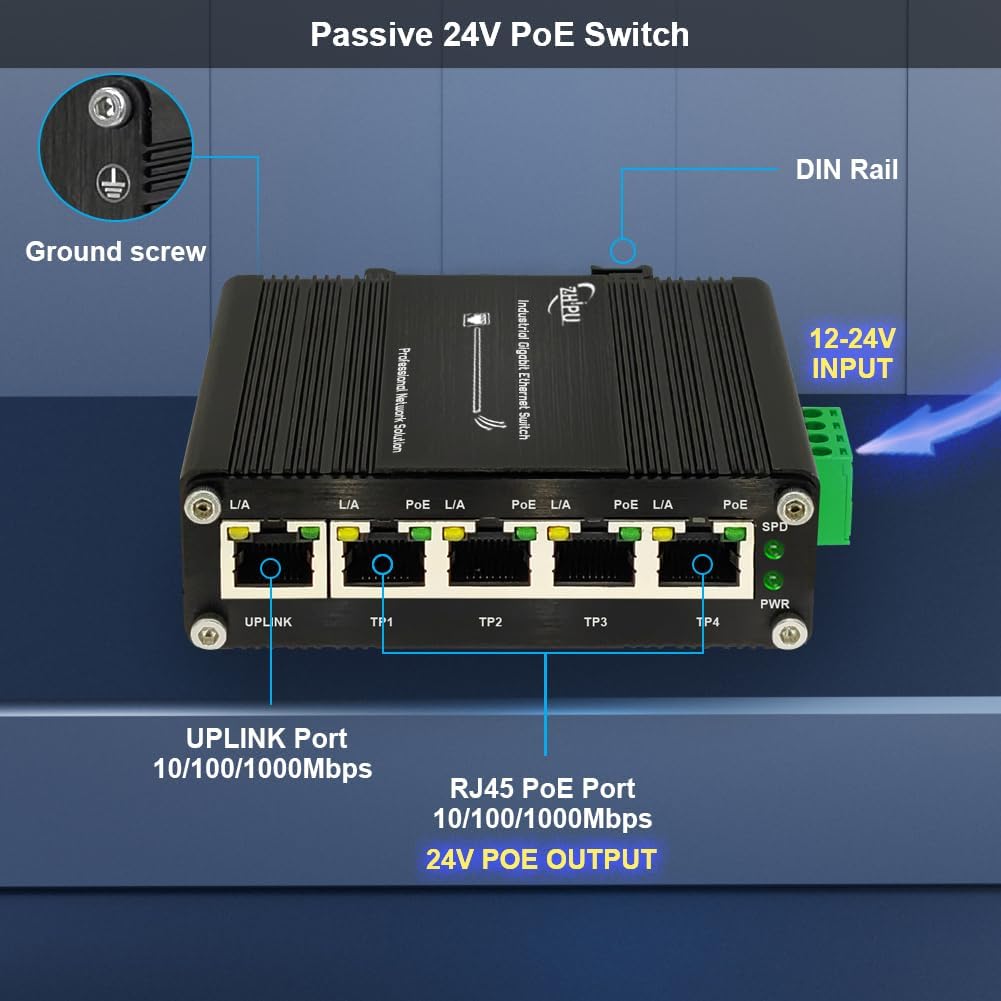

• ??????????-?????? ?????????????? ?????? ???????????? The passive 5-Port Ethernet PoE switch supports 12-24V DC input and increases voltage to 24V PoE output.

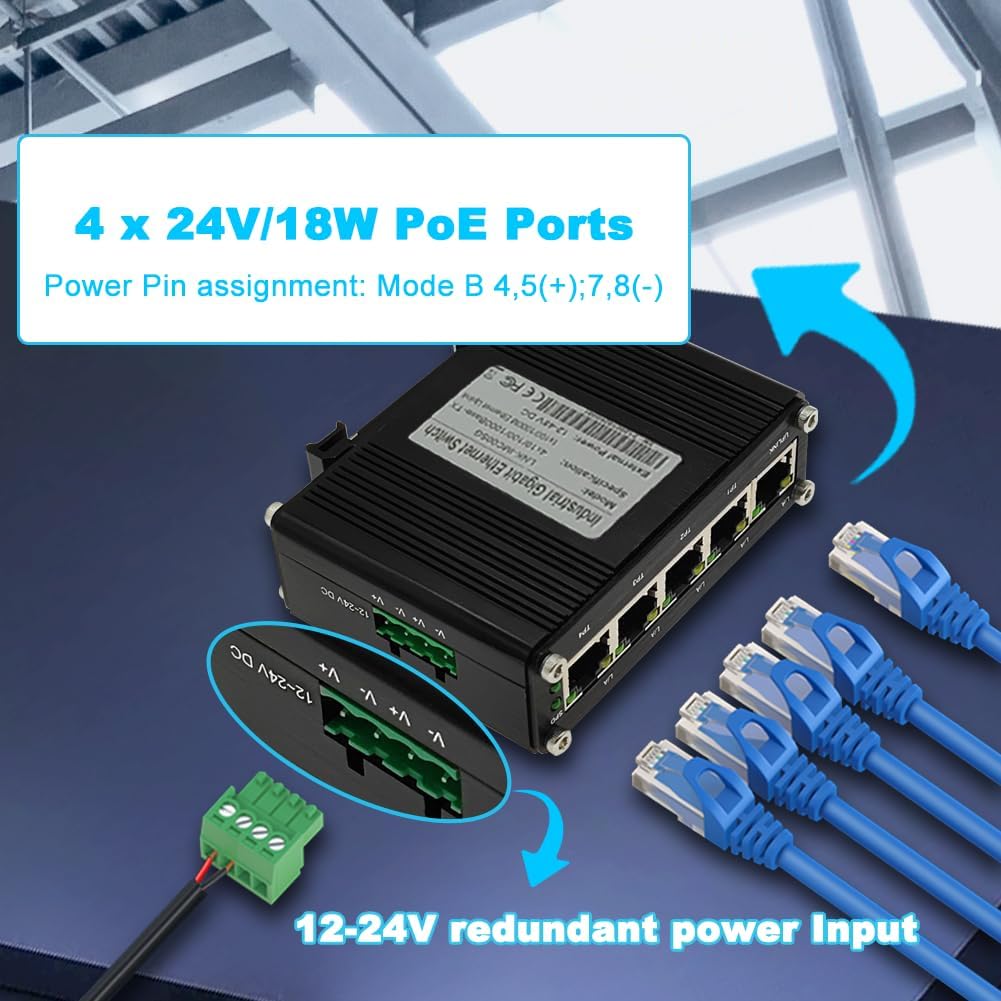

• ??-???????? ???????? ?????????????? ?????? ???????????? Provide 4 x 24V/18W PoE Ports and 1 Gigabit uplink
• All ports 10/100/1000Mbps self-adaptive full duplex
• Total POE budget 72W (DC12V-24V input) .
• ???????????????????? ???????????? Compact IP40 rugged metal enclosure
Color: Black
<p><b>Features:</b></p> <p> </p> <p><b>1. 5 x 10/100/1000BASE-T ports</b></p> <p> </p> <p>2. 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with PoE Injector (Port-1 to Port-4)</p> <p> </p> <p><b>3. 12~24VDC range power input, 24V PoE output</b></p> <p> </p> <p>4. Supports DIN-Rail and Wall-mount installation</p> <p> </p> <p>5. Industry standard design, dustproof and close design IP40, rugged high-strength metal case</p> <p> </p> <p>6. -40°C to 80°C (-40°F to 176°F) operating temperature</p> <p> </p> <p><br></p> <p><br></p> <p><b>Specifications:</b></p> <p> </p> <p>Packet Buffer: 1Mbits</p> <p> </p> <p>Packet Length: 9K </p> <p> </p> <p>MAC Address Table: 4K</p> <p> </p> <p>Forward & Filtering Rate: 14,880pps (10Mbps)/148,800pps (100Mbps)/1,488,000pps (1000Mbps)</p> <p> </p> <p>Power Pin Assignment: 4/5(+), 7/8(-)</p> <p> </p> <p><b>Input Power: 12~24VDC (Terminal Block)</b></p> <p> </p> <p>Power Input Overload: Automatic Resettable</p> <p> </p> <p>Reverse Polarity: Present</p> <p> </p> <p><b>Power Consumption: 78W Max. (PoE in use) & <5W (Non-PoE)</b></p> <p> </p> <p>Material: Aluminum Case</p> <p> </p> <p>ltem Dimensions LxWxH : 3.74x 2.76 x 1.15
• ??????????-?????? ?????????????? ?????? ???????????? The passive 5-Port Ethernet PoE switch supports 12-24V DC input and increases voltage to 24V PoE output.
• ??-???????? ???????? ?????????????? ?????? ???????????? Provide 4 x 24V/18W PoE Ports and 1 Gigabit uplink
• All ports 10/100/1000Mbps self-adaptive full duplex
• Total POE budget 72W (DC12V-24V input) .
• ???????????????????? ???????????? Compact IP40 rugged metal enclosure
Color: Black
