Brand: LIBO Smart Home

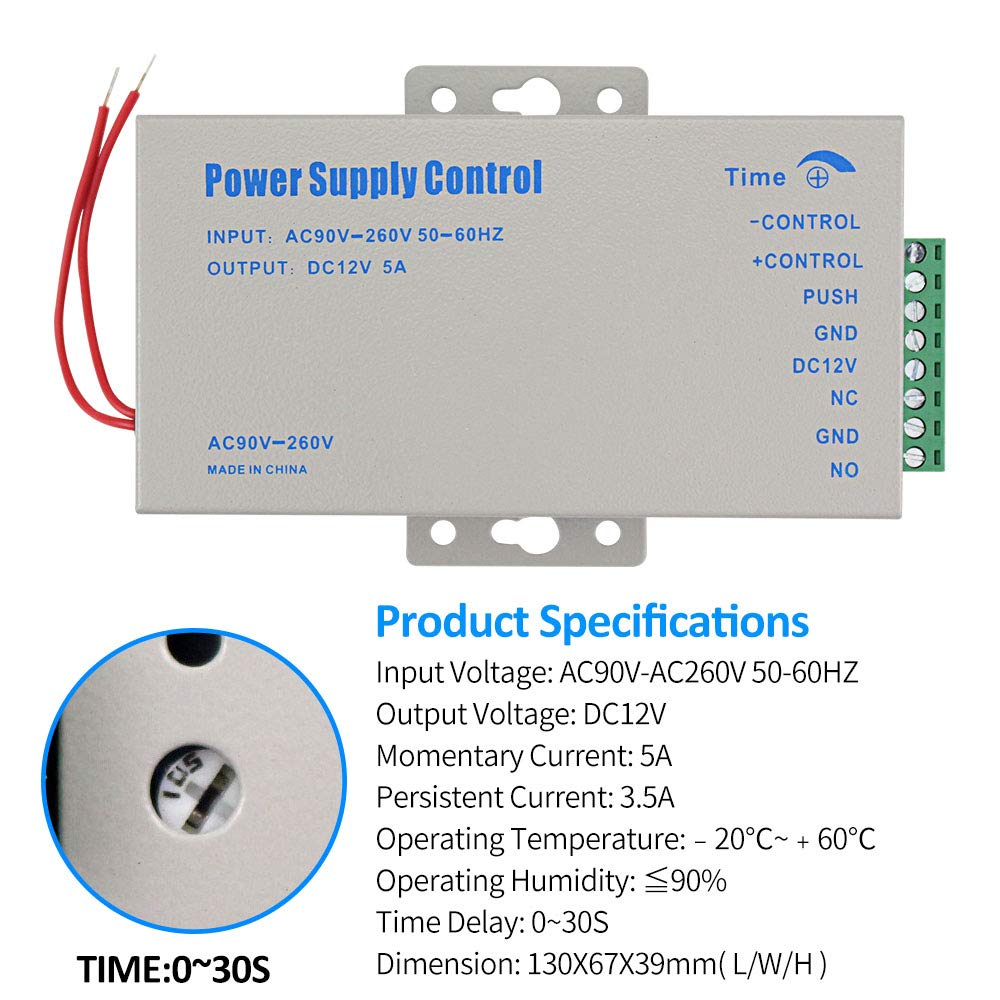

Specifications:

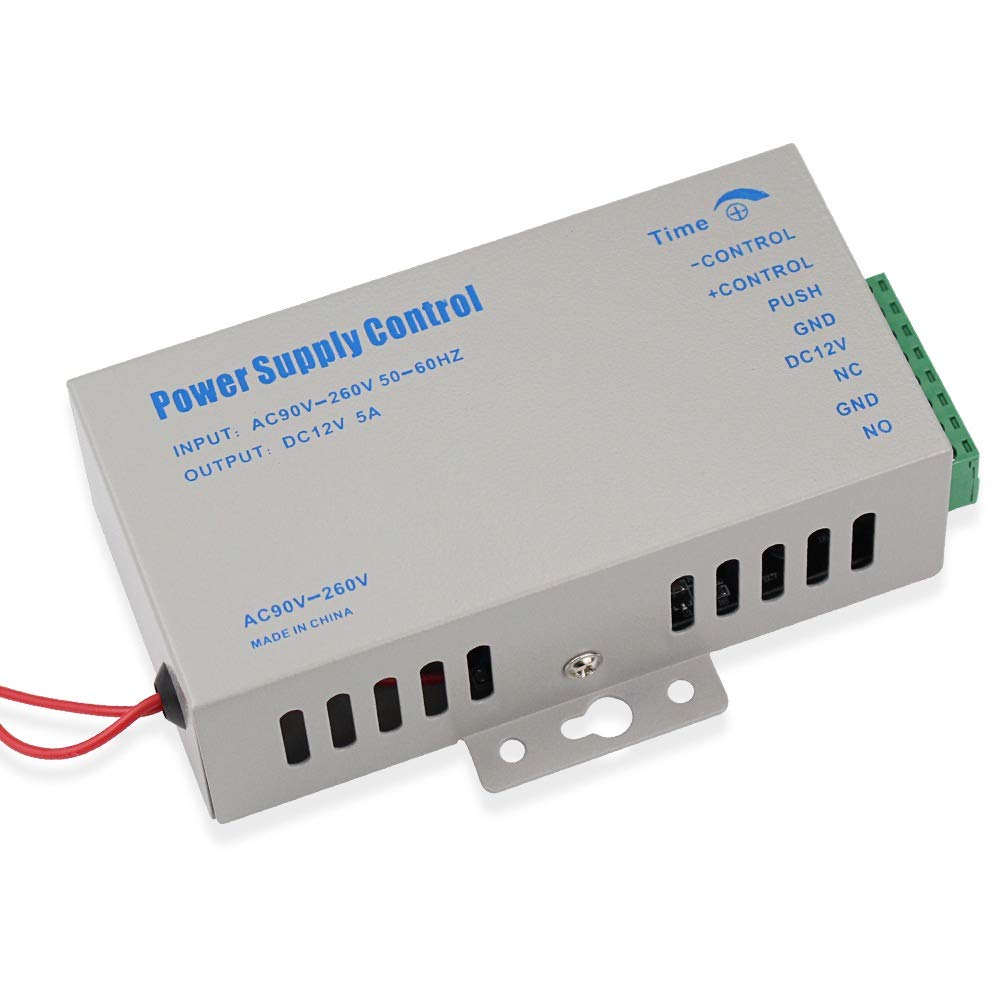

Model: K80-5A

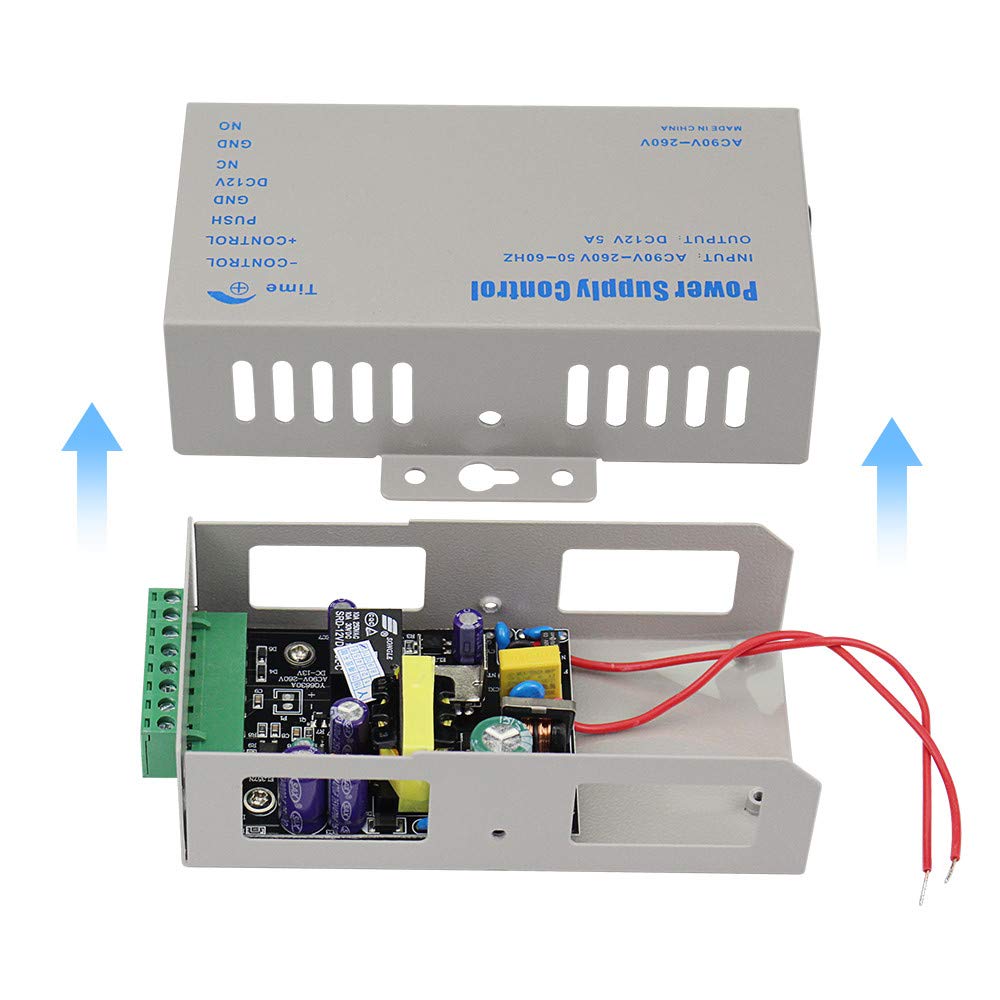

Enclosure Material: Aluminum alloy

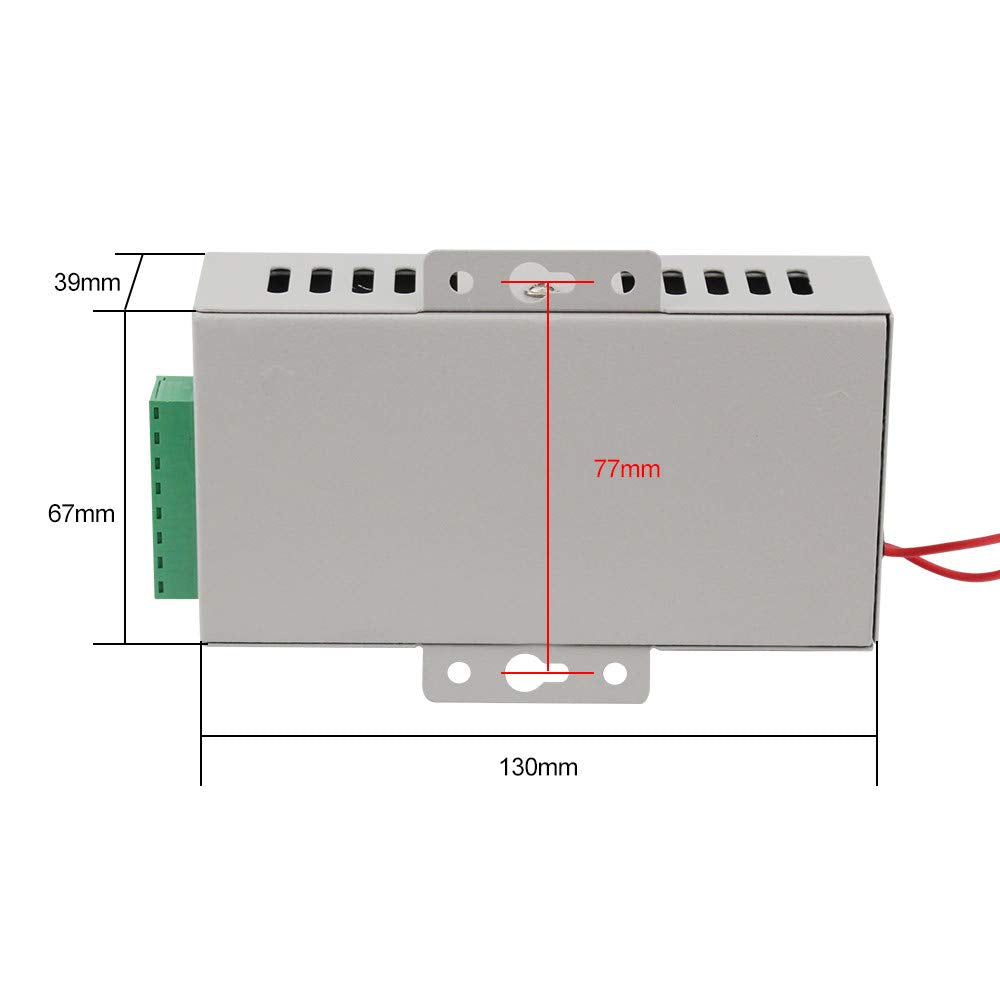

Size: aprox. 13x6.7x3.9 cm (L x W x H)
Input Voltage: AC 90 ~ 260 V / 50 ~ 60Hz
Output Voltage: DC 12 V / 5A
Adjustable unlock time: 0~15 seconds
Automatic protection function:overload/ over voltage/ short circuit

Features:
1. Aluminum alloy enclosure with good heat dissipation, light weight, convenient transportation
2. Wide input voltage range, steady and precise, small disturbance
3. Reduce the load of access controller, save wiring to reduce the hidden trouble
4. 5A power load, NC / NO / COM outputs, can control various types of electric locks, suitable for electric control lock, bolt lock, magnetic lock, cathode lock
5. When the output circuit is short-circuited, it will be automatically disconnected, and automatically return to normal state when the fault is removed
6. Based delay control circuit, It can set time lapse control circuit and unlocking time can be in 0-15 seconds adjustable. (it is arbitrarily adjustable)

Warm Tips:
1. For indoor use only.
2. Supports to connect with 2 electric locks at the same time.
3. Opening time must set to 0 second when connecting with electric controlled lock. Otherwise electric bolt lock would be Burned Down.

• Introduction: This power supply for door access control is a transformer which provides stable output voltage for video doorbell, access controller, electric door lock, and exit button
• Work voltage & current: Input: Standard AC60V-260V/50-60HZ, 36W; Output: DC12V/ 5A
• Lock control: Set NC / NO outputs, can control various types of electric locks
• Safety: With overload, overvoltage, short circuit and other automatic protection functions, the power supply will work safer
• Applications: The scope of application of the power applied to a variety of building intercom, villa doorbell, aparment doorphone, home video door phone controller, access a variety of import and export controls
