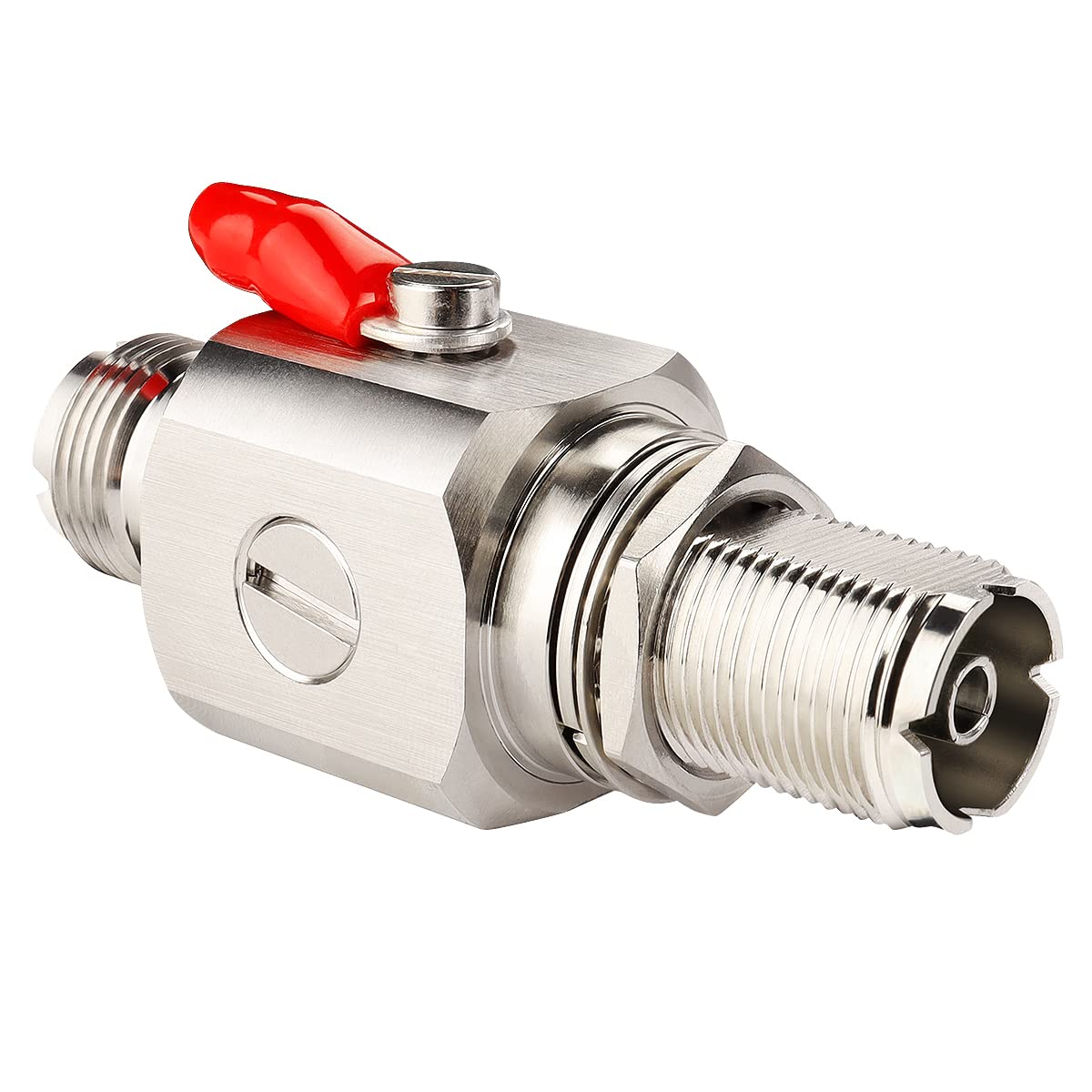

XRDS -RF Coaxial SO239 Lightning Arrestor Surge Protector UHF Female to UHF Female 50 Ohm

1. This lightning arrester uses gas discharge tube is designed to protecting connected equipment against transients and surges caused by lightning strikes.

2. SO239 arrester surge protector is suitable for applications where DC is carried through the coax cable. Both UHF connector ports can be installed in either orientation.

3. Coaxial lightning surge Protector installs inline with Coax antenna cable of Ham Radios, CB and two way radio antennas.

??: Please noted that this lightning surge protector is only for UHF connector coax cable.

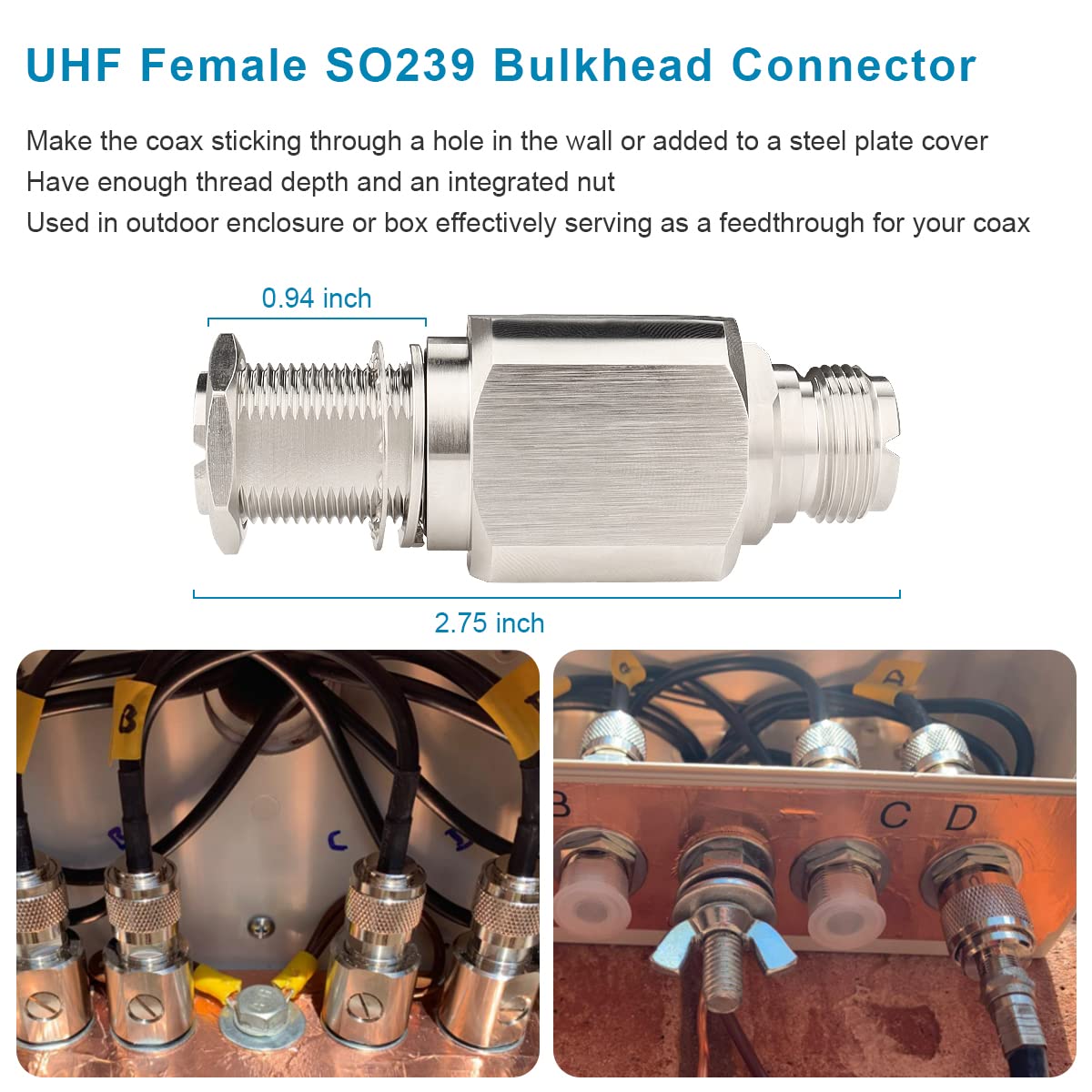

With Bulkhead?it has enough thread depth and an integrated nut to allow you to bulkhead mount them through a wide copper strip or used in outdoor enclosure or box effectively serving as a feedthrough for your coax.

Specifications:

Max Power: 200W

Low loss: < 0.4db
Low VSWR: < 1.2
Frequency Range: DC~500MHz
Impedance: 50 ohm
Gas Discharge Tube Voltage: 230V±20%
Rated working voltage: 750V
Contact resistance: Inner conductor ?5m?; Outer conductor ?5m?
Insulation resistance: ?5000M?
Dielectrics voltage resistance: 2000V
Connector Types: UHF-Female to UHF-Female

Package Include:

1 x UHF female to female lightning arrestor

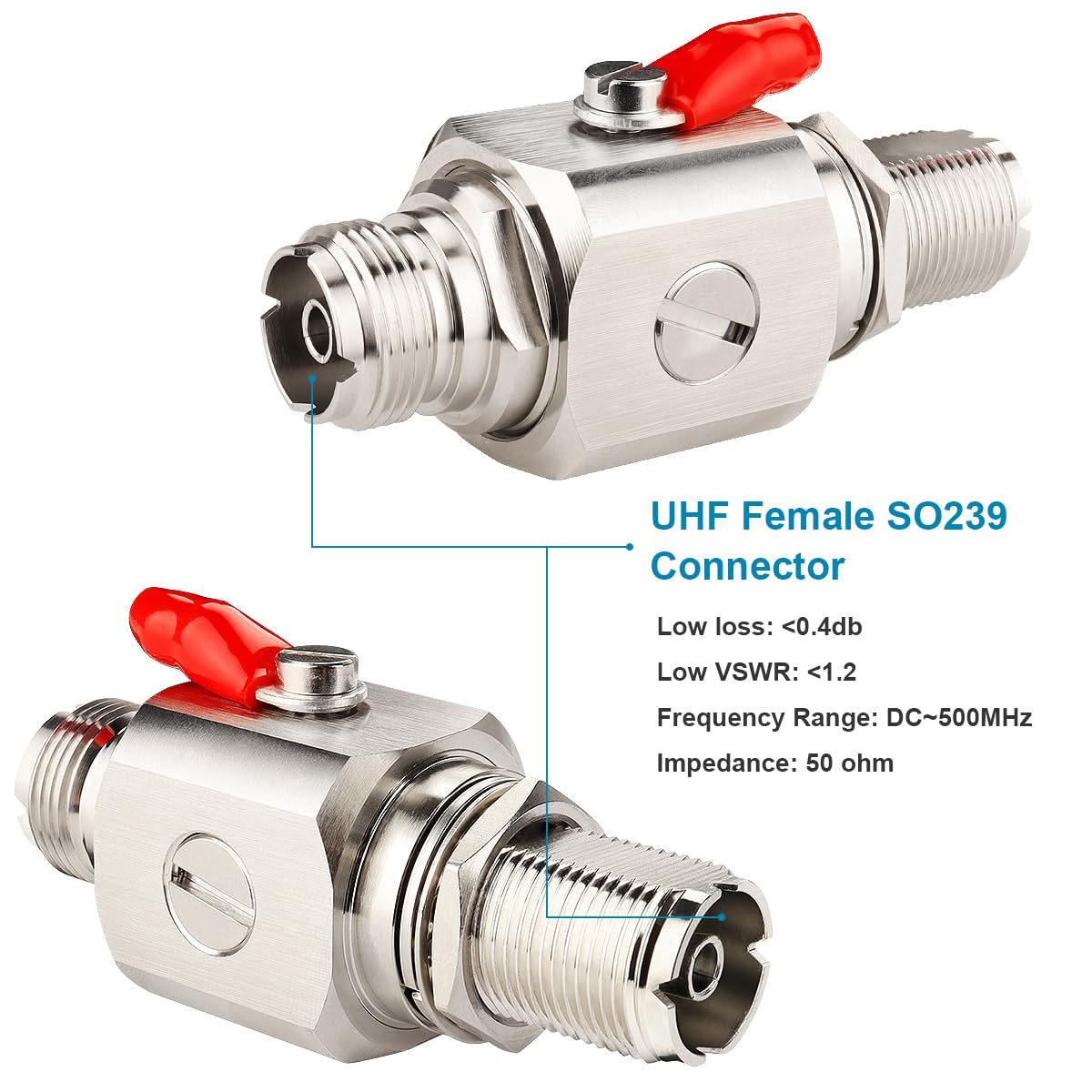

• Low Loss Low Vswr - 50 Ohm Coaxial Lightning Arrester UHF Type Female to Female, Low RF insertion loss less than 0.4dB. VSWR less than 1.2. Reliable Frequency-Band Performance from DC~500MHz.
• High Quality Construction - The UHF lighting surge protector has good quality constructions.The lightning arrestor/surge protector is well made? Body: brass nickel plated
• Inner conductor: brass
• Insulator: Teflon(PTFE)
• Coating: nickel electroplating.
• With Bulkhead - This SO-239 lightning arrestor with UHF-female Connectors in two side?and it has enough thread depth and an integrated nut to allow to bulkhead mount them through a wide copper strip,or used in outdoor enclosure or box effectively serving as a feedthrough for your coax.

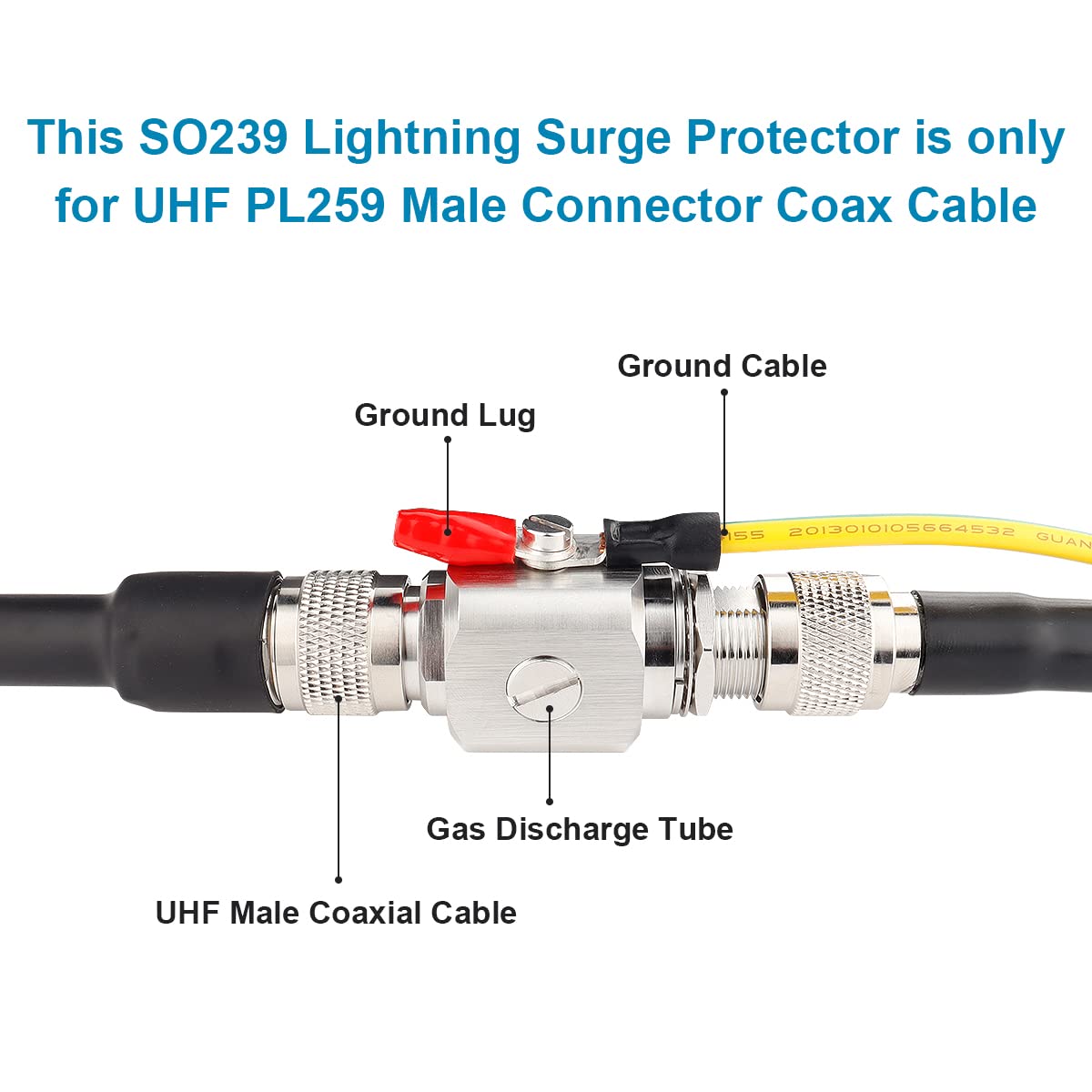

• Protection - Requires additional ground cable. Protect your equipment from dangerous lightning strikes or electrical surges by installing the lightning arrestor between the amplifier and the outdoor antenna.
• Application - A great UHF lightning protection solution for Ham radio, CB Radio, 2-Way Base Stations and other lower frequency Antenna.
