Description
Brand: XIITIA
Features:

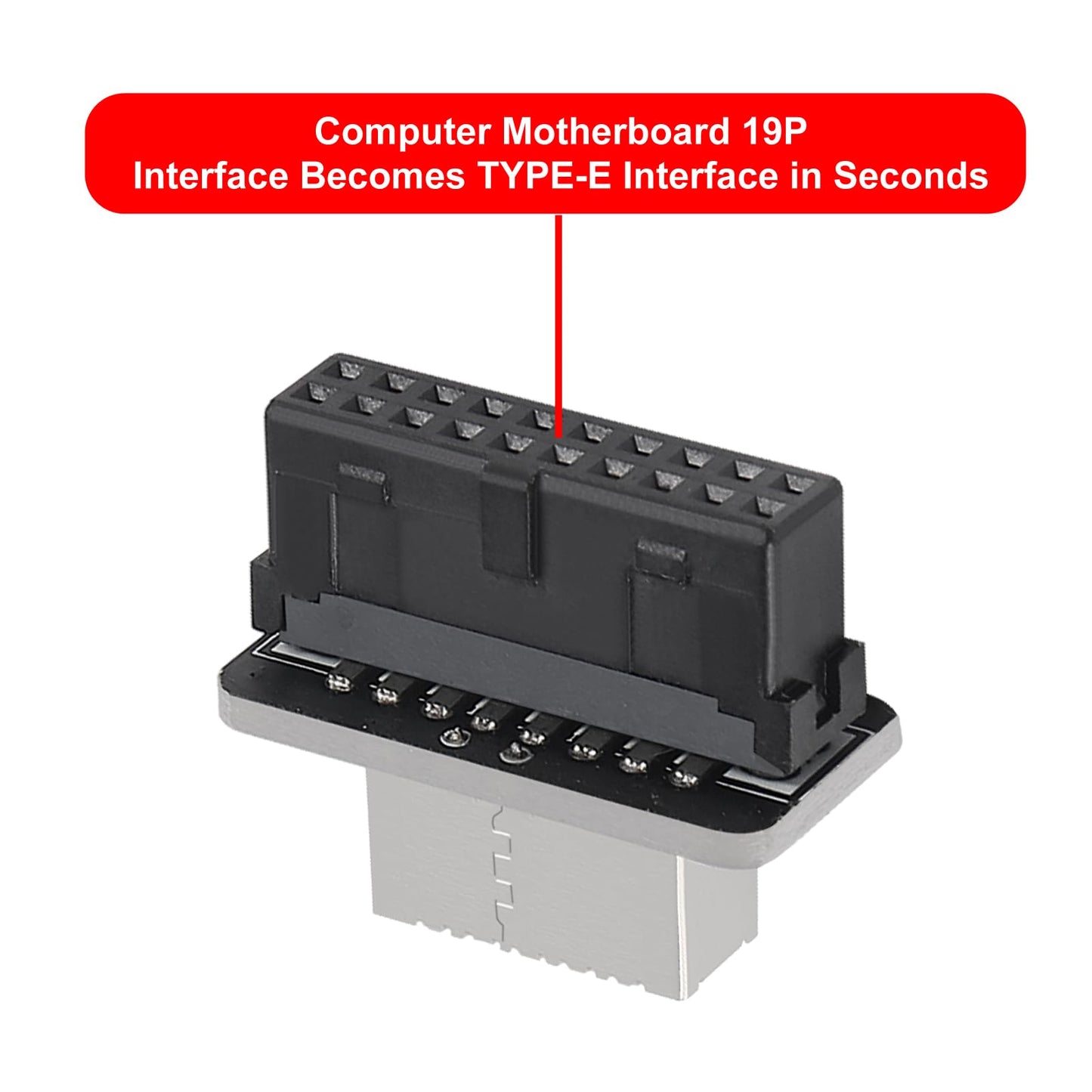

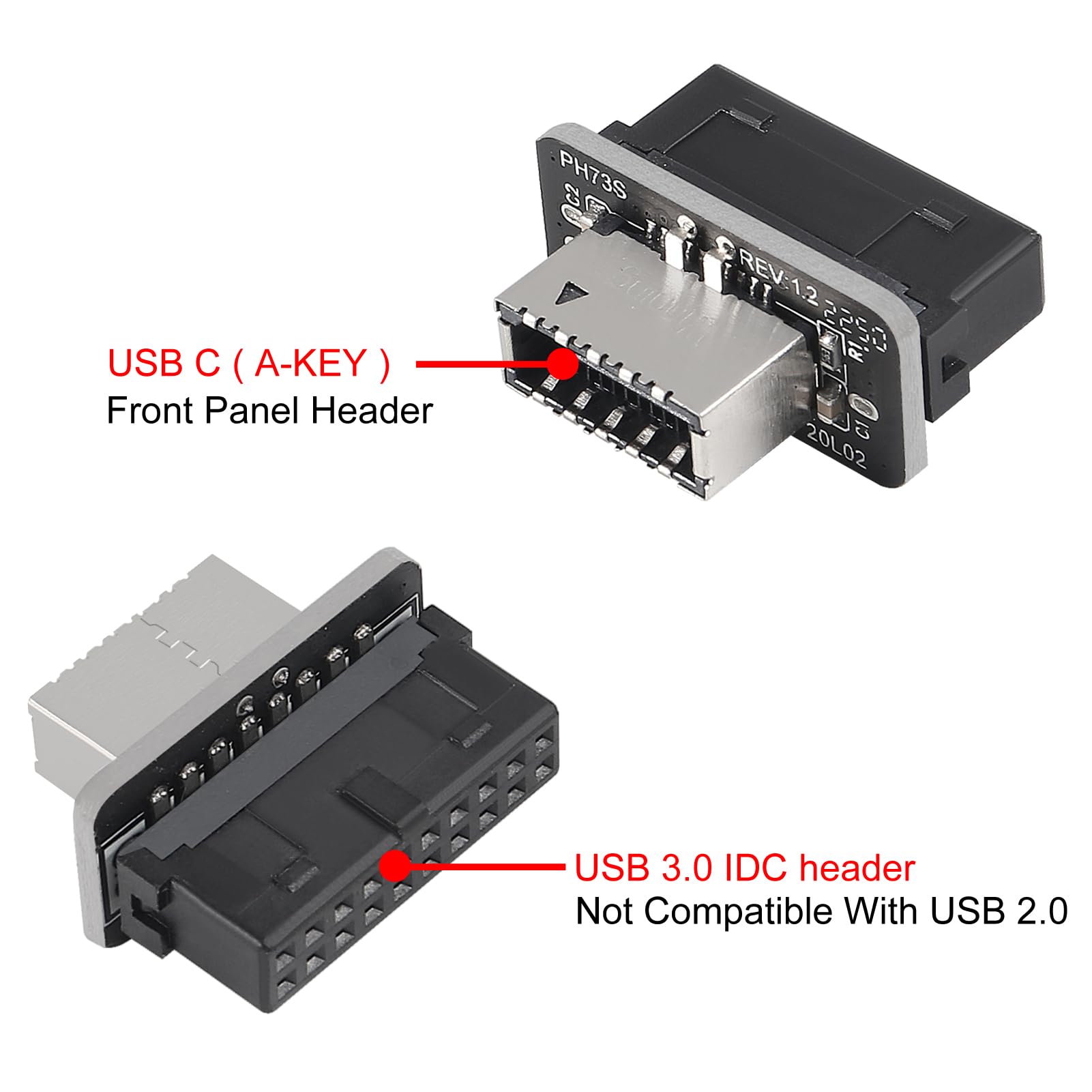

Connector 1 (motherboard) : USB 3.0 Internal IDC 19 Pin MB Male Housing Header
Connector 2 (front panel) : USB 3.1 A-Key 20 Pin Front Panel Female Header
Material: ABS+Metal
Transmission Speed: Support USB3.1 Gen2 10Gbps (Depending on the transmission speed of the host)
Note: Does not convert from 5GB/s to 10GB/s. Not compatible with USB 2.0 IDC sockets.

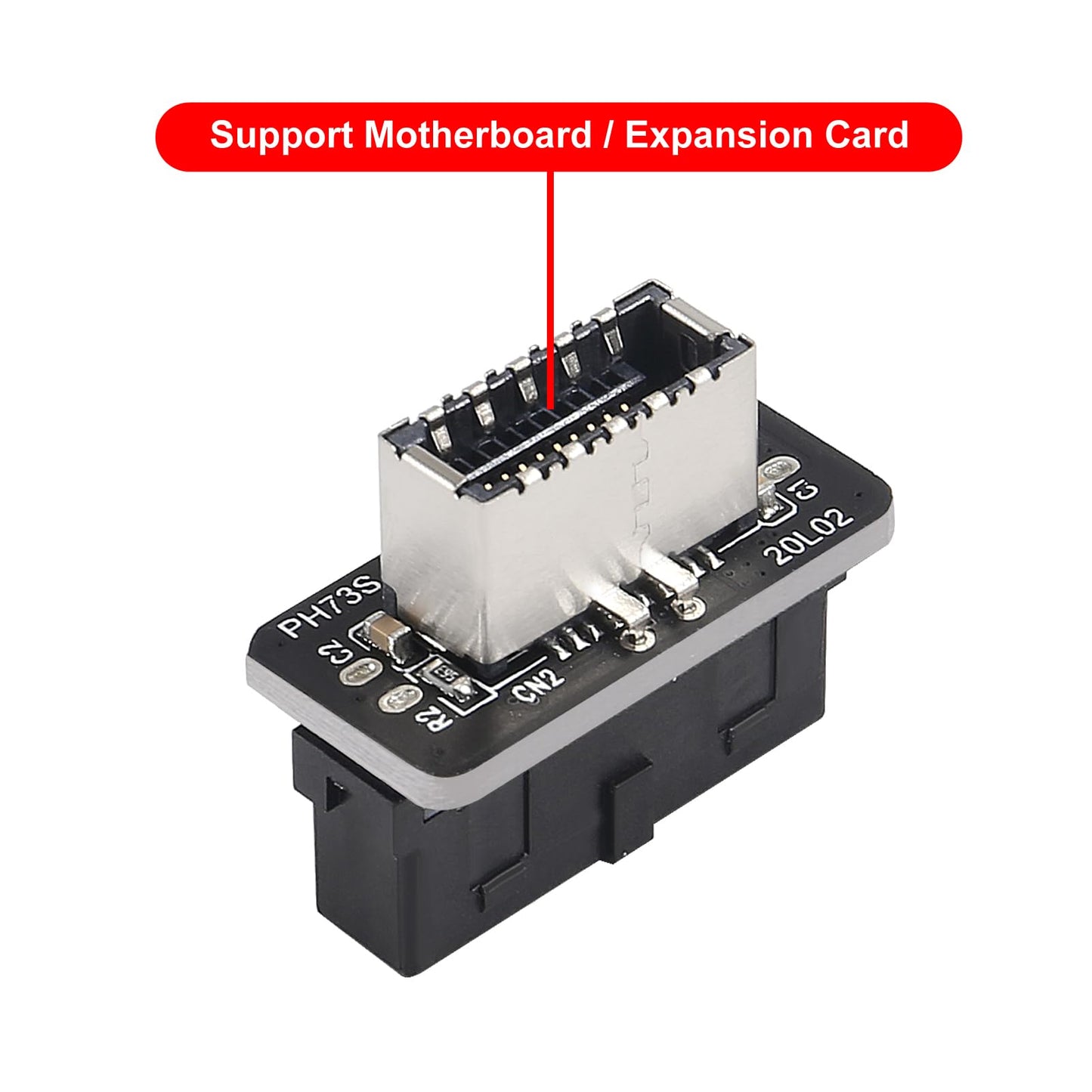

Supports all motherboards with USB 3.0/ 3.1 19-pin header.
Easy way to access USB-C and support front panel header, doesn't require to have latest motherboard to experience USB-C technology.
Compatible with both USB 3.0 or USB 2.0 devices when both motherboard USB 3.0 & USB 2.0 headers are connected. Support Win 7/Win 8/Win 10 32/64Bit/MAC/Linux computer system.
Using high quality PCB circuit board, the signal is more stable, and the anti-interference ability is strong. Good connector metal contacts make the product reach a stable working state.
The USB Type E adapter is specially designed for the TYPE-E interface, simplifying the connection between the motherboard and the TYPE-C cable. Please unplug the power cord and wait 10 seconds before installation.
This product is plug and play without any driver.
• ★Vertical transfer, small size, no interference with other multi-layer circuit boards, integrated differential signal optimization technology, stable signal, strong anti- interference ability,The adapter is the perfect solution to use the USB 3.1 connectors with Type-C or Type-A.
• ★Support all motherboard USB3.0/3.1 (19PIN) interfaces, which can convert the available USB 3.0 connectors on the motherboard to USB 3.1 connectors, so the USB 3.1 port of the shell can also be provided with USB 3.1 without the need for a suitable motherboard.
• ★Bundled in USB 3.1 at speeds up to 10Gbps (depending on the host-side transfer speed). Provides a complete USB 3.1 port that can be inserted into a USB 3.0 header that provides two USB 3.0 channels.
• ★The interface is USB3.0 19PIN TYPE-E 20PIN Front Panel Headerr, the connection is stable. Installed on the PCI bracket, it can help you easily connect devices with C-type interfaces.
• ★The power from the USB 3.0 header on the motherboard has a power rating at 4.5W (0.9A x 5V). However, many USB-C devices can withdraw power up to 100W (20A x 5V). This may result in a power shut down to protect the motherboard and its components.
Color: others
Connector: B0CHW48147
Features:
Connector 1 (motherboard) : USB 3.0 Internal IDC 19 Pin MB Male Housing Header
Connector 2 (front panel) : USB 3.1 A-Key 20 Pin Front Panel Female Header
Material: ABS+Metal
Transmission Speed: Support USB3.1 Gen2 10Gbps (Depending on the transmission speed of the host)
Note: Does not convert from 5GB/s to 10GB/s. Not compatible with USB 2.0 IDC sockets.
Supports all motherboards with USB 3.0/ 3.1 19-pin header.
Easy way to access USB-C and support front panel header, doesn't require to have latest motherboard to experience USB-C technology.
Compatible with both USB 3.0 or USB 2.0 devices when both motherboard USB 3.0 & USB 2.0 headers are connected. Support Win 7/Win 8/Win 10 32/64Bit/MAC/Linux computer system.
Using high quality PCB circuit board, the signal is more stable, and the anti-interference ability is strong. Good connector metal contacts make the product reach a stable working state.
The USB Type E adapter is specially designed for the TYPE-E interface, simplifying the connection between the motherboard and the TYPE-C cable. Please unplug the power cord and wait 10 seconds before installation.
This product is plug and play without any driver.
• ★Vertical transfer, small size, no interference with other multi-layer circuit boards, integrated differential signal optimization technology, stable signal, strong anti- interference ability,The adapter is the perfect solution to use the USB 3.1 connectors with Type-C or Type-A.
• ★Support all motherboard USB3.0/3.1 (19PIN) interfaces, which can convert the available USB 3.0 connectors on the motherboard to USB 3.1 connectors, so the USB 3.1 port of the shell can also be provided with USB 3.1 without the need for a suitable motherboard.
• ★Bundled in USB 3.1 at speeds up to 10Gbps (depending on the host-side transfer speed). Provides a complete USB 3.1 port that can be inserted into a USB 3.0 header that provides two USB 3.0 channels.
• ★The interface is USB3.0 19PIN TYPE-E 20PIN Front Panel Headerr, the connection is stable. Installed on the PCI bracket, it can help you easily connect devices with C-type interfaces.
• ★The power from the USB 3.0 header on the motherboard has a power rating at 4.5W (0.9A x 5V). However, many USB-C devices can withdraw power up to 100W (20A x 5V). This may result in a power shut down to protect the motherboard and its components.
Color: others
Connector: B0CHW48147
