Brand: XIITIA

Model: B0C6KKYCQH

Specifications:
Type: Non-isolated boost module
Input Voltage: DC8.5V to 50V
Output Voltage: DC10V to 60V (continuously adjustable, default 19V) Max. Input
Current: 15A (please enhance heat dissipation if more than 8A)
Max. Output Current: 12A (related to the input and output voltage difference, the greater voltage difference is, the smaller output current will be. please enhance heat dissipation when current is over 7A)
Quiescent Current: 10mA(will increase when convert 12V to 20V)
Constant Current Range: 0.2A to 12A
Output Power = Input Voltage*Current
Operating Temperature: -40 to 85(if temperature is too high, please enhance heat dissipation)
Frequency: 150KHz
Max. Conversion Efficiency: 96% (Efficiency is related to input/output voltage, current and voltage difference)
Over Current Protection: Yes (if input current is more than 15A, it will automatic reduce output voltage)
Reverse Input Protection: No

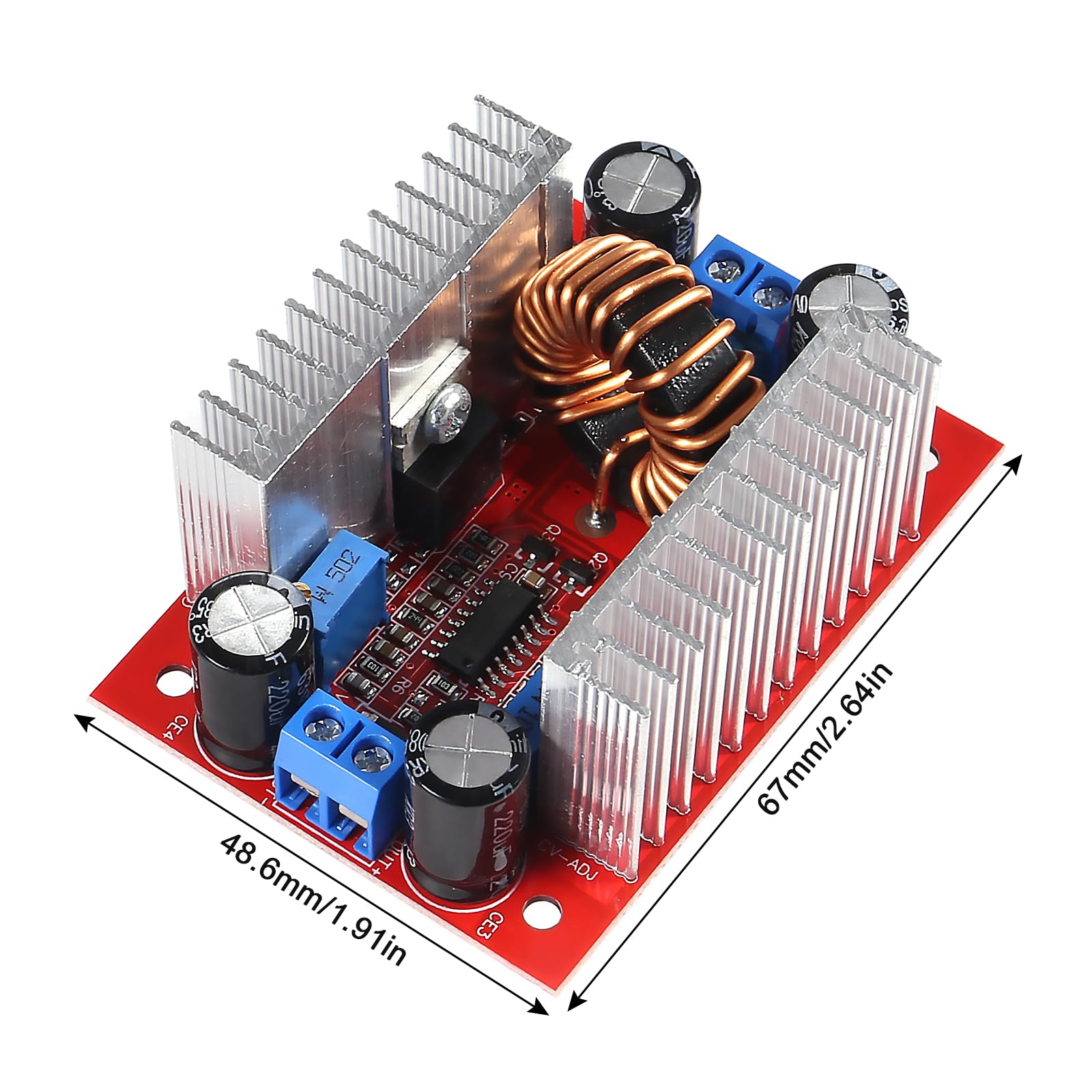

Size: 67 x 48 x 28mm / 2.63 x 1.89 x 1.1"

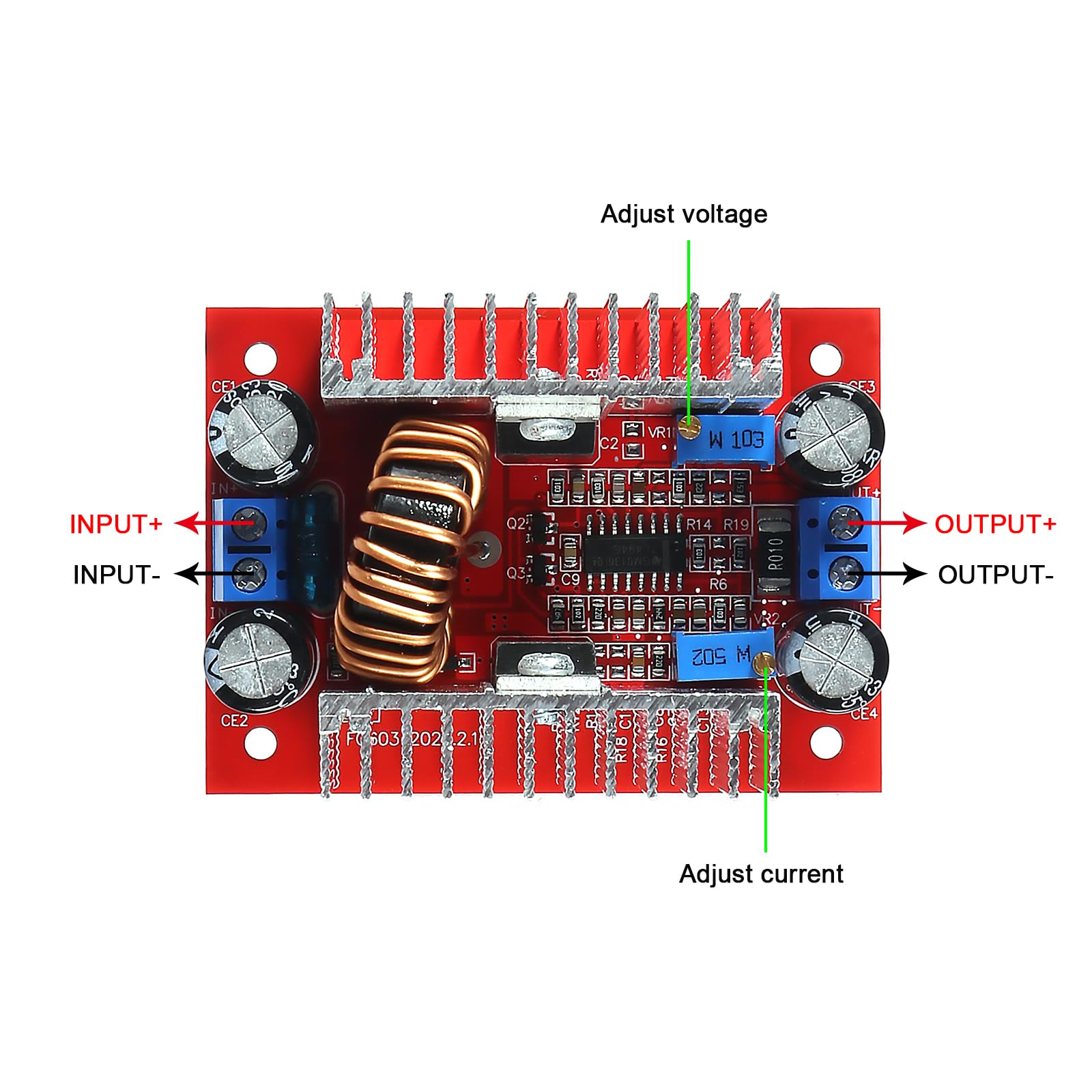

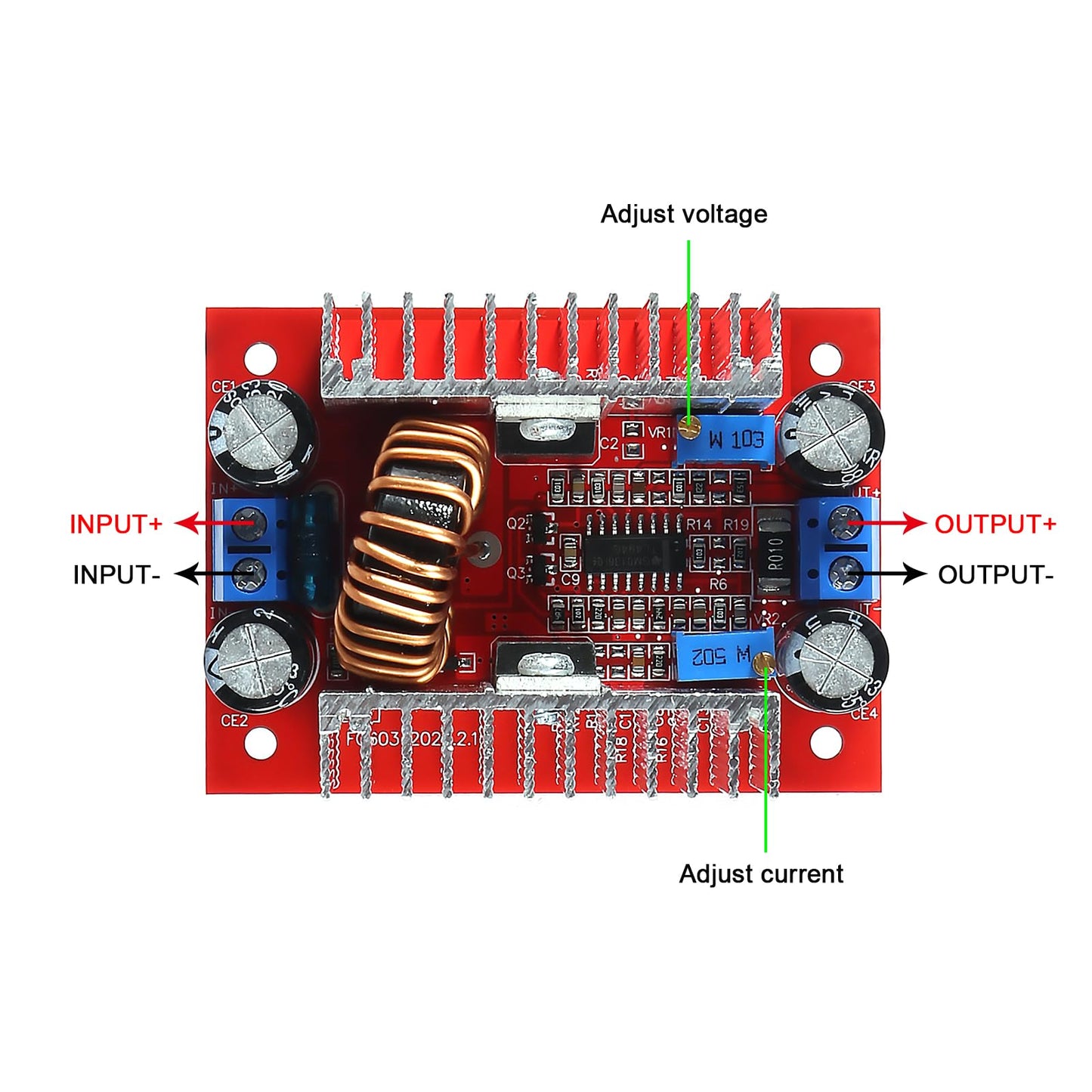

Output Voltage/Current Adjustment:
Adjust "CV-ADJ" potentiometer clockwise to reduce voltage, counterclockwise to increase voltage.
Adjust "CC-ADJ" potentiometer counterclockwise about 30 circles to minimize the output current before connecting to load(clockwise to increase current, counterclockwise to reduce current). Then adjust "CC-ADJ" clockwise to the current value you need. If you use the module for battery charging, connect to output after battery is fully discharged. Because if the more energy is left in battery, the less charging current will be.

• 【Working Voltage Range】: DC 8.5V to 50V input voltage, 10V to 60V continuously adjustable output voltage, 15A maximum input current, 12A maximum output current.

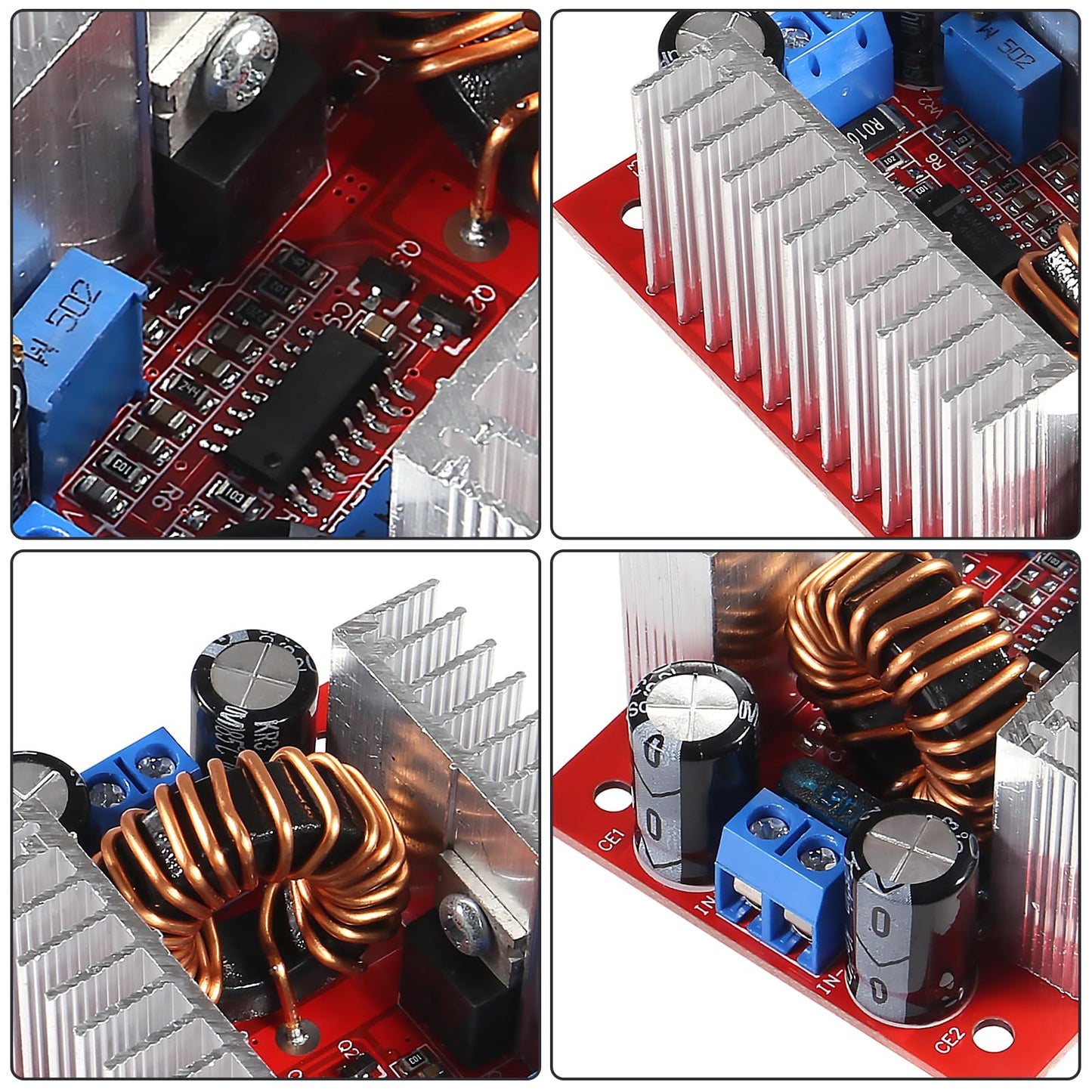

• ★The boost module has 2 heat sink that could enhance heat dissipation. When there is a big difference between input and output voltage, please decrease power and current.
• 【High Conversion】: The maximum conversion efficiency can be 96%.The DC 400W 15A Power Module designed with two heat sinks, better dissipation performance.
• 【Easy to Connect and Disconnect】: Input and output are designed with screw terminals, you can connect or disconnect the wire conveniently.
• ★Widely used for electric equipment, digital products, laptop and more. It can also be used as a driver for high power LED lights or voltage regulator for solar panels.
