Overview

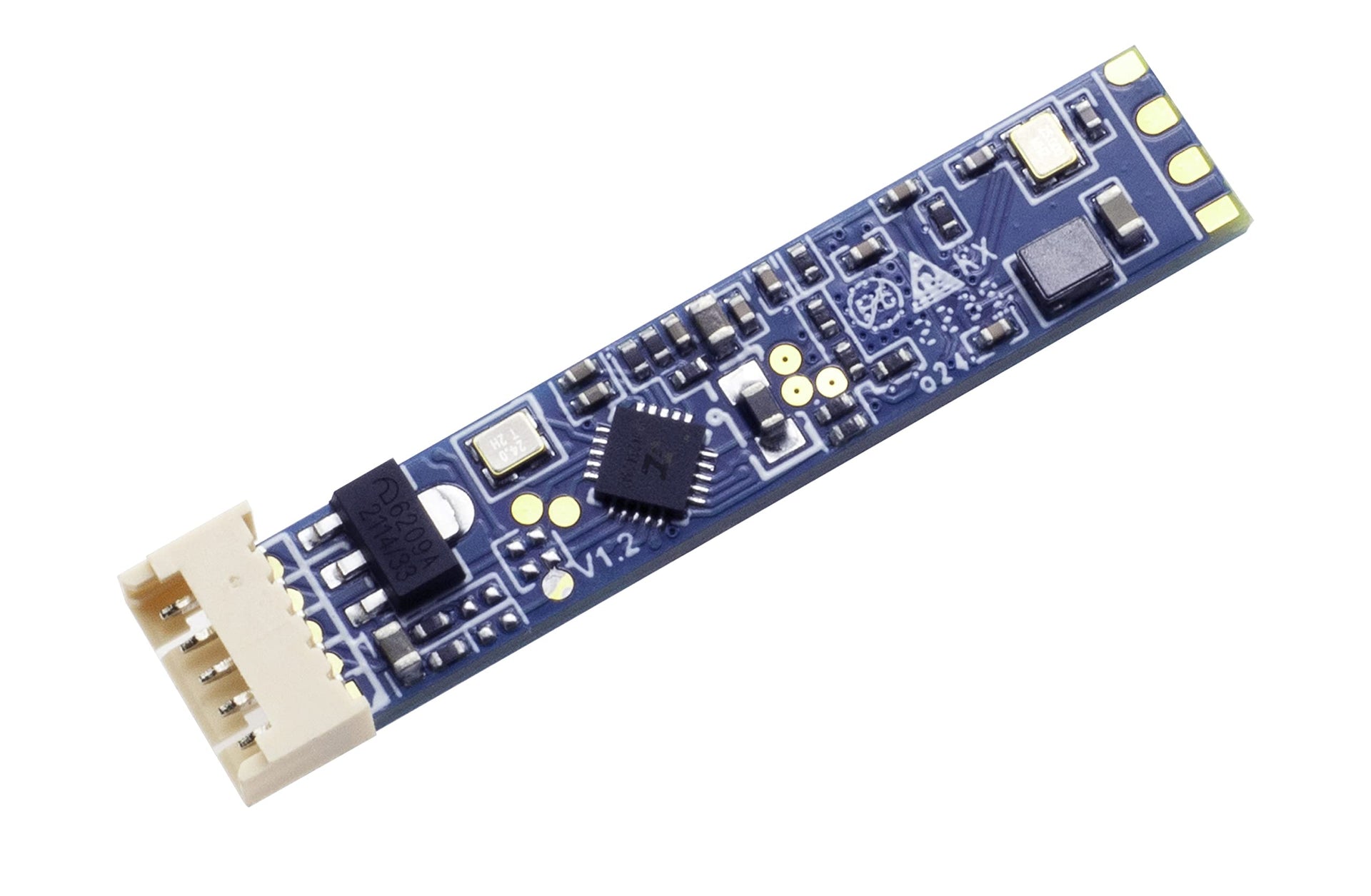

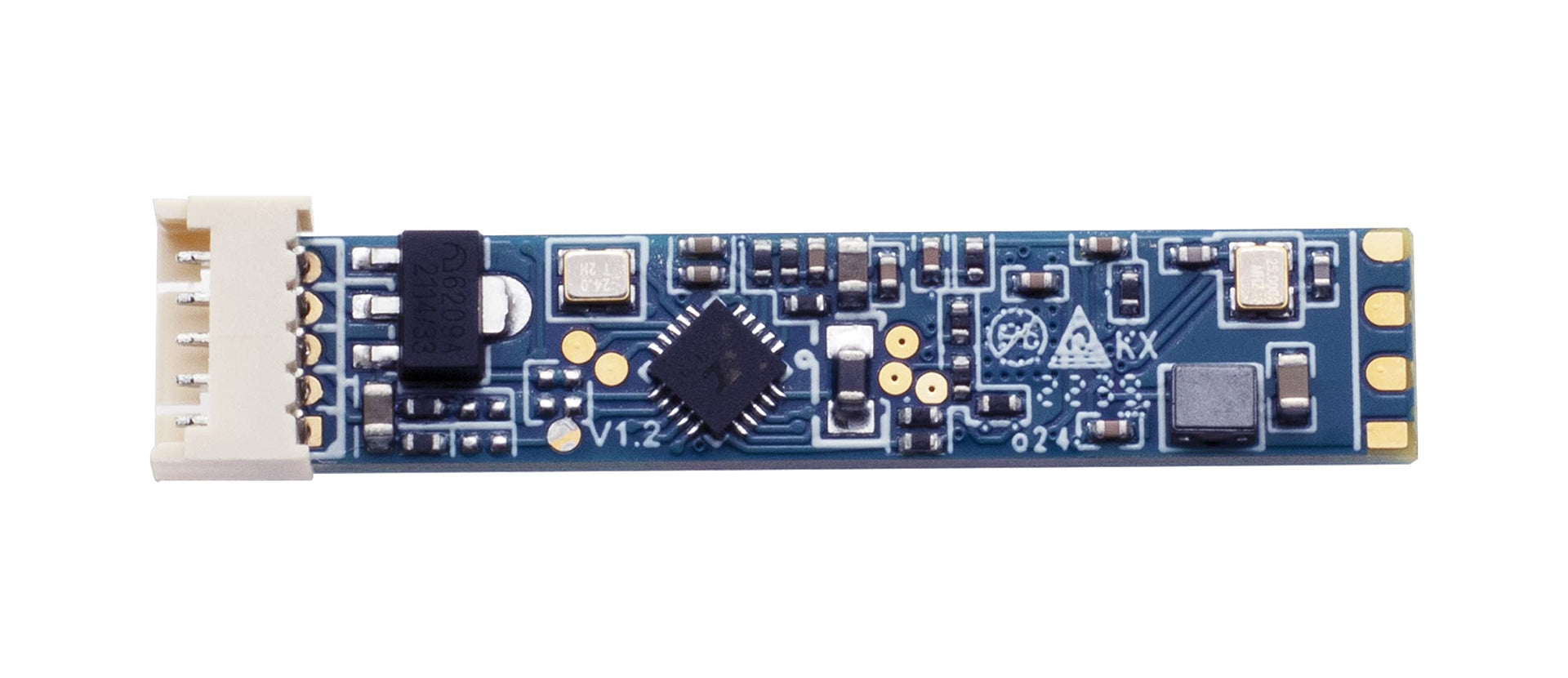

LD2410 is a high-sensitivity 24GHz human presence status sensing module developed by Hilink Electronics.
Its working principle is to use FMCW frequency-modulated continuous wave to detect human targets in the set space.

Application scenarios

1. Human body sensor light control
It senses whether there is someone in the space, and automatically controls lights,
suchas lighting equipment in public places, various sensor lights, bulb lights, etc.
2.Human body induction wake-up of advertising screens and other devices
Automatically turn on when people come, and automatically sleep when no one comesto save power,
information delivery is more accurate and efficient
3. life safety protection
UV lamp work protection to prevent the UV lamp from being turned on when there are people around and causing personal injury Automatic detection
and alarming of dangerousplaces to prevent people from entering specific high-risk spaces,
such as high-risk placeswhere coal mine blasting personnel enter.
4. Smart Appliances
When there is no one in the room for a long time, the TV, air conditioner and otherelectrical appliances are automatically turned off, saving energy and safety
5. Smart Security
Detection and identification of people intruding, staying, etc. within the specified range

Specifications

Dimensions: 35mm(length)*7mm(Width)
Interface: 1 GPIO?IO level 3.3V?1 UART
Power Requirements: DC 5V?Power supply capability>200mA
Average operating current: 80 mA
Detection distance: 0.75m?6m,adjustable
Working frequency: 24GHz~24.25GHz,Compliant with FCC, CE, non-commission certification
Modulation: FMCW
Detection angle: ±60 °
Distance resolution: 0.75m
Sweep Bandwidth: 250MHz ,Compliant with FCC, CE, non-commission certification
Ambient temperature: -40 ~ 85?

Package contents

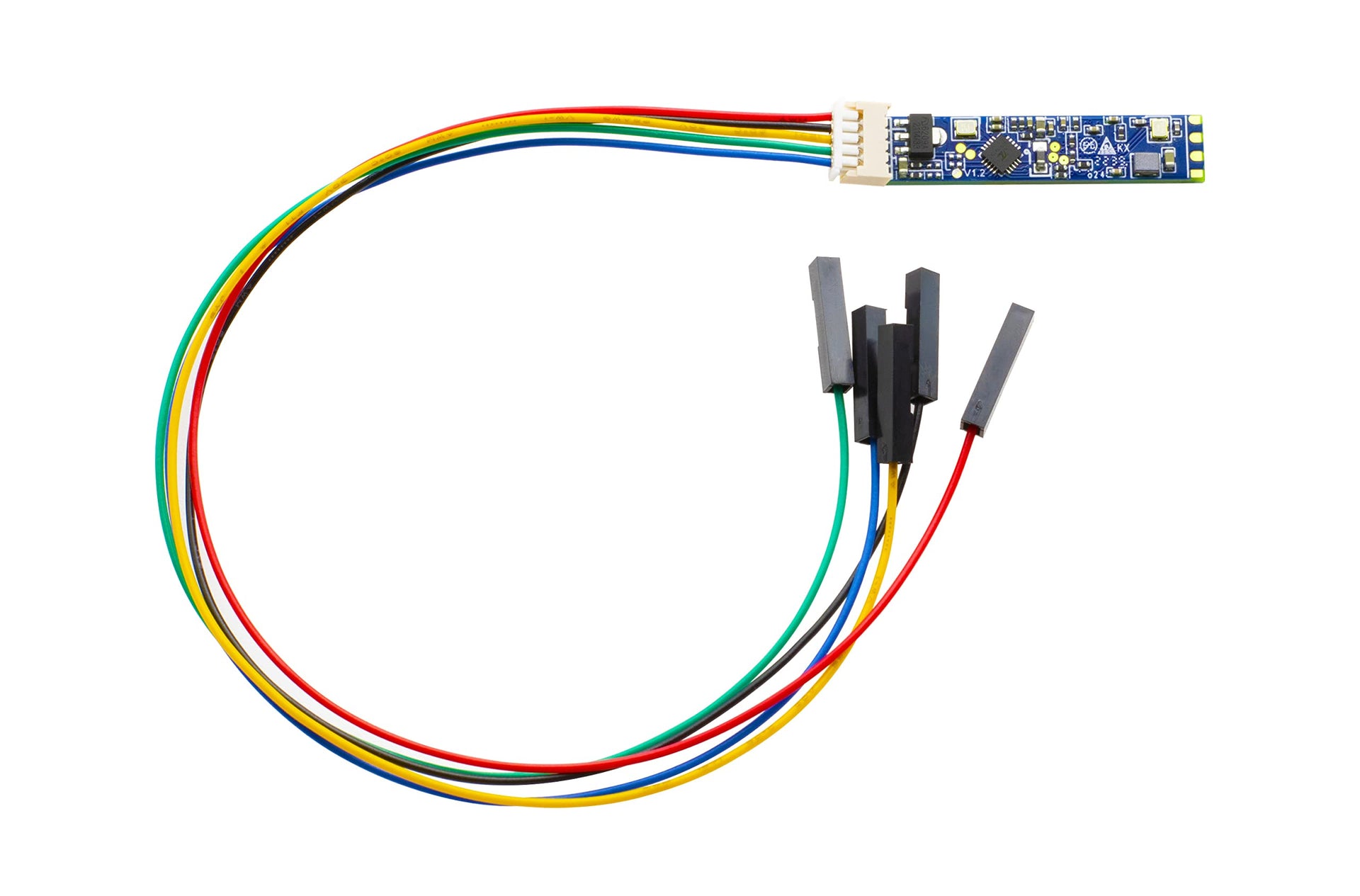

1.MX1.27 5Pin Header x1

• 1.It can sensitively sense static, micro moving, sitting and lying human bodies that cannot be identified by traditional solutions
• 2.It is plug and play and easy to assemble; Small and simple, the minimum size is only 7mmx35mm, and equipped with Bluetooth
• 3.The farthest sensing distance is up to 5 meters; Support ceiling, wall and otherinstallation methods
• 4.Accurately identify withinthe interval, supportthedivision ofthe sensing range, andshield the interferenceoutside the interval
• 5.Multi-level intelligent parameter adjustmentto meetthe needs of scene changes
