Brand: Wirenest

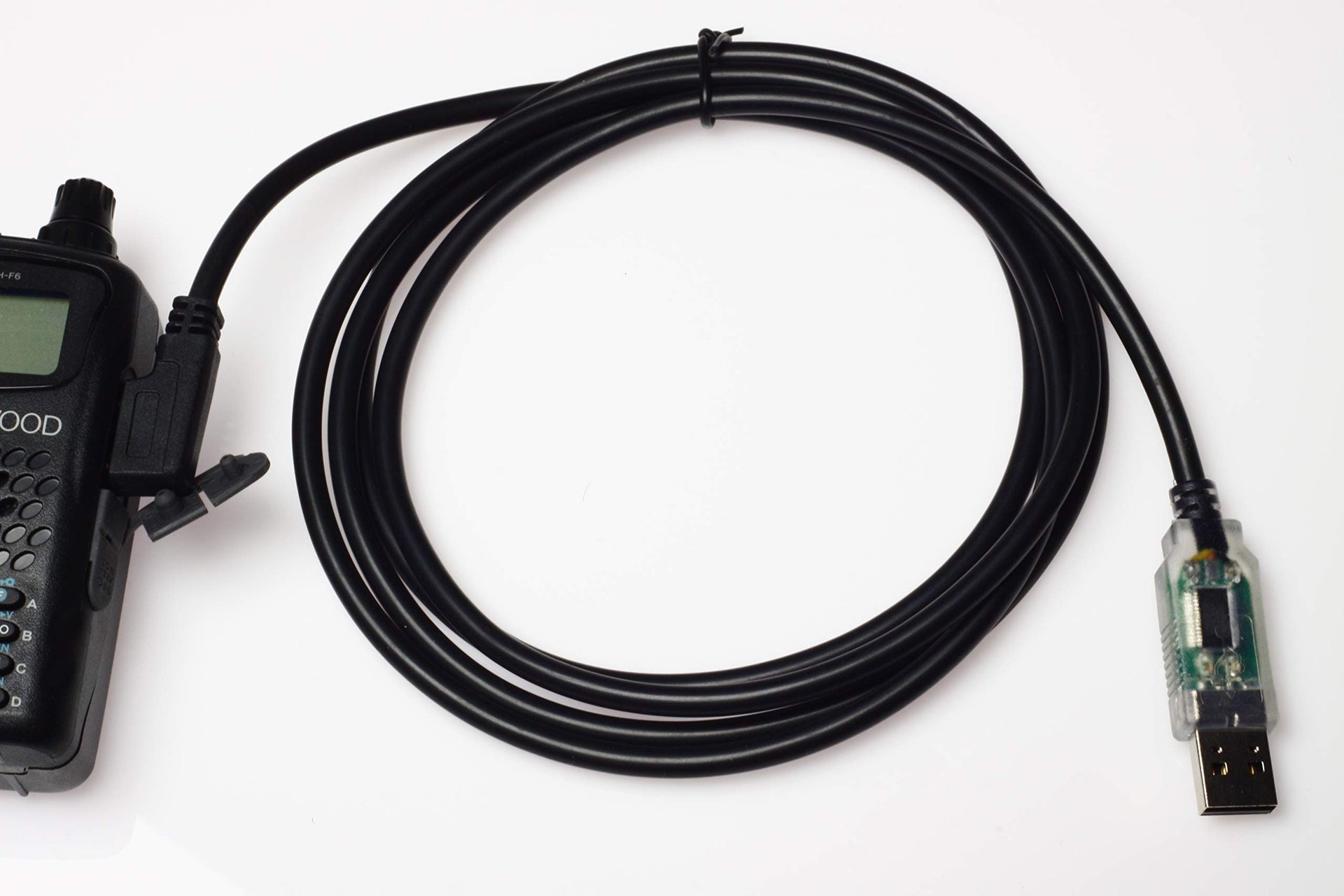

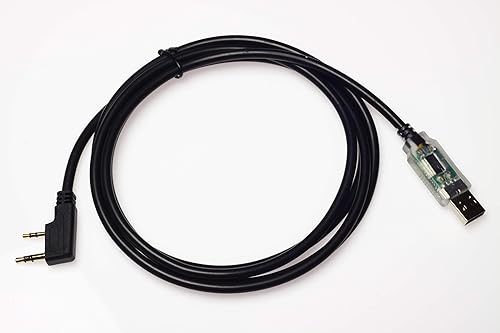

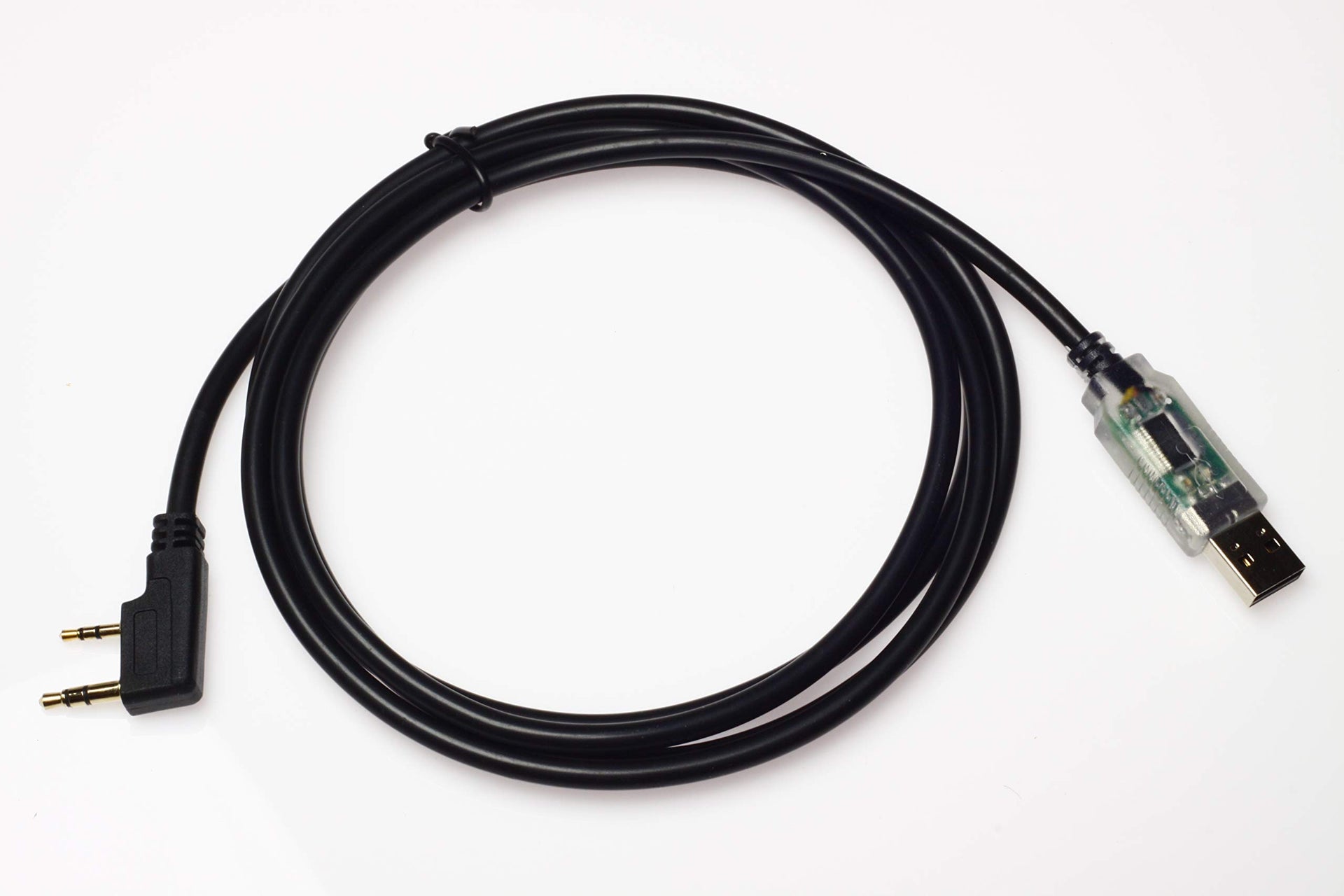

Wirenest® FTDI USB Kenwood KPG-22U Programming Cable gives you a stable, professional-grade connection between your Windows PC and compatible two-way radios using the Kenwood-style 2-Pin K1 speaker/microphone jack. It is ideal for radio technicians, fleet managers, and amateur (ham) radio operators who need reliable programming and cloning performance.

• Aftermarket KPG-22U Replacement: USB programming and cloning cable designed as an aftermarket replacement for the Kenwood KPG-22U programming interface for compatible two-way radios using the 2-Pin K1 connector.

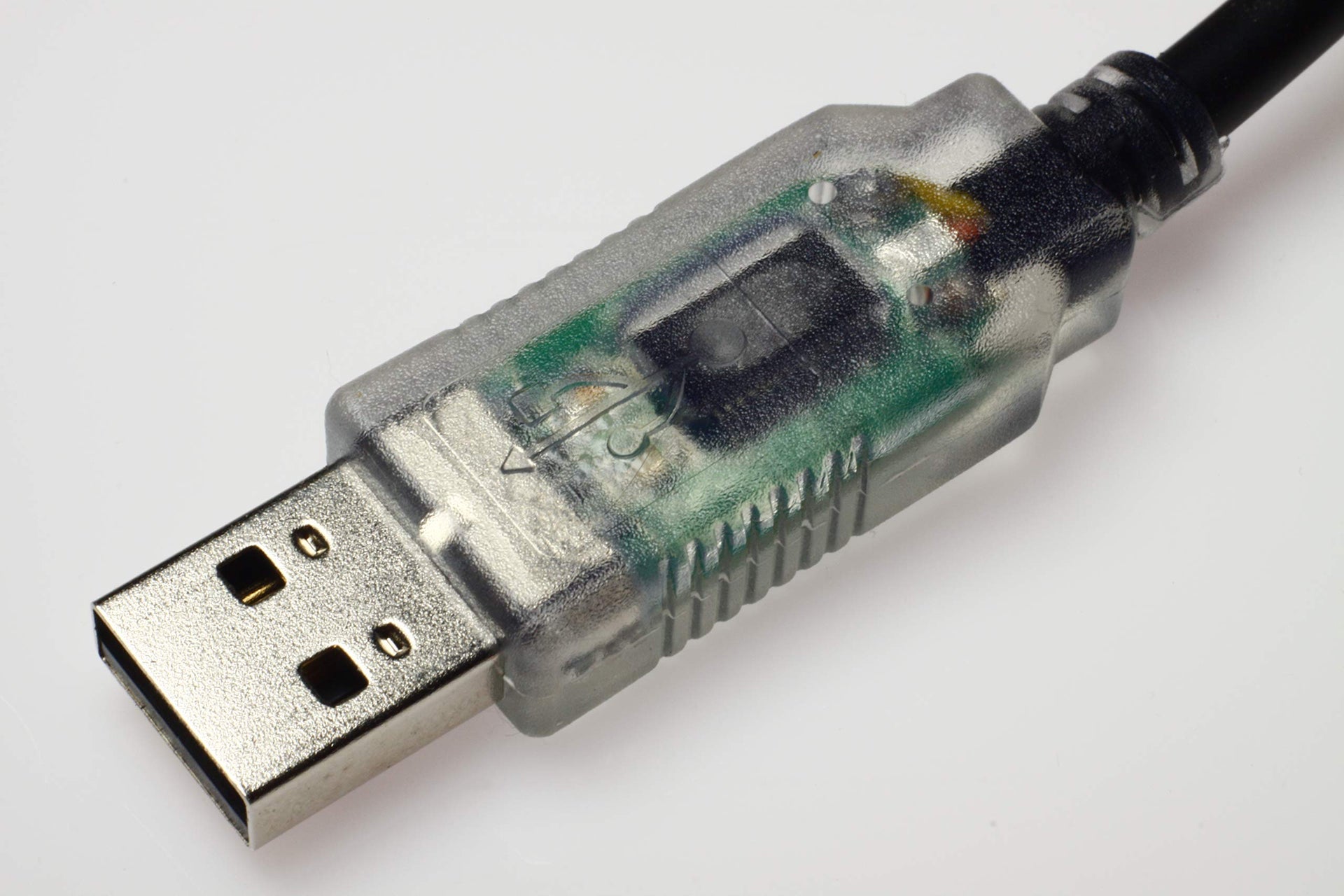

• Genuine FTDI Chipset: Uses a genuine FTDI USB-to-serial interface for stable communication. FTDI drivers are included in most modern operating systems and are typically installed automatically when the cable is connected.
• RX/TX Status LEDs: Built-in transmit (TX) and receive (RX) LEDs confirm data flow between your PC and radio at a glance, making troubleshooting easier.
• 6ft (1.8m) Cable Length: Extra length provides flexibility on the bench or at the desk without stressing the USB port or radio connector.
• Software-Friendly: Works with Kenwood KPG-series programming tools and popular third-party software such as CHIRP (where supported for your specific radio model). No programming software is included.
• Automatic Driver Installation: On most Windows PCs, the FTDI Virtual COM Port (VCP) driver loads automatically once the cable is plugged in, allowing quick setup and immediate detection as a COM port.

Simply connect the cable to your Windows PC, allow the operating system to install the FTDI driver automatically, and then select the detected COM port in your programming software. Once connected, you can read, edit, and write channel data, frequencies, signaling options, and other radio settings quickly and reliably.

Compatibility & Supported Connector Style

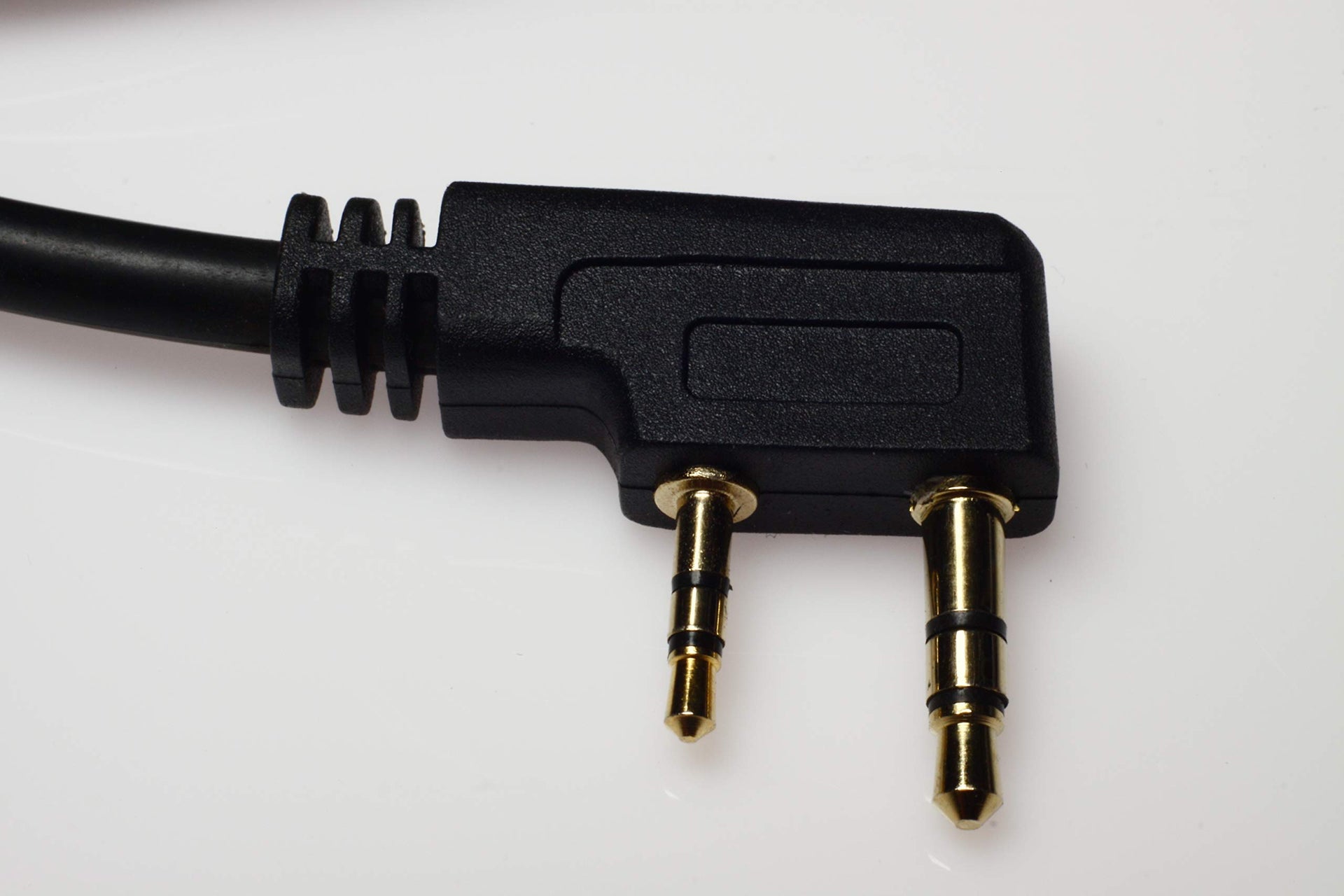

This cable is designed for two-way radios that use the Kenwood-style 2-Pin K1 speaker/microphone connector. It is an aftermarket replacement for the original Kenwood KPG-22U cable and supports many Kenwood and Baofeng handheld and commercial radios using that connector style.

Kenwood NX-Series (NXDN Digital Radios)

• Examples include: NX-220 / NX-220E series, NX-240 series, NX-320 series, NX-340 series, NX-420 and other models using the 2-Pin K1 connector.

Kenwood TH-Series (Amateur Handheld Radios)

• Examples include: TH-205, TH-21, TH-22, TH-25, TH-26, TH-27, TH-28, TH-31, TH-41, TH-42, TH-45, TH-46, TH-47, TH-48, TH-55, TH-75, TH-77, TH-78, TH-79, TH-F6/F6A, TH-F7/F7A, TH-G71, TH-K2, TH-K4 and similar models using the 2-Pin K1 connector.

Kenwood TK-Series & ProTalk (Commercial/Business Radios)

• Examples include: TK-2000 / TK-3000 series, TK-2100 / TK-3100 family, TK-2160 / TK-3160 series, TK-2170 / TK-3170 series, TK-2200 / TK-3200 series, TK-2202 / TK-3202 series, TK-2300 / TK-3300 series, TK-2400 / TK-3400 series, TK-248 / TK-348, TK-260 / TK-360, TK-270 / TK-370, TK-372 / TK-372G, TK-430 / TK-431 and many others using the K1 connector.
• ProTalk examples: ProTalk XLS TK-3230, ProTalk TK-3402U16P, ProTalk TK-3230DX, ProTalk TK-2400V16P and related ProTalk models with the Kenwood 2-Pin K1 jack.

Baofeng & Other K1-Compatible Radios

• Also suitable for many Baofeng handhelds that use the Kenwood-style 2-Pin K1 connector, such as selected models in the UV-5R series, BF-F8HP, UV-82 series, and similar K1-compatible radios.
• Always confirm your radio uses the Kenwood 2-Pin K1 speaker/mic connector before ordering.

Note: Software support (Kenwood KPG tools, CHIRP, or other third-party applications) depends on the specific radio model and software version. Not all radios listed are supported by every software package. This cable does not include any programming software.

Trusted Wirenest® Quality

The Wirenest® KPG-22U-compatible programming cable is built for dependable service in the shop or field, using quality materials and a proven FTDI interface. It is backed by Wirenest® customer support and a 1-year warranty on materials and workmanship for added peace of mind.

• PROGRAM & CONTROL KENWOOD RADIOS - USB programming cable for controlling and programming compatible Kenwood two-way radios, ideal for frequency changes, channel management, and custom settings.
• 6FT FLEXIBLE CABLE - Approx. 6 foot (1.8m) cable length gives you room to work at the bench or desk without stressing the radio or USB port.
• KPG-22U AFTERMARKET REPLACEMENT - Designed as an aftermarket replacement for the Kenwood KPG-22U USB programming interface cable for two-way radios using the 2-pin K1 speaker/mic connector.
• RELIABLE FTDI CHIPSET - Built with a genuine FTDI USB-to-serial chipset for stable communication and fewer driver issues than low-cost clone cables.
• RX/TX STATUS LEDS - Built-in RX (receive) and TX (transmit) LED indicators show when data is flowing between your PC and radio, making troubleshooting easier.
• DURABLE MOLDED CONNECTORS - Molded USB and K1 ends with strain reliefs provide a secure connection and improved durability for shop and field use.
• PLUG-AND-PLAY INSTALLATION - FTDI drivers are included with most operating systems and install automatically, allowing the cable to appear as a standard COM port without manual driver setup.
• SOFTWARE COMPATIBILITY: Fully compatible with both CHIRP and Kenwood programming software, offering flexibility for a wide range of radio configurations. No software is included with this cable.
• TRUSTED WIRENEST BRAND - Backed by Wirenest customer support and a 1-year warranty on materials and workmanship for added peace of mind.

Color: Black
