Description
Brand: AMOCAM

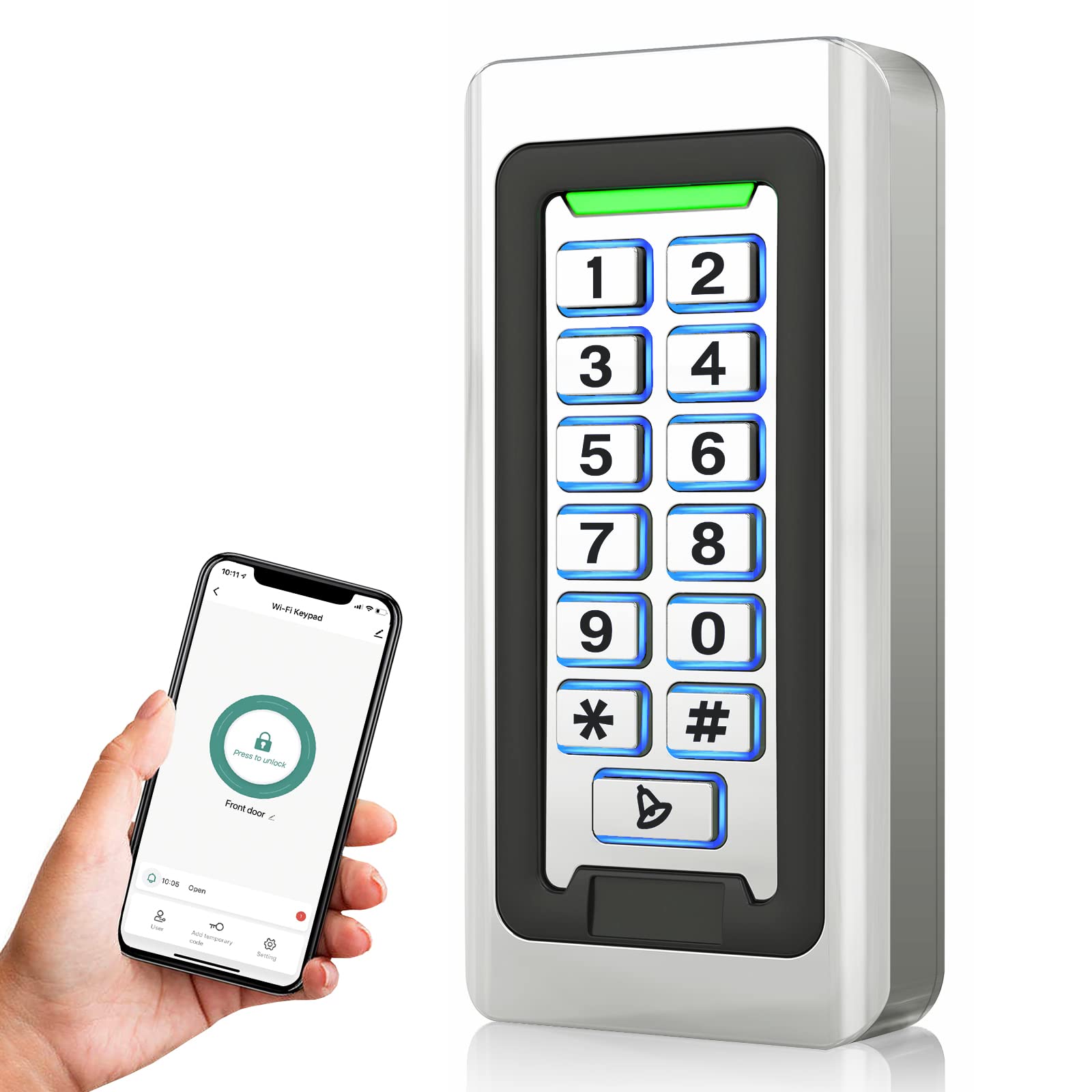

By adding the access control to the free Tuya APP, you can view access logs land remotely control the device and manage users from anywhere in the world via smartphone, tablet or computer. You can invite your family to control your smart home together and reset the recurring or individual timer schedule to turn on/off devices as needed.
Professional design sensitively and response quickly,reliable and practical. With 5pcs ID Keyfobs, application home, garage, office, or gate use.
Specifications:
Package includes:
1 x Metal Access Control
5 x 125kHz ID Keyfobs 1 x Installation Kit
1 x User Manual
Important Notice:
Tuya APP:
Download “tuya” app in APP Store for iOS or in Google play for Android Cut off the power before installing the device. Then power it up after completing the installation.
The keypad controller working on 2.4 GHz network, when adding a keypad, make sure the keypad must be connected to the same Wi-Fi network as your smartphone.
Adding keypad
On the access control keypad enter *999999#73#" code, turn on wireless pairing,the smartphone APP will auto-search and connect access control keypad around you,Input home WiFi SSID & password. (If no password, keep it blank),APP will search the device and add it to your account.
• ? ?Wireless Access Control System?Integrated wireless access control keypad allows you to control the keypad share, modify and delete passwords/ID cards, remote Unlock doors/gates, view access logs, manage users, and assign temporary or permanent access from your phone, anytime and anywhere
• ? ?Multiple Access Options?Come with 5PCS ID key fobs, support 2000 users capacity. Swipe card or password or TUYA APP multiple unlocking methods to open the door. Equipped with doorbell button, compatible with all electric locks.
• ? ?Reliable and Practical?The access control keypad with strong zinc alloy electroplated technology, epoxy to completely encapsulated, anti-prying hexagonal star screw, anti-vandal and weatherproof. Suitable for mounting either indoor or outdoor. Backlight design(non-turn-off), in dark locations or night you can read numbers.

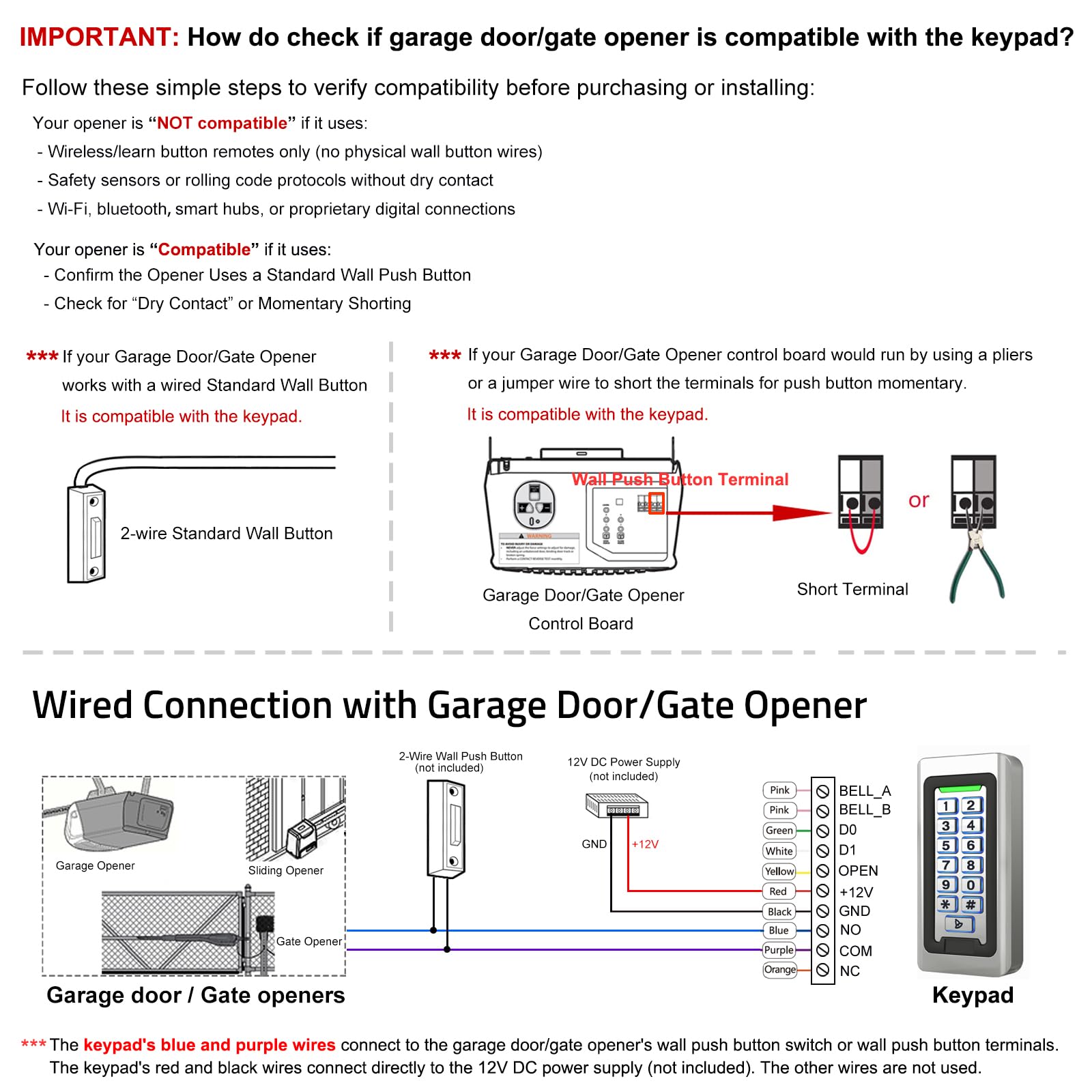

• ? ?Widely Used?Wiegand access control keypad system can prevent unauthorized personnel from entering. Built in buzzer and light dependent resistor (LDR) for anti tamper. Can be as a standalone reader or keypad. Very suitable for garage, hotel, shops, warehouses, laboratories, other private spaces. Note: Models whose connection protocol is Wi-Fi, learn buttons, safety sensors, rolling code are not currently supported! Keypad uses 2-wire connection directly to the opener's push button switch terminals.
• ? ?Simple Setup for Use?Connect the access controller to the power supply and the electric lock, Keypad enter "*master code#73#" code, turn on wireless pairing, add the keypad to the TUYA APP, you can remotely manage the access control system. Attention: The password keypad working on 2.4 GHz network, when adding keypad, make sure the keypad must be connected to the same Wi-Fi network as your smartphone. Powered by 12V DC power supply (not included)
By adding the access control to the free Tuya APP, you can view access logs land remotely control the device and manage users from anywhere in the world via smartphone, tablet or computer. You can invite your family to control your smart home together and reset the recurring or individual timer schedule to turn on/off devices as needed.
Professional design sensitively and response quickly,reliable and practical. With 5pcs ID Keyfobs, application home, garage, office, or gate use.
Specifications:
- Input Voltage :DC 12V
- Frequency: 125khz
- User Capacity : 2000
- Case:Zinc Alloy
- Card Reading Distance : 1 ~ 6 cm
- Operation Temperature: -45?~60? / -49?~140?
- Input Current : Standby : < 30mA (not including attached devices)
Package includes:
1 x Metal Access Control
5 x 125kHz ID Keyfobs 1 x Installation Kit
1 x User Manual
Important Notice:
Tuya APP:
Download “tuya” app in APP Store for iOS or in Google play for Android Cut off the power before installing the device. Then power it up after completing the installation.
The keypad controller working on 2.4 GHz network, when adding a keypad, make sure the keypad must be connected to the same Wi-Fi network as your smartphone.
Adding keypad
On the access control keypad enter *999999#73#" code, turn on wireless pairing,the smartphone APP will auto-search and connect access control keypad around you,Input home WiFi SSID & password. (If no password, keep it blank),APP will search the device and add it to your account.
• ? ?Wireless Access Control System?Integrated wireless access control keypad allows you to control the keypad share, modify and delete passwords/ID cards, remote Unlock doors/gates, view access logs, manage users, and assign temporary or permanent access from your phone, anytime and anywhere
• ? ?Multiple Access Options?Come with 5PCS ID key fobs, support 2000 users capacity. Swipe card or password or TUYA APP multiple unlocking methods to open the door. Equipped with doorbell button, compatible with all electric locks.
• ? ?Reliable and Practical?The access control keypad with strong zinc alloy electroplated technology, epoxy to completely encapsulated, anti-prying hexagonal star screw, anti-vandal and weatherproof. Suitable for mounting either indoor or outdoor. Backlight design(non-turn-off), in dark locations or night you can read numbers.
• ? ?Widely Used?Wiegand access control keypad system can prevent unauthorized personnel from entering. Built in buzzer and light dependent resistor (LDR) for anti tamper. Can be as a standalone reader or keypad. Very suitable for garage, hotel, shops, warehouses, laboratories, other private spaces. Note: Models whose connection protocol is Wi-Fi, learn buttons, safety sensors, rolling code are not currently supported! Keypad uses 2-wire connection directly to the opener's push button switch terminals.
• ? ?Simple Setup for Use?Connect the access controller to the power supply and the electric lock, Keypad enter "*master code#73#" code, turn on wireless pairing, add the keypad to the TUYA APP, you can remotely manage the access control system. Attention: The password keypad working on 2.4 GHz network, when adding keypad, make sure the keypad must be connected to the same Wi-Fi network as your smartphone. Powered by 12V DC power supply (not included)
