Brand: Generic

The Wi-Fi 6E AX411 module supports legacy Wi-Fi 4, 5, 6, and Wi-Fi 6E, and is designed to support Wi-Fi 6 R2 features. By implementing Wi-Fi 6E technology supporting the 6GHz band that includes 1200MHz of contiguous spectrum (>2x compared to 5GHz) with more Gigabit Wi-Fi options and exclusivity to Wi-Fi 6 products, the Wi-Fi 6E AX411 module maximizes Wi-Fi 6 and Gigabit Wi-Fi benefits enabling greater network flexibility, faster downloads, sharing and backups as well as reduced latency and improved reliability.<br><br> <b>Features:</b><br> - Wi-Fi 6E technology, extends Wi-Fi 6 to 6GHz. 2400 Mbps @ 6GHz , 2400 Mbps @ 5GHz , 574 Mbps @ 2.4GHz<br> - BT 5.3 version, backward compatible with BT 5.2/5.1/BT 5.0/4.2/4.0<br> - Only recommend to use Windows 10/11, 64 bit. Windows 10 version updates to newest version is required if driver cannot be installed.<br> - WiFi 6E router is required to enable 6GHz band.<br> - Wi-Fi Alliance: Wi-Fi Certified 6, Wi-Fi Certified a/b/g/n/ac, WMM, WMM-Power Save, WPA3, PMF, Wi-Fi Direct, Wi-Fi Agile Multiband<br> - Works with Inte1 CPU and Newer AMD CPU. Do not use on a motherboard contains an Inte1 9560 CNVi module.<br> - Downloading the driver from the Inte1 website.<br><br> <b>Module is 22x30mm and should only be used in Laptops with an M.2 connector and a standard Key A or E socket. It WILL NOT work in the M.2 slot in a Desktop.</b><br><br> <b>Specifications: </b><br> Model: AX411NGW/1690i<br> D P/N: 9TY45, 09TY45, CN-09TY45<br> Connector interface: M.2 CNVIo2 2230, M.2 1216<br> System Interface Type: PCIe, USB<br> Antenna connector: IPEX 4 / iPX 4 Connector<br> Wireless data rate: <br> - 5GHz, 6GHz up to 2400Mbps (You router must support 802.11AX)<br> - 2.4GHz up to 574Mbps (160MHz)<br> Max speed: If your router support 802.11AX, the max speed up to 2.4Gbps<br> Streams: 2X2<br> Bluetooth: Bluetooth 5.3<br> Antenna Diversity: Supported<br> MU-MIMO: Yes<br> Frequency: Dual Band 2.4/5GHz/6GHz<br> IEEE WLAN Standard: IEEE 802.11a/b/g/n/ac, 802.11AX, 802.11d, 802.11e, 802.11h, 802.11i, 802.11w, 802.11r, 802.11k, 802.11v<br> Wi-Fi CERTIFIED: Wi-Fi 6E<br> Operating Systems: Windows 10 64-bit (NOt support Windows 7/8/8.1)<br> Dimension (H x W x D): 22 x 30 x 2.4 mm<br><br> <b>What's in the Box</b><br> 1x 1690i AX411NGW M.2 CNVIo2 WiFi Card<br> 1x Screw<br> 1x Antenna cover

Features:

• ***CAUTION: ONLY compatible with 12th+ Gen Intel CPU, Suitable to replace AX201 or AX211, such as: Inspiron 24 5410/5411 All-in-One, Inspiron 27 7710 All-in-One.
• Only work with Windows 11, 64-bit*, Windows 10, 64-bit* (NOTE: NOT supports with Windows 7/8/8.1).
• Compatible with Dell/Acer/ASUS/MSi/Hasee/Samsung/Sony Laptop & Desktop. (It doesn't work on IBM/Thinkpad/Lenovo/HP laptop.)
• Supports 2.4GHz or 5GHz, 6GHz Dual Band with Bluetooth 5.3, 5GHz/6GHz up to 2400Mbps, 2.4GHz up to 574Mbps. (The router must on 160MHz and Supports 802.11AX)
• Board Form Factor: M.2 CNVIo2 2230 and a standard Key A or E socket, IPX4 Antenna connector. It WILL NOT work in the M.2 slot in a Desktop.

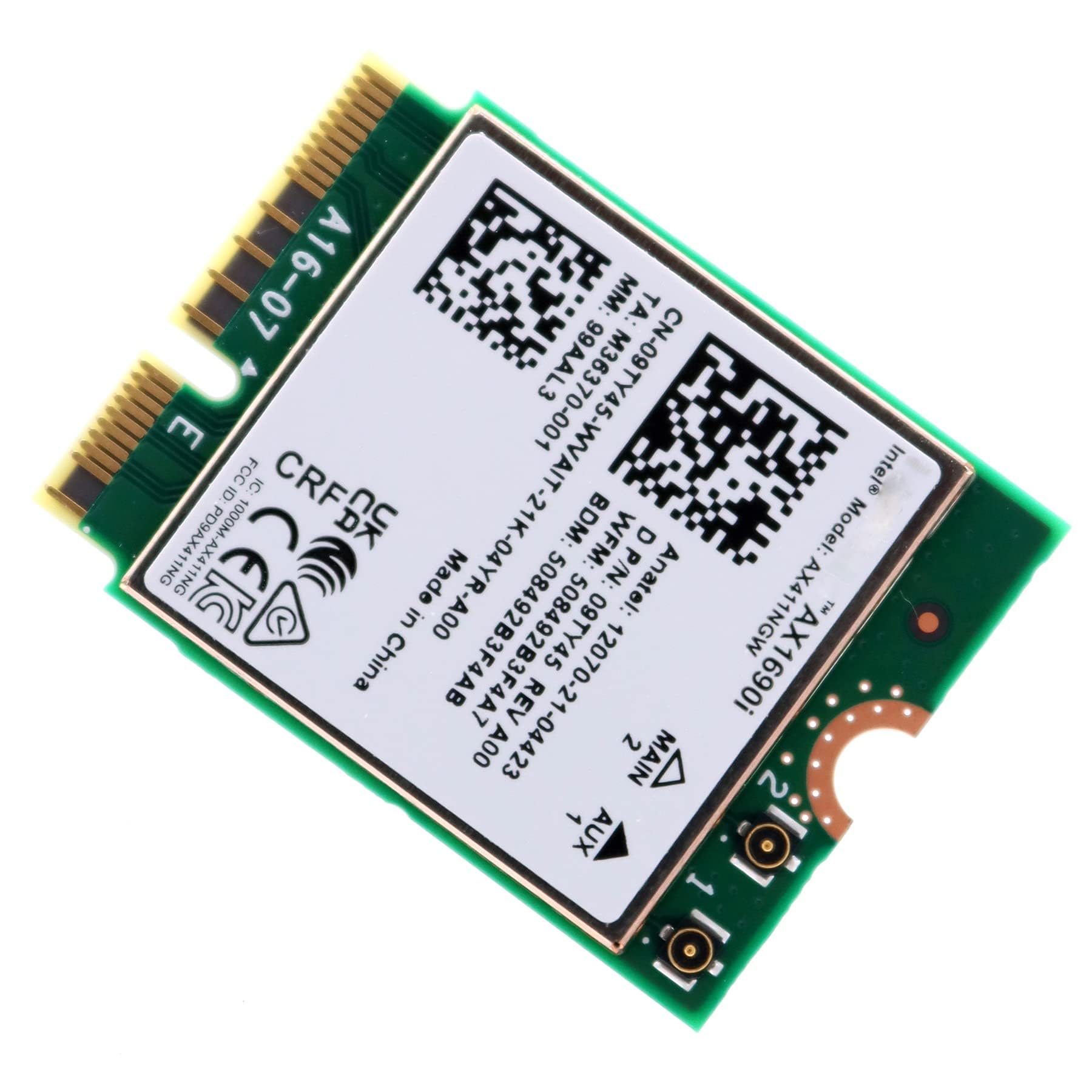

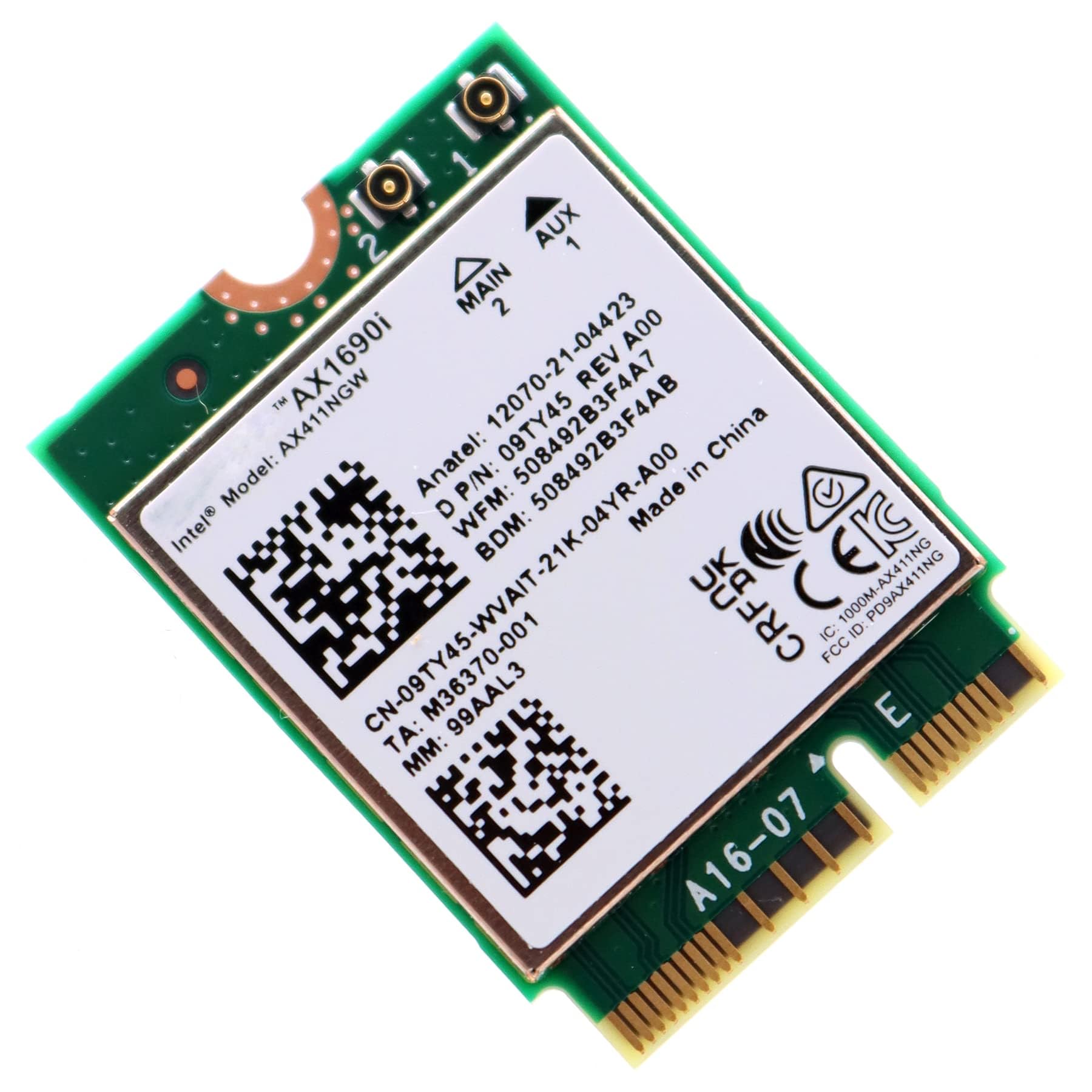

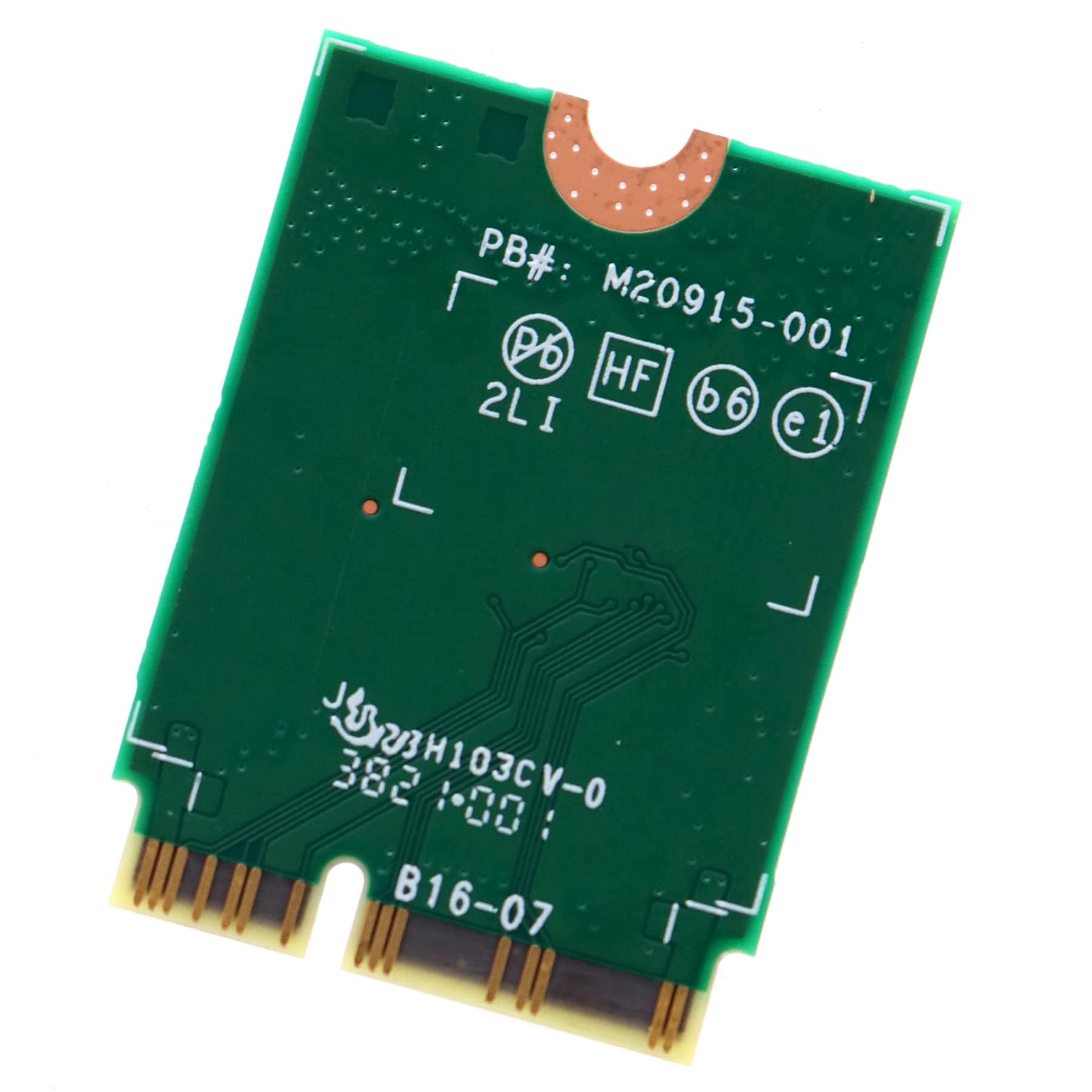

• Each Pack come with: 1x AX411NGW 1690i M.2 (A+E Key) WLAN Card (D P/N: 09TY45, 9TY45), 1x screw, 1x Antenna cover.

Product Details:

• Color: Green
• Model: AX411
• Package Quantity: 0
