Description
Brand: waveshare
Overview<br> Rail-Mount Serial Server, RS232/485/422 to RJ45 Ethernet Module, TCP/IP to serial, With POE Function<br><br> Specifications<br> Product type---- Serial server, Modbus Gateway, MQTT Gateway<br> Primary function---- Bi-directional transparent data transmission between RS232/485/422 and Ethernet<br> Communication interface---- RS232 port × 1; RS485 port × 1; RS422 port × 1; Ethernet port × 1<br> Power supply---- DC power port, 6 ~ 36V DC screw terminal, or PoE port<br> Isolation protection---- Power isolation, Signal isolation<br><br> Communication interface<br> Ethernet---- PoE network port, support IEEE 802.3af standard, 10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection<br> Serial port---- Isolated RS232/485/422<br><br> Serial parameters<br> Baud rate---- 300 ~ 115200 bps<br> Parity bit---- none, odd, even, mark, space<br> Data bits---- 5 ~ 9 bits<br> Flow Control---- no flow control<br><br> Software<br> Protocol---- ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS<br> Configuration method---- host, web browser, device management functions library<br> Communication method---- TCP/IP direct communication, VCOM<br> Operating mode---- TCP server, TCP

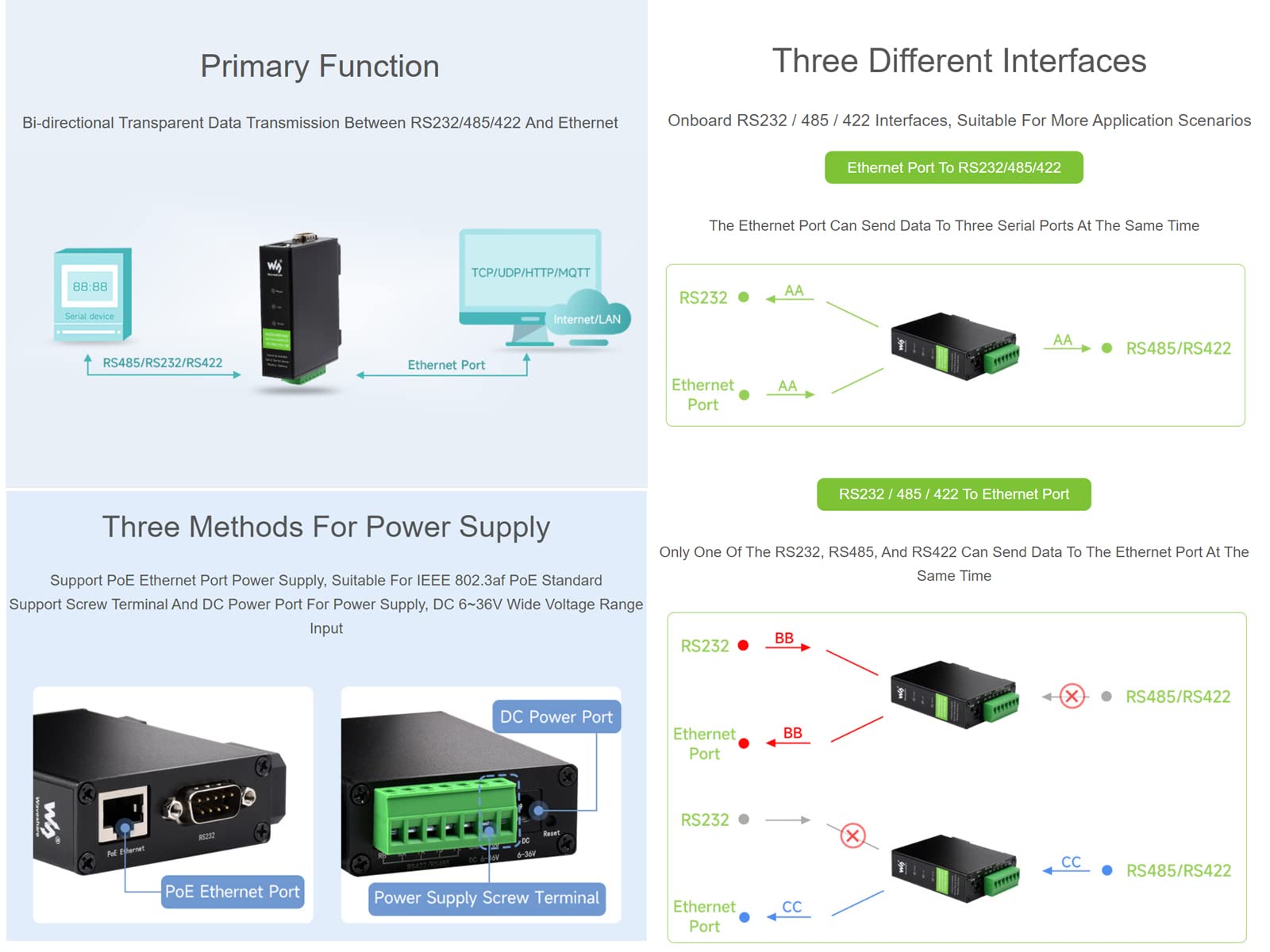

• RS232/485/422 to RJ45 Ethernet Module with POE function, onboard RS232 / 485 / 422 three different interfaces, bi-directional transparent data transmission between RS232/485/422 and Ethernet, suitable for more application scenarios

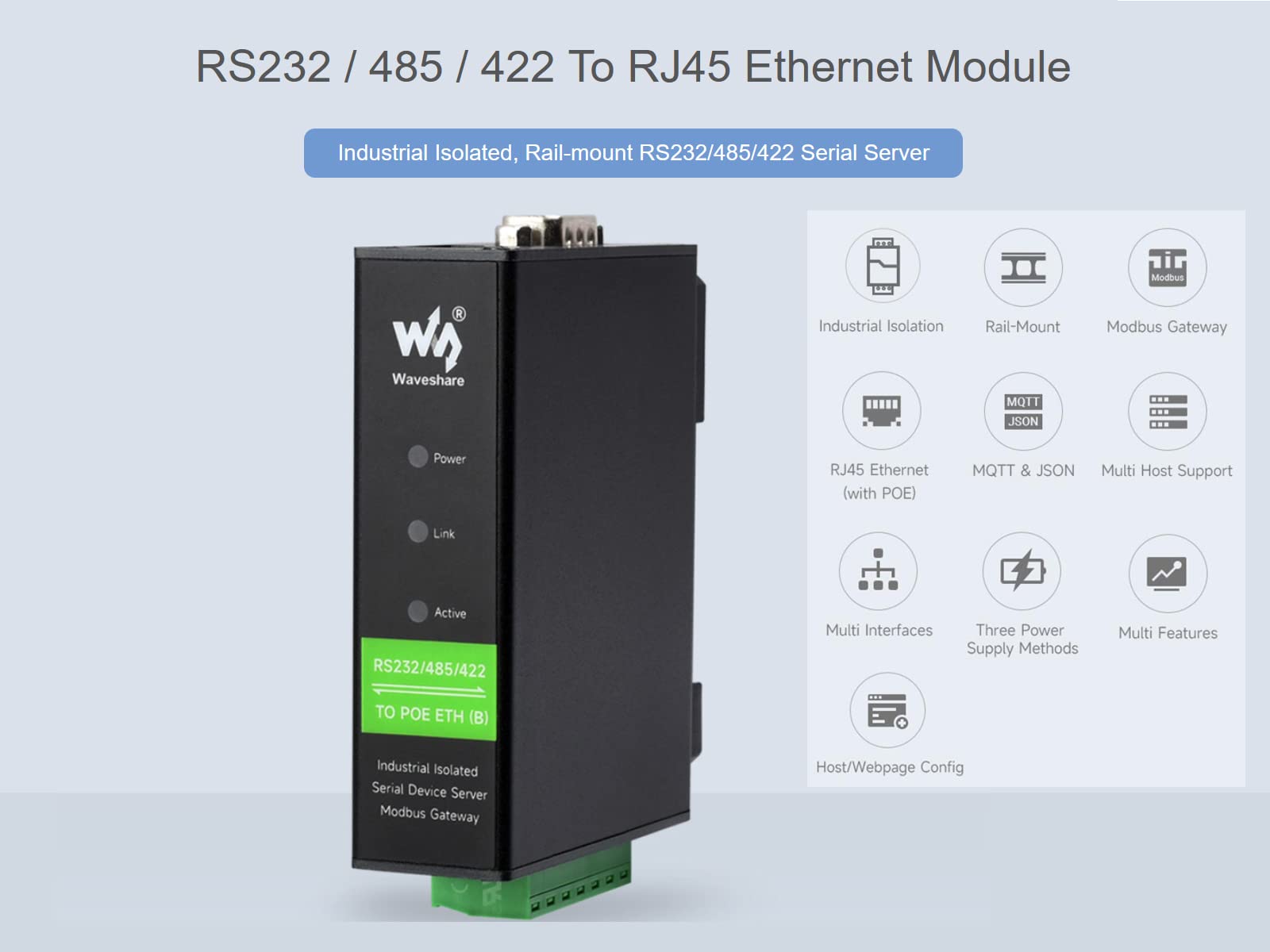

• Industrial isolated rail-mount RS232/485/422 serial server, support PoE Ethernet port power supply, suitable for IEEE 802.3af PoE standard, support screw terminal and DC power port for power supply, DC 6~36V wide voltage range input

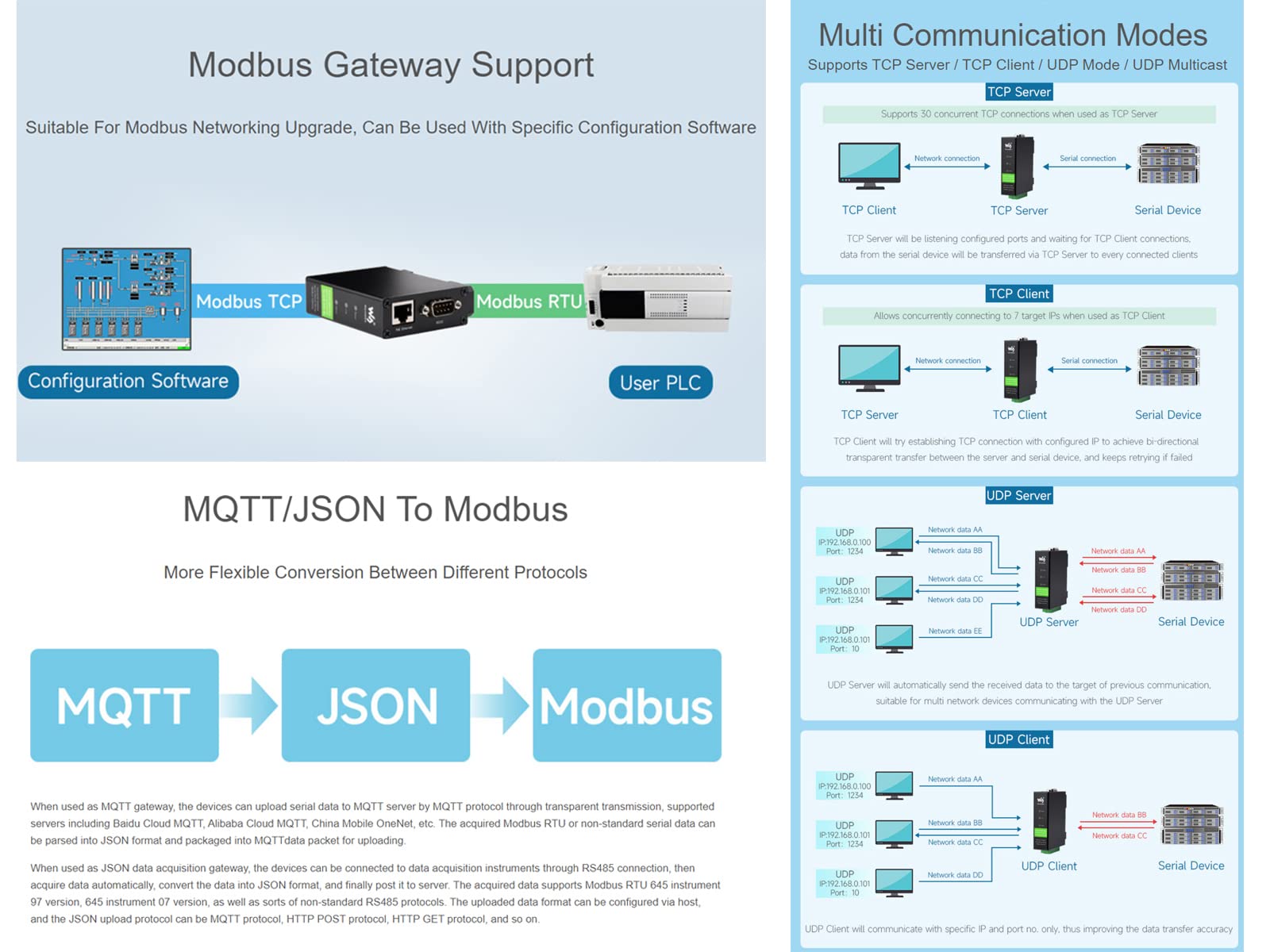

• Support Modbus Gateway, suitable for Modbus networking upgrade, can be used with specific configuration software
• Supports TCP Server / TCP Client / UDP Mode / UDP Multicast multi communication modes, MQTT/JSON to Modbus, more flexible conversion between different protocols

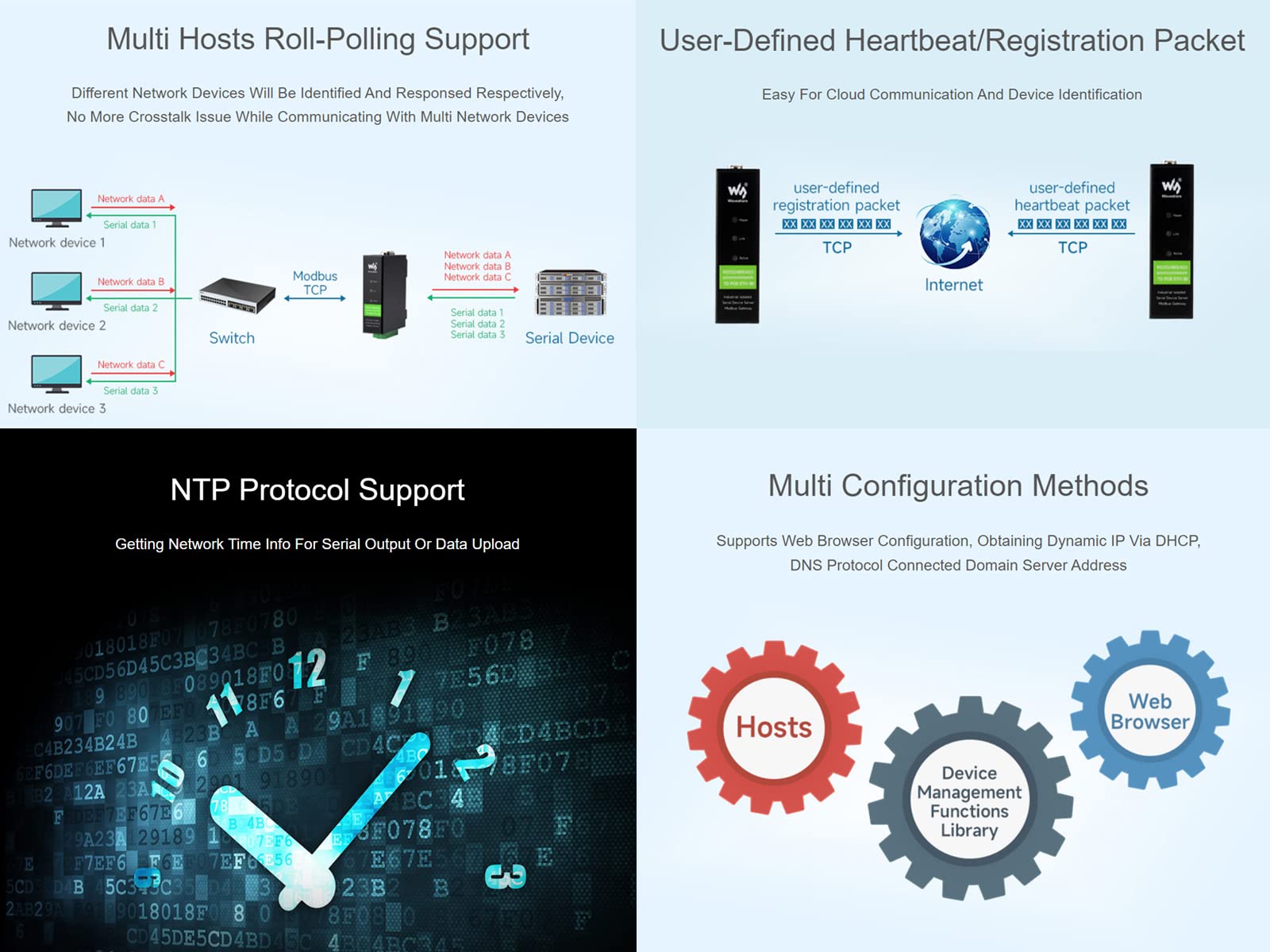

• Support Multi Hosts Roll-Polling, User-Defined Heartbeat/Registration Packet, NTP Protocol Support, Multi Configuration Methods
Overview<br> Rail-Mount Serial Server, RS232/485/422 to RJ45 Ethernet Module, TCP/IP to serial, With POE Function<br><br> Specifications<br> Product type---- Serial server, Modbus Gateway, MQTT Gateway<br> Primary function---- Bi-directional transparent data transmission between RS232/485/422 and Ethernet<br> Communication interface---- RS232 port × 1; RS485 port × 1; RS422 port × 1; Ethernet port × 1<br> Power supply---- DC power port, 6 ~ 36V DC screw terminal, or PoE port<br> Isolation protection---- Power isolation, Signal isolation<br><br> Communication interface<br> Ethernet---- PoE network port, support IEEE 802.3af standard, 10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection<br> Serial port---- Isolated RS232/485/422<br><br> Serial parameters<br> Baud rate---- 300 ~ 115200 bps<br> Parity bit---- none, odd, even, mark, space<br> Data bits---- 5 ~ 9 bits<br> Flow Control---- no flow control<br><br> Software<br> Protocol---- ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS<br> Configuration method---- host, web browser, device management functions library<br> Communication method---- TCP/IP direct communication, VCOM<br> Operating mode---- TCP server, TCP
• RS232/485/422 to RJ45 Ethernet Module with POE function, onboard RS232 / 485 / 422 three different interfaces, bi-directional transparent data transmission between RS232/485/422 and Ethernet, suitable for more application scenarios
• Industrial isolated rail-mount RS232/485/422 serial server, support PoE Ethernet port power supply, suitable for IEEE 802.3af PoE standard, support screw terminal and DC power port for power supply, DC 6~36V wide voltage range input
• Support Modbus Gateway, suitable for Modbus networking upgrade, can be used with specific configuration software
• Supports TCP Server / TCP Client / UDP Mode / UDP Multicast multi communication modes, MQTT/JSON to Modbus, more flexible conversion between different protocols
• Support Multi Hosts Roll-Polling, User-Defined Heartbeat/Registration Packet, NTP Protocol Support, Multi Configuration Methods
