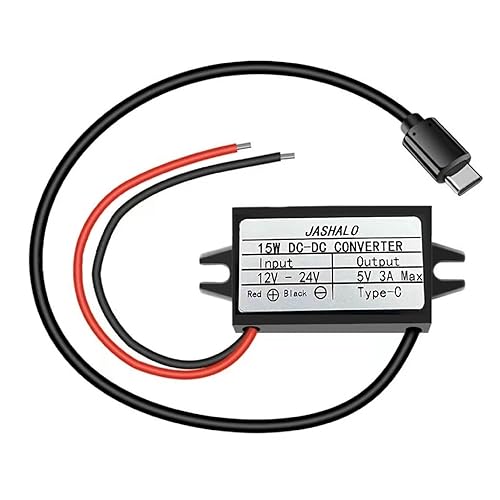

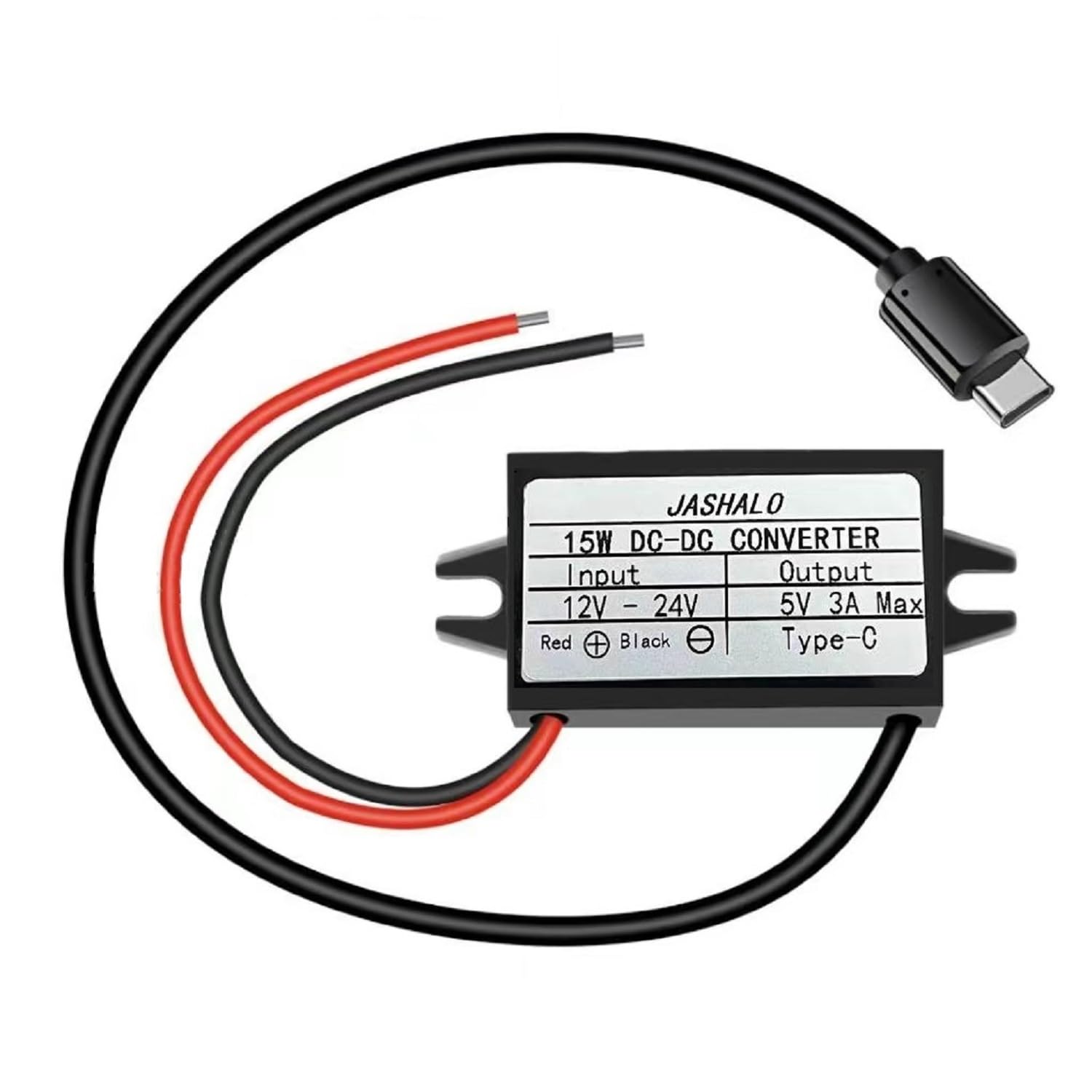

Brand: JASHALO

Model: 12-24-Type-c

Why Choose JASHALO DC-DC Converters？
✔ Wide Input Voltage Range and high quality power with lower jitter and lower Ripple
✔ Output supports QC3.0/QC2.0 fast charging
✔ Six Kinds of Intelligent protection
✔ High conversion efficiency up to 96%

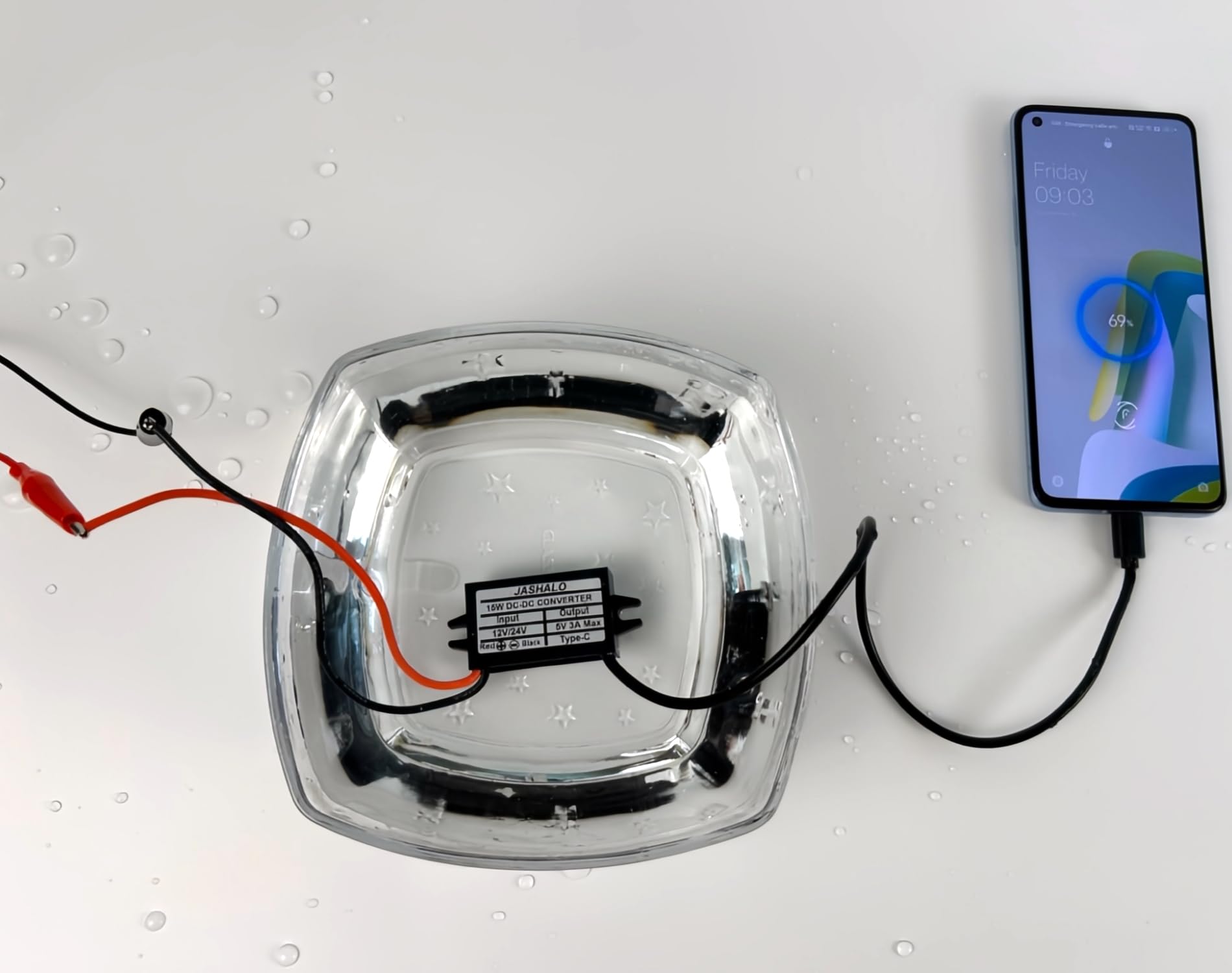

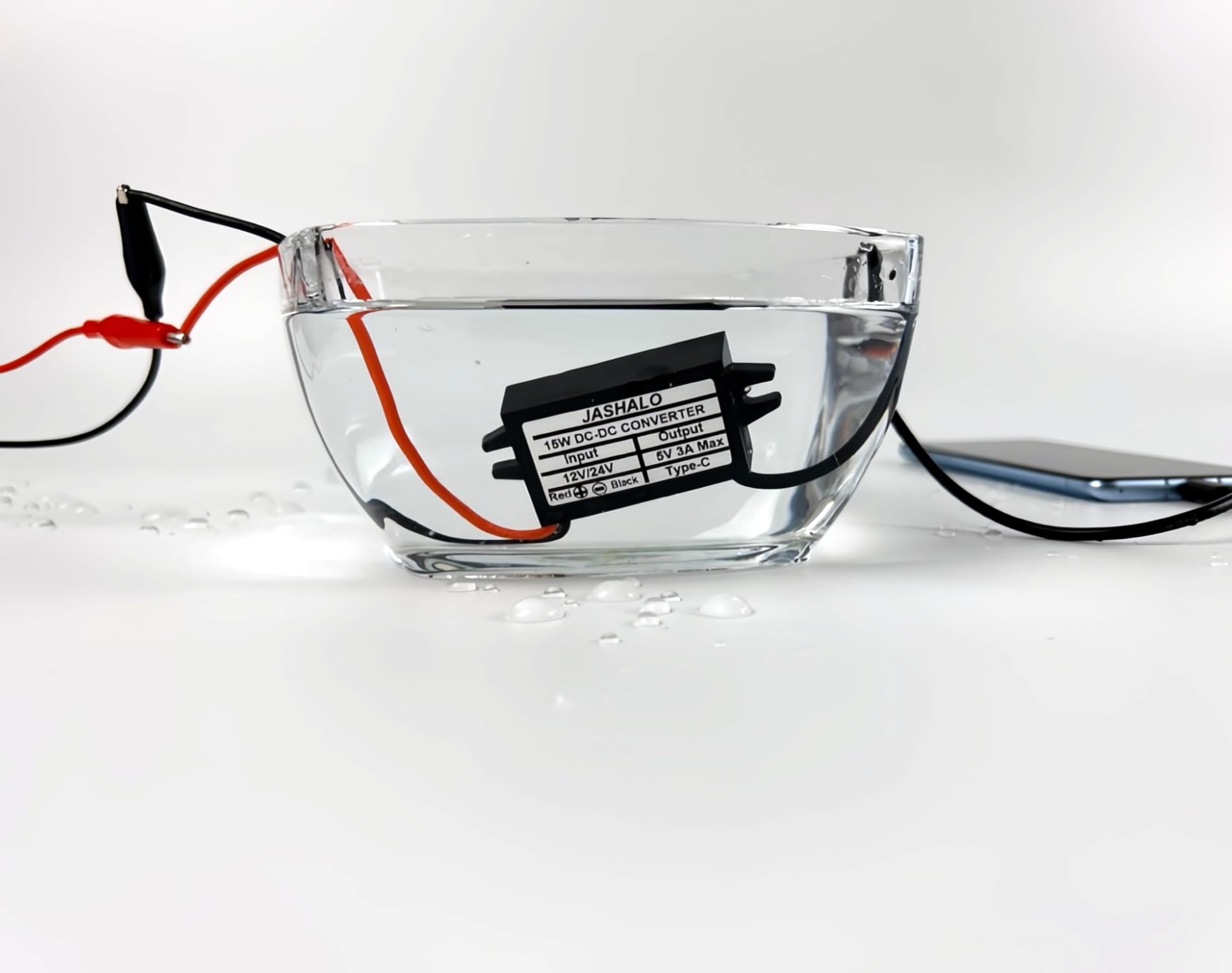

✔ High Waterproof standard of IP68
✔ Supports Water proof, Damp proof, Shock proof, make it reliable
✔ The Converter enclosure is completely sealed with epoxy resin, providing superior protection against water damage.
✔ Widely used in low power consumption electronics for many kinds of Application scenarios

Specifications:
DCDC Power Type: Non-isolated
Input Voltage Range: DC 10-32V (12V/24V is recommended)
Type-C output voltage: Default DC 5V, QC3.0
Input connector type: Red and Black Wire, Red -- positive pole, Black -- negative pole
Converter Power Efficiency: Up to 96%
Operating temperature: -40℃~85℃
Waterproof Rating: IP68
Product Size: 46mm*27mm*14mm(L*W*H)

Wide Applications:
For raspberry Pi 4, cellphones,
DIY for car charging system,
DIY for driving recorder power supply,
DIY for household power supply,
For electronic dog, car radio, GPS navigation, driving recorder,
For MP3, MP4, walkie talkie, surveillance system,
For bus display, taxi advertising screen, LCD TV, LED, etc.

Warm Tips:
1. Does not support Apple or PD fast charging, but can charge at 5V normal speed
2. If the phone or tablet no support QC3.0, It will charge at 5V normal speed
3. Please note input power watt must be over than the output end. for example, the output is 5V 3A,
So the input power should more than 15W, such as 20W input power will be good.
4. The output power depends on the loading power of your device. Usually the loading power is smaller than the converter max power 15W.

• 【Input Voltage Range】DC 10V-32V, Support any voltage between 10V and 32V, and 12V/24V is recommend. In order to provide sufficient power to the output type-c port, the input power should be above 20W.
• 【Output Voltage】Default output voltage is DC 5V, the output current is 3A Max. When triggering with QC3.0 Device, the output voltage will automatically adjust between 5-12V as needed. This converter support QC3.0/QC2.0/BC1.2 and Samsung AFC Fast Charging protocol. The output power depends on the loading power of your device. Usually the loading power is smaller than the converter max power 15W.
• 【Kinds of Intelligent protection】This DC-DC converter is built in intelligent microprocessing chip with many kinds of protections: input reverse connection protection, overvoltage protection, undervoltage protection, output overcurrent and short circuit, machine overtemperature. So many protections makes the dc-dc converter stable and reliable.

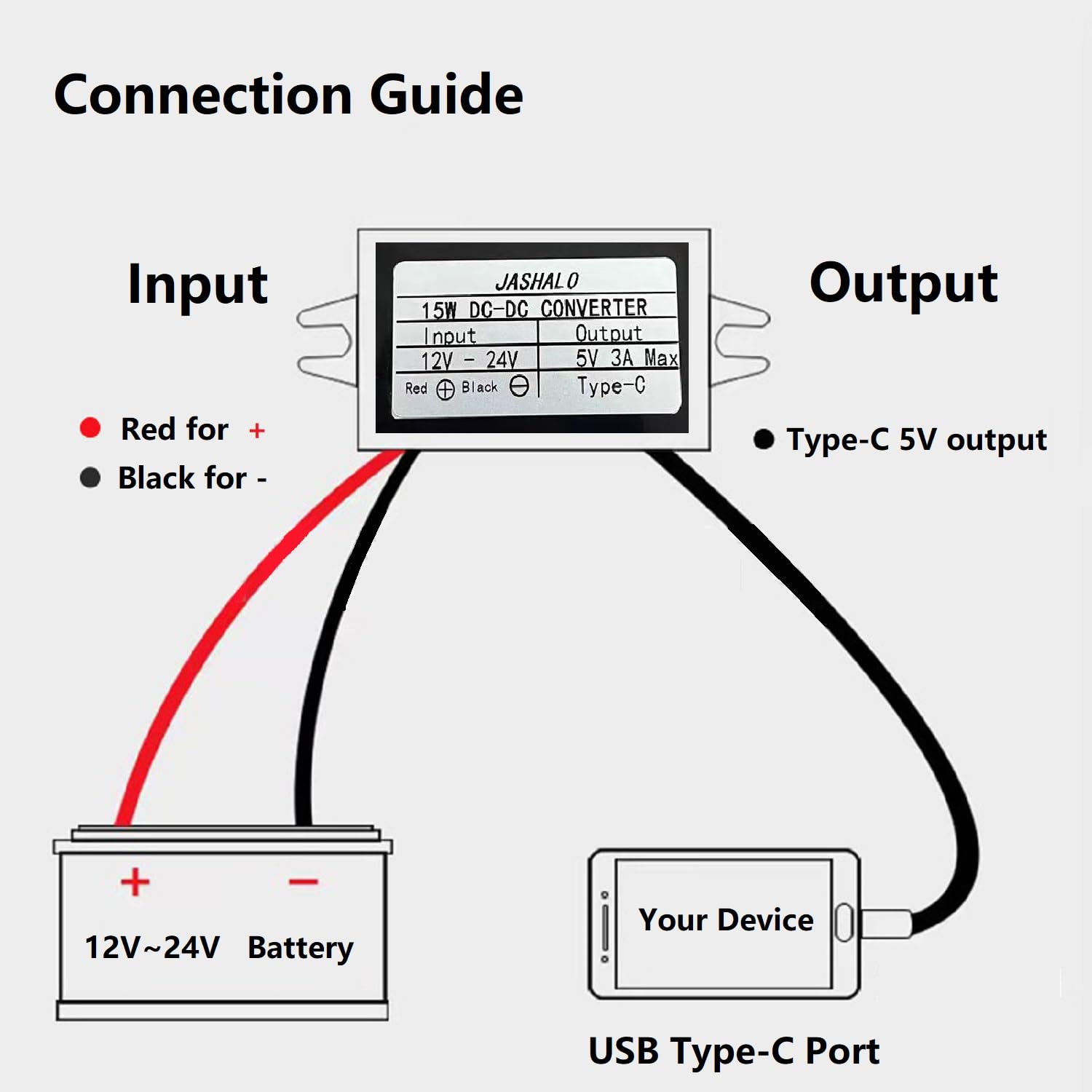

• 【Small Size Easy to install】46*27*14mm Small Size of converter, Length of the USB-C cable: 10-5/8 inch (27cm). Red wire connects to positive pole, Black wire connects to negative pole. 12V/24V to 5V converter with Type-C charging interface, conversion efficiency rate up to 96%.
• 【Wide Applications】The USB-C Buck Converter is great for raspberry Pi 4, cellphones, DIY for car charging system, DIY for driving recorder power supply, DIY for household power supply, or other electronic device that requires 5V voltage.Such as electronic dog, car radio, GPS navigation, driving recorder, MP3, MP4, walkie talkie, surveillance system, bus display, taxi advertising screen, LCD TV, LED, etc.

Color: Black
