Brand: Vonets

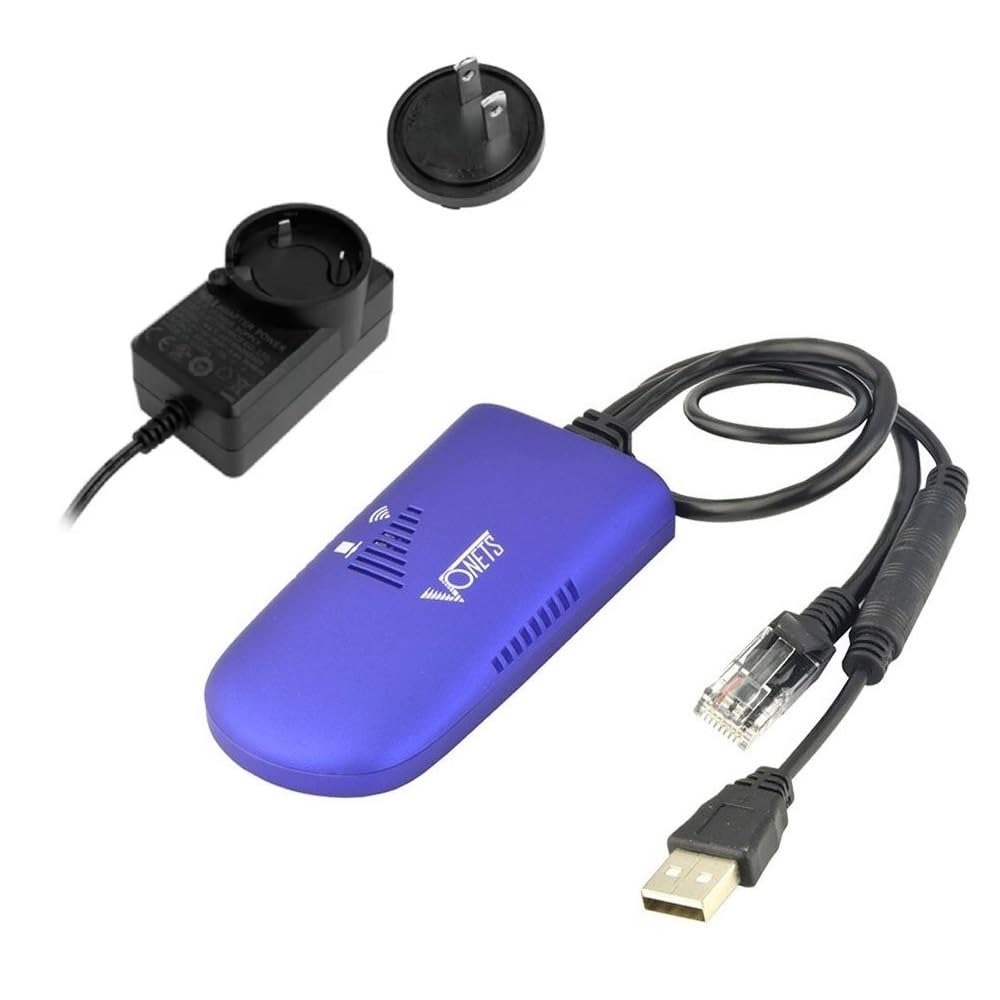

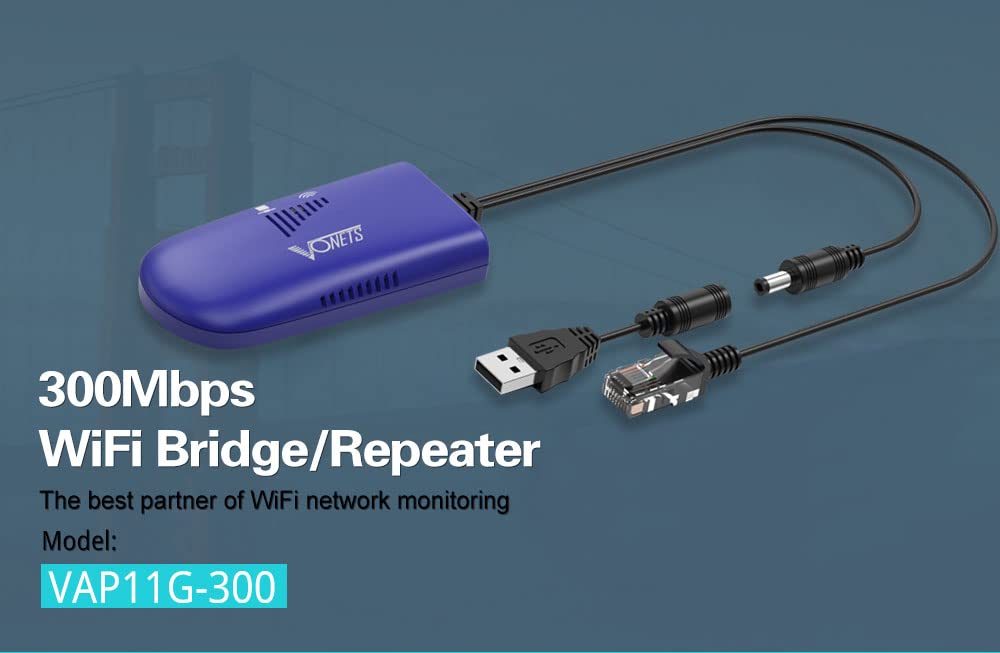

<b>Products Features&Specifications</b><br> 1. Industrial Mini 2.4GHz WiFi Bridge/Repeater (Small size); Can achieve WiFi to Wired or Wired to WiFi function (Ethernet to WiFi or WiFi to Ethernet convert) with Power Supply Adapter <br> 2. Input voltage (DC5V-15V), Total input power: ?5W, Please use the power adapter of the brand mobile phone or the typical 5V/2A or 12V/1A power adapter.<br> 3. Support 802.11b/g/n WiFi transmission protocol, 300Mbps rate of transmission.<br> 4. WiFi smart bridge function, Wireless to wired, wired to wireless, smart exchange.<br> 5. WiFi smart repeater mode, it supports WiFi hot spots scan automatically and WiFi hotspot memory function(up to 100).<br> 6. Support turn off the wifi hotspot function.<br> 7. It can be USB powered, easy to use mobile power supply.<br> 8. Support WPA-PSK/WPA2-PSK, 64/128/WEP security mechanism.<br> 9.This professional Wi-Fi repeater can not only turn wired equipments into Wi-Fi devices but also extend the coverage range of existing Wi-Fi network. <br> 10.Users can use this wireless Ethernet bridge for connecting smart TV, blu-ray player, game console, cable box, or computing hardware such as DVR, IP camera, computer, printer, network storage system to your Wi-Fi network and share your high-speed network connection.<br><br> <b>Hardware Specifications: </b><br> Interface:1 DC2.0 power hole; 1 dedicated two in one power supply cable, with a set of power supply and a set of 10/100M adaptive Ethernet cable; <br><b>LED Status instruction:</b><br>WiFi state/Hotspot connection state (blue light); <br>Ethernet port state (light green for success);<br> Button:Long press 5 seconds then release (During operation, the product can not be powered down, otherwise it may cause damage to the product.) <br>Antenna: Built-in 2pcs1.5dBi Smart omnidirectional Antennas <br><br><b>Packages: </b><br> 1*VAP11G-300 <br> 1*12V/1A Power supply adapter<br> 1*English user manual<br> 1*Retail box

Features:

• ?WiFi Bridge/Repeater?Industrial mini 2.4GHz WiFi Bridge Repeater Wireless Ethernet Bridge RJ45 to WiFi Adapter WiFi Hotspot Signal extend cover
• can achieve Wireless to Wired or Wired to Wireless function (WiFi to Ethernet or Ethernet to WiFi convert)
• support WiFi 802.11b/g/n, WiFi rate:300Mbps.

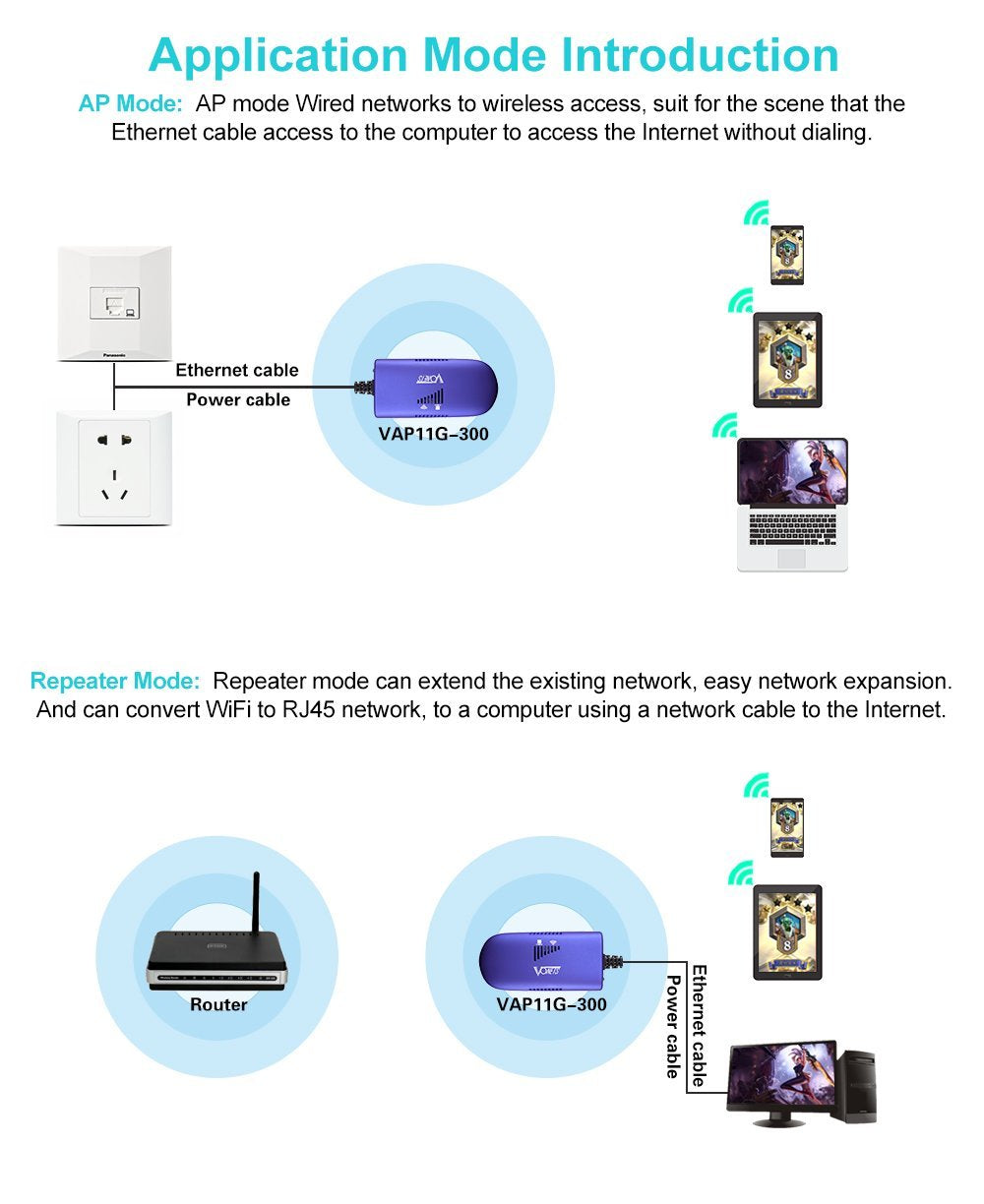

• ?Multiple Application Methods?WiFi Bridge: can smart control the device's WiFi mode ( IP layer or MAC layer transparent transmission)
• WiFi Repeater (extend the distance of WiFi transfer)
• WiFi Access Point hotspots. One 10/100Mbps adaptive Ethernet port (one 30cm cable with 1 male DC port and 1 male USB port).
• ?Connect Wired Device to WiFi?Good Partner for monitoring, electronic scales, DVR, IP camera, medical devices, IoT devices, video transmission, Industrial PLC, AGV, PS3, Network Printer, Robot and more Network devices and applications. Point-to-Point Transmission: maximum can be up to 80 meters when without obstacle and small data, then less than 50 meters when used for video transmission.

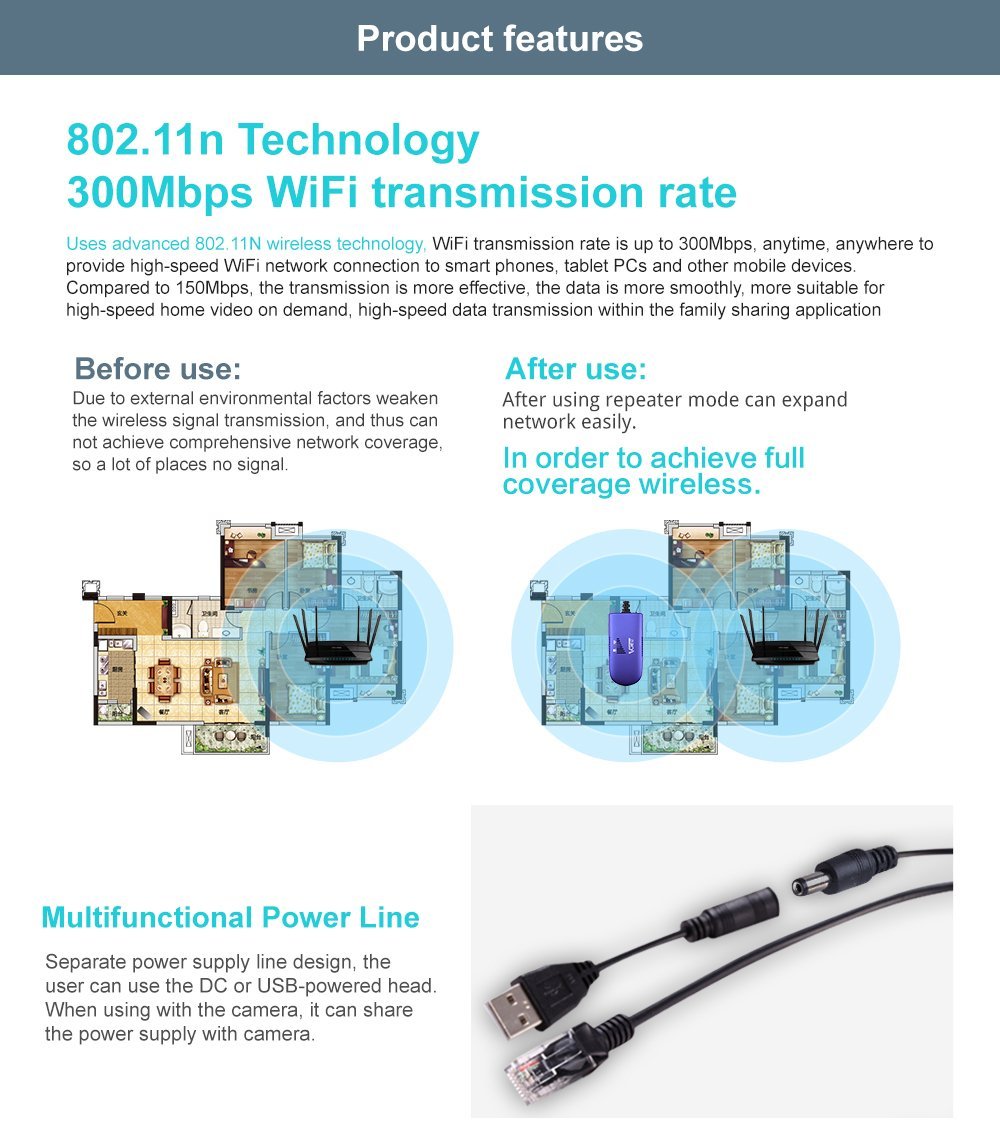

• ?Power&Parameters?USB or DC optional powered mode, powered by wide voltage DC5V-15V(Typical Standard 5V/2A or 12V/1A, ripple less than 100mV), With a 12V/1A Power supply adapter
• the average power consumption is less than 2.5W
• WiFi Tx Power:14.5dBm/16dBm optional(Enhanced Power), 2*1.5dBi internal antennas.
• ?Function&Note? Support SSA signal strength detection reporting function, motion detection function and memory hotspot(Up to 100) automatic matching connection function, realize to WiFi motion applications. Please pay attention three power methods(USB, power hole, power plug) can't be powered together, or the device may be damaged.

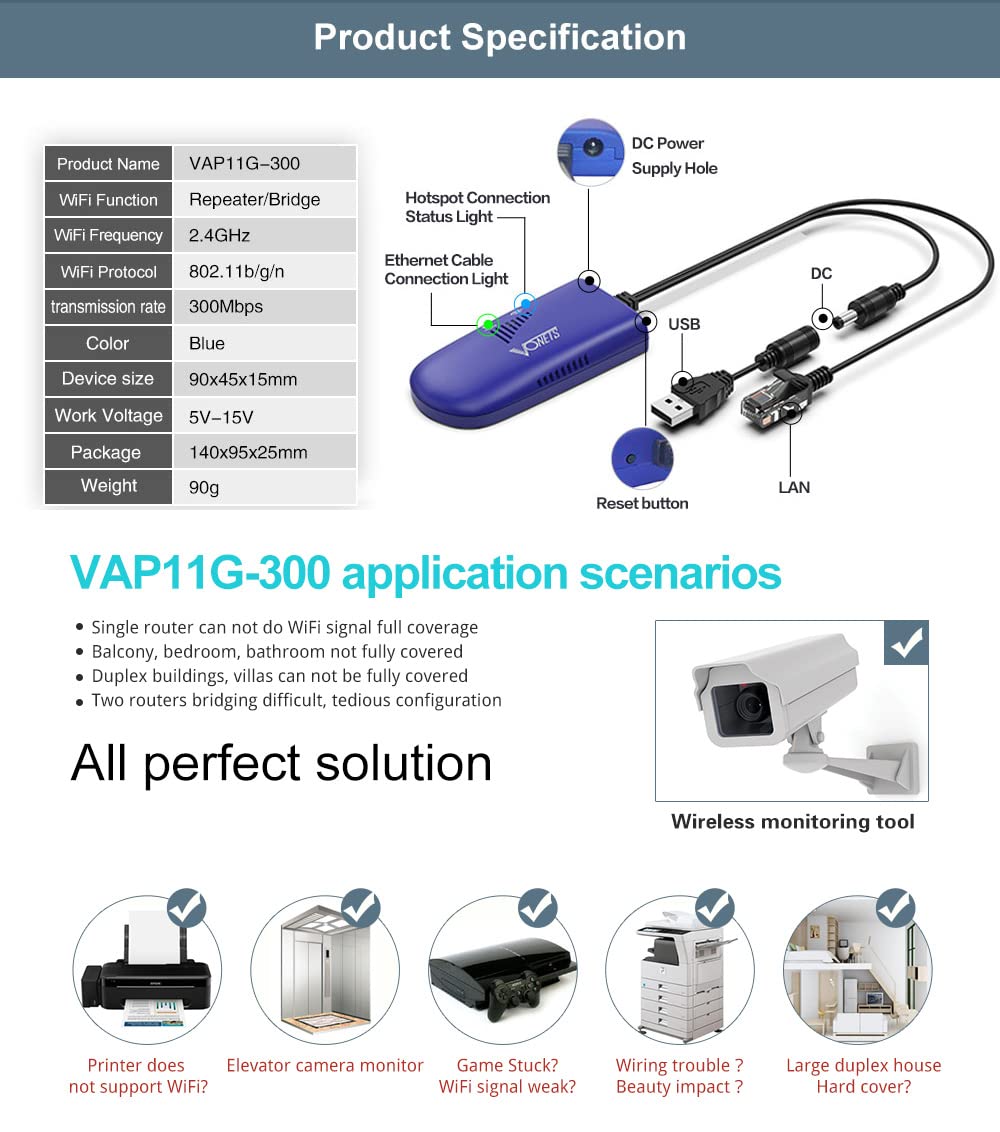

Product Details:

• Color: 2.4G Bridge+Adapter
• Size: 94*45*14mm
• Model: VAP11G-300
• Package Quantity: 1
