Brand: Vonets

<b>Features:</b><br> 1.Industrial Mini 2.4GHz/5GHz Dual Band AC1200 WiFi Bridge/Router (Ethernet to WiFi or WiFi to Ethernet);<br> 2.The output power of the power supply is not less than 10W (typical power supply 5V/2A, ripple less than 100mV)<br> 3.Product power supply: 1.3W - 3.75W<br> 4.The product built-in low noise amplifier (LNA) to enhance receiving sensitivity (the receiving sensitivity is 14dB); the product built-in PA greatly enhances signal coverage<br> 5.The aluminum alloy shell has good heat dissipation characteristics, which can quickly dissipate the heat generated when the device is working;<br>6.Working Environment temperature is -20? to 50?<br>7.Support 802.11ac/a/g/b/n WiFi transmission protocol<br> 8.Support connecting more than 20pcs WiFi terminal at the same time<br> 9.Hotspot connection parameter import and export function<br>10.Adopt temperature compensated auto frequency control technology, WiFi signal is more stable and not easy to drop;<br><br> <b>Hardware Specification:</b><br> Reset button: Long press 5 seconds then release(During operation, the product can not be powered down, otherwise it may cause damage to the product.)<br> LED Status instruction:<br> Ethernet port status light (Yellow);<br> 2.4G WiFi connection status light (Blue);<br> 5G WiFi connection status light (Green);<br><br> <b>Packages:</b><br><br> 1* VBG1200<br> 2* 3dBi 2.4GHz external antennas<br> 2* 3dBi 5GHz external antennas<br> 1* DC Industrial connector<br> 1* fixing kit<br> 1* English user manual<br><br> <b>Tips: </b><br> 1.After configuration, if this device doesn't work with your camera or devices, please change the setting of "Transmission mode" to "MAC layer transparent";br> 2.If you want to use Huawei or iPhone as a hotspot for WiFi bridge, when you setting, please select "SSID and password match" in the "Advanced Setting" under the upper-level hotspot password.br>

Features:

• Industrial Mini 2.4GHz/5GHz Dual Band WiFi Bridge/Router/WiFi Ethernet Adapter/WiFi Hotspot with ethernet port (small size)
• Can achieve WiFi to Wired or Wired to WiFi function(Ethernet to WiFi or WiFi to Ethernet)
• Support WiFi 802.11ac/a/b/g/n/, WiFi rate: 300Mbps (2.4GHz) + 900Mbps (5GHz)
• one 10/100Mbps adaptive Ethernet cable (RJ45 male) and one USB/DC power cable?30cm)
• Support two kinds of application methods: Router mode (support WiFi WAN up link and WAN/LAN exchange of wired network ports)
• WiFi smart bridge repeater mode:can achieve WiFi to wired, wired to WiFi function ( IP layer or MAC layer transparent transmission)
• Powered by wide voltage DC5V-15V(Typical 5V/2A, ripple less than 100mV), two-stage automatic overvoltage protection (Protection voltage upper limit 15.5V),USB or DC power cable optional powered mode(two types of power supply can’t be used at the same time)
• it is convenient to share power supply with other devices

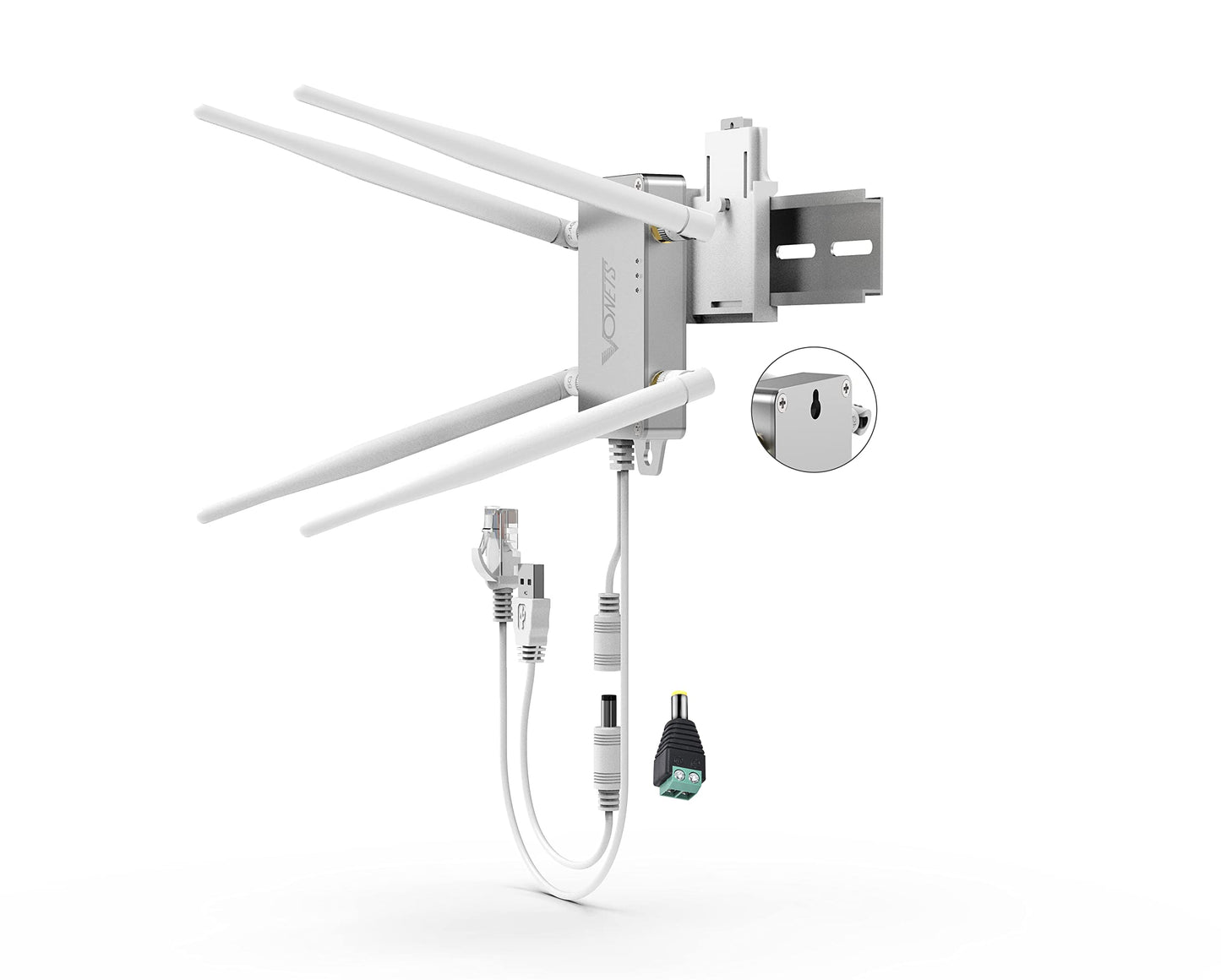

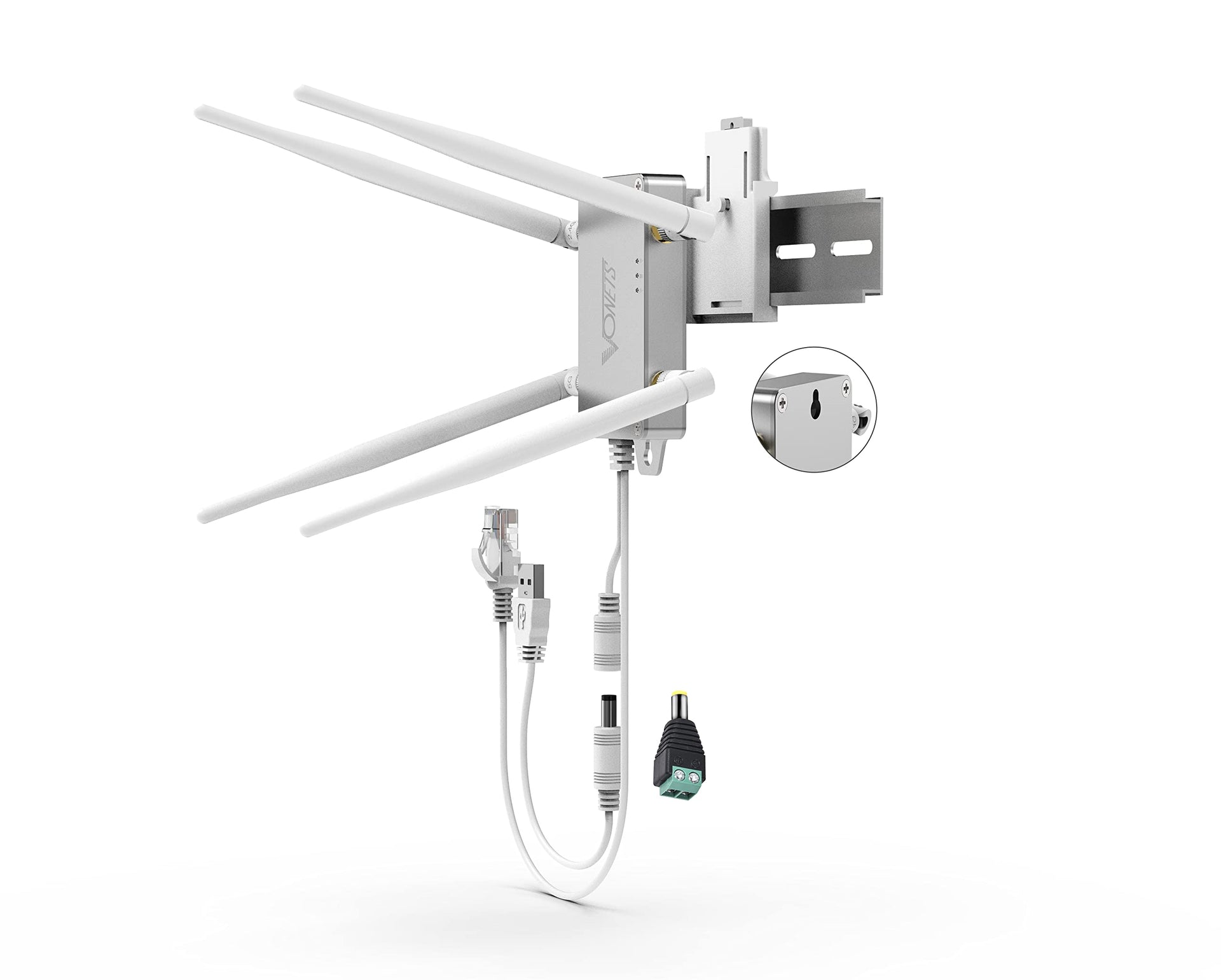

• Built with fixed hook,1 Fixing Kit and 1 Industrial DC connector, more suitable for industrial applications
• Point-to-Point Transmission Distance: maximum can be up to 300 meters when without obstacle and small data (by 802.11a), less than 100 meters when used for video transmission
• 2 X 2.4GHz 3dBi and 2pcs 5GHz 3dBi external antennas
• Good Partner for Network Printer, Monitor, DVR, IP camera, Medical devices, IoT devices, Video transmission, POS Cash Register, PS3, Robot, Doll Machine, Electronic Scales, PLC, and more network application.

Product Details:

• Color: VONETS-VBG1200-US001
• Model: VBG1200
• Package Quantity: 1
