Brand: Vonets

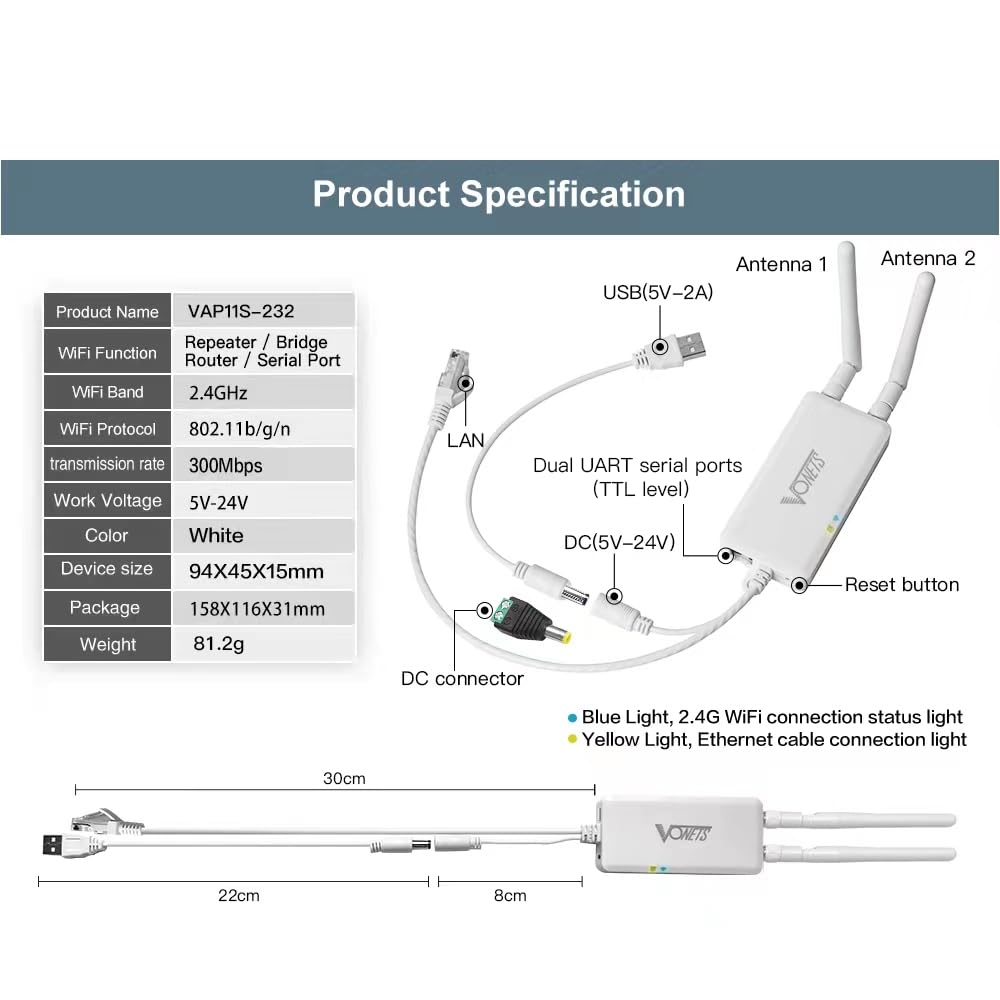

<p>The <b>VONETS VAP11S-232</b> is an industrial-grade <b>2.4GHz WiFi Bridge, Repeater, and Serial-to-Ethernet Server </b>designed to bring legacy serial devices online wirelessly. Whether you need to connect a PLC, Modbus meter, industrial sensor, or RS232 controller to a modern WiFi network, the VAP11S-232 provides reliable, secure, and long-range connectivity.</p> <p><b>Key Function - Serial to WiFi/Ethernet:</b></p> <p>The VAP11S-232 converts <b>RS232, RS485, or TTL serial signals</b> to WiFi or Ethernet packets. It supports both one-to-one and one-to-many serial transparent transmission - a significant advantage over ordinary modules that only support one-to-one. This allows a single serial device to communicate with multiple servers, or multiple serial devices to share one wireless bridge.</p> <p><b>Serial Interface Details:</b></p> <p>One RJ45 female socket providing <b>2 UART serial ports</b> (TTL level: 3.3V LVTTL or 3.3V CMOS)</p> <p><b>Optional accessories (sold separately):</b></p> <p><b>RS232: </b>DB9-232 adapter or VDB9-232-X2 (built-in RS232 chip)</p> <p><b>RS485/RS422: </b>VRJ45-422-1 (built-in chip with toggle switch)</p> <p><b>TTL (3.3V): </b>VRJ45-5P adapter</p> <p>Perfect for PLC programming, Modbus RTU/ASCII, data acquisition, and industrial control systems</p>

Features:

• ?MAC Layer Transparent Bridge + Serial to IP? Supports both IP-layer and MAC-layer transparent bridging - solves connectivity with AC-managed APs. The RJ45 female socket provides 2 UART serial ports (TTL 3.3V / CMOS 3.3V). Optional accessories available for RS232 (DB9-232) or RS485/RS422 (VRJ45-422-1) conversion.
• ?Industrial WiFi to Serial Bridge? The VAP11S-232 converts RS232/RS485/TTL serial signals to WiFi or Ethernet. It bridges legacy serial devices (PLCs, meters, sensors, industrial controllers) to a wireless network. Supports one-to-one and one-to-many serial transparent transmission - many modules only support one-to-one.
• ?Wide Voltage 5-24V & DIN Rail Mount? Accepts DC 5V to 24V input with two-stage overvoltage protection (triggers at 29V). Comes with standard industrial DIN rail mounting kit and industrial DC power connector. Perfect for factory control panels, automation cabinets, and field installations.
• ?Reliable 2.4GHz WiFi? Delivers 300Mbps wireless speed (802.11b/g/n). With 2 external 3dBi antennas and selectable TX power (19/23dBm), achieves point-to-point line-of-sight range up to 300 meters. Built-in digital-analog temperature compensation for stable signal without dropouts.
• ?Smart for Industrial Use? Memorizes up to 100 hotspots with auto-reconnect. Supports 20+ simultaneous WiFi terminals. Features WEB management (Chinese/English), VDNS for easy setup, SSA signal strength detection, manual SSID/WiFi shutdown, and configuration parameter import/export for batch deployment.

Product Details:

• Color: White
• Package Quantity: -1
