Brand: Vonets

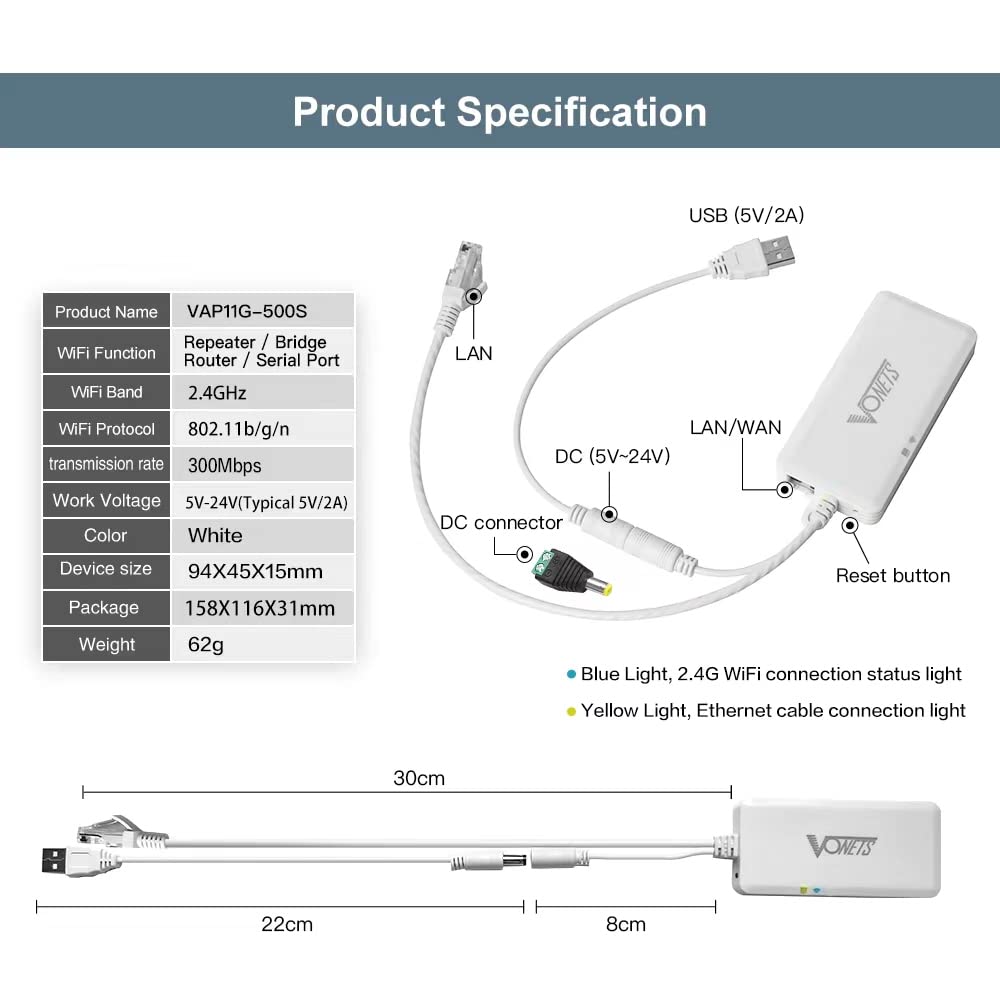

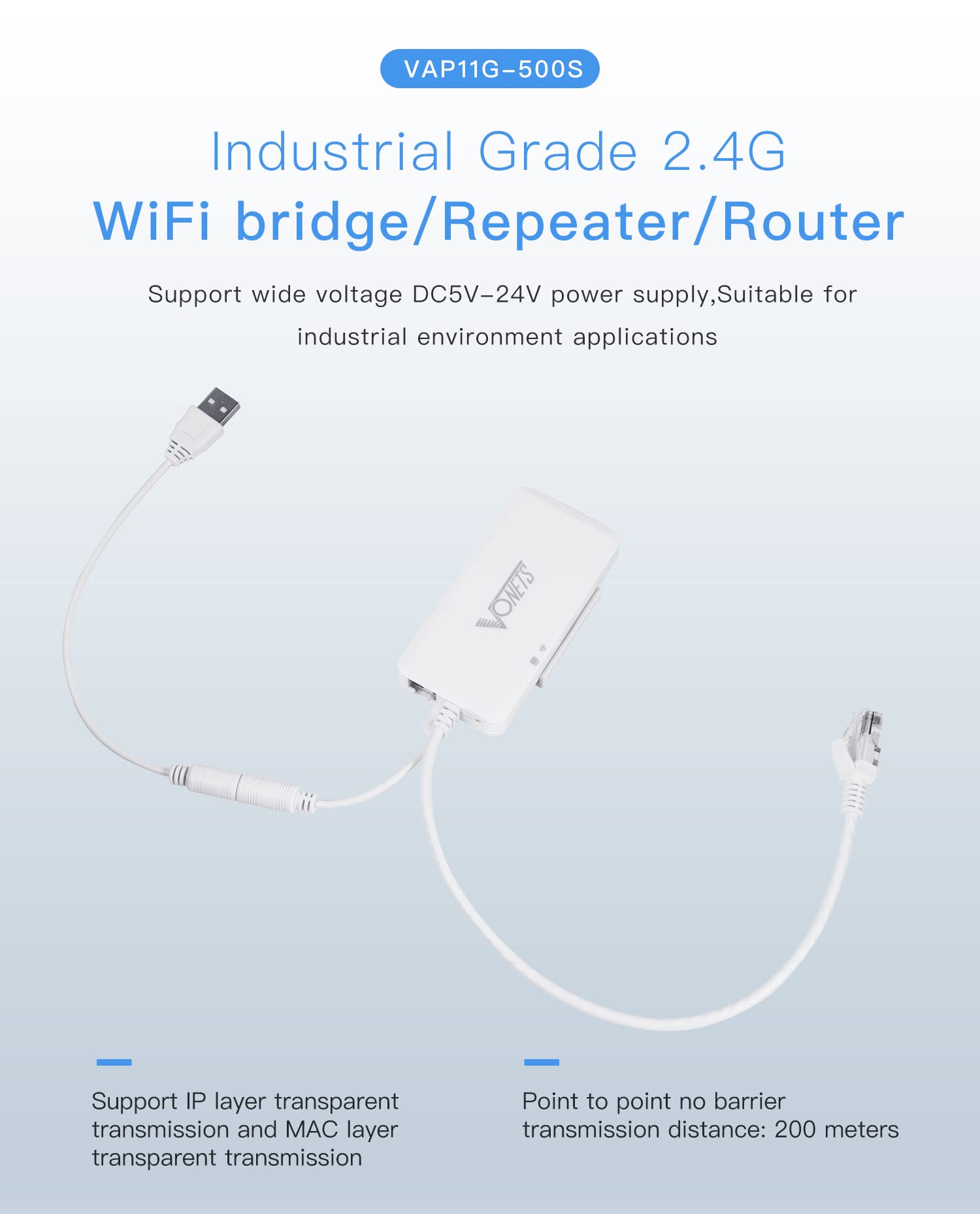

<p>The VONETS VAP11G-500S is an industrial-grade 2.4GHz WiFi bridge, repeater, and router designed for long-distance and demanding applications. Equipped with built-in dual omnidirectional antennas and wide voltage support (DC5V-24V), this device is built for professional installations such as warehouse networking, remote monitoring, and industrial automation.</p> <p>Key Features &amp; Specifications:</p> <p><b>Wireless Standard: </b>Supports 802.11b/g/n, speed up to 300Mbps.</p> <p><b>Frequency: </b>2.4GHz. RF Power: 19dBm / 23dBm optional.</p> <p><b>Maximum Range: </b>Point-to-point transmission can reach hundreds of meters in open, unobstructed areas. Actual range varies with environment.</p> <p><b>Antennas: </b>2 x built-in omnidirectional smart antennas.</p> <p><b>Ports: </b>2 x 10/100Mbps adaptive Ethernet ports (optional expansion for 3rd port).</p> <p><b>Power:</b> Wide voltage DC5V-24V with two-stage overvoltage protection (max 29V).</p> <p><b>Working Modes:</b> Router Mode, Repeater Mode, Bridge Mode (IP/MAC layer), Access Point Mode.</p> <p><b>Special Features:</b> TAFC technology, 100 hotspot memory, supports 20+ terminals, SSA signal detection, parameter import/export for batch configuration.</p> <p><b>Mounting: </b>Includes industrial track fixing kit.</p> <p><b>Operating Temperature:</b> -20°C to 55°C.</p> <p><b>Dimensions: </b>3.70 x 1.77 x 0.59 inches (94mm x 45mm x 15mm).</p> <p><b>Weight:</b> 62g.</p>

Features:

• Long Range Performance for Industrial Use: Designed for point-to-point transmission over extended distances in open areas. Built-in 2 omnidirectional smart antennas and TAFC temperature compensated auto frequency control technology help maintain a stable WiFi signal. Actual range depends on environmental factors such as walls, obstacles, and interference.

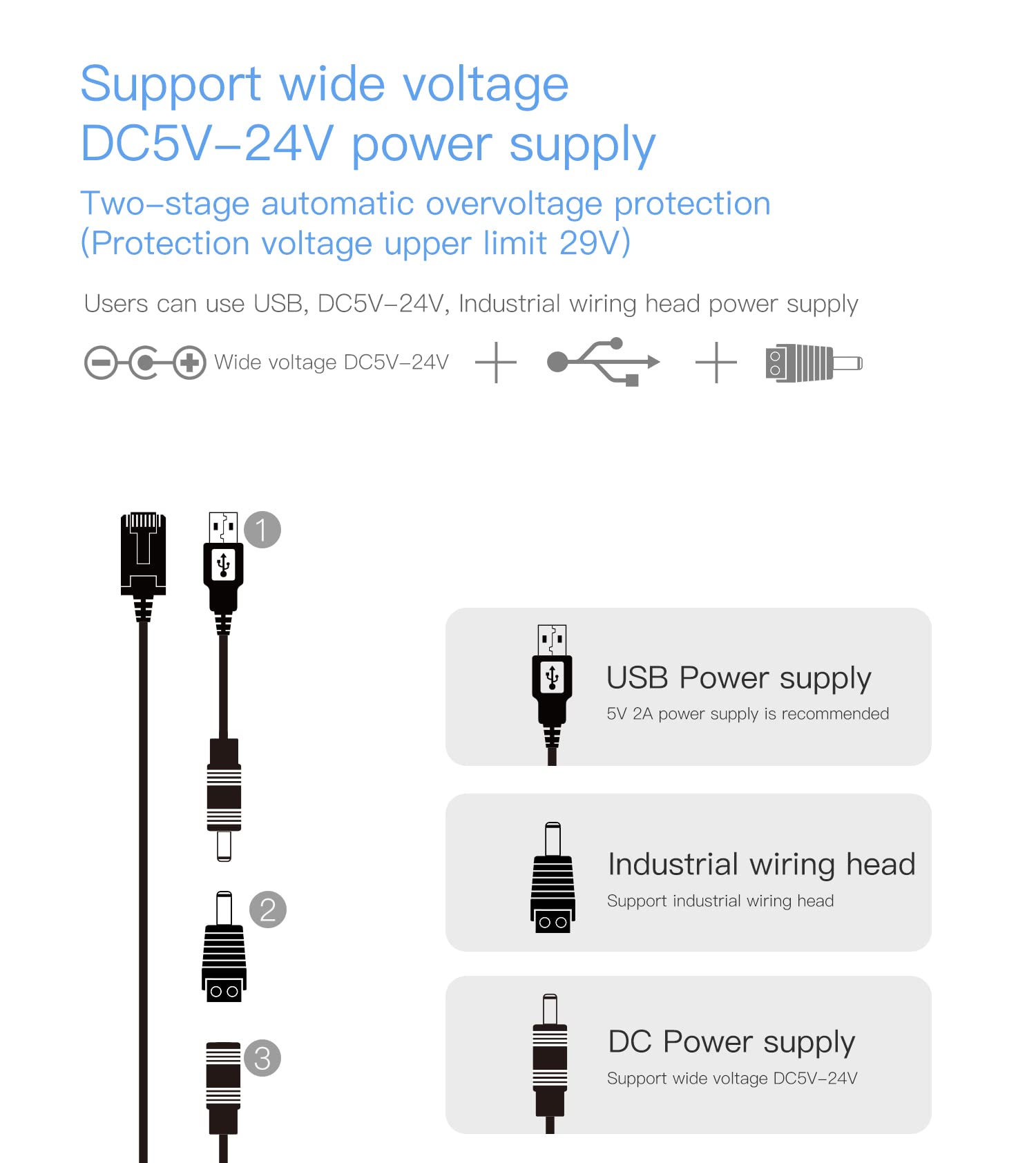

• Industrial Grade Design with Wide Voltage Support: Supports wide voltage input from DC5V to 24V with two-stage automatic overvoltage protection (protection voltage upper limit 29V). Operating temperature range from -20°C to 55°C. Includes industrial track fixing kit and industrial power supply DC connector for professional installations.

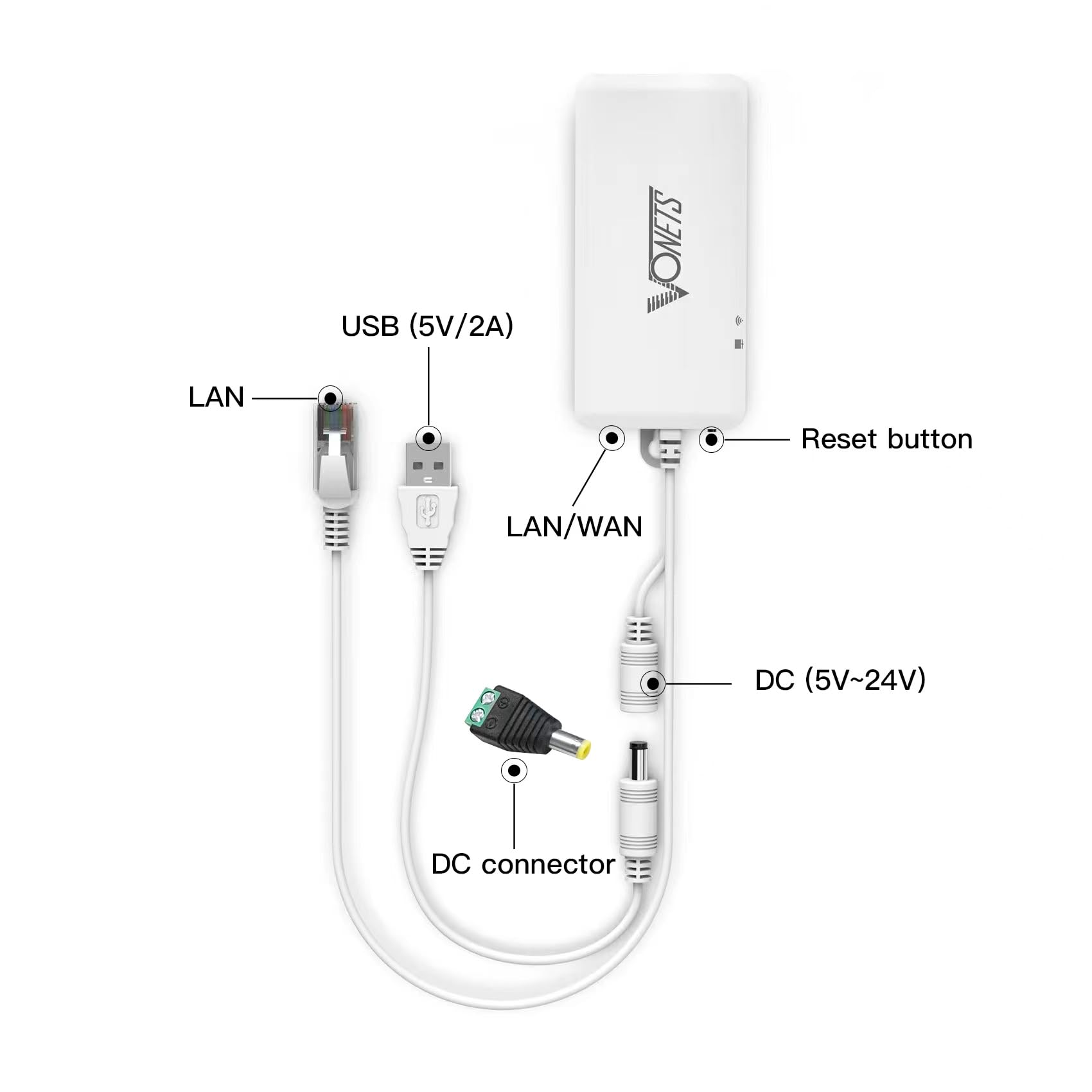

• Dual Ethernet Ports with Expansion Option: Features two 10/100Mbps adaptive Ethernet ports. An optional accessory is available to expand one additional Ethernet port, providing flexibility for connecting multiple wired devices in industrial environments.
• Advanced Transparent Transmission Modes: Supports both IP layer (factory default) and MAC layer transparent transmission. MAC layer mode solves special applications requiring MAC layer encryption, making it compatible with AC-managed APs, GoPro cameras, Cisco APs, Hikvision monitoring systems, and other encrypted devices.
• Multiple Working Modes and Smart Configuration: Operates as WiFi Router, Repeater, Bridge (IP/MAC layer), or Access Point. Features VDNS virtual domain configuration technology for easy setup. Memorizes up to 100 WiFi hotspots and supports batch configuration with parameter import/export function for engineering projects.

Product Details:

• Color: White
• Package Quantity: 0
