Brand: Vonets

<b>Video user guide:https://www.youtube.com/watch?v=QQ86ozBWRmE&feature=youtu.be</b><br><br><b>VAP11G-300</b> is an environmentally and safe WiFi signal repeater. Working in the repeater mode, VAP11G-300 can be doubled to extend the original WiFi signal coverage, while it can ensure the security of the wireless signal, its working principle is: at the edges of the original WiFi hot spot signal coverage, the VAP11G-300 that in "repeater mode " is able to receive weak WiFi signal, and then zoom in to the normal, safe strength, and after optimization, error correction processing, to achieve signal coverage distance doubled extension under safe. This differs from traditional wireless signal amplifier - only amplifies the signal and ignore the wireless security. <br> <br> <b>Features:</b> <br>1.WiFi intelligent bridge function, Wireless switch wired, wired switch wireless, intelligent switch; <br>2.WiFi intelligent repeater mode, it supports WiFi hot spots scan automatically and WiFi hot spot memory function; <br>3.Support turn off the wifi hotspot function; <br>4.Support WEB remote firmware upgrade, can get the latest firmware free; <br> <br> <b>Hardware Specifications</b>: <br>Interface:1 DC2.0 power hole; 1 dedicated two in one power supply cable, with a set of power supply and a set of 10/100M adaptive Ethernet cable; <br>Button:Reset button (long press 5 seconds) <br>Antenna: Built-in 2pcs Smart omnidirectional 2dbm Antennas <br> <b>Basic Function</b>: WiFi Hot spot scan automatically; WiFi Hot spot memory; wiFi Hot spot switches. <br>input voltage: DC5V-15V total input power: ?5W <br> <br> <b>Packages:</b> <br>1*VAP11G-300 <br>1*English user manual <br>1*Retail box<br><b>

Features:

• ?2.4GHz WiFi Bridge/Repeater?Industrial 2.4GHz Mini WiFi Bridge/Repeater, can achieve WiFi to Wired or Wired to WiFi function?Ethernet to WiFi or WiFi to Ethernet convert)
• WiFi rate:300Mbps
• Support WiFi 802.11b/g/n.

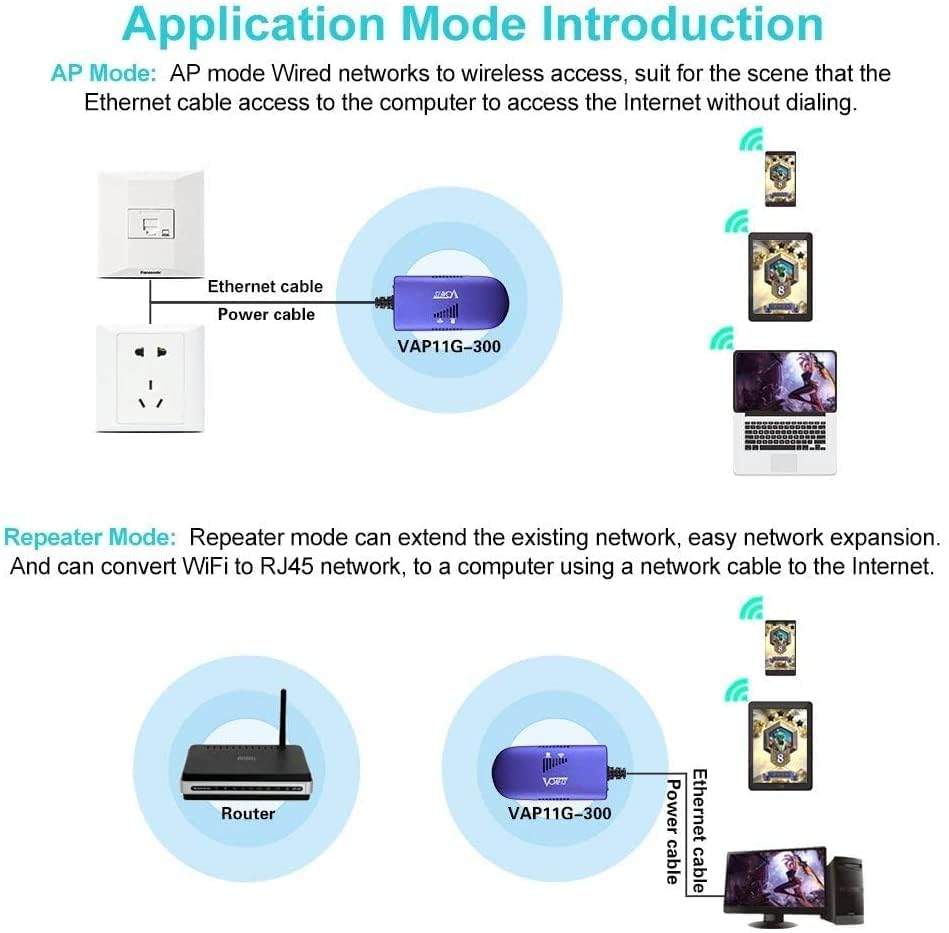

• ?Support Multiple application?1. WiFi repeater, 2. WiFi bridge ( IP layer or MAC layer transparent transmission), 3. WiFi-AP hotspots. Realize WiFi smart bridge function, WiFi to wired, wired to WiFi, smart exchange.
• ?Point-to-Point Transmission?Maximum can be up to 100 meters when without obstacles and small data, less than 50 meters when used for video transmission, 2 X 1.5dBi internal antennas. It's a good partner for monitoring, electronic scales, DVR, IP camera, medical devices, IoT devices, video transmission, industrial PLC, PS3, network Printer, robot, doll machine, and more network applications.

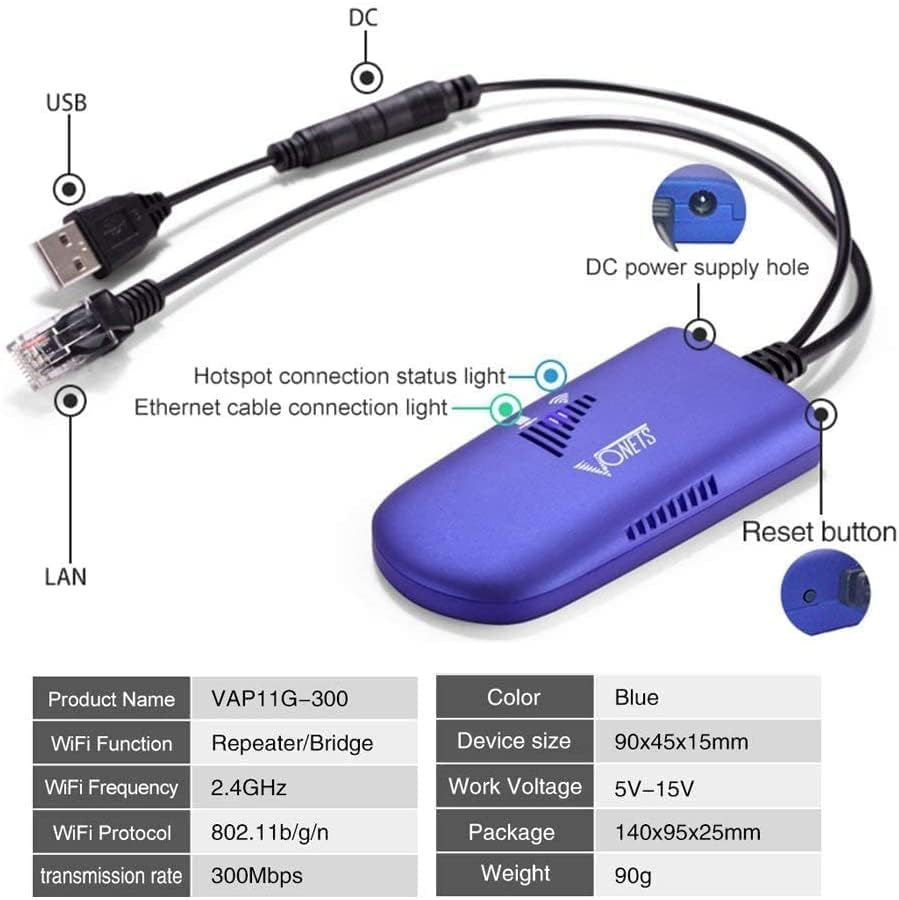

• ?Configuration Parameters?Support wide voltage DC 5V-15V(Typical 5V/1A, ripple less than 100mV), the average power consumption is less than 2.5W. Equipped with a 30cm power cable, one male DC port, one male USB port, one female DC port of the parallel connection, and one 10/100Mbps adaptive Ethernet port.
• ?IP/MAC Layer Transparent?Support IP layer transparent transmission and MAC layer transparent transmission in two bridge modes, IP layer transparent transmission (factory default), which can meet most of the bridge applications
• MAC layer transparent transmission, which can transparent transmission the MAC layer(link layer) and above of all data, including IP layer data(such as Cisco AP, Hikvision surveillance system).

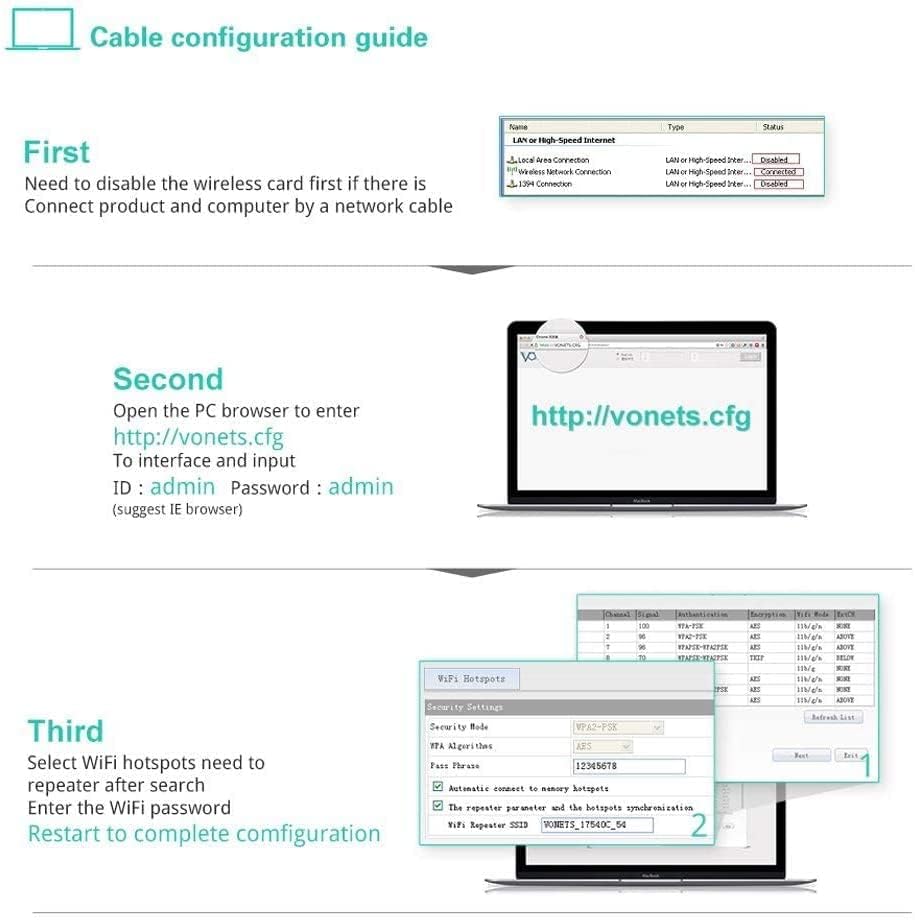

• Note for Users: When the VONETS Bridge is connected to an external network, its IP address will undergo a change. To access the configuration interface, we recommend utilizing the dedicated configuration domain name: vonets.cfg. Alternatively, you can obtain the device's current IP address by entering the command ping vonets.cfg in the Windows Command Prompt window, and then use this IP address to log in to the configuration page.
• This product does not include a power adapter
• The Ethernet port is solely a signal conversion interface. When not connected to a valid hotspot, the absence of data flow through the port is an expected behaviour and not a device malfunction.
• 300Mbps represents the theoretical value under the IEEE 802.11n protocol

Product Details:

• Color: VAP11G-300
• Model: VAP11G-300
• Package Quantity: 1
