Description

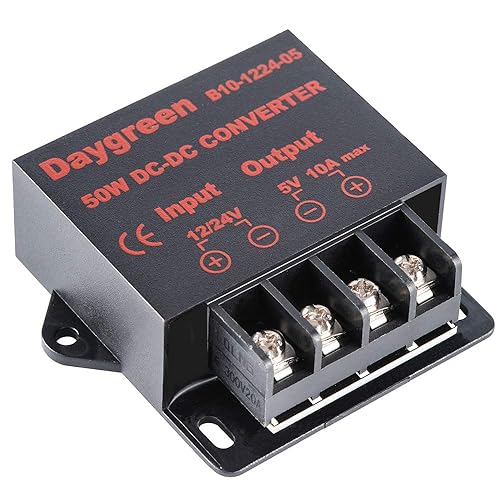

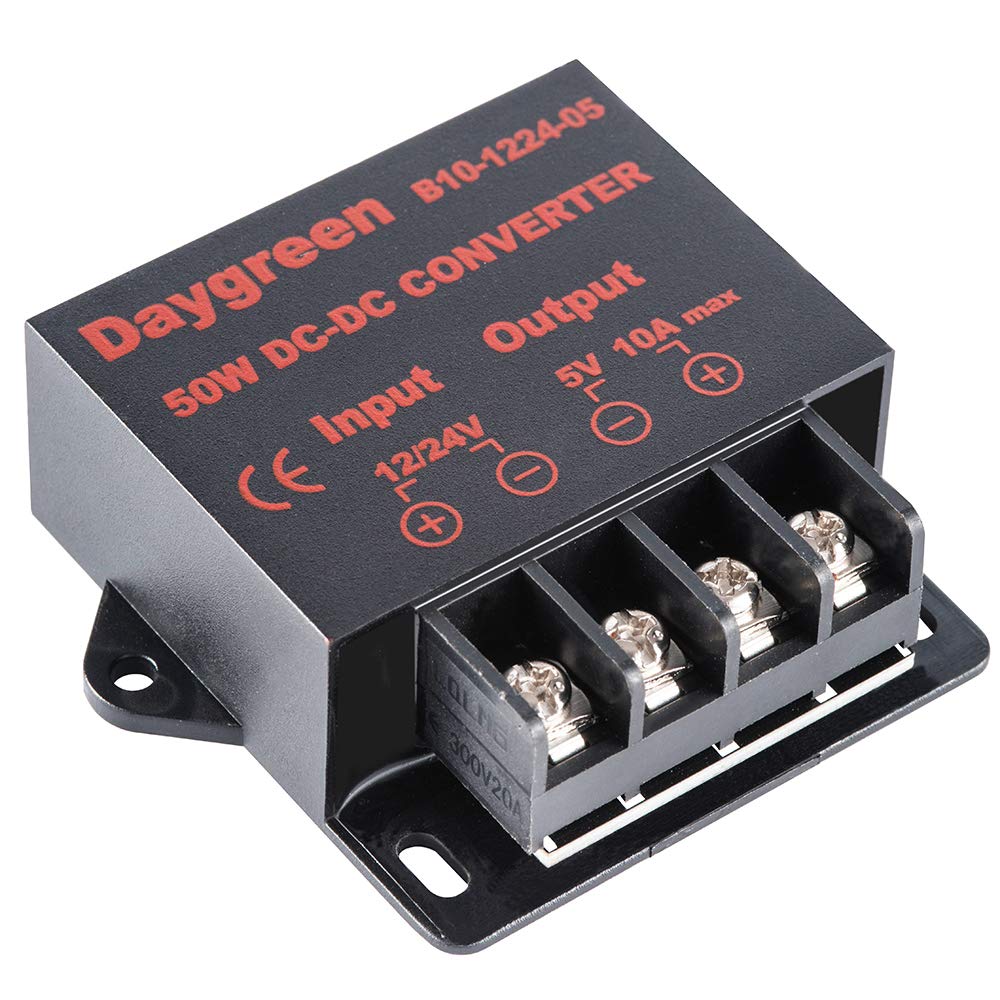

Brand: Daygreen
Model: 12V/24V TO 5V 10A
Wiring: OUTPUT+ to LOAD+, OUTPUT- to LOAD-; INPUT+ to BAT+, INPUT- to BAT-
Reminder: Never reverse the polarity. Use the enough big cable to avoid the voltage drop. Never connect to solar panel or wind turbine. Never charge the battery. Keep good air convection.
Daygreen P/N: B10-1224-05
Efficiency: 95%
Input Voltage: 11-30V DC
Output Voltage: 5VDC
Output Current: 10A
No-load current: <0.1V
Ripple: 200mVp
Line Regulation: ±0.2%
Load Regulation: ±0.2%
Voltage Accuracy: ±1.5%
Enclosures: IP68
Dimension: 63*53*20mm
Net Weight: 70g
Case Operating Temperature: -40~85°C
Certificates: CE Rohs
Warranty: 3 years
MTBF: 100,000 hours
Application:
12V/24V DC battery of vehicles as input power to 5VDC appliances as output load.
Questions
How to choose the correct current for loads?
For example, if the max current of your load device is 10A, then choose 10A/0.7=14.28A at least for resistive loads according to international standard.
If the load device is motor or compressor, then you may choose 10A/0.5=20A according to real testing result since the motor and compressor starting current may be 2-3 times than nominal current.
• Stable Output Voltage: This product provides a stable output voltage of 5V for reliable performance.
• Wide Input Voltage Range: The device accepts a wide range of input voltages, allowing it to be used in various applications.
• High Efficiency: With a maximum efficiency of up to 95%, this product is designed to minimize energy waste and optimize power usage.
• Low Power Consumption: It has a low no-load consumption of less than 0.04A, ensuring minimal energy usage when not in active operation.
• Robust Protection: The product is fully sealed and rated IP68 to provide protection against water, dust, and vibration. Additionally, it features multiple protections like low voltage, output over voltage, overload, and over-temperature protection.
Color: Silver
Model: 12V/24V TO 5V 10A
Wiring: OUTPUT+ to LOAD+, OUTPUT- to LOAD-; INPUT+ to BAT+, INPUT- to BAT-
Reminder: Never reverse the polarity. Use the enough big cable to avoid the voltage drop. Never connect to solar panel or wind turbine. Never charge the battery. Keep good air convection.
Daygreen P/N: B10-1224-05
Efficiency: 95%
Input Voltage: 11-30V DC
Output Voltage: 5VDC
Output Current: 10A
No-load current: <0.1V
Ripple: 200mVp
Line Regulation: ±0.2%
Load Regulation: ±0.2%
Voltage Accuracy: ±1.5%
Enclosures: IP68
Dimension: 63*53*20mm
Net Weight: 70g
Case Operating Temperature: -40~85°C
Certificates: CE Rohs
Warranty: 3 years
MTBF: 100,000 hours
Application:
12V/24V DC battery of vehicles as input power to 5VDC appliances as output load.
Questions
How to choose the correct current for loads?
For example, if the max current of your load device is 10A, then choose 10A/0.7=14.28A at least for resistive loads according to international standard.
If the load device is motor or compressor, then you may choose 10A/0.5=20A according to real testing result since the motor and compressor starting current may be 2-3 times than nominal current.
• Stable Output Voltage: This product provides a stable output voltage of 5V for reliable performance.
• Wide Input Voltage Range: The device accepts a wide range of input voltages, allowing it to be used in various applications.
• High Efficiency: With a maximum efficiency of up to 95%, this product is designed to minimize energy waste and optimize power usage.
• Low Power Consumption: It has a low no-load consumption of less than 0.04A, ensuring minimal energy usage when not in active operation.
• Robust Protection: The product is fully sealed and rated IP68 to provide protection against water, dust, and vibration. Additionally, it features multiple protections like low voltage, output over voltage, overload, and over-temperature protection.
Color: Silver
