Description
Brand: VictorsHome
• ?MATERIAL - The switch housing is made of ABS flame retardant material and reed switch, is resistant to high temperature and deformation.
• ?NORMALLY CLOSED(NC) - When the switch is close to the magnet, the circuit is conductive(light on); when the switch is separated from the magnet, the circuit is not conductive(light off).
• ?ACTUATION DISTANCE - 10mm transmitting distance. The contact has fast reflection and accurate detection.
• ?WORKING CONDITIONS - When the magnetic door is energized, the voltage is controlled at DC 0V-24V and the supply current cannot exceed 1A. The load current is 150mA.
• ?WIDE APPLICATIONS - Work with all access control and burglar alarm systems. Can be installed in wooden or aluminum alloy doors and windows.

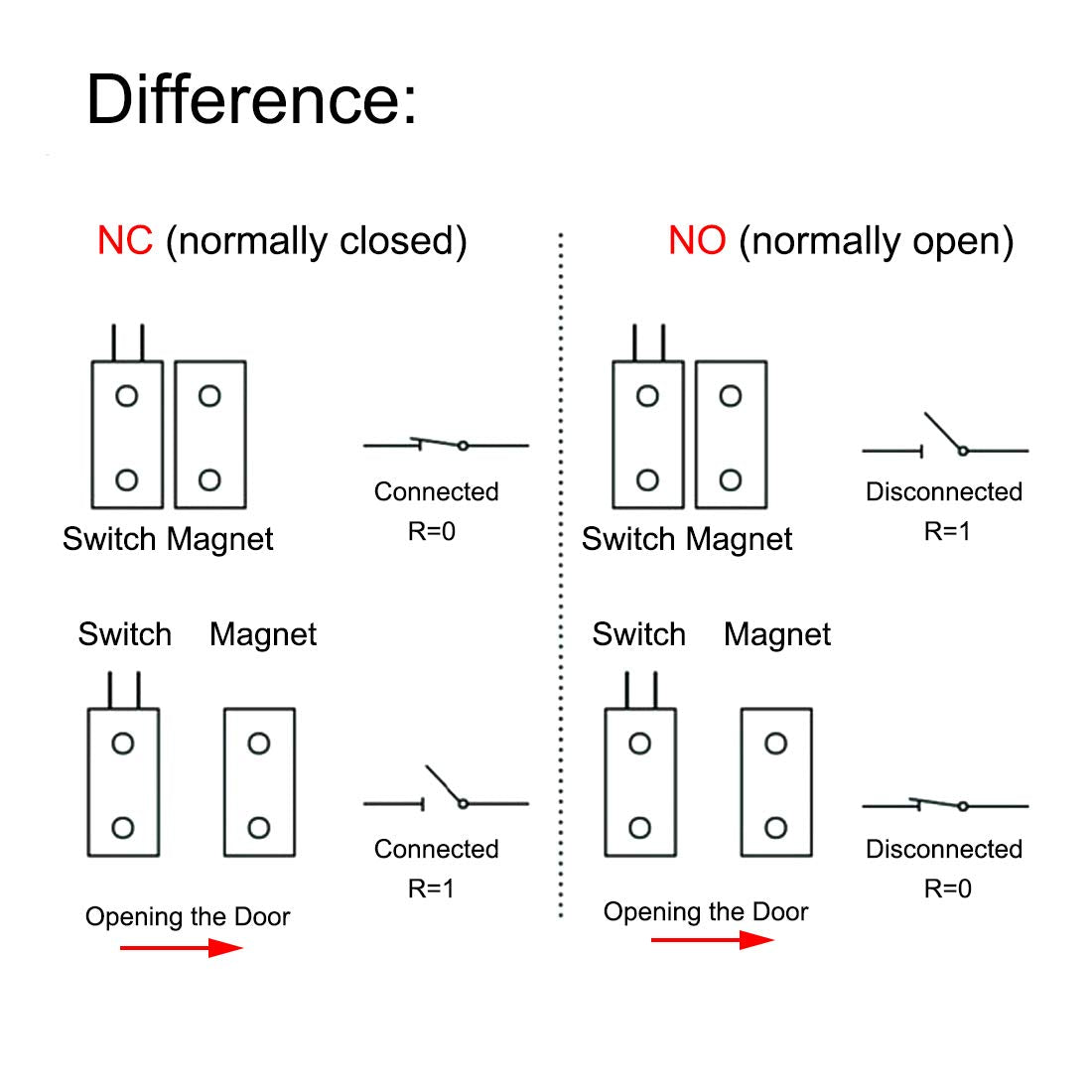

NORMALLY CLOSED
When the switch is close to the magnet, the circuit is conductive(light on); when the switch is separated from the magnet, the circuit is not conductive(light off).
WIDE APPLICAIONS
Work with all access control and burglar alarm systems. Can be installed in wooden or aluminum alloy doors and windows.
PLEASE NOTE
A magnetic door contact can only provide a switching signal to the device. It cannot directly load the power supply and cannot be directly connected to the lamp.
Specifications:
Model: RC-36
Contact Type: NC(Normally Closed)
Max. Sensor Sensitivity: 10mm(+/-5mm)
Max. Current: 150mA
Max. Voltage: 100V
Working Voltage: DC0-24V
Max. Contact Power: 10W

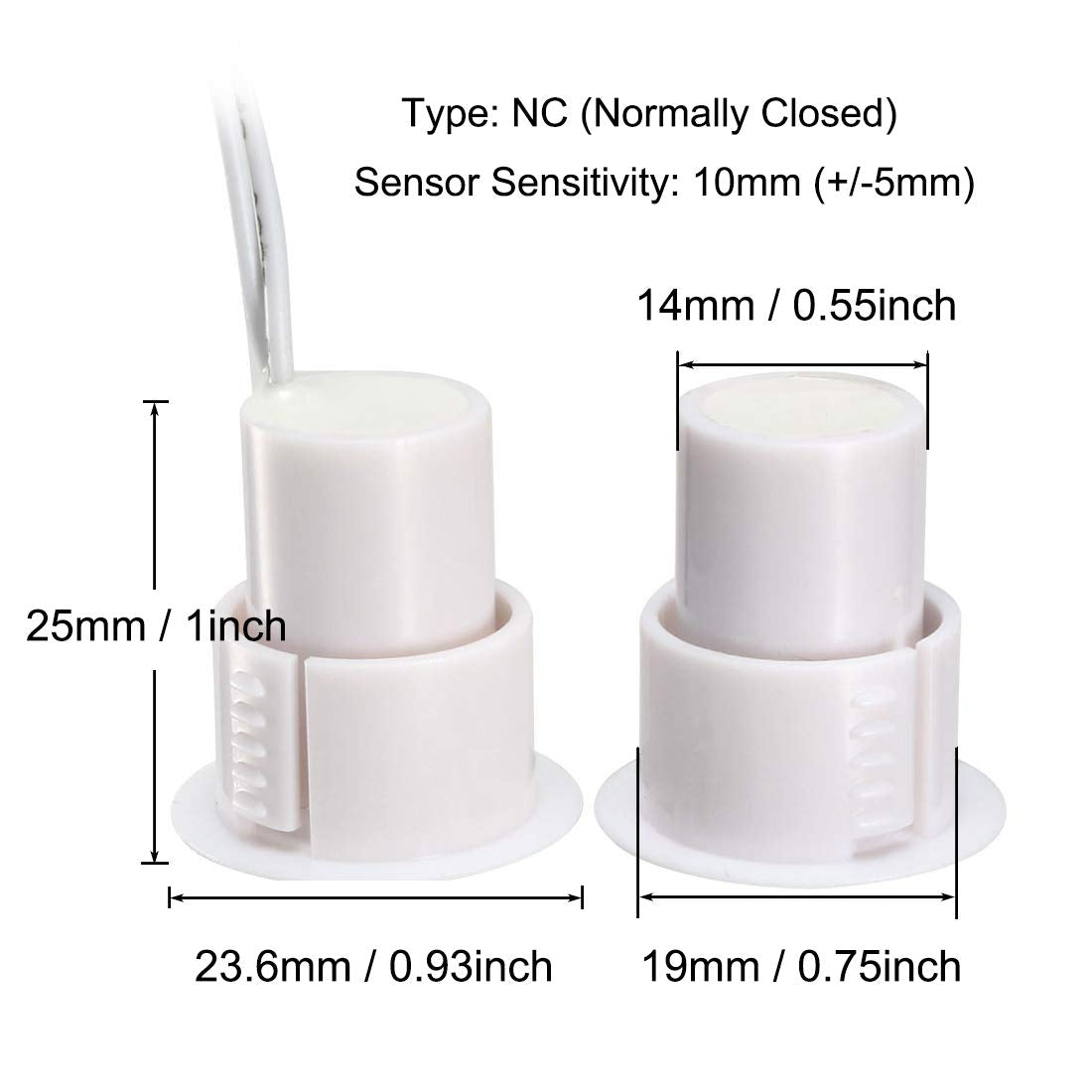

Size(Approx.): 25 x 23.6mm / 0.98 x 0.93inch (H*D)
Cable Length(Each): 30cm / 11.8inch
Housing Material: ABS
Wire Type: 1007#/24#300mmUL
Package Content:

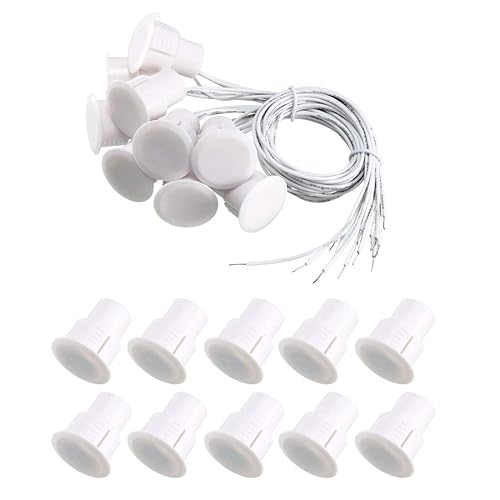

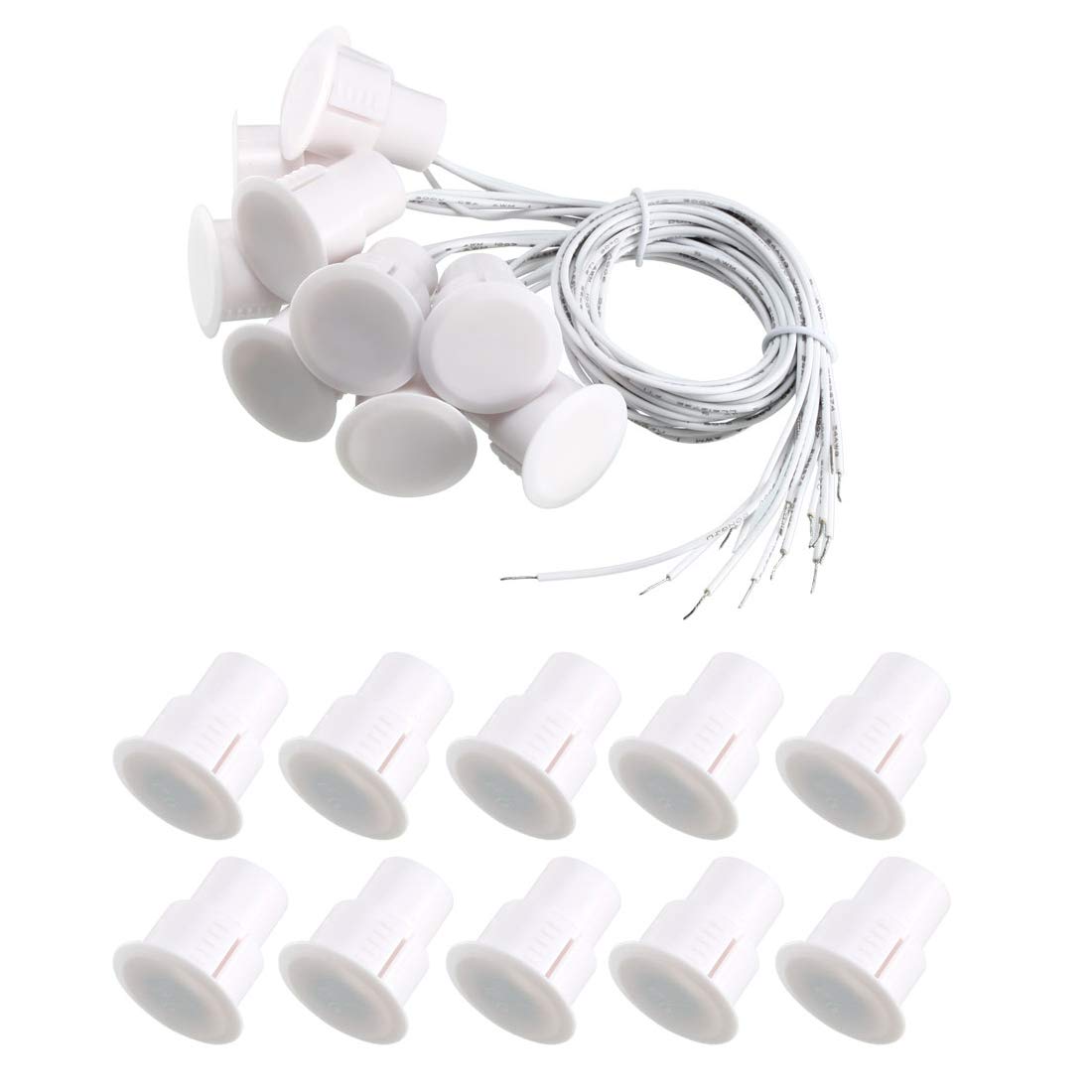

5 x Magnetic Door Switch
• ?MATERIAL - The switch housing is made of ABS flame retardant material and reed switch, is resistant to high temperature and deformation.
• ?NORMALLY CLOSED(NC) - When the switch is close to the magnet, the circuit is conductive(light on); when the switch is separated from the magnet, the circuit is not conductive(light off).
• ?ACTUATION DISTANCE - 10mm transmitting distance. The contact has fast reflection and accurate detection.
• ?WORKING CONDITIONS - When the magnetic door is energized, the voltage is controlled at DC 0V-24V and the supply current cannot exceed 1A. The load current is 150mA.
• ?WIDE APPLICATIONS - Work with all access control and burglar alarm systems. Can be installed in wooden or aluminum alloy doors and windows.
