Description
Brand: WARMCONFORT
Model: 717622614545
• Wide voltage input: DC 30V-120V / output parameters: DC 12V, 10A, 120W. Built-in 7 high-frequency and low-resistance electrolytic capacitors make the voltage stable and have a longer service life. Wide anti-voltage fluctuation range, high control accuracy
• High conversion efficiency: Built-in isolation high-frequency transformer, conversion efficiency up to 93%, lower heat generation, fast response speed, good stability, small size, light weight, low energy consumption, reducing electromagnetic and radio frequency interference
• Protection: High-quality aluminum alloy box, fast heat dissipation. Built-in overload, over current, over voltage, over temperature, short circuit protection. Intelligent temperature control, stop working when the temperature exceeds the set temperature when the power supply is working, and protect the power supply from damage.
• Application /Uses: Widely used in golf carts, photovoltaics, electricity, monitoring systems, automobiles, electric bicycles, motorcycles, leds, instrumentation, etc.

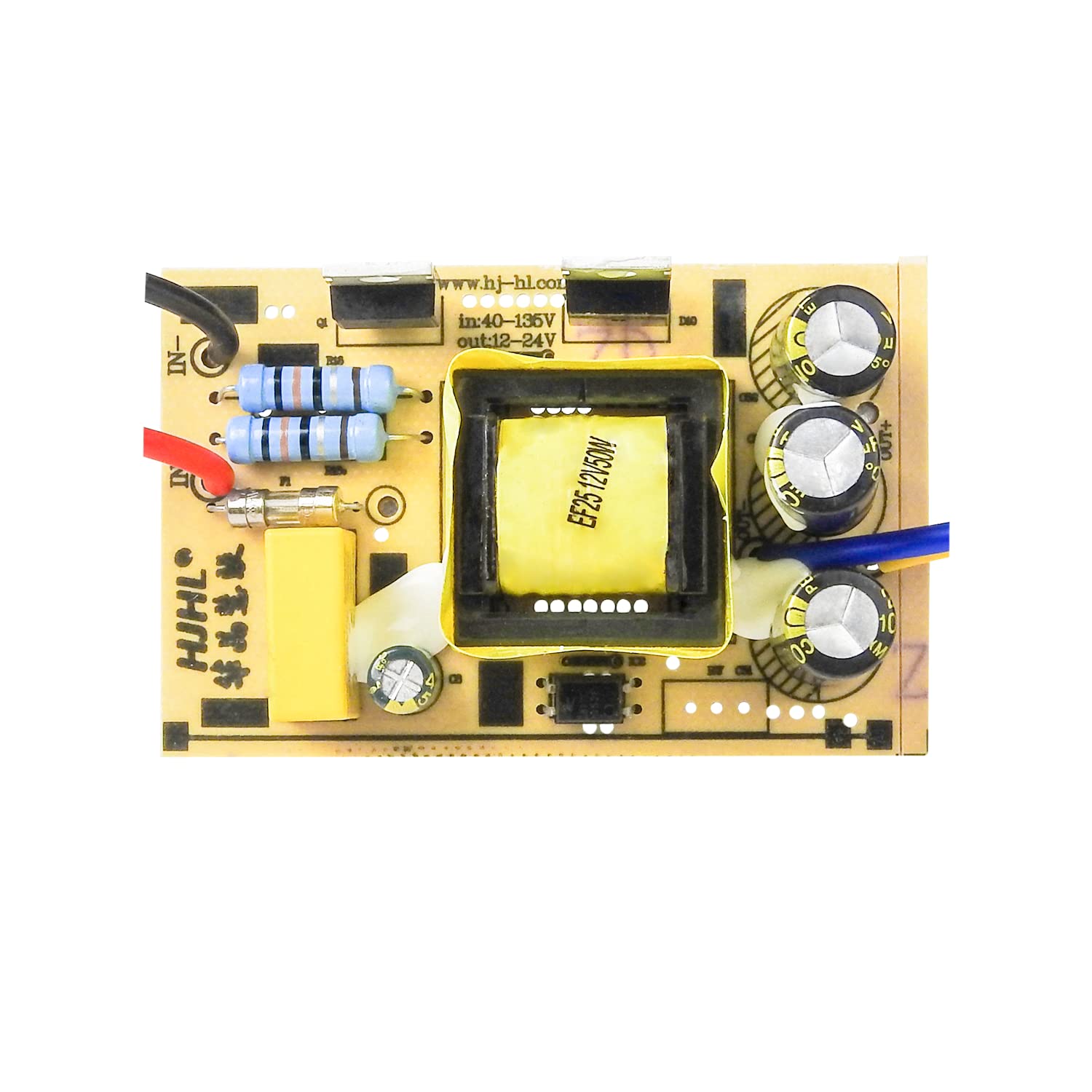

• Precise manufacturing, modular design of circuit structure, smart electric board, using SMT chip technology, reduce the volume of electronic products by 40%-60%. IP67 dustproof, waterproof and shockproof. It has strong adaptability to low temperature, high temperature, humidity, acid rot, dust and vibration environment, and the weight is reduced by 60%-80%. High reliability, strong earthquake resistance, low solder joint defect rate and good high frequency characteristics.
Power/Wattage: 30V-120V to 12V 10A
Model: 717622614545

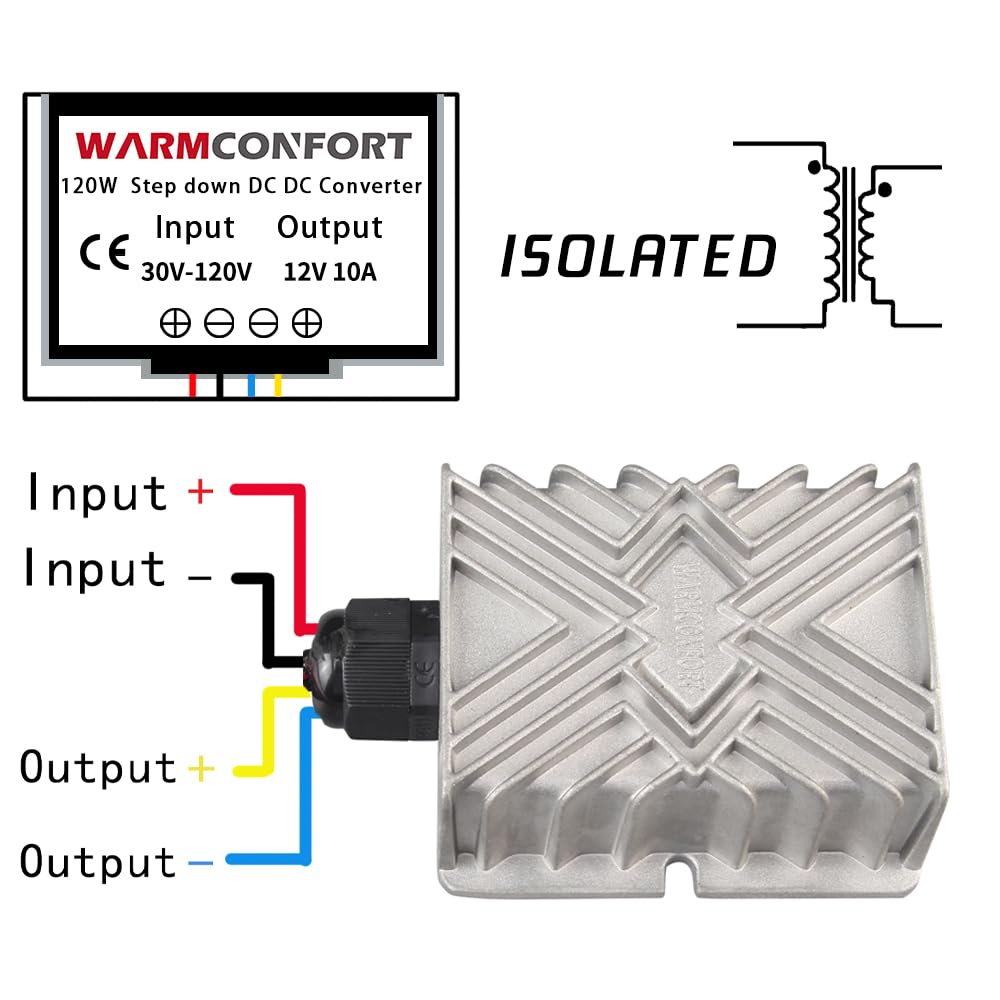

Wires Define
1.Red: Input +
2.Black: Input -
3.Yellow: Output +
4.Blue: Output -
Weight(N.W): 0.3kgs
Input Parameter
Input Voltage Range: 30V-120V
Output Parameter
Output Voltage: 12V
Output Current: 10A Max
Loading: 120W Max
Efficiency: Typical values 92%
Voltage Stability: 1%
< p>Load stability: 1%Insulation resistance:
Between output and input > 50MΩ
Between input and casing > 50MΩ
Between output and casing > 50MΩ
Protect Function:
Input reverse connection protection (replacing fuse)
Output Protection:
Temperature Protection 95℃
Overcurrent Protection: the converter stops working when the output current reaches the protection current value
Short-circuit Protection:when the output is short-circuited, the converter stops working, and automatically resumes work after the short-circuit is eliminated
Overvoltage Protection Product Feature
1.Waterproof:IP67
2.Storage Temperature: -40℃ - 60℃
3.Working Temperature: -25℃ - 55℃
4.With waterproof glue increases the vibration level
• Wide voltage input: DC 30V-120V / output parameters: DC 12V, 10A, 120W. Built-in 7 high-frequency and low-resistance electrolytic capacitors make the voltage stable and have a longer service life. Wide anti-voltage fluctuation range, high control accuracy
• High conversion efficiency: Built-in isolation high-frequency transformer, conversion efficiency up to 93%, lower heat generation, fast response speed, good stability, small size, light weight, low energy consumption, reducing electromagnetic and radio frequency interference
• Protection: High-quality aluminum alloy box, fast heat dissipation. Built-in overload, over current, over voltage, over temperature, short circuit protection. Intelligent temperature control, stop working when the temperature exceeds the set temperature when the power supply is working, and protect the power supply from damage.
• Application /Uses: Widely used in golf carts, photovoltaics, electricity, monitoring systems, automobiles, electric bicycles, motorcycles, leds, instrumentation, etc.
• Precise manufacturing, modular design of circuit structure, smart electric board, using SMT chip technology, reduce the volume of electronic products by 40%-60%. IP67 dustproof, waterproof and shockproof. It has strong adaptability to low temperature, high temperature, humidity, acid rot, dust and vibration environment, and the weight is reduced by 60%-80%. High reliability, strong earthquake resistance, low solder joint defect rate and good high frequency characteristics.
Power/Wattage: 30V-120V to 12V 10A
