Brand: uxcell

Model: a16101000ux1005

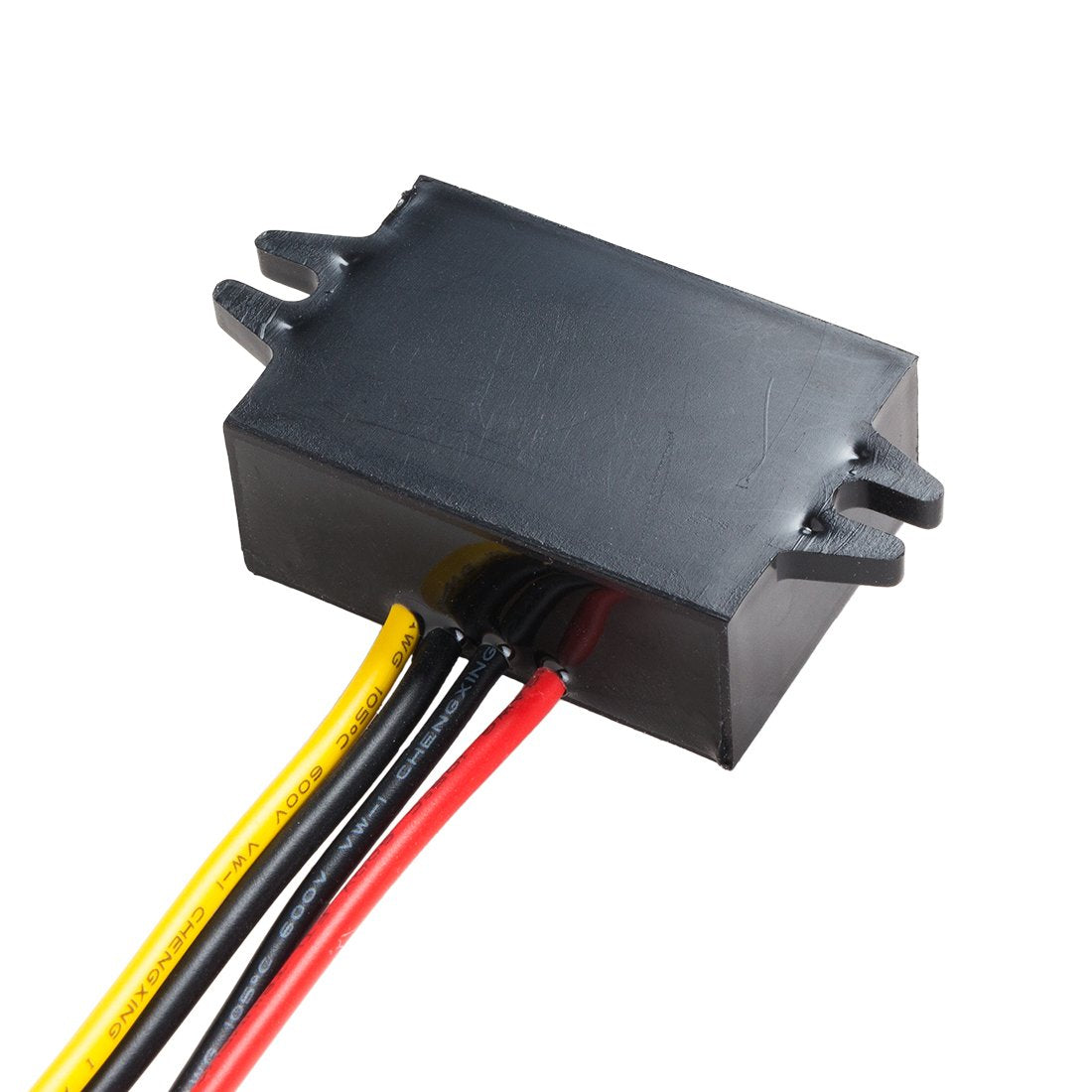

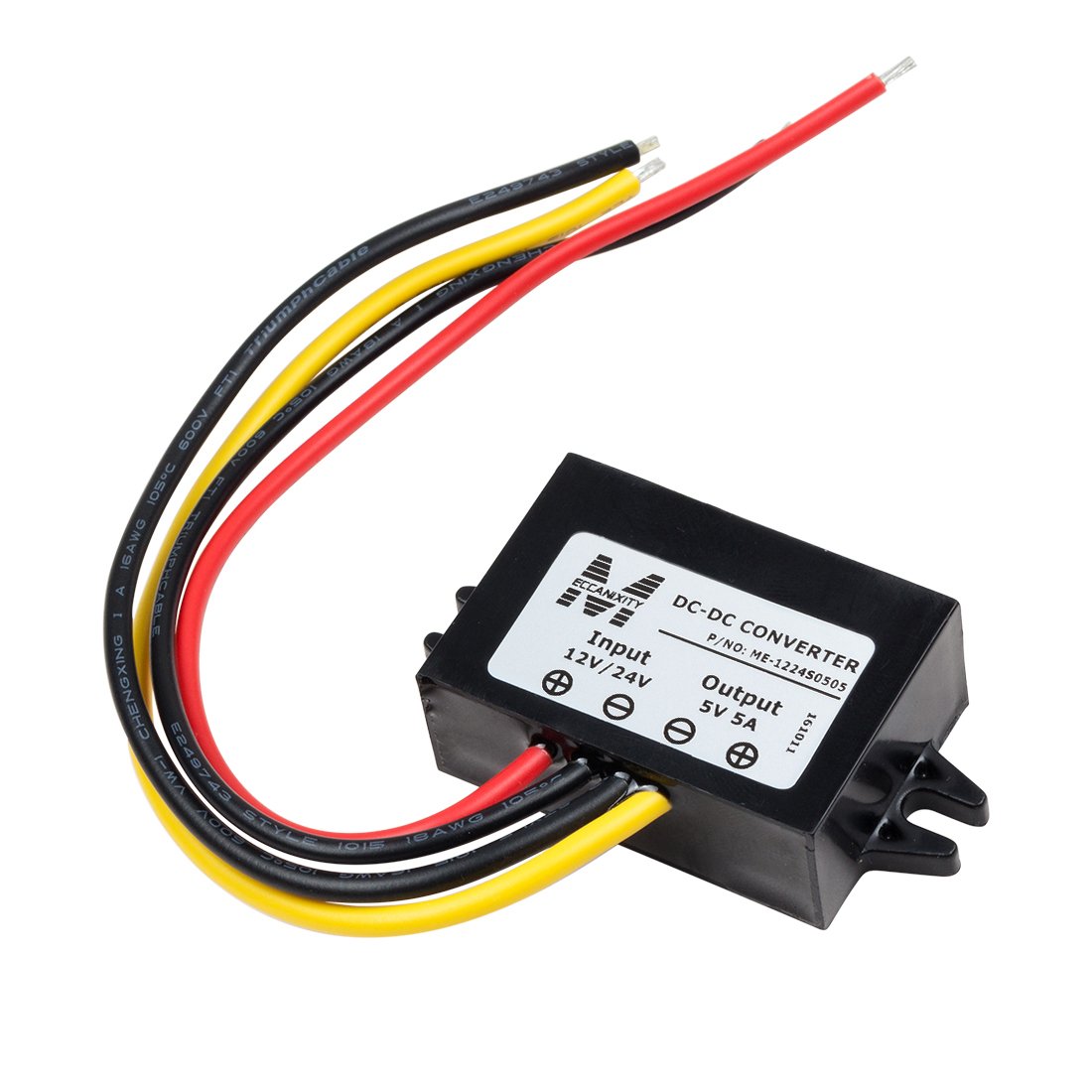

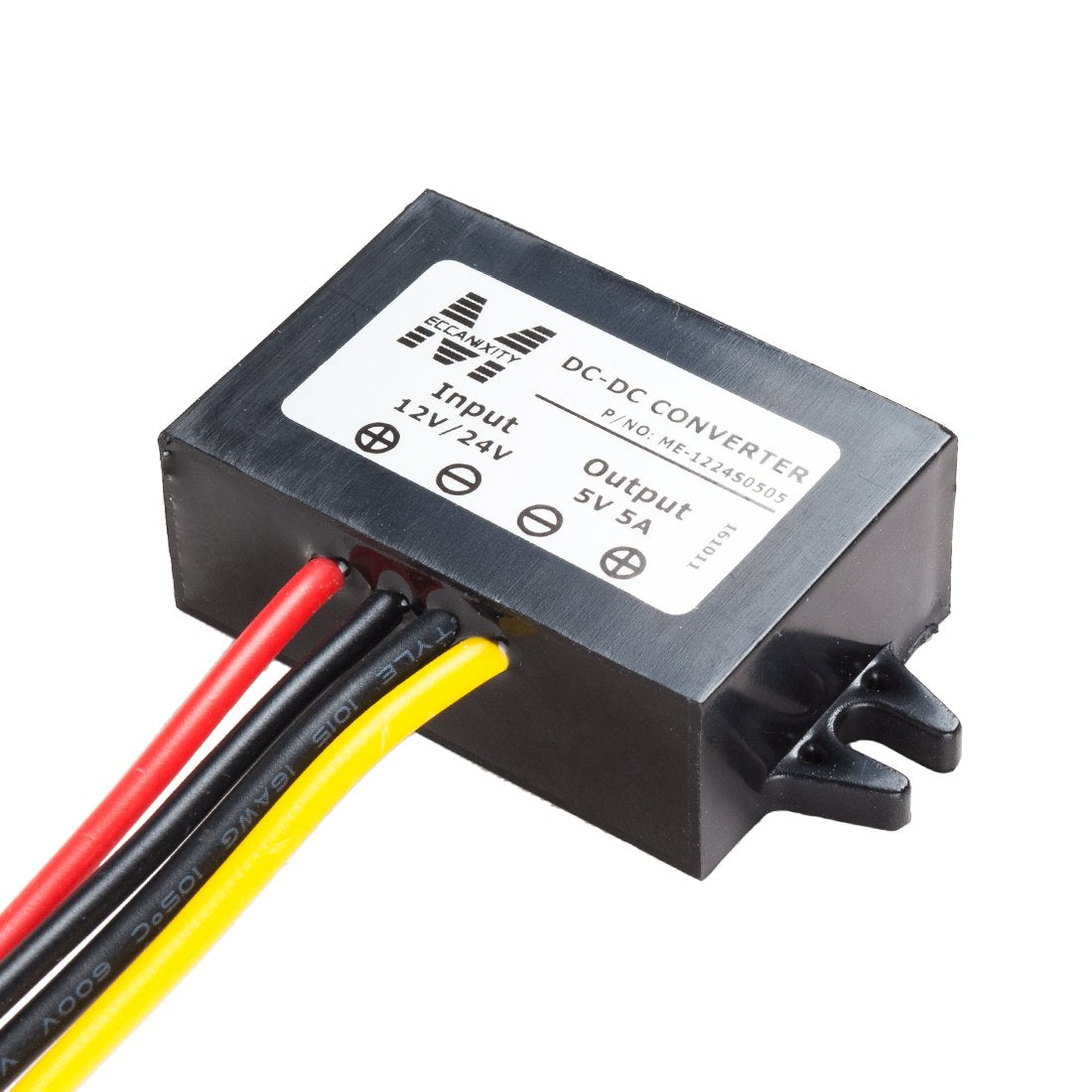

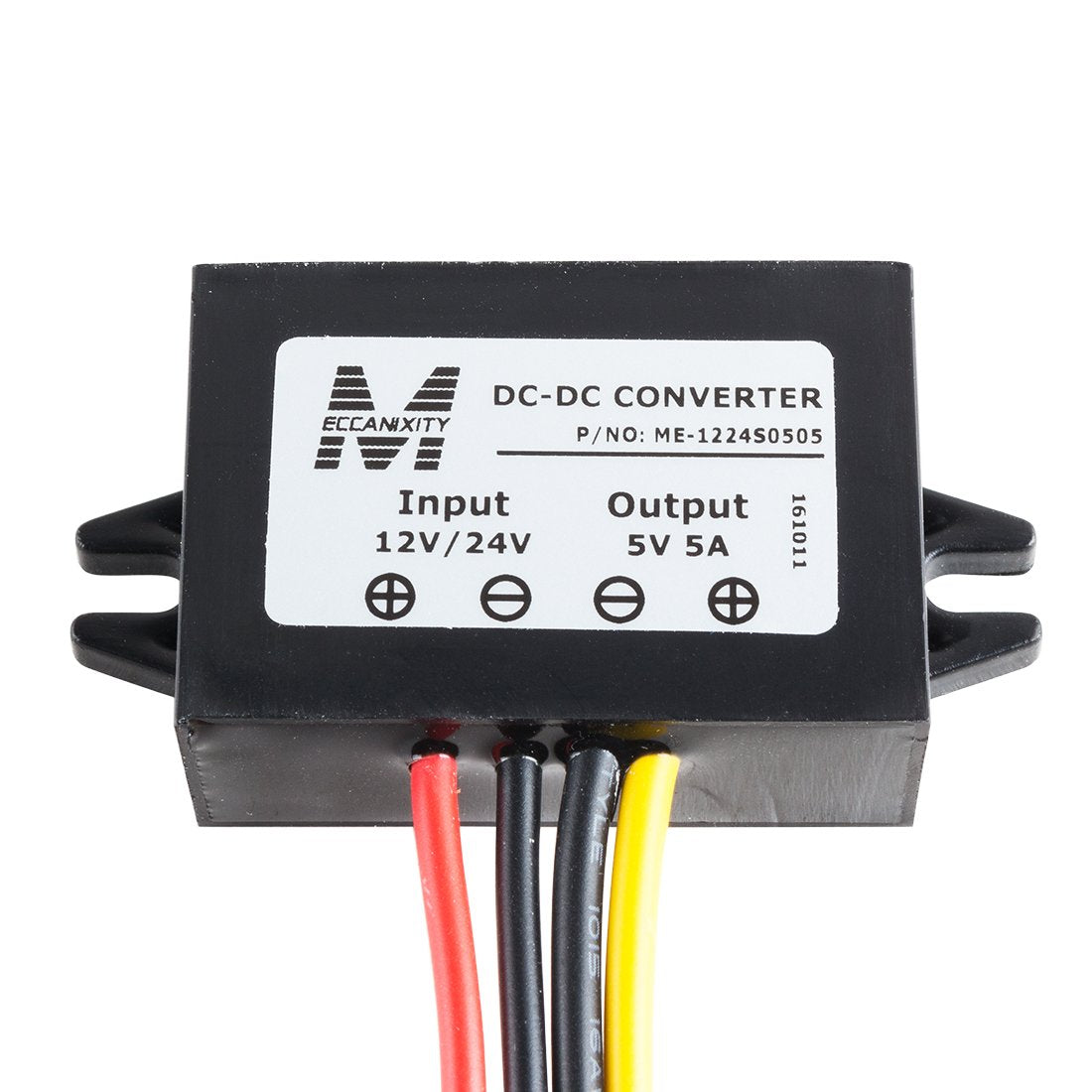

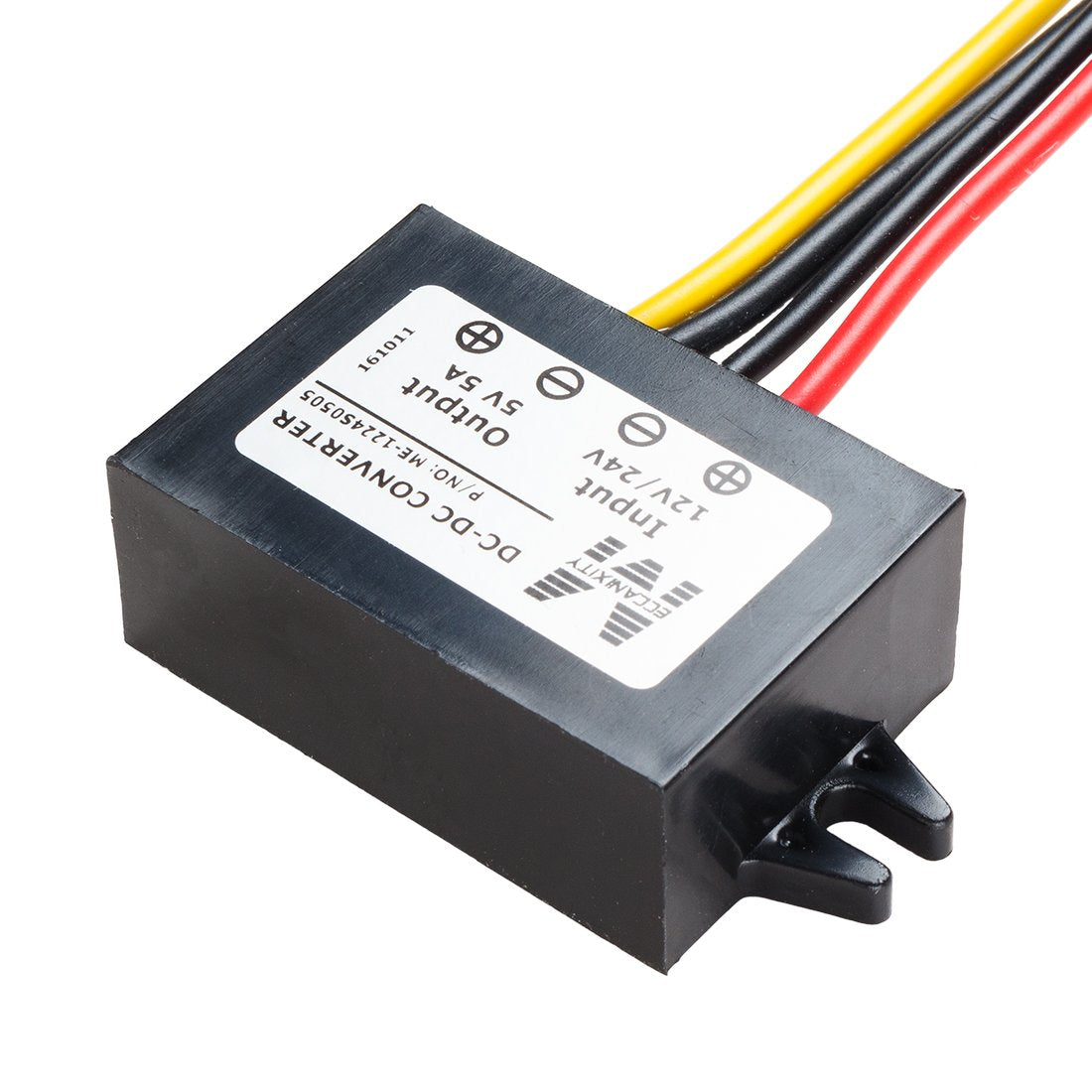

Product Name: Waterproof Voltage Converter Regulator DC 12V/24V to DC 5V 5A 25W

Features:
1. 100% full power and stable current output, non-isolated module.
2. Waterproof level IP68 and anti-shock protection, Ultra compact size, light weight.
3. Industry grade DC12V to DC 5V converter, efficiency up to 93%.
4. Die-cast plastic shell, epoxy potting, cooling by free air convection.

6. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.

Specifications:
* Input Rated Voltage: DC 12V/24V
* Input Voltage Range: 9-35V DC
* Output voltage: DC5V 5A
* Output Rated Power: 25W
* Efficiency: 93% (half load); 92% (full load)
* Output Peak Power: 30W
* Voltage Regulation: Less Than 1%
* Load Regulation: Less Than 2%
* Ripple(full load test): Less Than 50mV
* No-load Current: 20mA
* Total Size: 63*32*18mm(L*W*H)
* Weight: 60g

Package included:
1 x DC 12V/24V to DC 5V 5A Voltage Converter

• Waterproof IP68 Voltage Converter Regulator DC 12V/24V to DC 5V 5A 25W.
• Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.
• Auto-recovery when device is back to normal operating
• high transfer efficiency of 93% max..
• Die-cast plastic shell, anti-shock, and moisture-proof and has stronger durability.Widely used in bus, cmb, large trucks, motor, solar generate electricity, display screen of bus and taxi, audio device.
• Note: It is recommended to use stable DC power for the input power supply If you use the pulsed DC power provided by the generator, please filter it with capacitor before connecting it to the converter. If you use solar panel to supply directly, please note that the open circuit voltage of the solar panel cannot exceed the maximum withstand voltage of the converter. The supply voltage should be within the rated voltage and always leave a certain margin.
