Brand: uxcell

Model: US-SA-AJD-125882

Features
1. 100% full power and stable current output
2. 100% Imported components
3. Wide input voltage from 30-50Vdc
4. 100% waterproof and anti-shock protection, Ultra compact size, light weight
5. Industry grade DC 36V to DC 12V converter, efficiency up to 94%
6. Certificates: CE/RoHS
7. Waterproof level: IP68
8. Die-cast aluminum shell, epoxy potting, Cooling by free air convection,
9. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, Auto-recovery when device is back to normal operating
10. Non-Isolated Module

Specifications:

Input rated voltage: 36V DC
Input voltage range: 30-50V DC
Efficiency: 96% (half load) ; 94% (full load)
Output voltage: 12V DC
Output current: 10 Amps
Output rated power: 120 Watts
Output peak power: 125%
Voltage regulation: less than 1%
Load regulation: less than 2%
Ripple (full load test): less than 50mV
No-load current: less than 25mA
Working Temperature: -40C~ +80C
Waterproof rating: IP 68
Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage

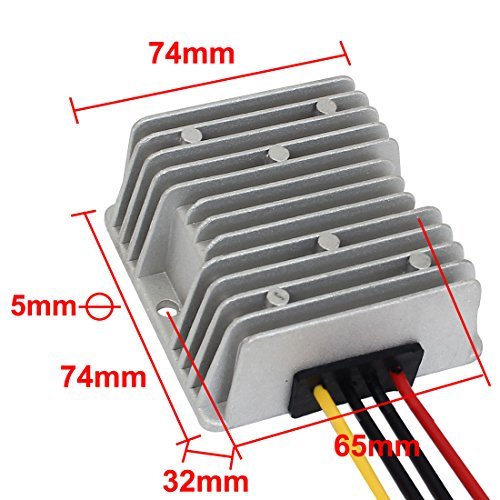

Machine size: 74*74*32mm
N. Weight: 281g
Cooling way: Free air convection
Certifications: CE, RoHS

Package Content:
1 x Waterproof Power Converter Regulator


• Convert unstable voltage DC 36V(30V-60V) to stable 12VDC 10A output.
• Efficiency: 96% (half load)
• 94% (full load)
• Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage
• Waterproof rating: IP 68. New and Old label is being changed, but the products are same.

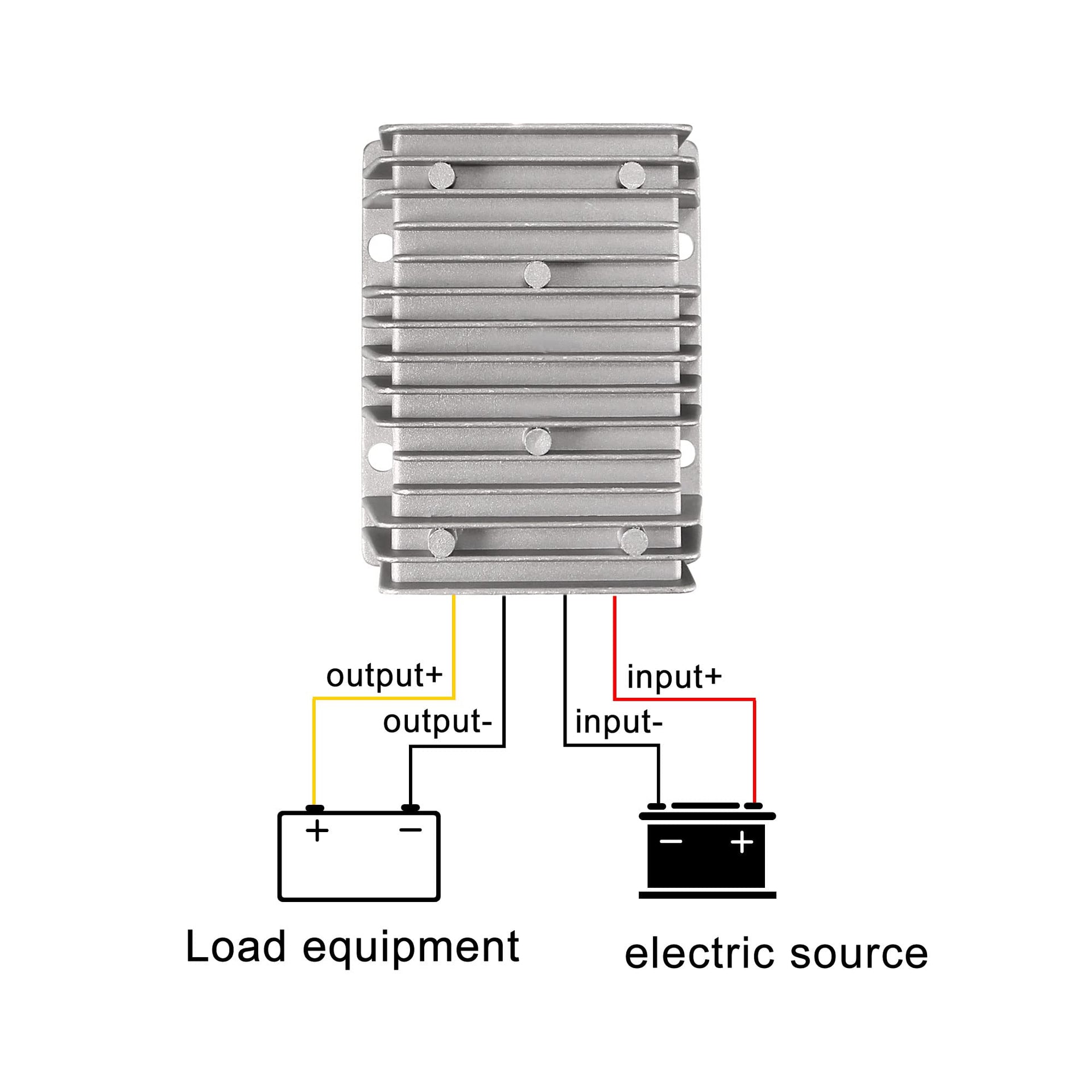

• Note: It is recommended to use stable DC power for the input power supply If you use the pulsed DC power provided by the generator, please filter it with capacitor before connecting it to the converter. If you use solar panel to supply directly, please note that the open circuit voltage of the solar panel cannot exceed the maximum withstand voltage of the converter. The supply voltage should be within the rated voltage and always leave a certain margin.

Color: multicolor
