Brand: uxcell

Model: SPA05947

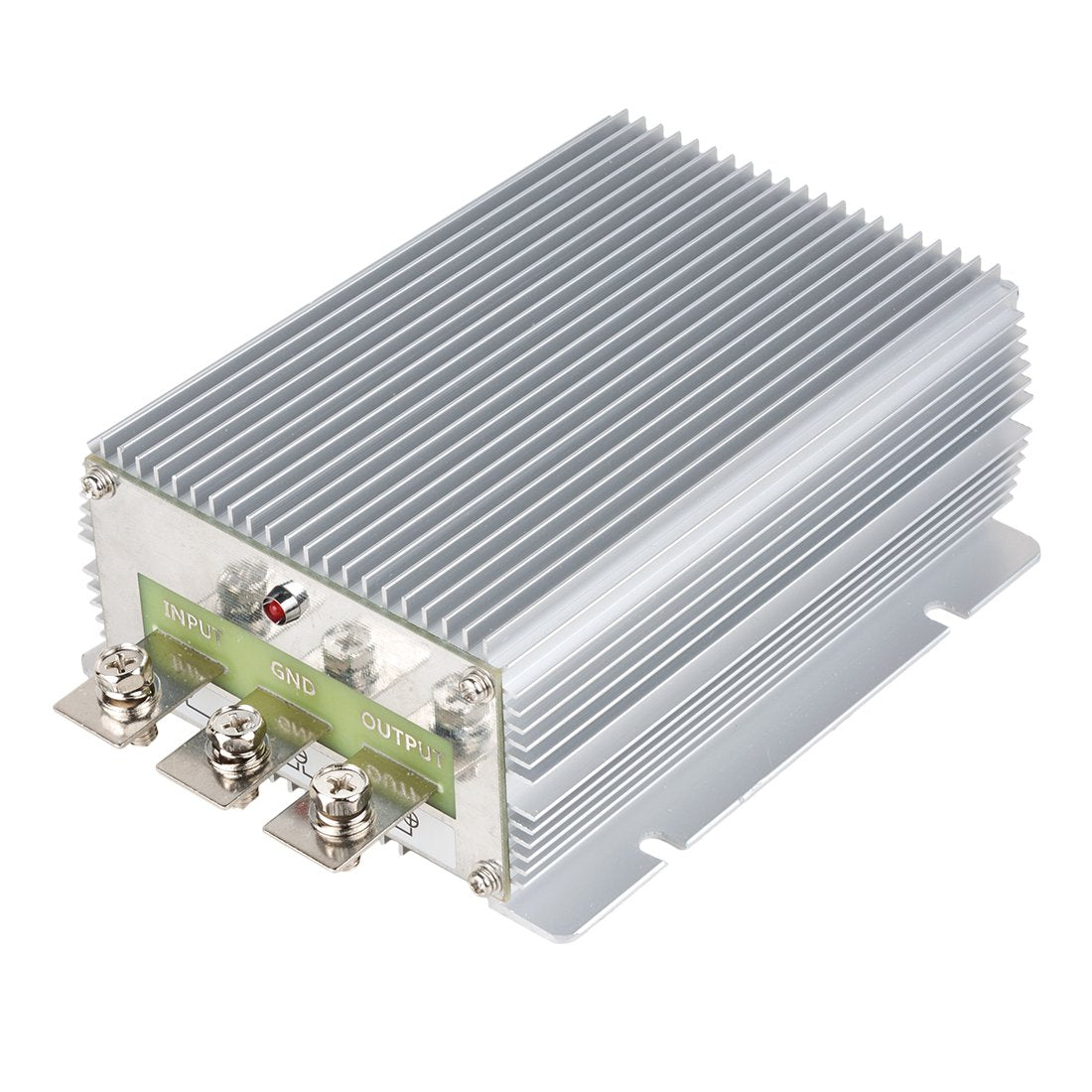

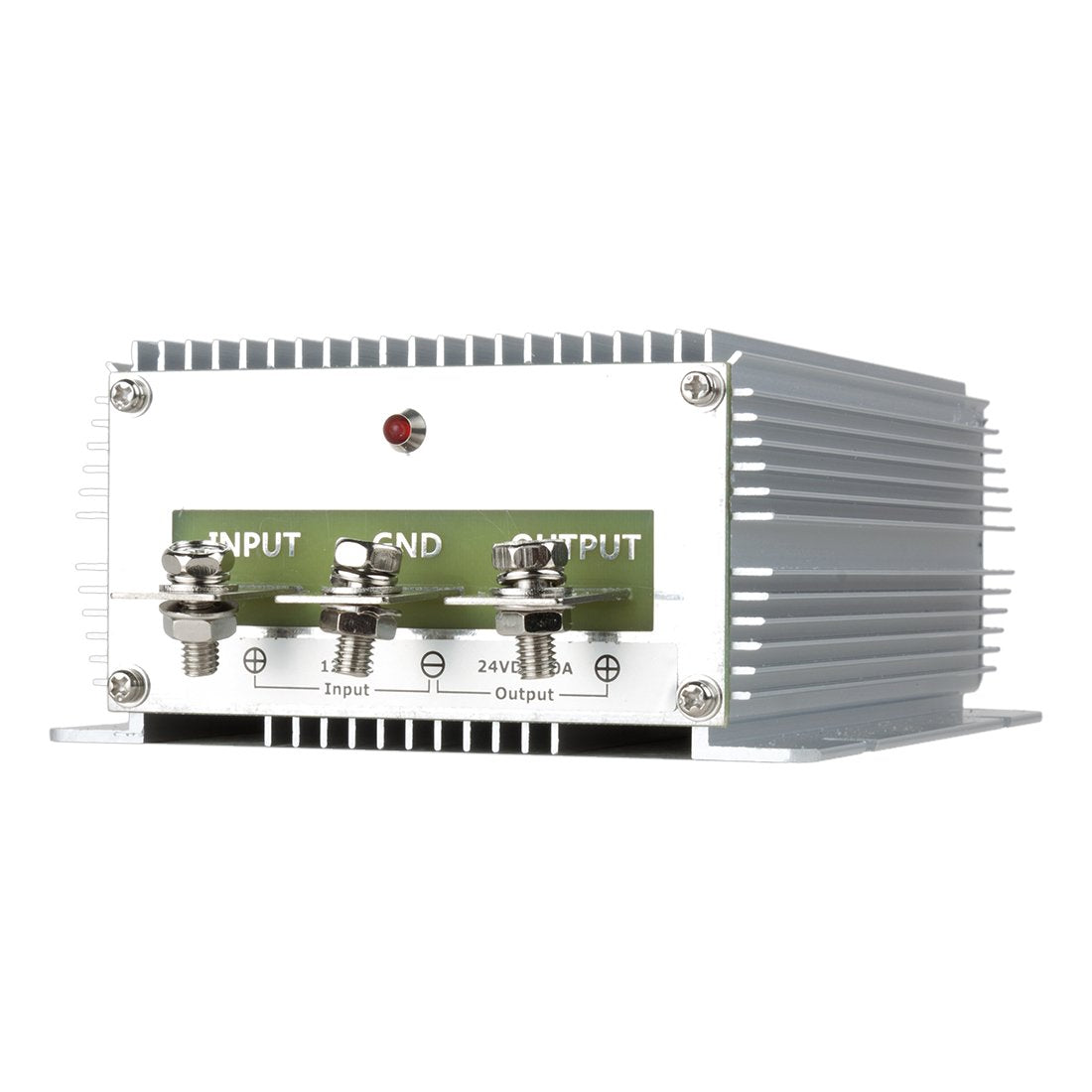

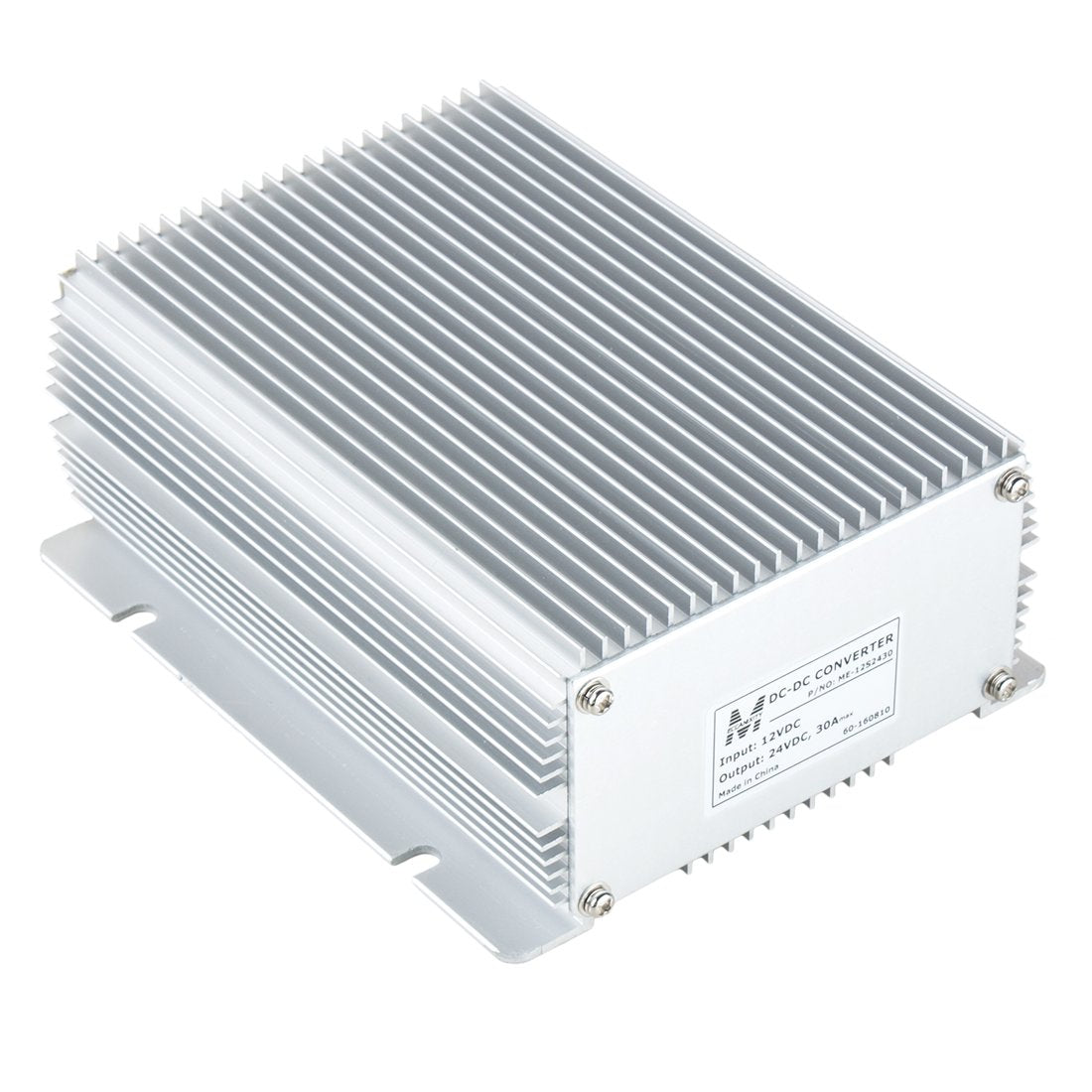

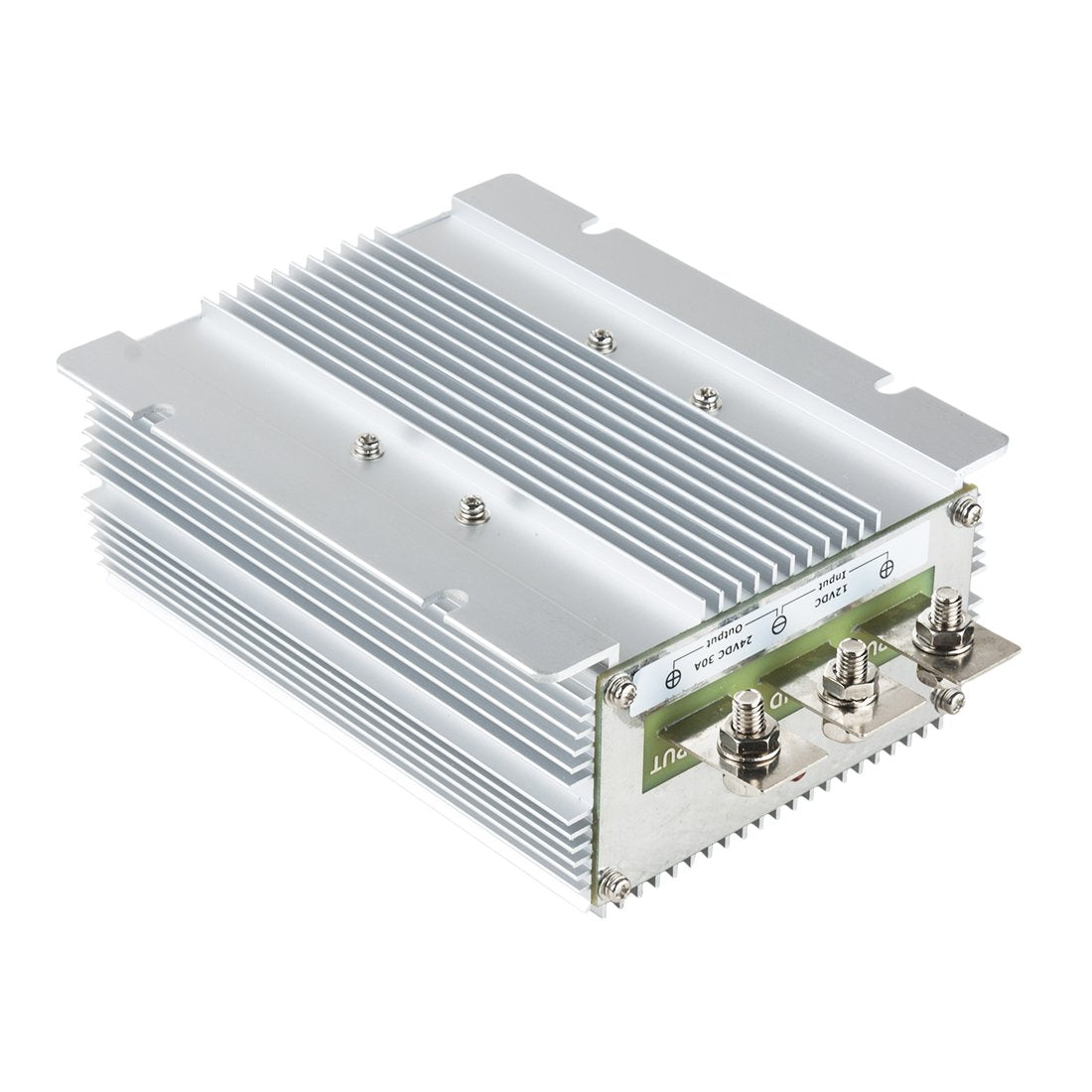

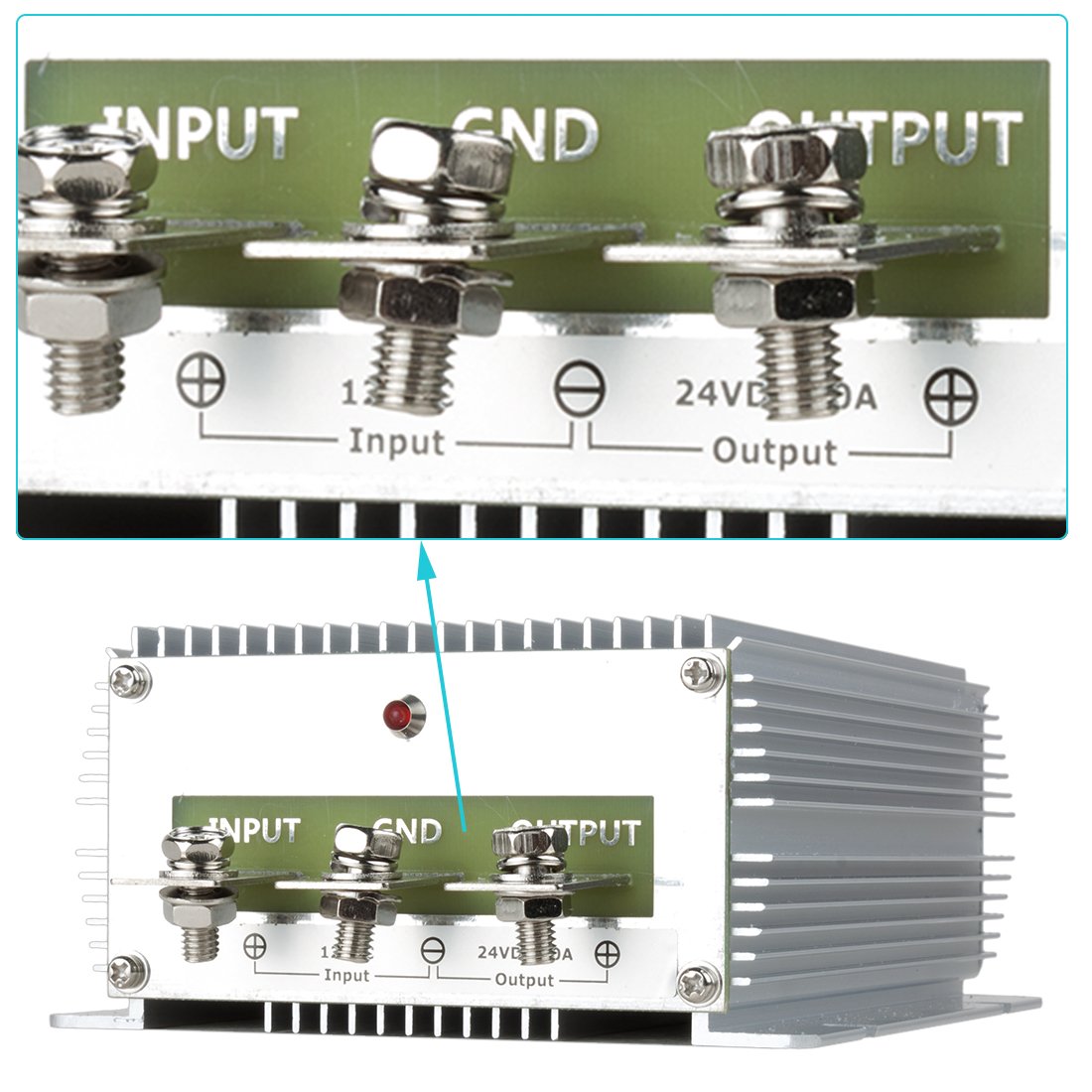

Product Name: Truck Voltage Converter Regulator DC 12V to DC 24V 30A 720W

Features:
1. 100% full power and stable current output, non-isolated module.
2. Waterproof level IP68 and anti-shock protection, Ultra-compact size, lightweight.
3. Industry grade DC12V to DC 24V step-up converter, efficiency up to 95%.
4. Die-cast aluminum shell, epoxy potting, cooling by free air convection.
5. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, recovery when the device is back to normal operating.

Specifications:
* Input Rated Voltage: DC 12V
* Input Voltage Range: 11-16V DC
* Output voltage: DC24V 30A
* Output Rated Power: 720W
* Efficiency: 97% (half load); 95% (full load)
* Output Peak Power: 900W
* Voltage Regulation: Less Than 1%
* Load Regulation: Less Than 2%
* Ripple(full load test): Less Than 200mV
* No-load Current: 30mA
* Total Size: 180*127*63mm(L*W*H)
* Weight: 1563g

Package included:
1 x DC 12V to DC 24V 30A Voltage Converter


• Truck Voltage Converter Regulator DC 12V to DC 24V 30A 720W booster.
• Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.
• Recovery when the device is back to normal operating
• high transfer efficiency of 95% max.
• Die-cast aluminum shell, anti-shock, and moisture-proof and has stronger durability. Widely used in bus, large trucks, motor, solar generate electricity, the display screen of bus and taxi, audio device
• Note: It is recommended to use stable DC power for the input power supply If you use the pulsed DC power provided by the generator, please filter it with capacitor before connecting it to the converter. If you use solar panel to supply directly, please note that the open circuit voltage of the solar panel cannot exceed the maximum withstand voltage of the converter. The supply voltage should be within the rated voltage and always leave a certain margin.
