Brand: uxcell

Model: US-SA-AJD-143327

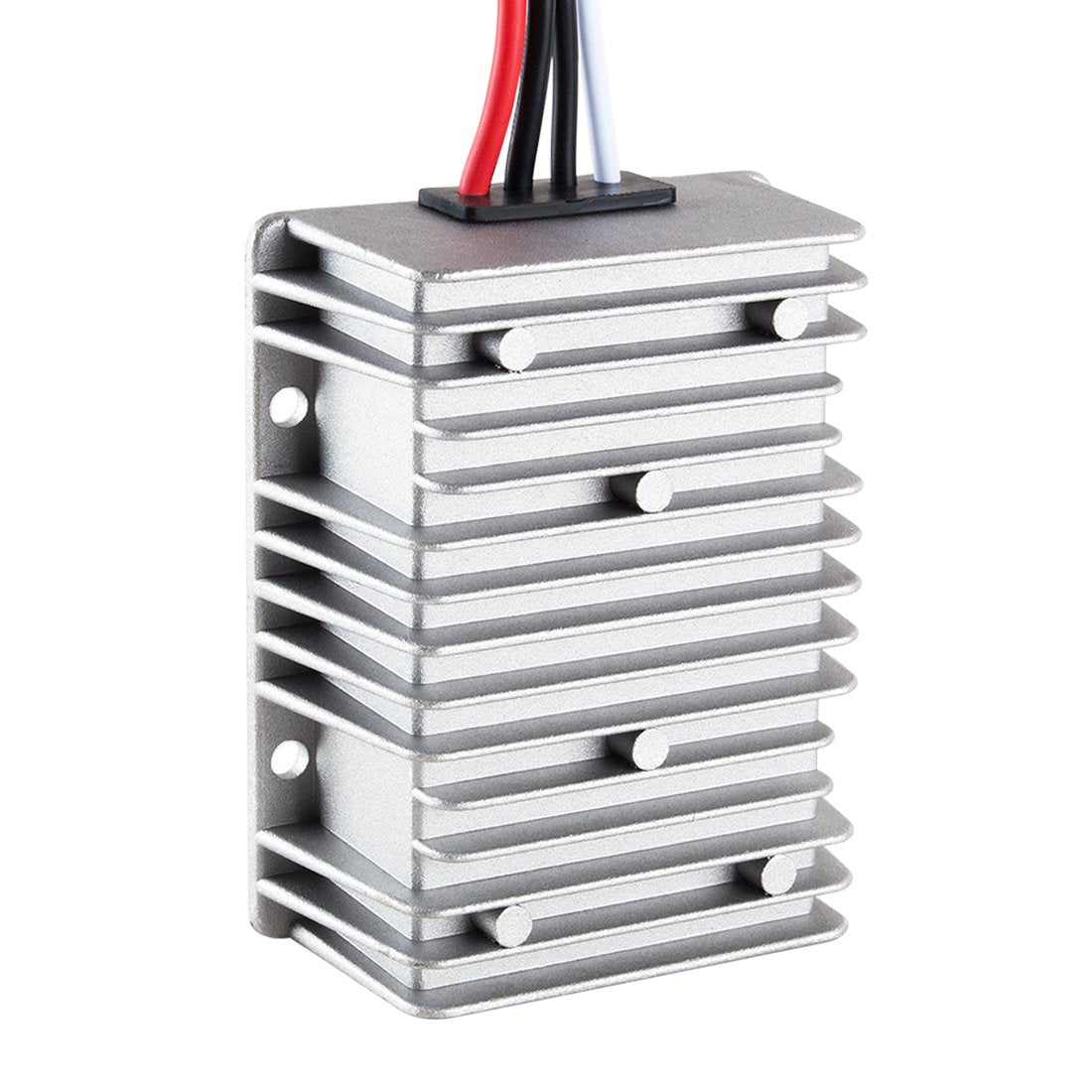

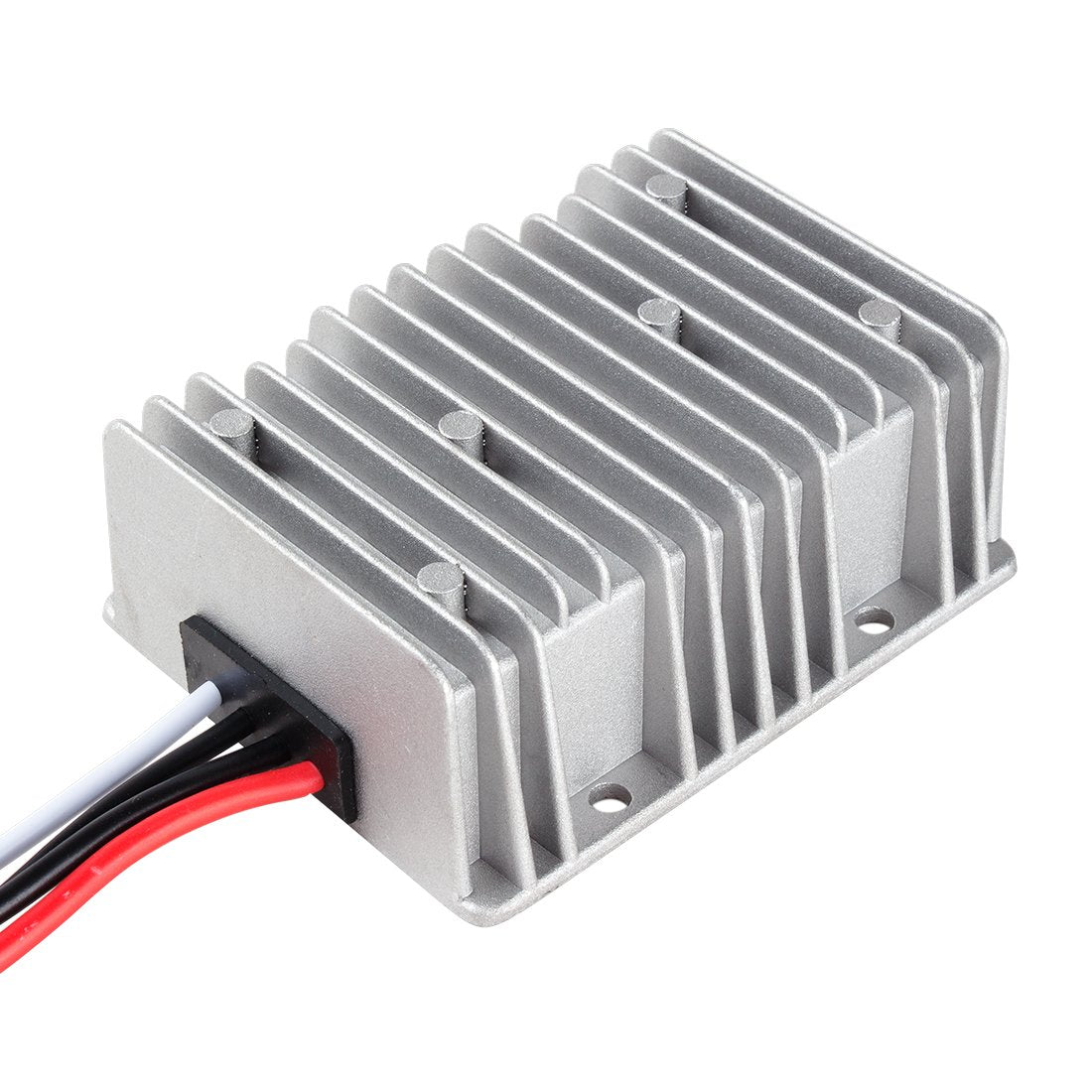

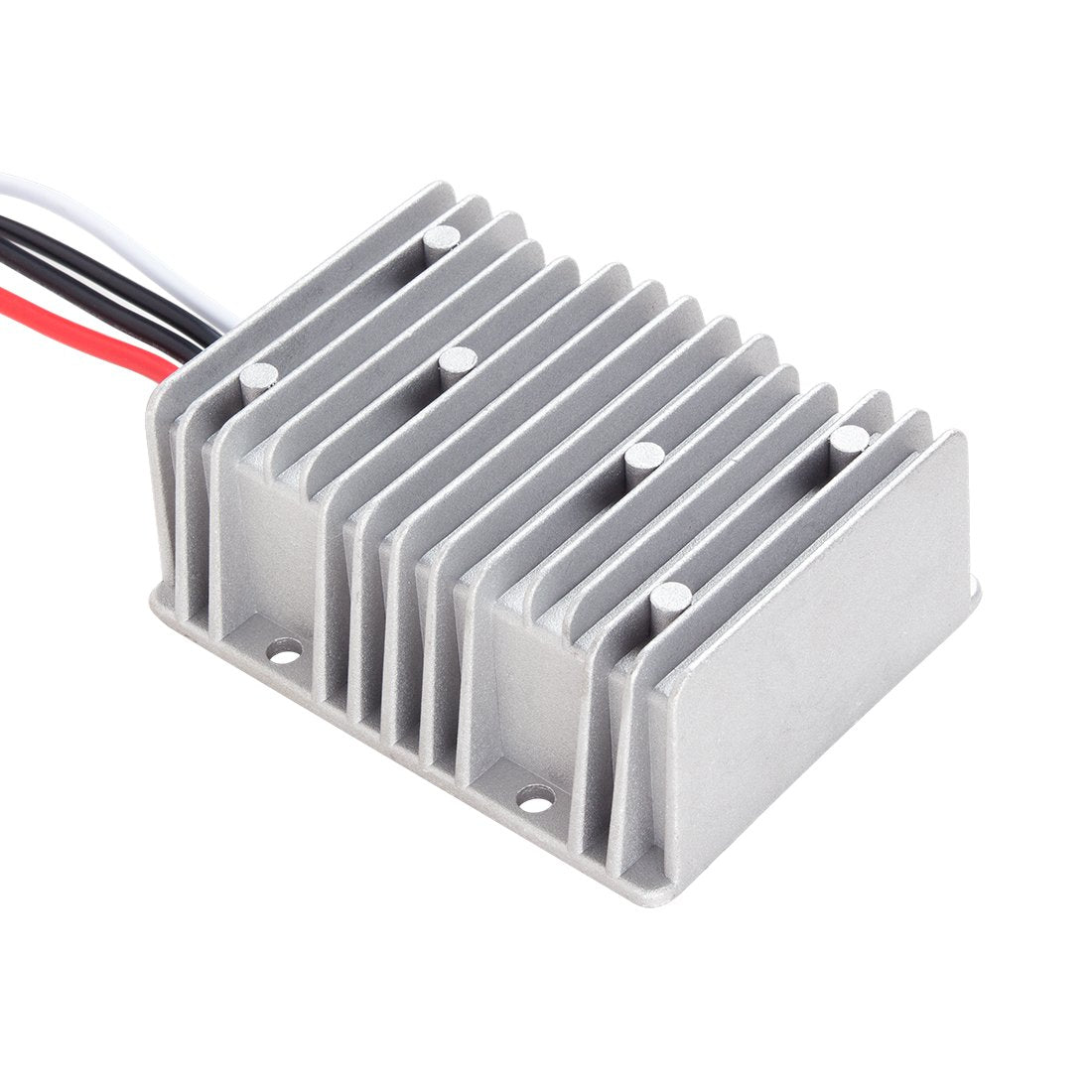

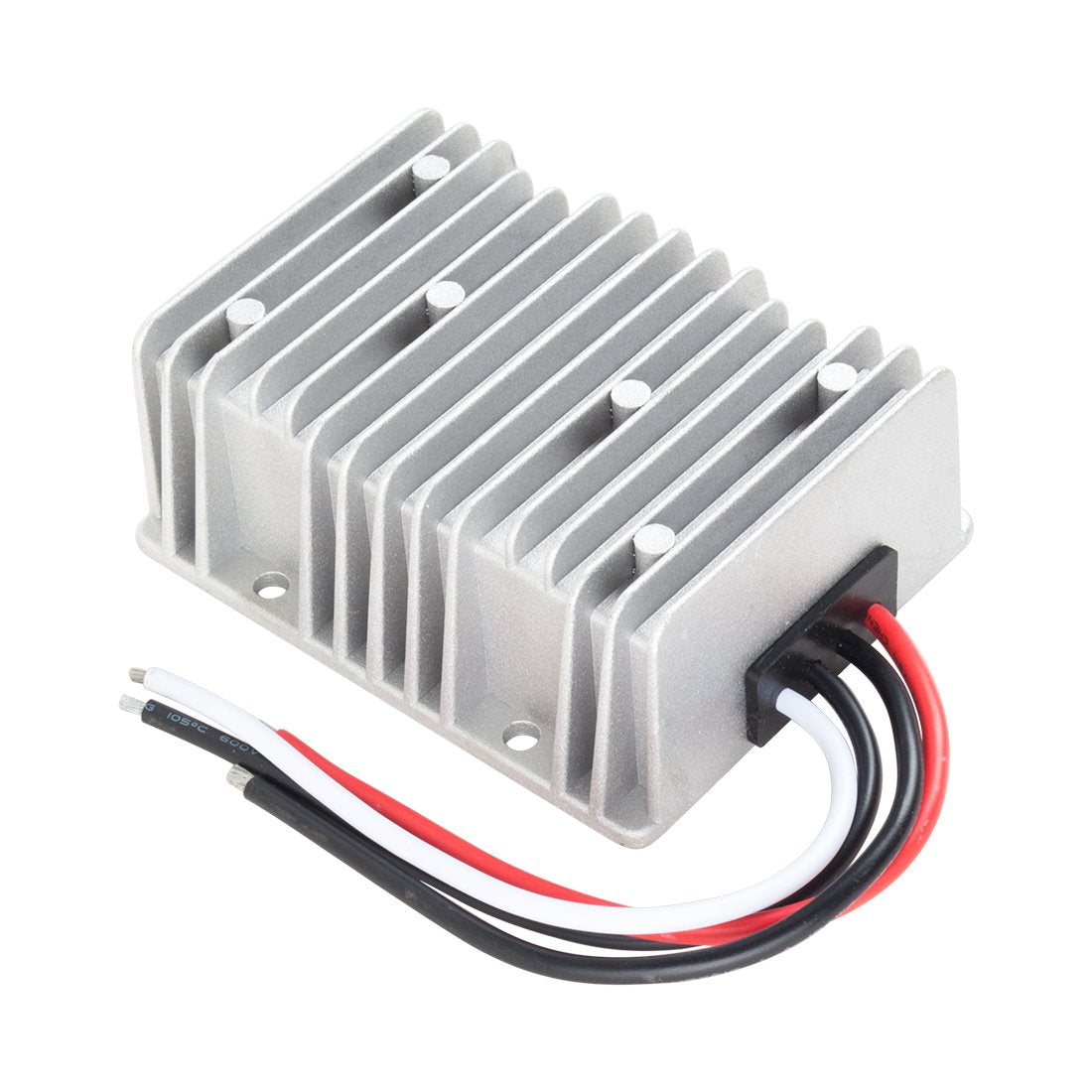

Product Name: Waterproof Voltage Converter Regulator DC 48V to DC 13.8V 30A 414W

Features:
1. 100% full power and stable current output, non-isolated module.
2. Waterproof level IP68 and anti-shock protection, ultra compact size, light weight.
3. Industry grade DC48V to DC 13.8V converter, efficiency up to 97%.
4. Die-cast aluminum shell, epoxy potting, cooling by free air convection.

6. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.

Specifications:
* Input Rated Voltage: DC 48V
* Input Voltage Range: 38-60V DC
* Output voltage: DC13.8V 30A
* Output Rated Power: 414W
* Efficiency: 97% (half load); 95% (full load)
* Output Peak Power: 518W
* Ripple(full load test): Less Than 120mV
* No-load Current: 50mA

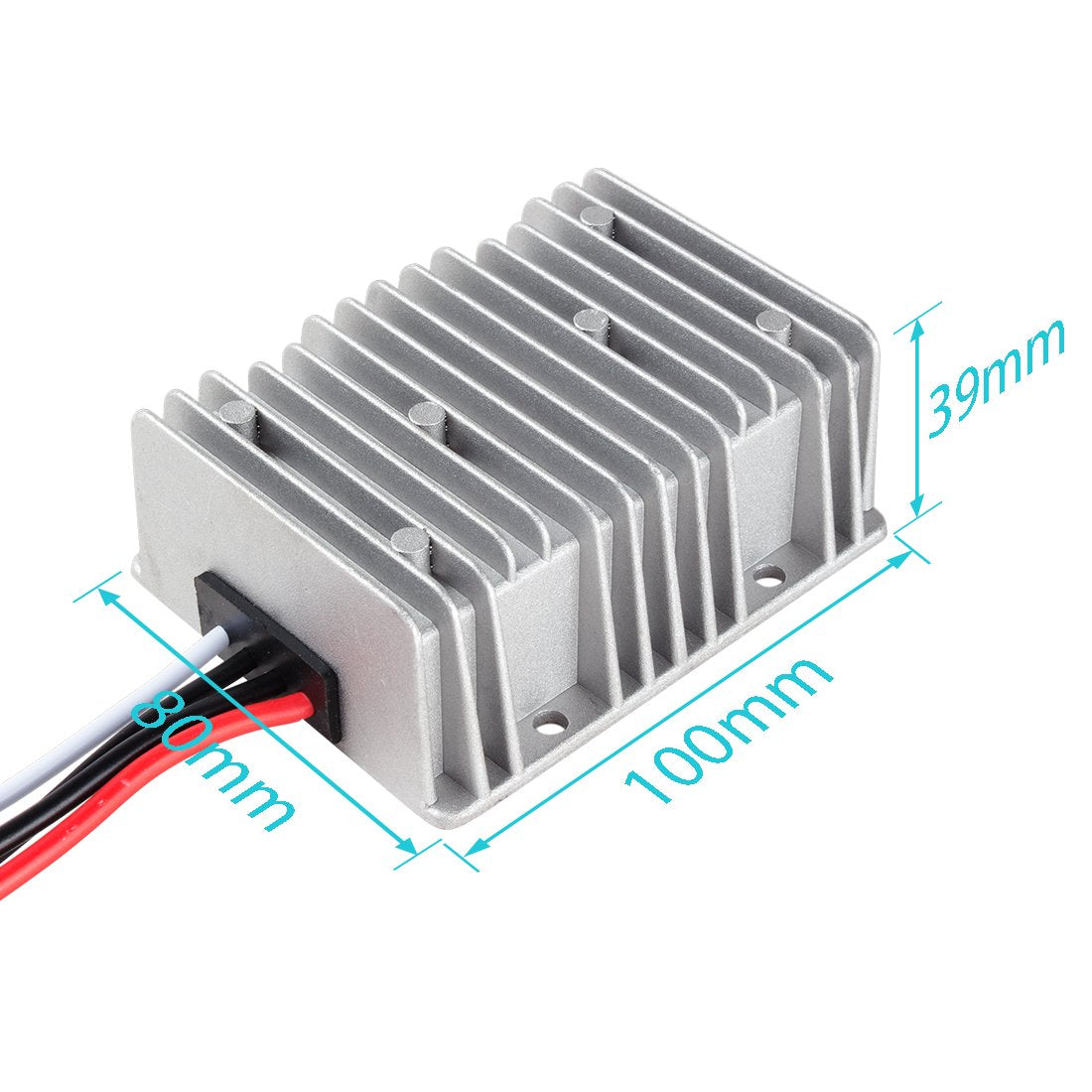

* Total Size: 100*80*39mm(L*W*H)
* Weight: 500g

Package included:
1 x DC 48V to DC 13.8V 30A Voltage Converter

• Waterproof IP68 Voltage Converter Regulator DC 48V to DC 13.8V 30A 414W.
• Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.
• Auto-recovery when device is back to normal operating
• high transfer efficiency of 97% max..
• Die-cast aluminum shell, anti-shock, and moisture-proof and has stronger durability. Widely used in bus, solar electricity, the display screen of bus and taxi device.
• Note: It is recommended to use stable DC power for the input power supply If you use the pulsed DC power provided by the generator, please filter it with capacitor before connecting it to the converter. If you use solar panel to supply directly, please note that the open circuit voltage of the solar panel cannot exceed the maximum withstand voltage of the converter. The supply voltage should be within the rated voltage and always leave a certain margin.
