Brand: sourcing map

Model: a16052500ux0036

Features:
1. 100% full power and stable current output, non-isolated module.
2. Waterproof level IP68 and anti-shock protection, Ultra compact size, light weight.
3. Industry grade DC 12V to DC 19V step-up converter, efficiency up to 95%.

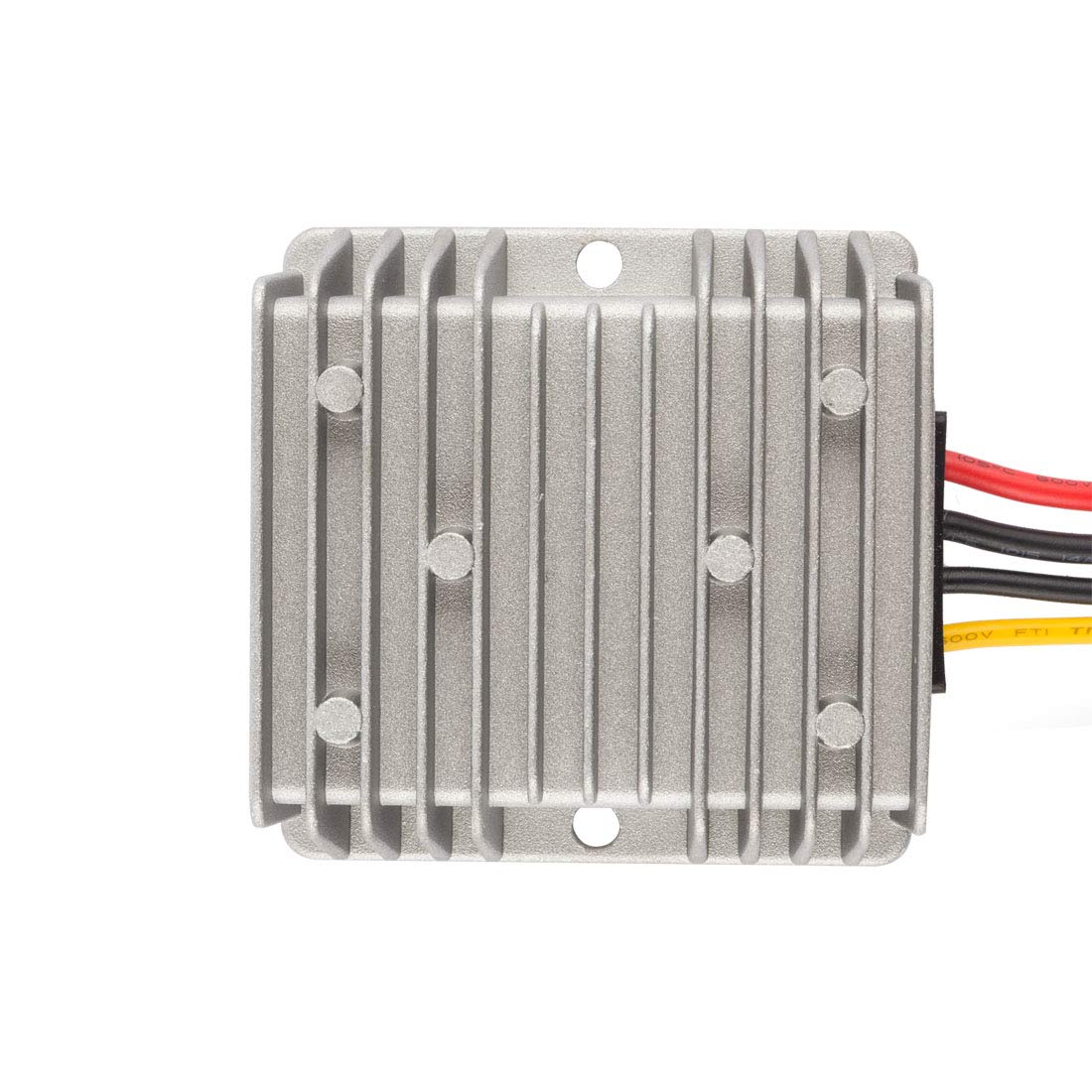

4. Die-cast aluminum shell, epoxy seal, cooling by free air convection.
6. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when the device is back to normal operating.

Applications:
- Trucks
- Golf Carts
- Forklifts
- Buses
- Loaders
- Wind Power System
- Solar Power System
- Telecommunications
- Boat and Yacht
- and so on.

Specifications:
* Input Rated Voltage: DC 12V
* Input Voltage Range: 10-16V DC
* Output voltage: DC19V 6A
* Output Rated Power: 114W
* Efficiency: 95% (half load); 94% (full load)
* Output Peak Power: 140W
* Voltage Converter: Less Than 1%
* Load Converter: Less Than 2%
* Ripple(full load test): Less Than 100mV
* No Load Current: Less Than 20mA

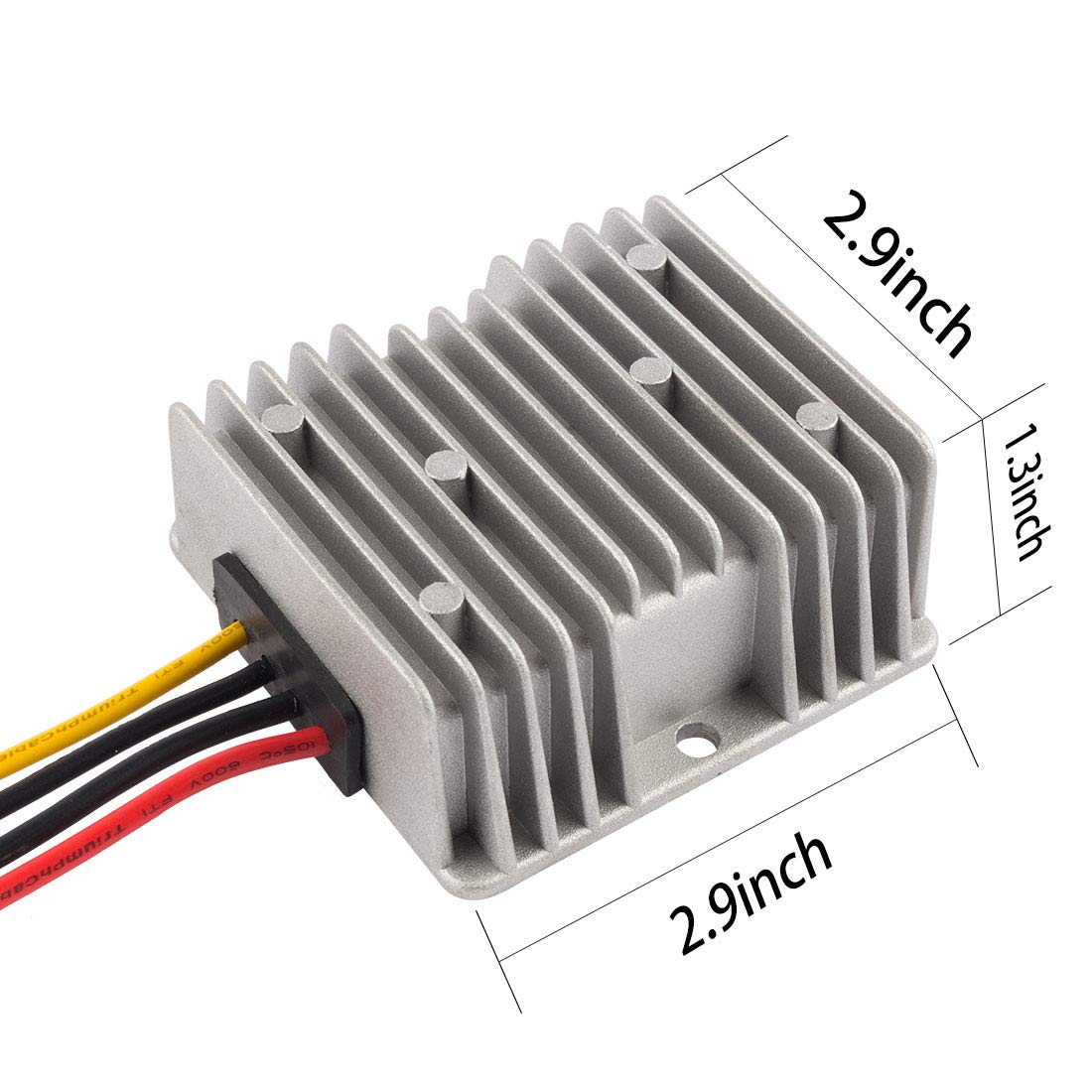

* Total Size: 74*74*32mm(L*W*H)
* Fixing Hole Diameter: 5mm(0.2 inch)
* Hole Center Diameter: 65mm
* Weight: 261g

Package included:

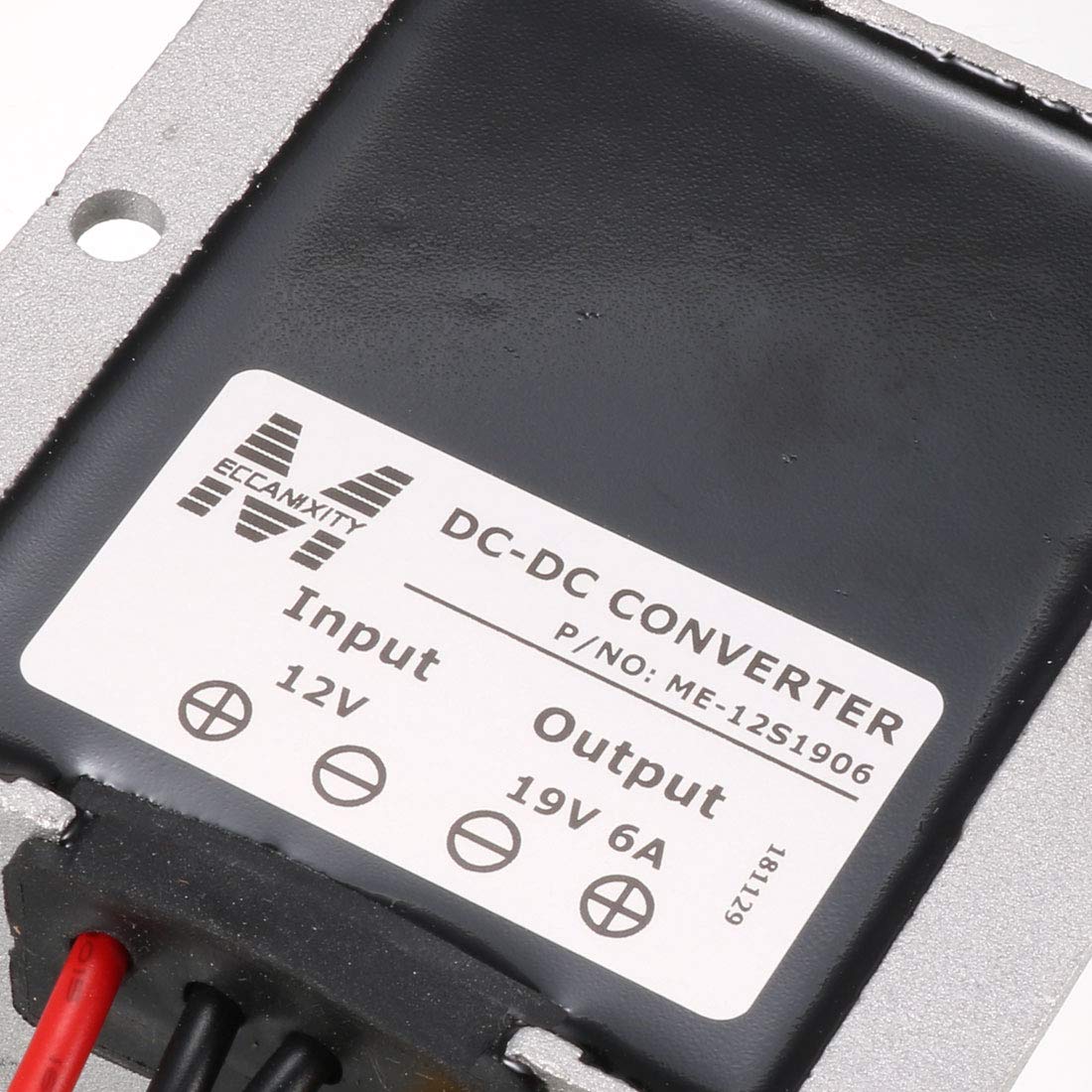

1 x DC 12V to DC 19V 6A Voltage Converter

Note: Can not use a long time Under the MAX. LISTED LOAD POWER.

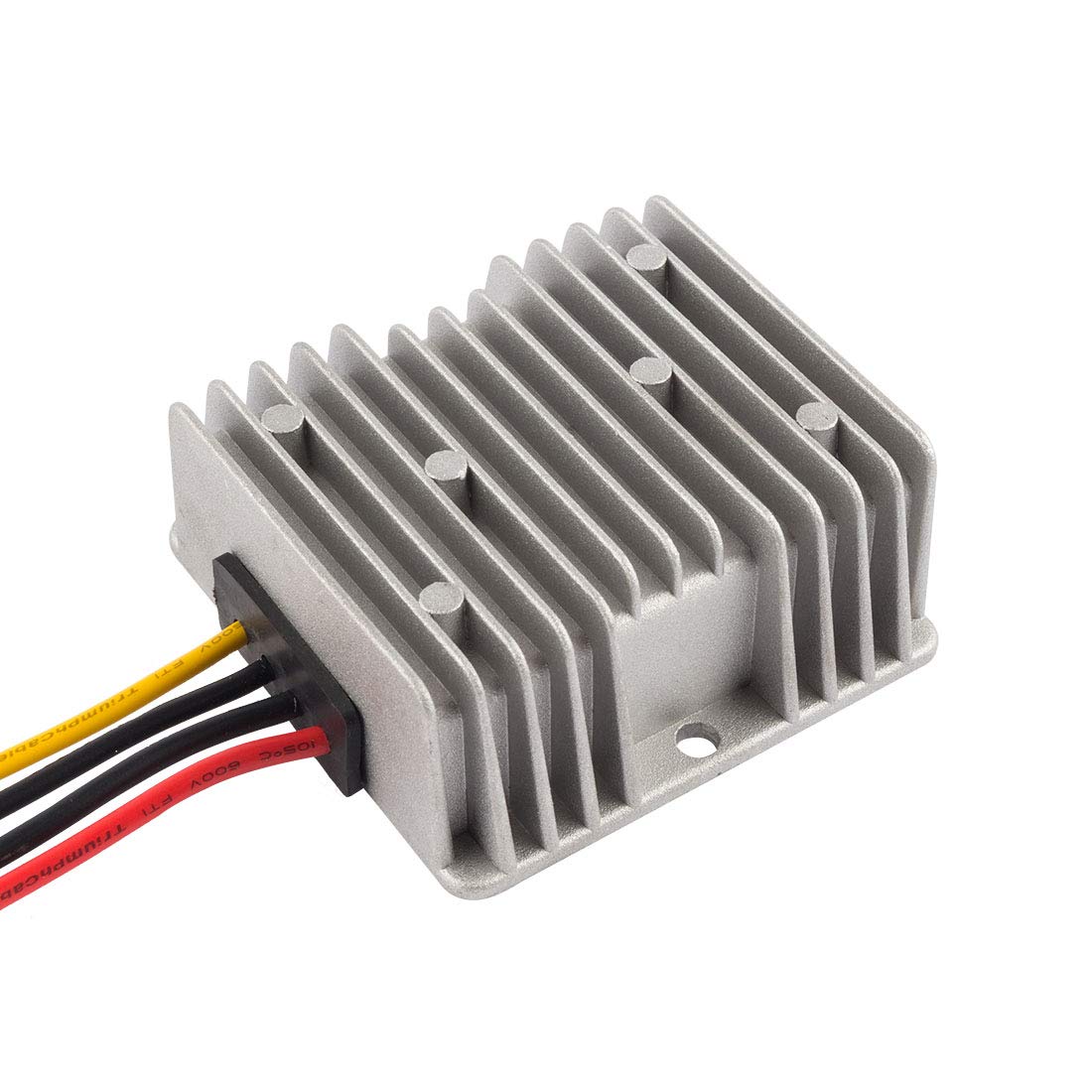

• Waterproof IP68 Voltage Converter DC 12V to DC 19V 6A 114W.
• Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.
• Recovery when the device is back to normal operating
• high transfer efficiency of 96% max.
• Die-cast aluminum shell, anti-shock, and moisture-proof and has stronger durability.New and Old label is being changed, but the products are same.
• Note: It is recommended to use stable DC power for the input power supply If you use the pulsed DC power provided by the generator, please filter it with capacitor before connecting it to the converter. If you use solar panel to supply directly, please note that the open circuit voltage of the solar panel cannot exceed the maximum withstand voltage of the converter. The supply voltage should be within the rated voltage and always leave a certain margin.

Color: Grey
