Brand: uxcell

Model: US-SA-AJD-155562

Features:
1. 100% full power and stable current output, non-isolated module.
2. Waterproof level IP68 and anti-shock protection, Ultra compact size, light weight.
3. Industry grade DC 12V/24V to DC 5V converter, efficiency up to 94%.
4. Die-cast aluminum shell, epoxy potting, cooling by free air convection.
5. Certificates: CE/RoHS, 1 year , lifetime up to 100,000 hours.
6. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.

Applications:
- Trucks
- Golf Carts
- Forklifts
- Buses
- Loaders
- Logging Vehicles
- Wind Power System
- Solar Power System
- Electromotor
- Telecommunications
- Boat and Yacht
- and so on..

Specifications:
* Input Rated Voltage: DC 12V/24V
* Input Voltage Range: 9-35V DC
* Output voltage: DC5V 20A
* Output Rated Power: 100W
* Efficiency: 94% (half load); 92% (full load)
* Output Peak Power: 125W
* Voltage Regulation: Less Than 1%
* Load Regulation: Less Than 2%
* Ripple(full load test): Less Than 100mV
* No Load Current: Less Than 20mV

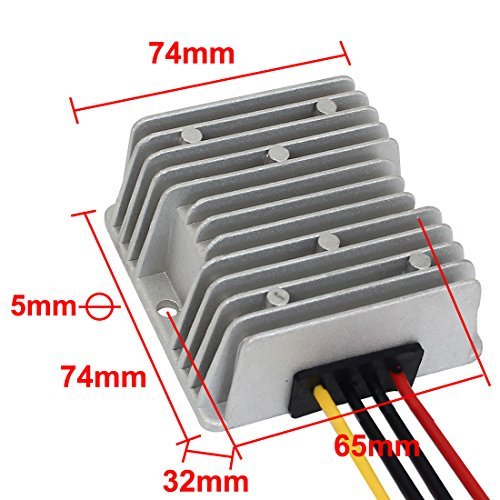

* Total Size: 74*74*32mm(L*W*H)
* Fixing Hole Diameter: 5mm(0.2 inch)
* Hole Center Diameter: 65mm
* Weight: 275g

Package included:
1 x DC 12V24V to DC 5V 20A Voltage Converter Regulator

Note: Can not used long time Under the MAX. LISTED LOAD POWER.

• Waterproof IP68 Voltage Converter Regulator DC 12V/24V(9V-35V DC) to DC 5V 20A 100W.
• Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.
• Auto-recovery when device is back to normal operating
• high transfer efficiency of 94% max..
• Die-cast aluminum shell, anti-shock, and moisture-proof and has stronger durability.New and Old label is being changed, but the products are same.
• Note: It is recommended to use stable DC power for the input power supply If you use the pulsed DC power provided by the generator, please filter it with capacitor before connecting it to the converter. If you use solar panel to supply directly, please note that the open circuit voltage of the solar panel cannot exceed the maximum withstand voltage of the converter. The supply voltage should be within the rated voltage and always leave a certain margin.
