Brand: uxcell

Model: US-SA-AJD-178912

Descriptions:
-Our Waterproof Power Converter Regulator adopts synchronous voltage regulator technology, fully import original components, can convert unstable voltage DC 48V(38V-60V) to stable DC 24V 10A output.
-The import high heat conduction organic silica gel filling and sealing technology, and for multiple automatic protection functions, over current, short circuit, over temperature, waterproof, moistureproof, these distinctive characters make Our Power Supply Converter Regulator widely used in LED screen, MP3, MP4, DVD, hard disk player, stereo.
-Easy to install. Please customers feel free to use it.

Features:
-Aluminium alloy shell with good heat conduction, waterproof.
-IP67 Protection grade, waterproof and anti-shock protection.
-More than 96% power conversion efficiency.
-Si-Fe Cores magnetic loop, high-temperature resistance, and super stability.

Specifications:
Product Name: Waterproof Power Converter Regulator
Material: Plastic, Electronic Parts
Input: DC 48V(38V - 60V)
Output: DC 24V 10A 240W
Conversion Efficiency: More Than 96%
Over temperature Protection: 150C
Protection Grade: IP67

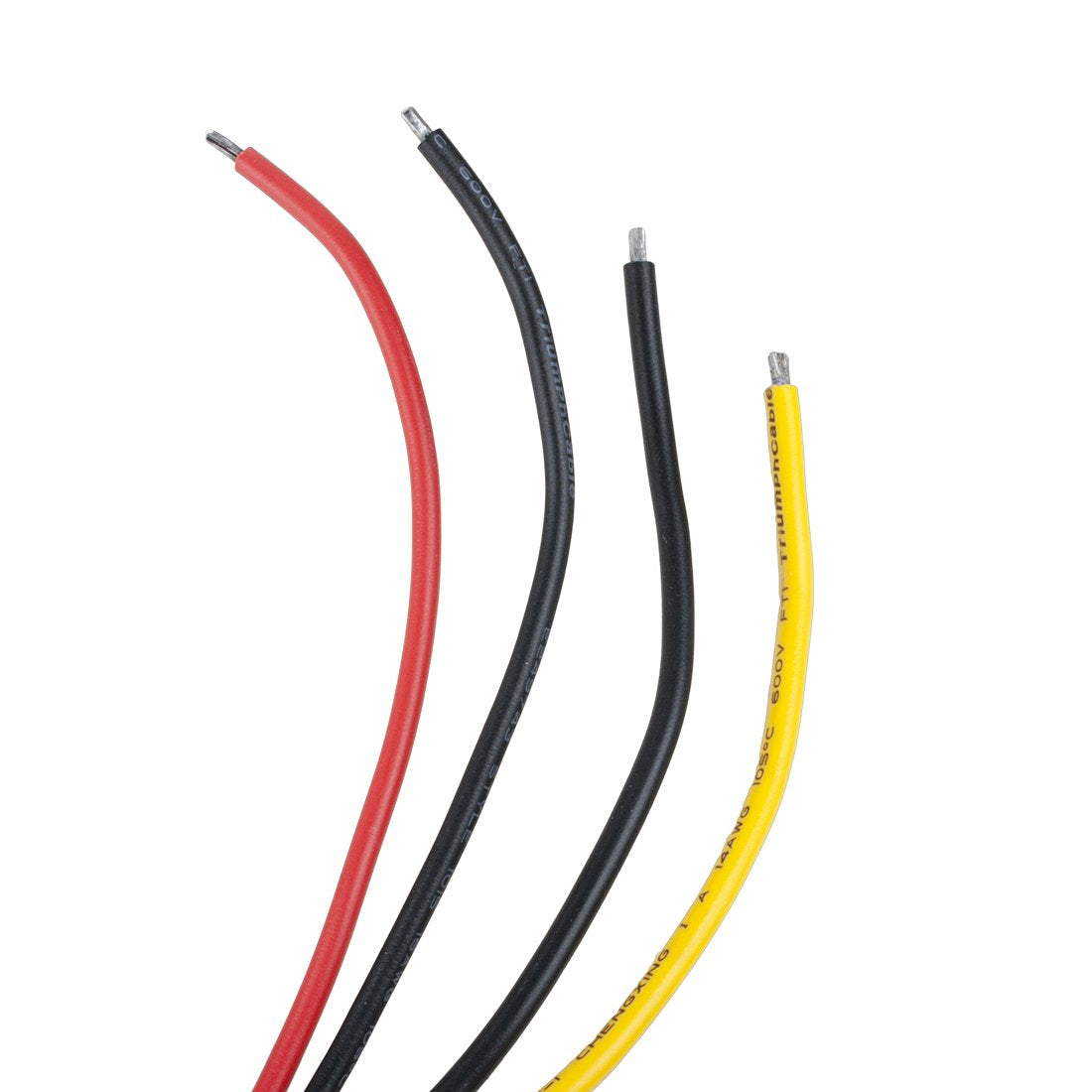

Connection Wire Length: 12cm(4.7 inches)

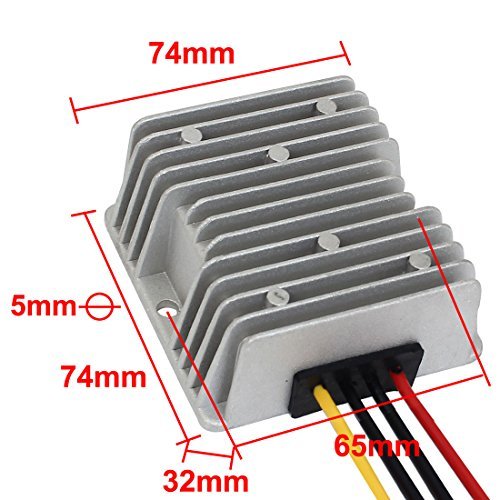

Mounting Hole Diameter: 5mm(0.2 inch)
Mounting Hole Distance: 65mm(2.56 inches)
Body Size: 74mm x 74mm x 32mm(L*W*H)
Main Color: Silver Tone, Black
Net Weight: 289g

Package Content:
1 x Waterproof Power Converter Regulator

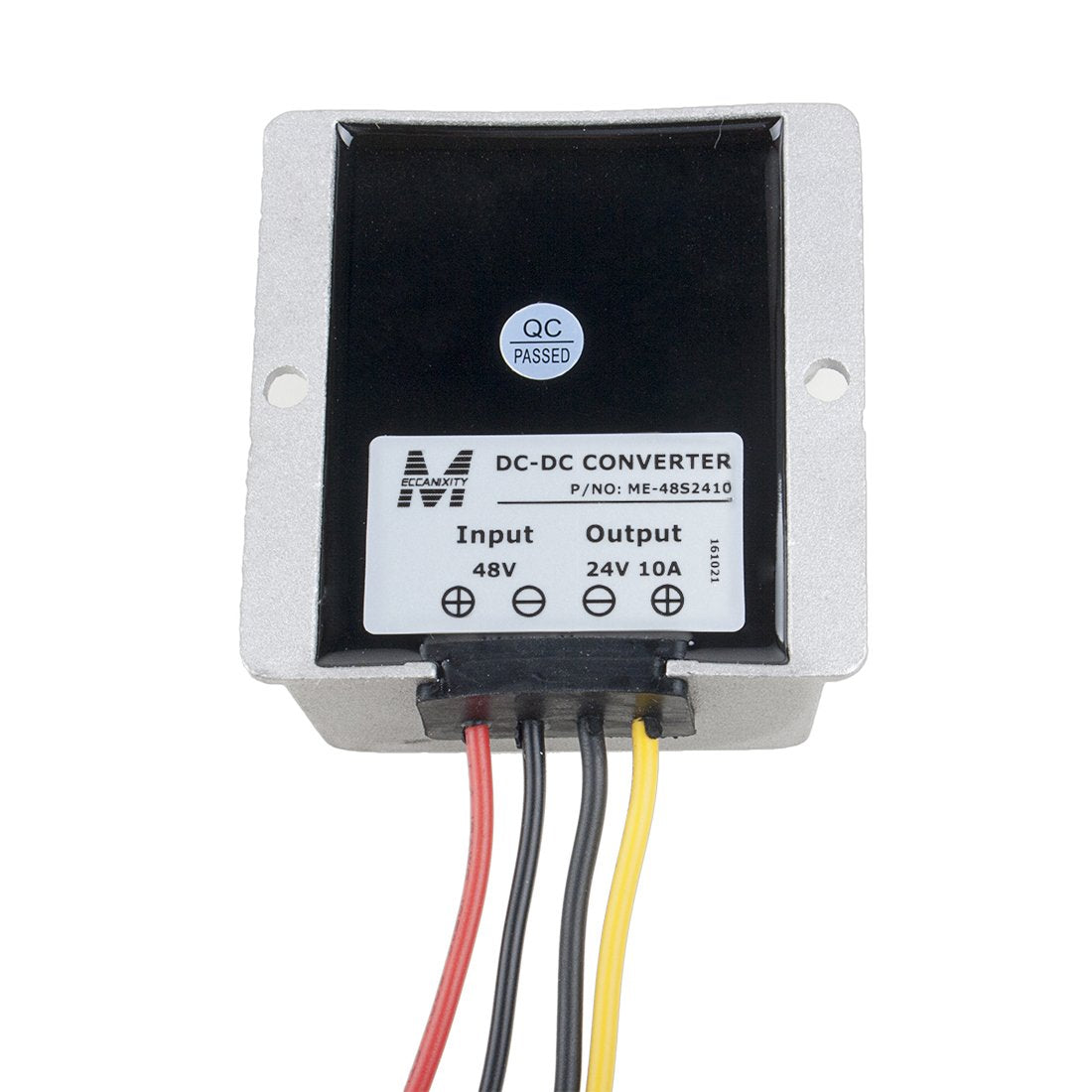

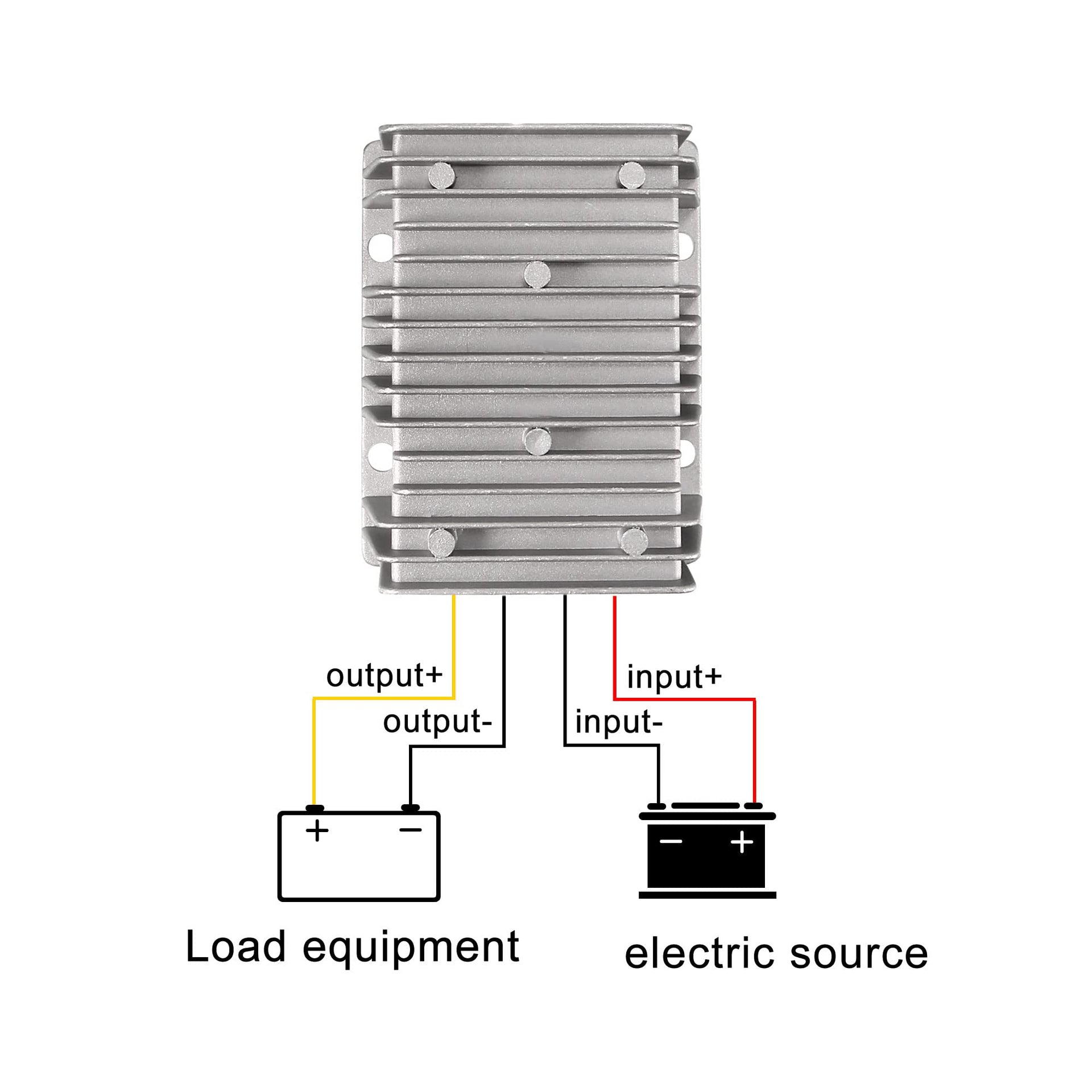

Note: The positive and negative pole, input, and output connection are marked on the back of the product, be sure not to connect incorrectly

• Convert unstable voltage DC 48V to stable DC 24V 10A 240W output.
• Si-Fe Cores magnetic loop, high-temperature resistance, and super stability.
• IP67 Protection grade, waterproof, moisture-proof, and anti-shock protection.
• Built-in over/under voltage input, overload, overheat, and short circuit protection. New and Old label is being changed, but the products are the same.
• Note: It is recommended to use stable DC power for the input power supply If you use the pulsed DC power provided by the generator, please filter it with capacitor before connecting it to the converter. If you use solar panel to supply directly, please note that the open circuit voltage of the solar panel cannot exceed the maximum withstand voltage of the converter. The supply voltage should be within the rated voltage and always leave a certain margin.

Color: Silver, Black
