Brand: uxcell

Model: US-SA-AJD-99838

Descriptions:
-Our Waterproof Power Converter Regulator adopts synchronous voltage regulator technology, fully import original components, can convert unstable voltage DC 48V to stable DC 12V 20A output.
-The import high heat conduction organic silica gel filling and sealing technology-Widely used in LED screen, MP3, MP4, DVD, hard disk player, stereo.
-Aluminium alloy shell with good heat conduction, waterproof.
-IP67 Protection grade, waterproof and anti-shock protection.
-More than 96% power conversion efficiency.
-Si-Fe Cores magnetic loop, high-temperature resistance, and super stability.

Instructional Manual
1. The load connected to the output end of the power regulator should not be more than MAX LISTED LOAD POWER, any higher rated load will cause broken to the power regulator.
2. Can not use a long time Under the MAX. LISTED LOAD POWER
3. Please connect the converter and your device as the wiring diagram provided in the above picture

Specifications:

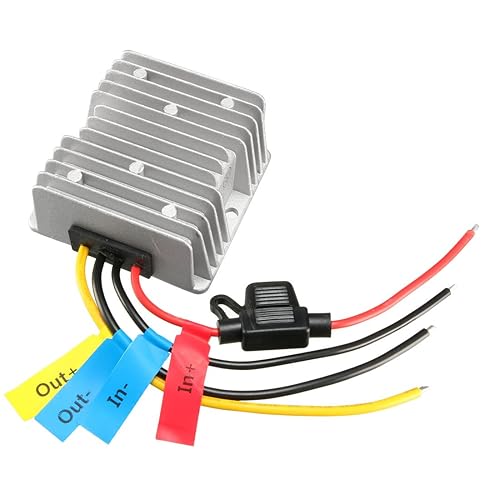

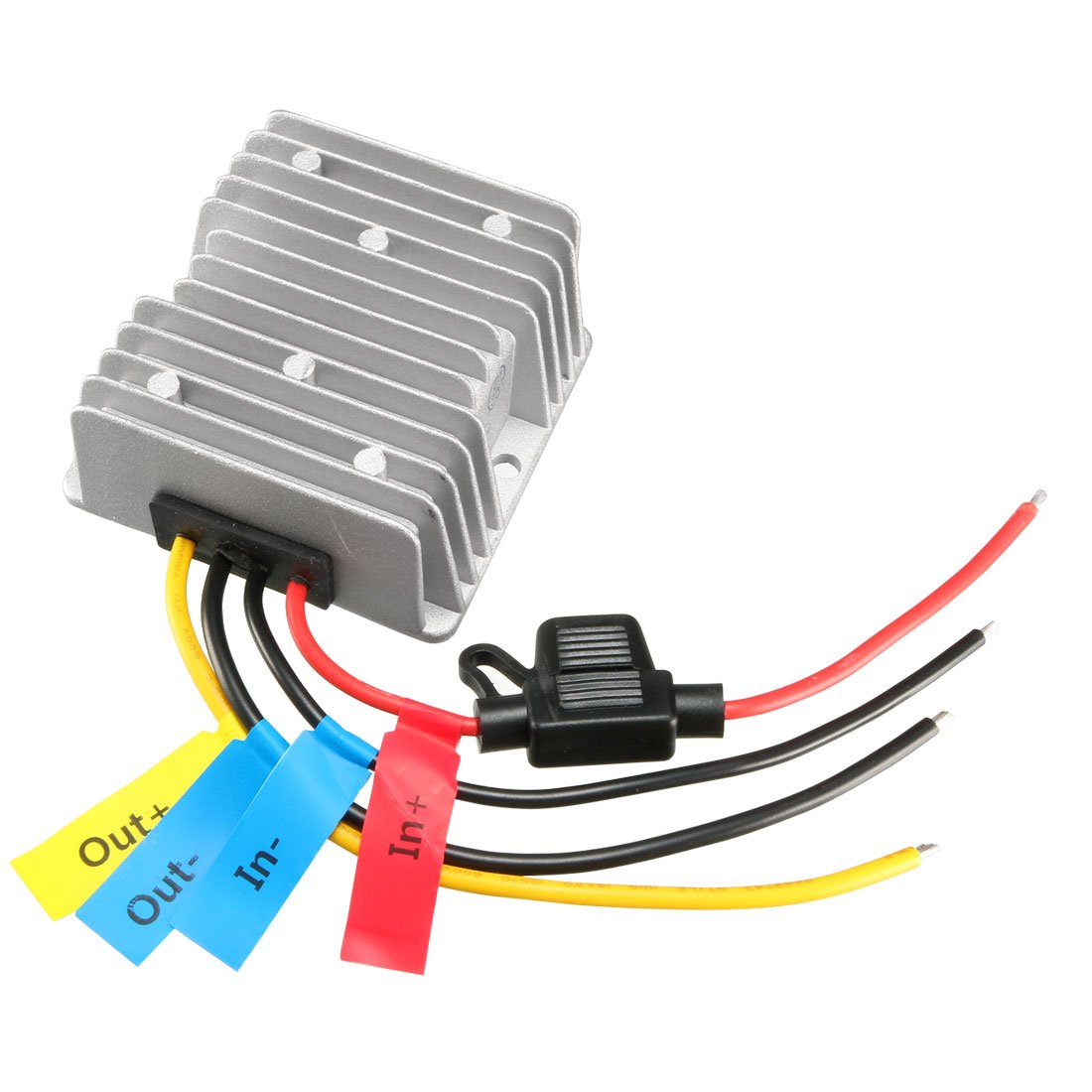

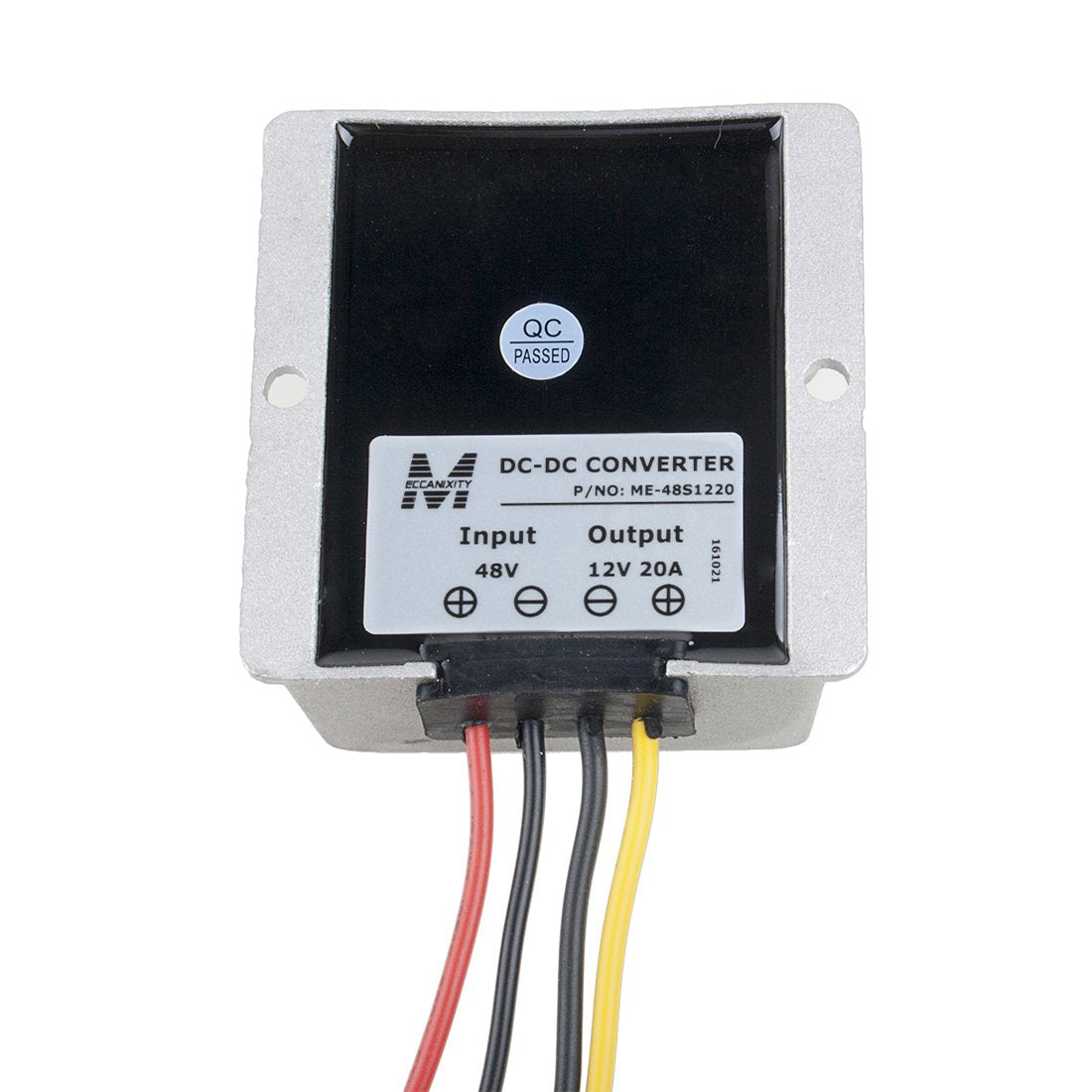

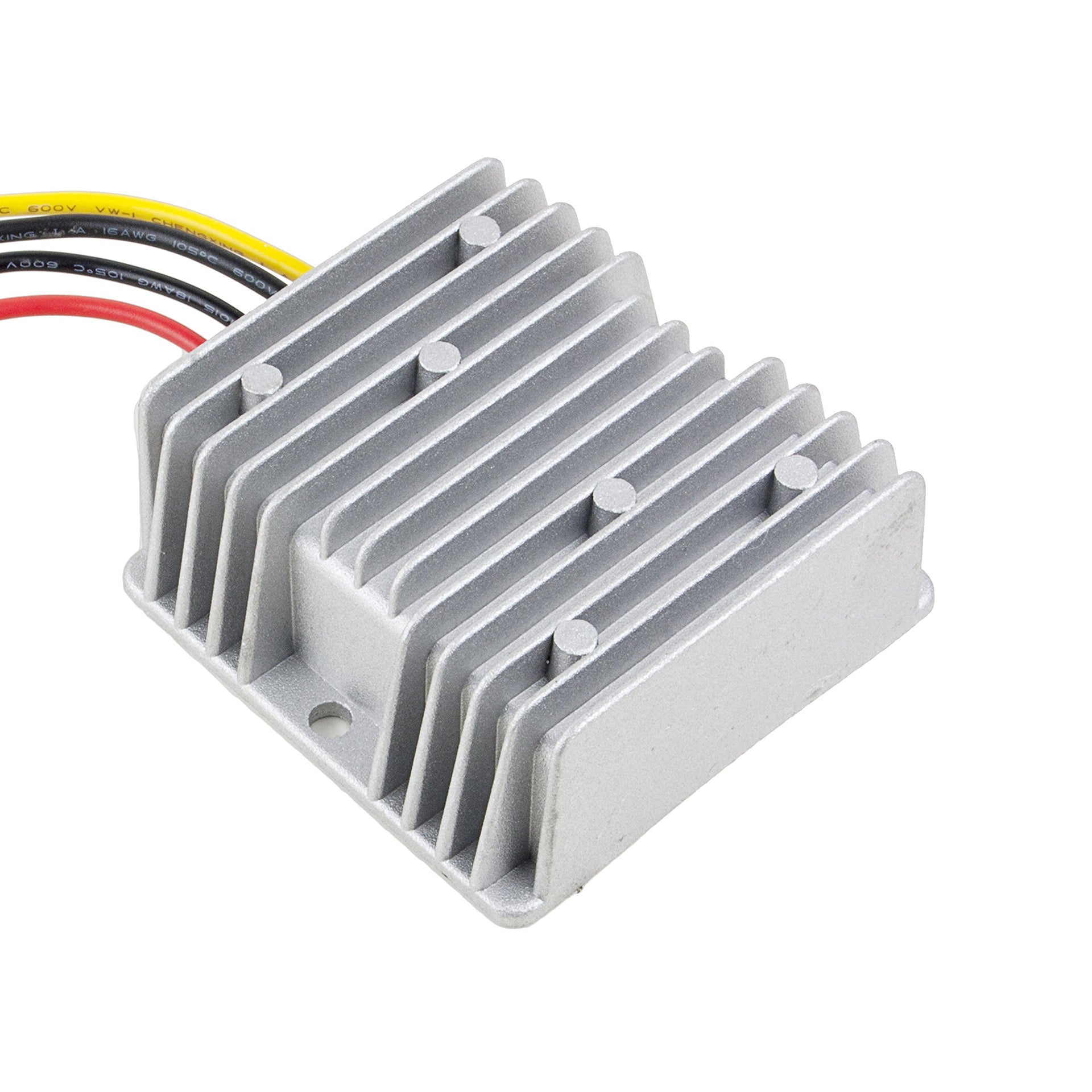

Product Name: Waterproof Power Converter Regulator
Input: DC 48V
Input Voltage Range: DC 38V ~ 60V
Output: DC 12V 20A 240W
Conversion Efficiency: More Than 96%
Over temperature Protection: 150C
Protection Grade: IP67

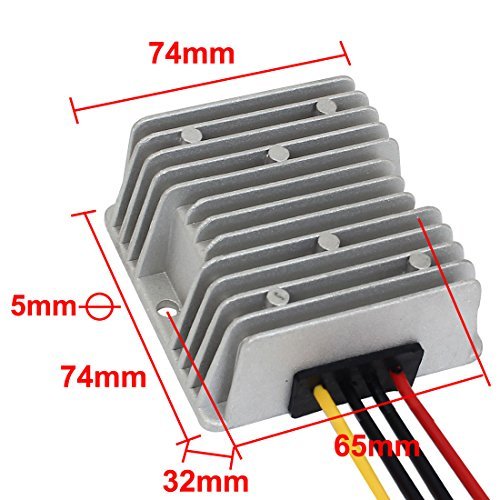

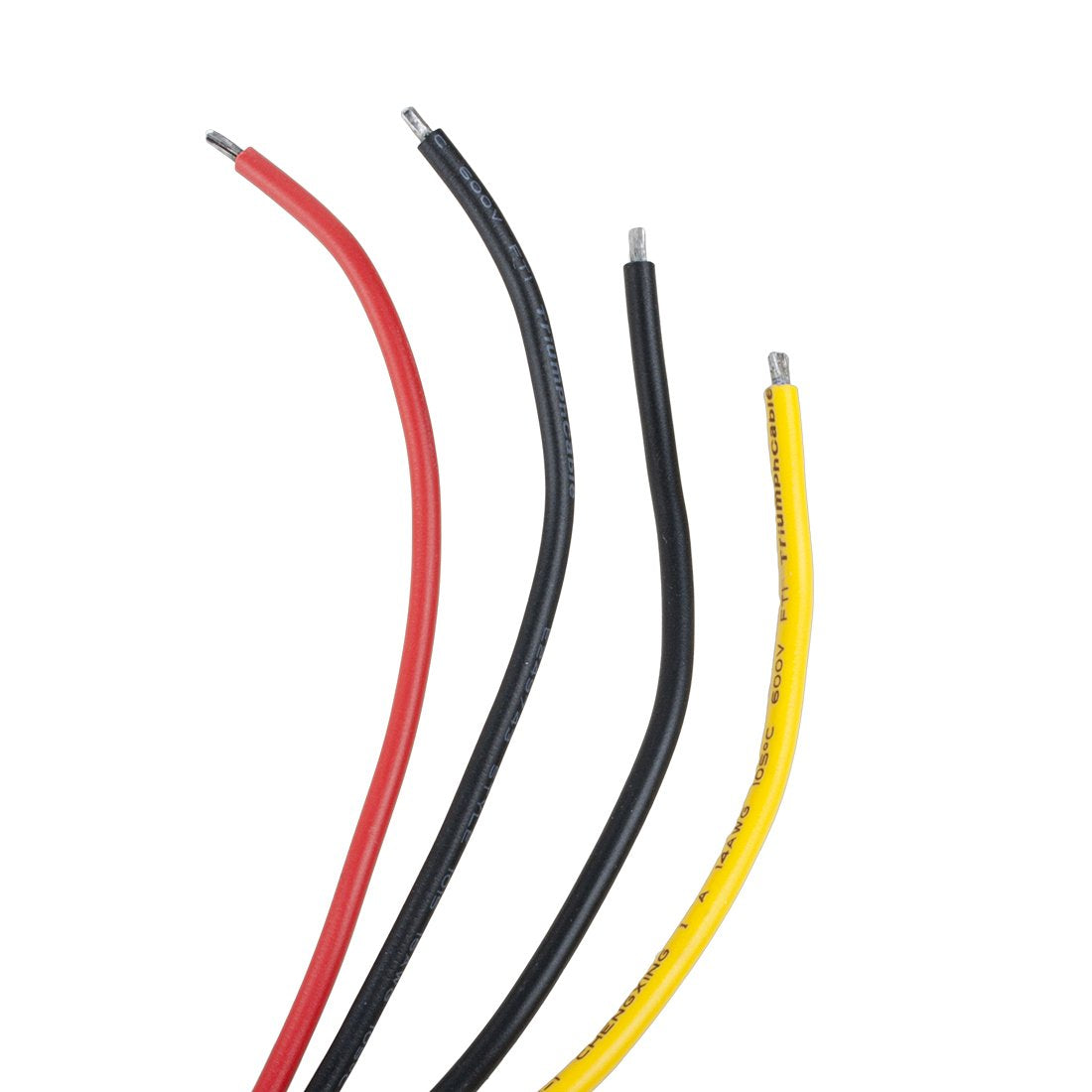

Connection Wire Length: 12cm(4.7 inches)
Mounting Hole Diameter: 5mm(0.2 inch)
Mounting Hole Distance: 65mm(2.56 inches)
Body Size: 74mm x 74mm x 32mm(L*W*H)
Net Weight: 246g

Package Content:
1 x Waterproof Power Converter Regulator



• Convert unstable voltage DC 48V(38V ~ 60V) to stable DC 12V 20A 240W output.
• Si-Fe Cores magnetic loop, high temperature resistance and super stability.
• IP67 Protection grade, waterproof, moisture-proof and anti-shock protection.
• Built-in over/under voltage input, overload, overheat, and short circuit protection. Widely used in buses, large trucks, motor, solar generate electricity, the display screen of bus and taxi, audio device.
• Note: It is recommended to use stable DC power for the input power supply If you use the pulsed DC power provided by the generator, please filter it with capacitor before connecting it to the converter. If you use solar panel to supply directly, please note that the open circuit voltage of the solar panel cannot exceed the maximum withstand voltage of the converter. The supply voltage should be within the rated voltage and always leave a certain margin.

Color: multicolor
