Description
Brand: Vonets

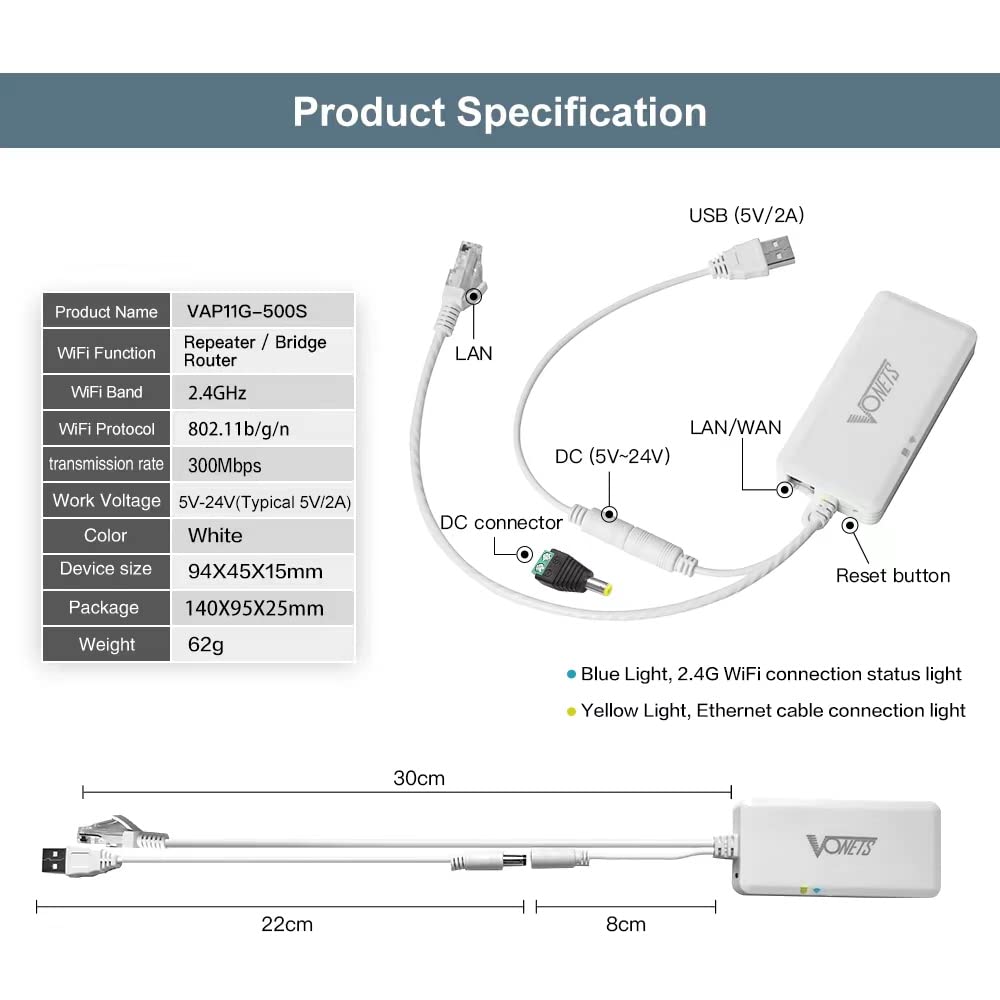

<b>Description:</b><br> 1. Industrial Mini 2.4G High Power WiFi Bridge Wireless Repeater Mini WiFi router;<br> 2.WiFi Security: 64/128/WEP encryption; WPA-PSK/WPA2-PSK?WPA/WPA2 Security mechanism;<br> 3. Support 802.11b/g/n WiFi transmission protocol;WiFi transmission rate: 2.4GHz 300Mbps;WiFi Tx Power: 19dBm/23dBm optional;<br> 4. Two 10/100Mbps adaptive Ethernet ports, standard accessories industrial track fixing kit, and Industrial power supply DC connector, more suitable for industrial applications;<br> 5. Support connecting more than 20pcs WiFi terminal at the same time; WiFi hotspot memory, maximum memory up to 100 hotspots; Support manually close SSID broadcast, WiFi hardware;<br> 6. Adopt VDNS virtual domain configuration technology to solve the user’s trouble with the configuration;<br> 7. Support configuration parameter import and export function to facilitate batch configuration of engineering projects;<br> 8. Adopt temperature compensated auto frequency control technology (TAFC), WiFi signal is more stable and not easy to drop; <br> 9. Working environment temperature: -20 °C to 55 °C;<br><br> <b>Hardware Specification:</b><br> Status Indication:<br> Ethernet Port

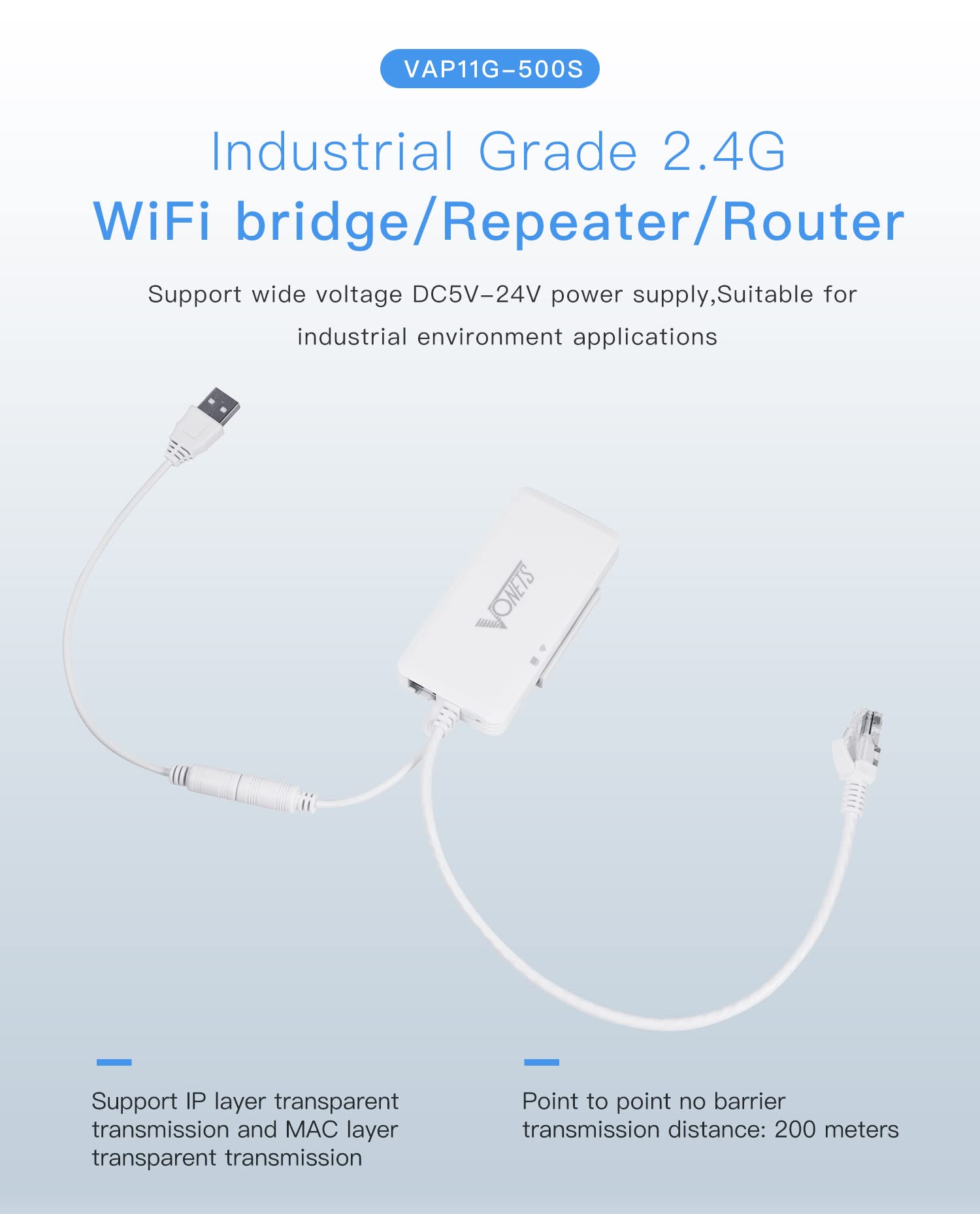

• ?Industrial WiFi Bridge/Router/Repeater?Industrial Mini 2.4GHz High Power WiFi bridge, using three-in-one technology: professional wifi router, wifi bridge, wifi repeater, can achieve WiFi to Wired or Wired to WiFi function(WiFi to Ethernet or Ethernet to WiFi convert)

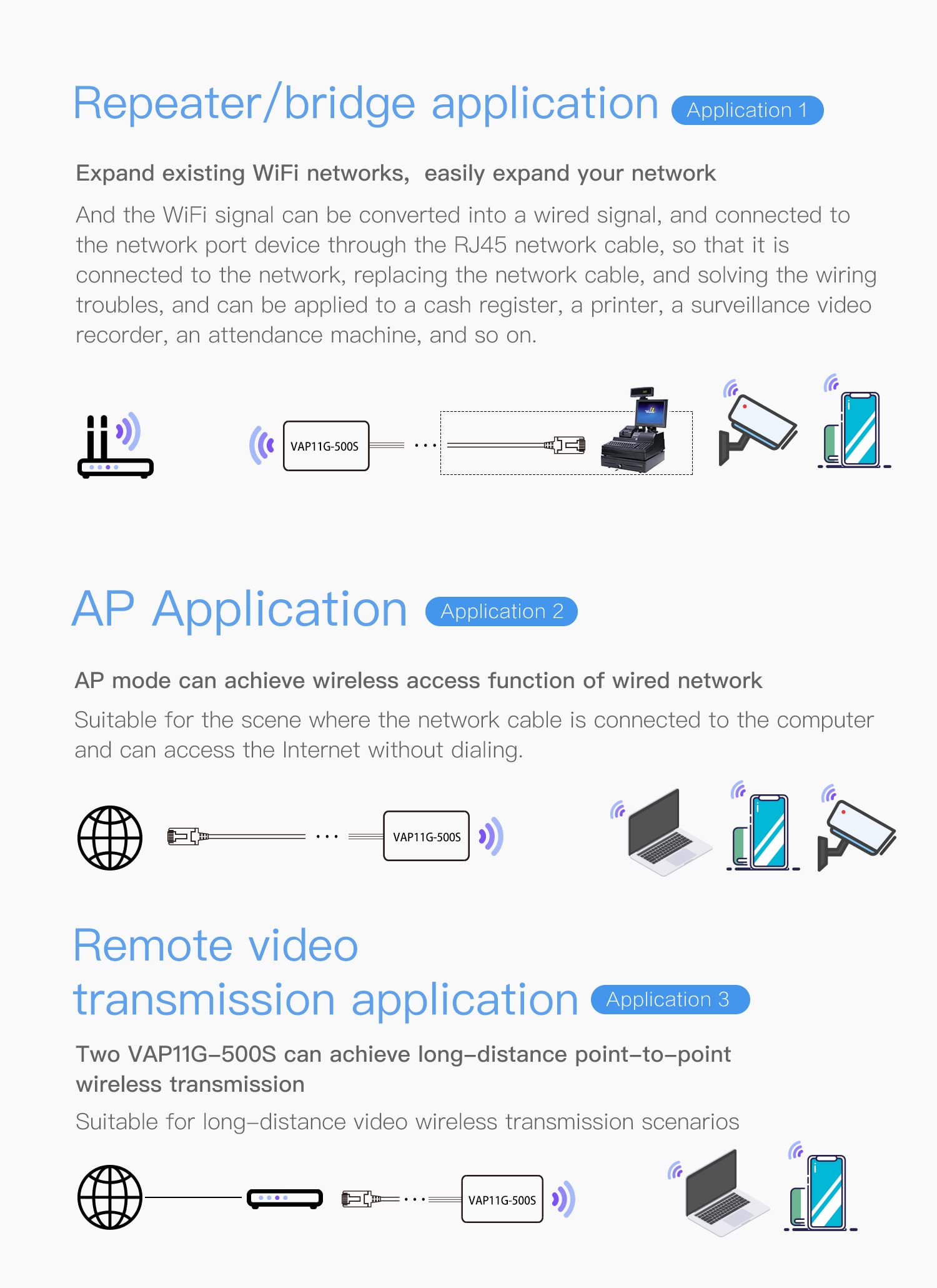

• ?Multiple Application Methods?Router mode (support WiFi WAN uplink and WAN/LAN exchange), WiFi Repeater(can extend WiFi transmission distance), WiFi Bridge( IP layer or MAC layer transparent transmission). WiFi rate: 300Mbps. WiFi Tx Power: 19/23dBm(2.4GHz)
• ?Point-to-Point Transmission Distance?Built-in 2pcs smart 2.4GHz antennas, maximum can be up to 200 meters when without obstacle and small data (by 802.11n), less than 100 meters when used for video transmission. High power equipment, is more suitable for industrial applications

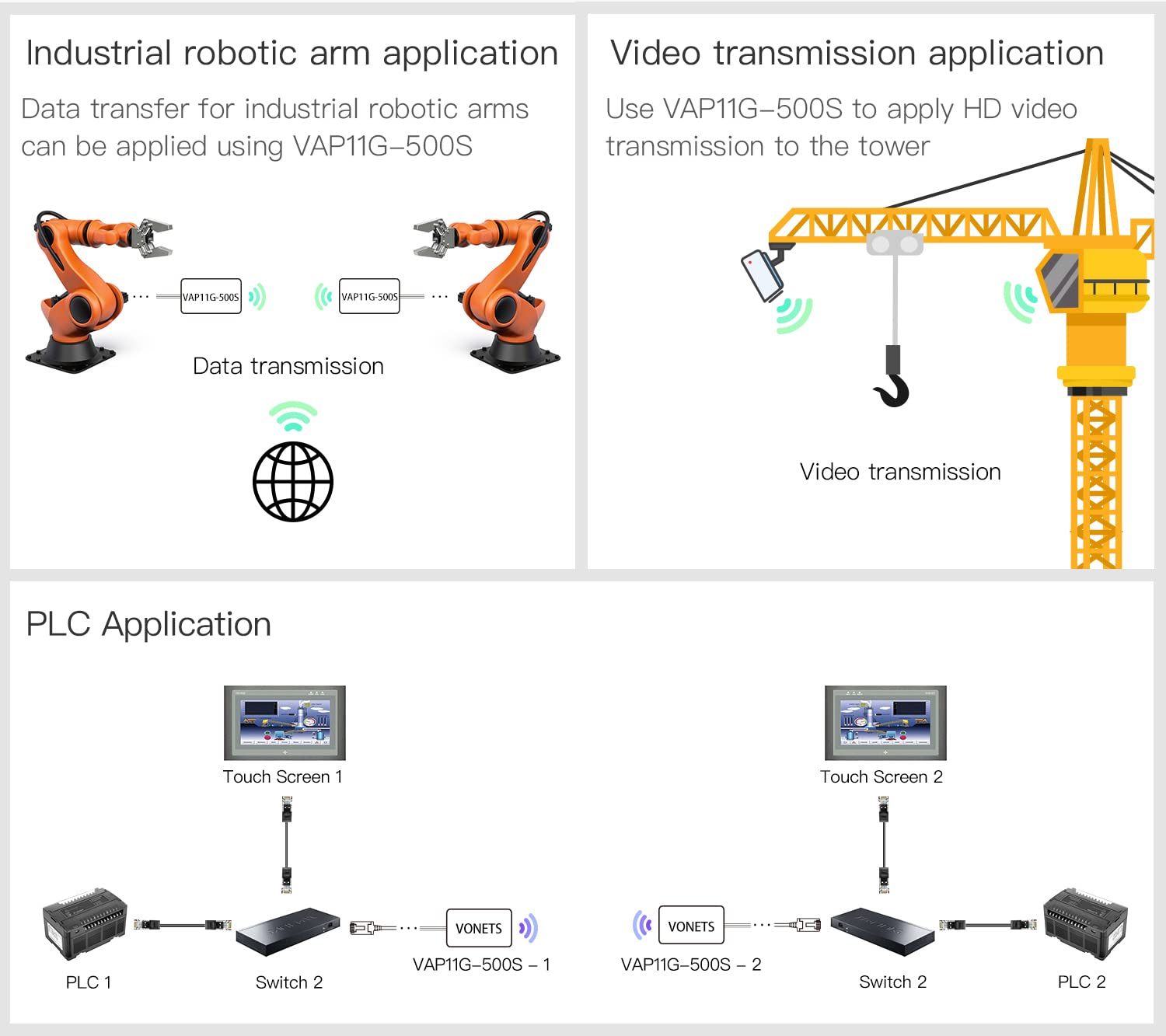

• ?Advantages and Applications? 2.4GHz high-power equipment, more suitable for industrial applications. Long transmission distances, can be used for small data and video transmission. Perfect for Network/Medical/IoT devices, Network printers, PLC, robots, monitors, IP cameras, POS Cash Register, PS3
• ?Product Configuration and Technical?Powered by wide voltage DC5V-24V(Typical 5V/2A, ripple less than 100mV), two-stage automatic overvoltage protection (Protection voltage upper limit 27V), Support WiFi hotspots automatically reconnected, SSA signal strength and motion detection function etc
Color: 2.4G-VAP11G-500S
<b>Description:</b><br> 1. Industrial Mini 2.4G High Power WiFi Bridge Wireless Repeater Mini WiFi router;<br> 2.WiFi Security: 64/128/WEP encryption; WPA-PSK/WPA2-PSK?WPA/WPA2 Security mechanism;<br> 3. Support 802.11b/g/n WiFi transmission protocol;WiFi transmission rate: 2.4GHz 300Mbps;WiFi Tx Power: 19dBm/23dBm optional;<br> 4. Two 10/100Mbps adaptive Ethernet ports, standard accessories industrial track fixing kit, and Industrial power supply DC connector, more suitable for industrial applications;<br> 5. Support connecting more than 20pcs WiFi terminal at the same time; WiFi hotspot memory, maximum memory up to 100 hotspots; Support manually close SSID broadcast, WiFi hardware;<br> 6. Adopt VDNS virtual domain configuration technology to solve the user’s trouble with the configuration;<br> 7. Support configuration parameter import and export function to facilitate batch configuration of engineering projects;<br> 8. Adopt temperature compensated auto frequency control technology (TAFC), WiFi signal is more stable and not easy to drop; <br> 9. Working environment temperature: -20 °C to 55 °C;<br><br> <b>Hardware Specification:</b><br> Status Indication:<br> Ethernet Port
• ?Industrial WiFi Bridge/Router/Repeater?Industrial Mini 2.4GHz High Power WiFi bridge, using three-in-one technology: professional wifi router, wifi bridge, wifi repeater, can achieve WiFi to Wired or Wired to WiFi function(WiFi to Ethernet or Ethernet to WiFi convert)
• ?Multiple Application Methods?Router mode (support WiFi WAN uplink and WAN/LAN exchange), WiFi Repeater(can extend WiFi transmission distance), WiFi Bridge( IP layer or MAC layer transparent transmission). WiFi rate: 300Mbps. WiFi Tx Power: 19/23dBm(2.4GHz)
• ?Point-to-Point Transmission Distance?Built-in 2pcs smart 2.4GHz antennas, maximum can be up to 200 meters when without obstacle and small data (by 802.11n), less than 100 meters when used for video transmission. High power equipment, is more suitable for industrial applications
• ?Advantages and Applications? 2.4GHz high-power equipment, more suitable for industrial applications. Long transmission distances, can be used for small data and video transmission. Perfect for Network/Medical/IoT devices, Network printers, PLC, robots, monitors, IP cameras, POS Cash Register, PS3
• ?Product Configuration and Technical?Powered by wide voltage DC5V-24V(Typical 5V/2A, ripple less than 100mV), two-stage automatic overvoltage protection (Protection voltage upper limit 27V), Support WiFi hotspots automatically reconnected, SSA signal strength and motion detection function etc
Color: 2.4G-VAP11G-500S
