Brand: AMOCAM

Specifications:
Can suit both Left and Right hand door (by rotating the lock 180°)
NO Fail Secure Operating Mode: Unlock while supplied with power.
Can directly connect to aparment Video Door Phone and open door without connect to extra DC 12V power supply (if the video door phone supports NO unlocking mode)
High-quality stainless steel
High anti-theft and high safety
Double lock heads inside and outside
With electronic-control unlocking unit and a spring adjusting balance unit
Easy to install,User friendly
Support manual unlocking, 6 Computer Keys
Suitable for : home, offices, schools, hotels, factories, warehouses, etc

***"DC 12V power supply" are not included in this package***

Technical Information:
Voltage :DV 9 ~ 12V, 1.5A
Power : > 12W
Operating Mode : NO (open when powered)

Dimensions (strike) :
- Approx. 36 (W) x 102 (H) x 51 (D) mm
- Approx. 1-3/8" (W) x 4" (H) x 2" (D) inch

Dimensions (main body) :

- Approx. 123 (W) x 105 (H) x 35 (D) mm
- Approx. 4-3/4" (W) x 4-1/8" (H) x 1-3/8" (D) inch

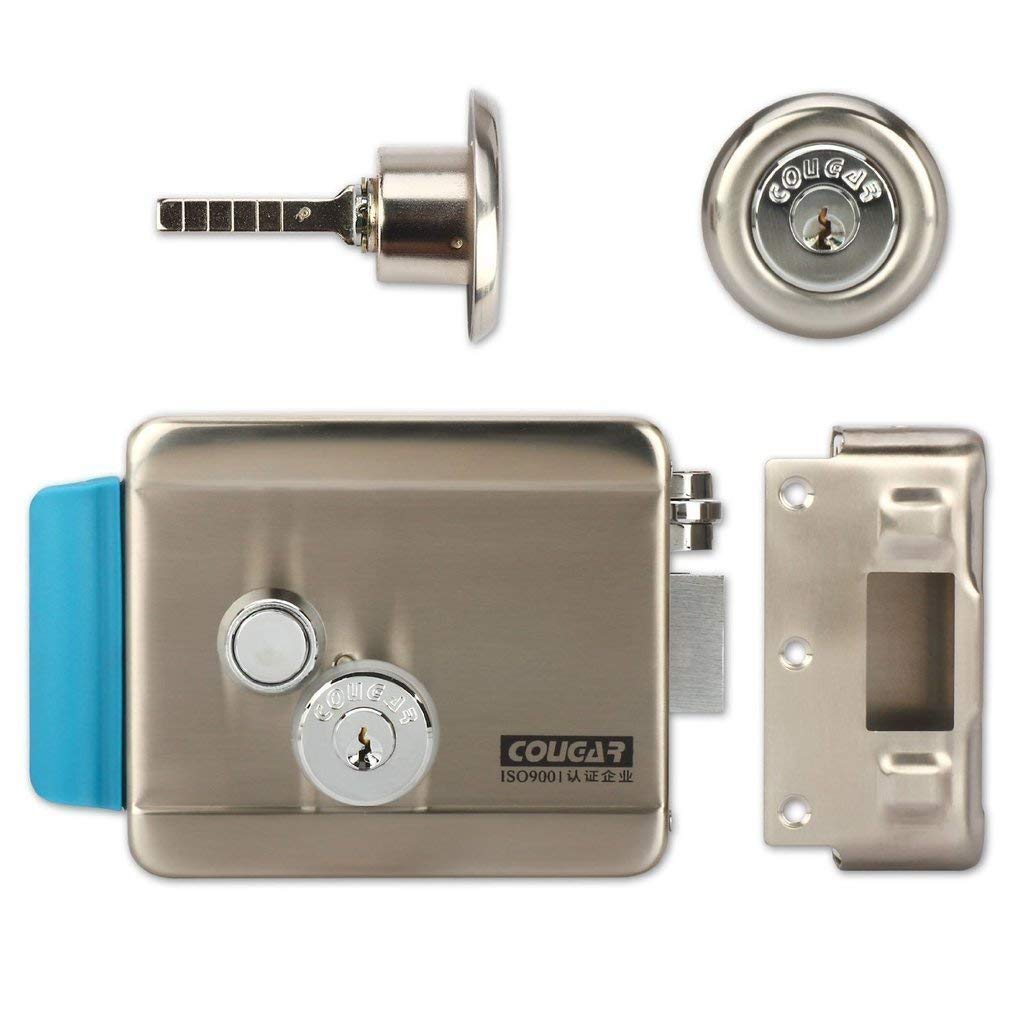

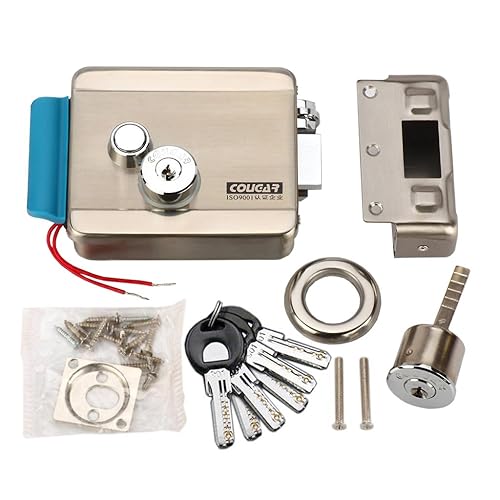

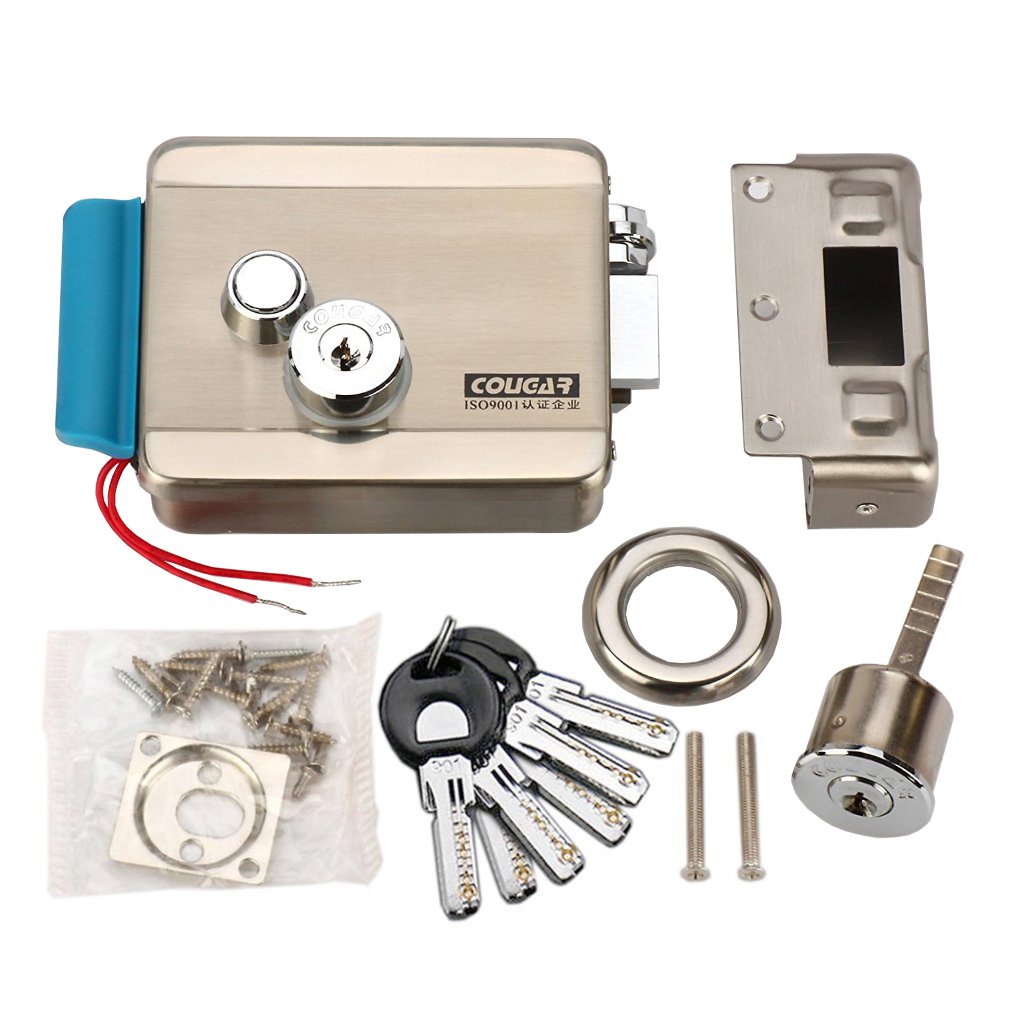

Package includes:
1 x DC 12V Electric Release Door Lock
1 x Strike
1 x Outside Lock
6 x Computer Keys
1 x Decorative Ring
1 x Installation Kit

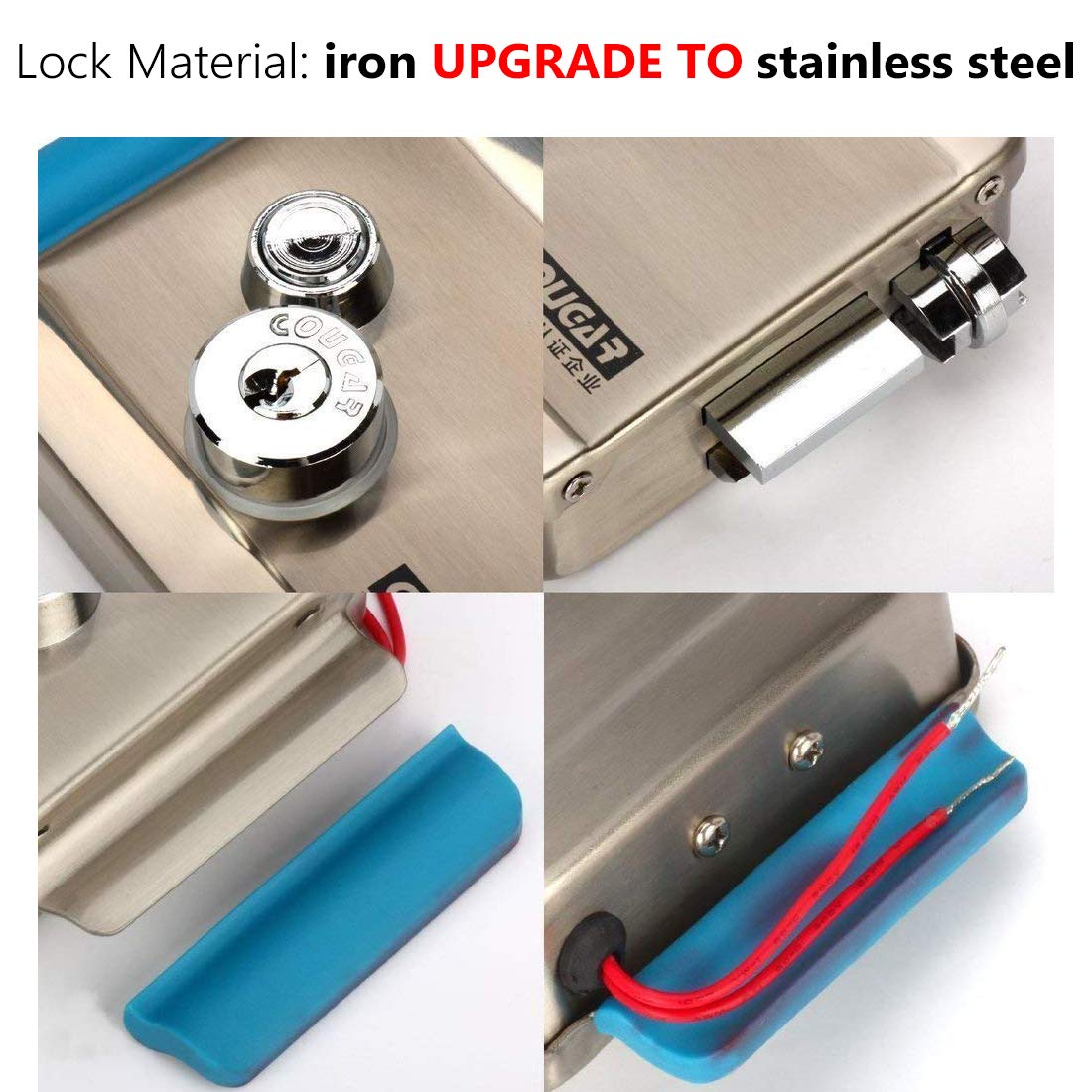

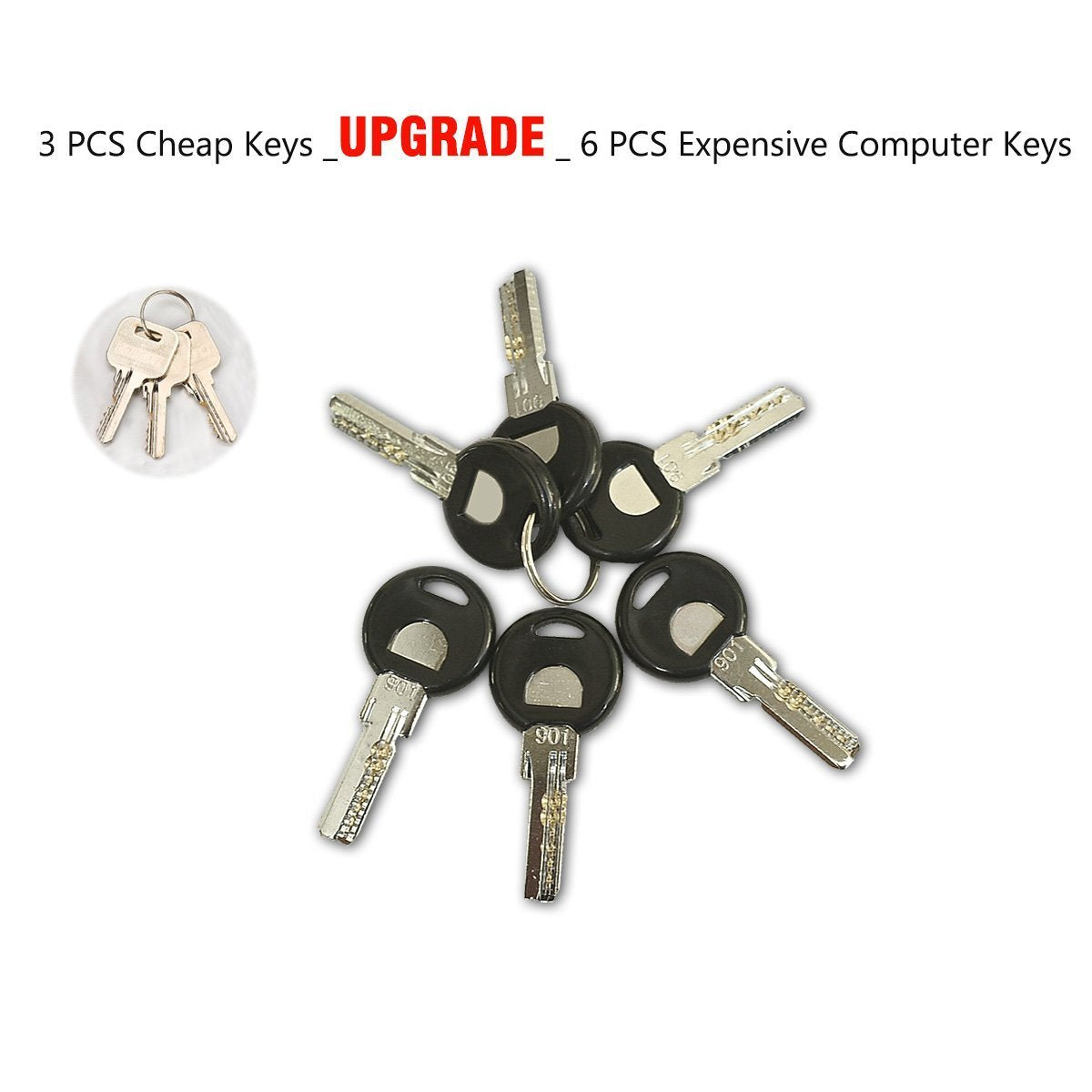

• Upgrade 6pcs computerized doted keys, Lock material iron upgrade to stainless steel wire drawing processing, lock body surface anti-corrosion, durable and beautiful. It is highly secured and anti-theft.
• Electronic Rim lock adopting the most advanced mechanical design, solid steel dead bolt & roller tongue, electric doorlock can suit both left and right hand door (by rotating the lock 180degree)
• Electric Control Lock have double lock heads inside and outside, Fits electronically controlled, keys and push button unlock, electric release door lock via connect to our video intercom system, No need extra DC 12V power supply.
• Doorlock made of stainless steel, uneasy to get scratched, uneasy to get rusty, non-conductive material, more than safe when using, power lock reliable locking mechanism (Up to 1000,000 tested)
• Easy to install, able to be connected to Video intercom doorbell and other electric access control system. Suitable for fence gate, wooden, glass, metal and fireproof door.
