Description
Brand: UHPPOTE
• Switch Type: NC (Normal closed type)
• This Contact Works with Any Access Control or Burglar Alarm System Available
• This contact can't connect directly to power, it works with your alarm system provide a switch signal. Working current under 12V
• Great for use in family and factory window, door. etc.

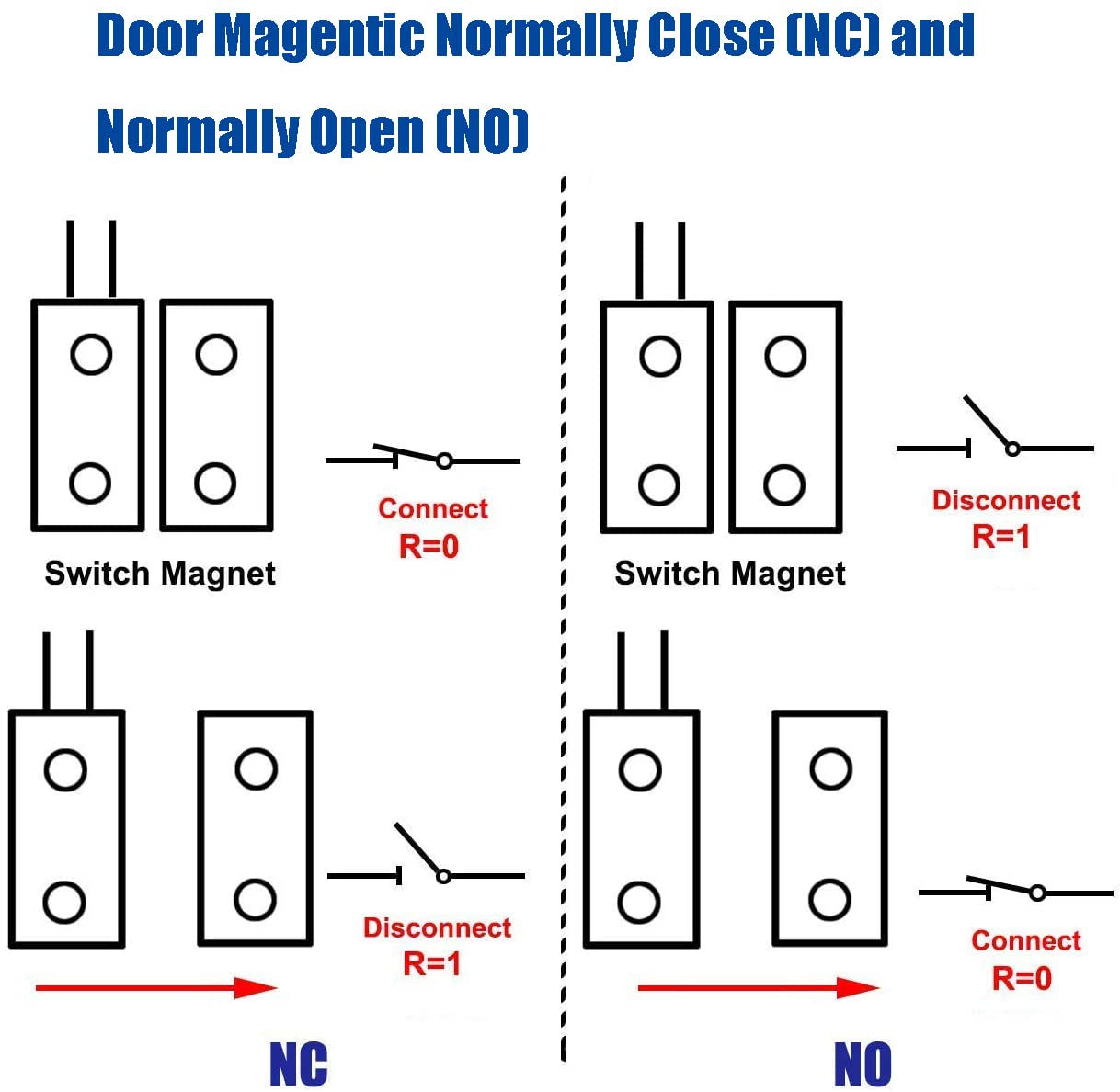

• NC means Normally Closed: When the magnet together, the circuit is conductive (light on); When the magnet separate, the circuit is not conductive (light off).
Description:

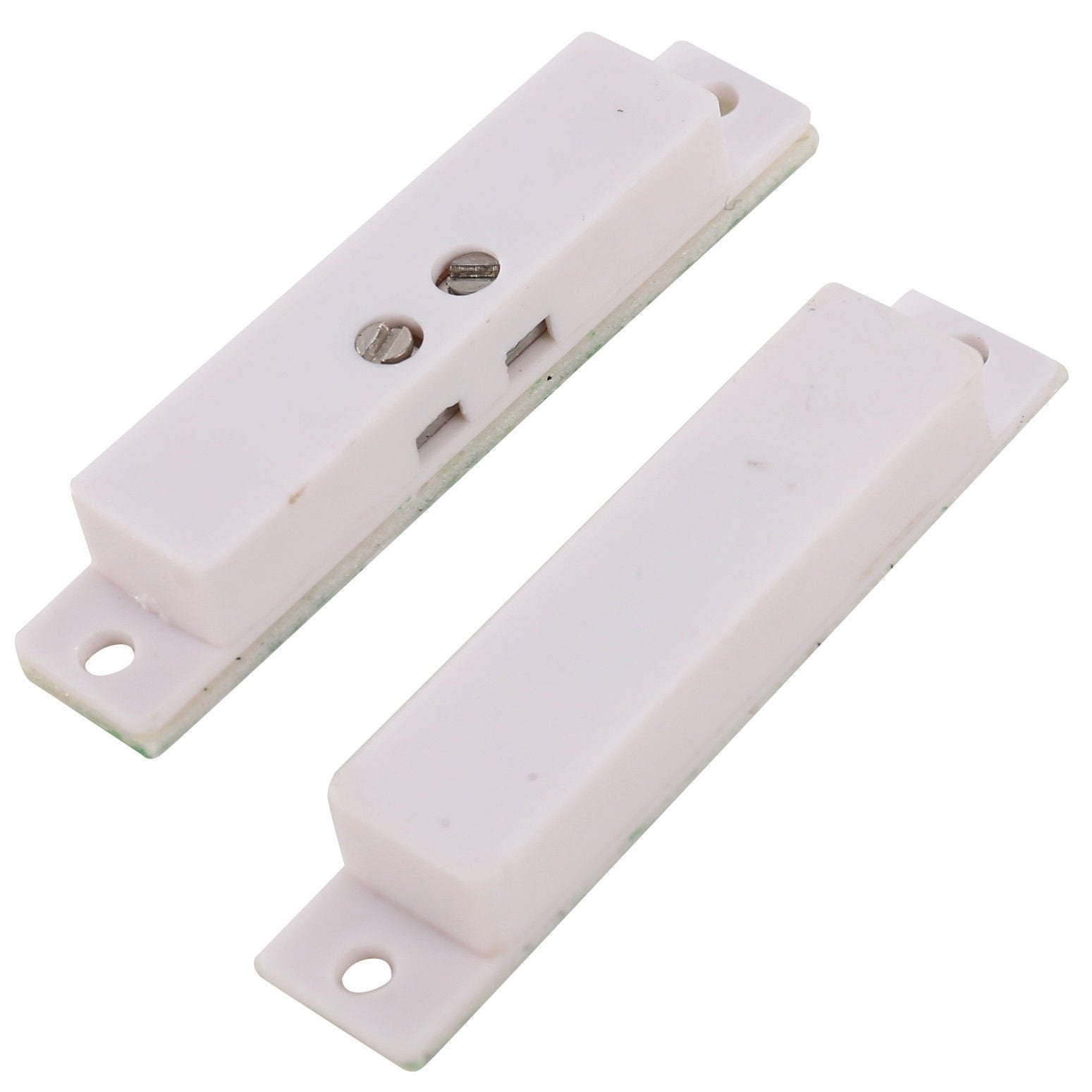

Miniature surface-mount magnetic contacts

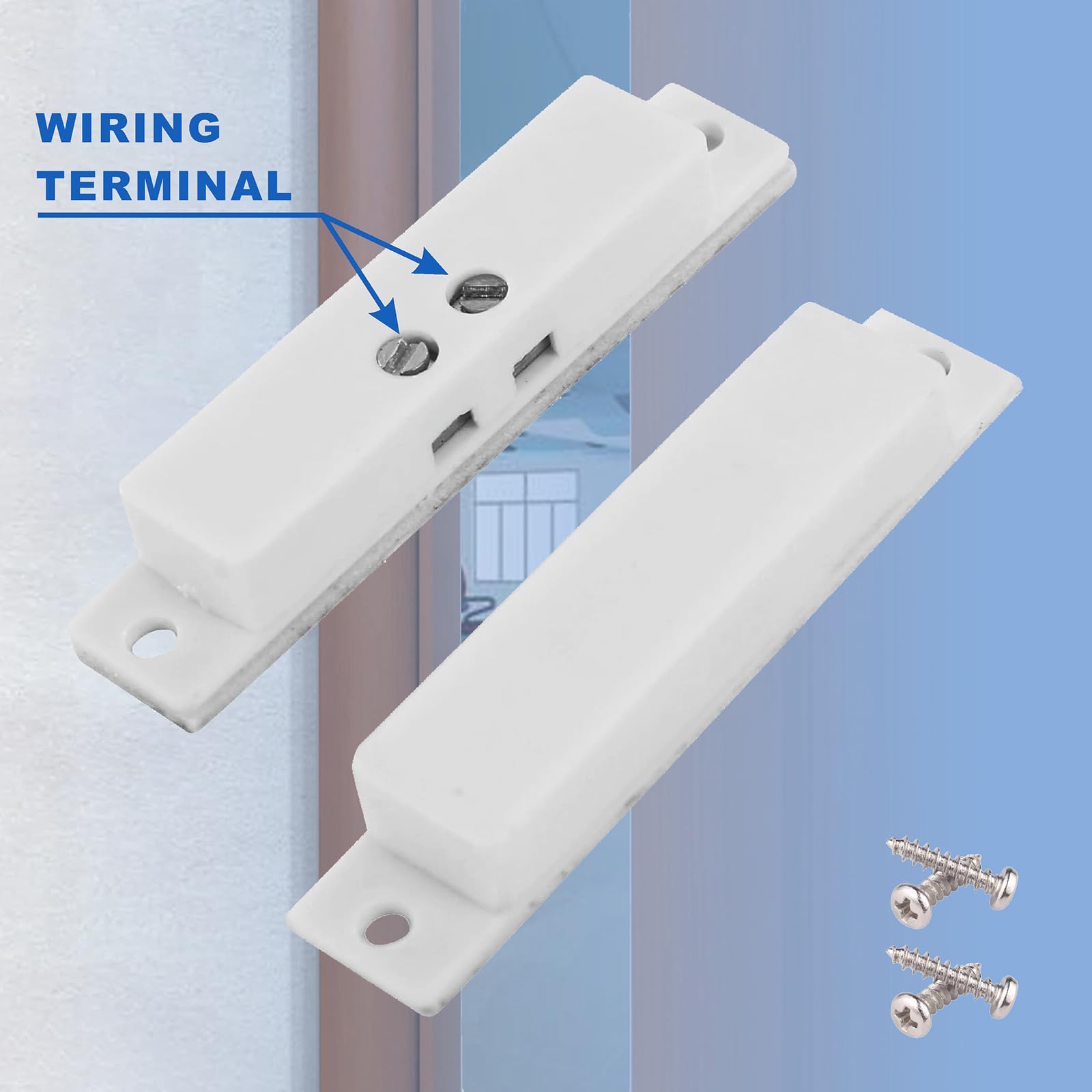

Gold-plated screw terminals for longer life and reliability
Tape to cover screw terminals included
Contact reed switch is SPST, iridium-plated to have a high melting point and Vickers hardness, for higher handling power and longer life

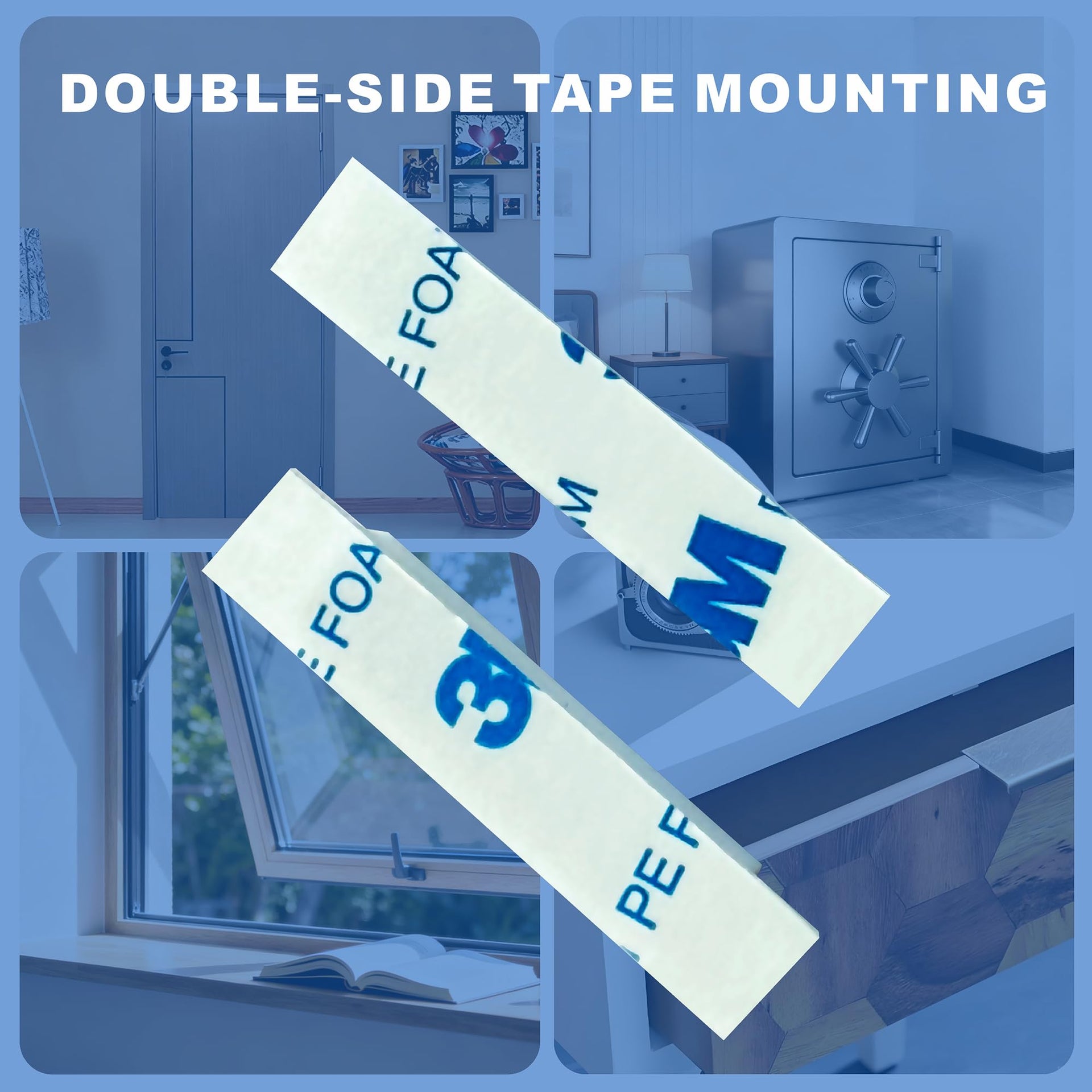

Mounting screws and double-sided tape included
Great for use in family and factory window, door. etc.
NORMALLY CLOSED: When the magnet together, the circuit is conductive (light on); When the magnet separate, the circuit is not conductive (light off).
Features:
Loop Type: Closed Loop (NC type)
Mounting Tabs: Yes / removable
Material - Case: High-impact ABS plastic
Contacts: Iridium-plating
Switch Dimensions: 2"x3/8"x1/4" (51x10x7 mm)
Magnet Dimensions: 2"x3/8"x1/4" (51x10x7 mm)
Dry Contact Output: NC (Normal closed)
Contact Rating: 10W/100VDC/0.5A in MAX
Operating Temperature: -15°~160°F (-25°~70°C)
Switch Cycles: 50 Million (0.1mA@5VDC)
Magnet Type: Rare-earth neodymium
Color: White
Housing Material: Plastic
Cable material: 1007UL #24AWG
Product: 9g / 0.32oz
Package Including:

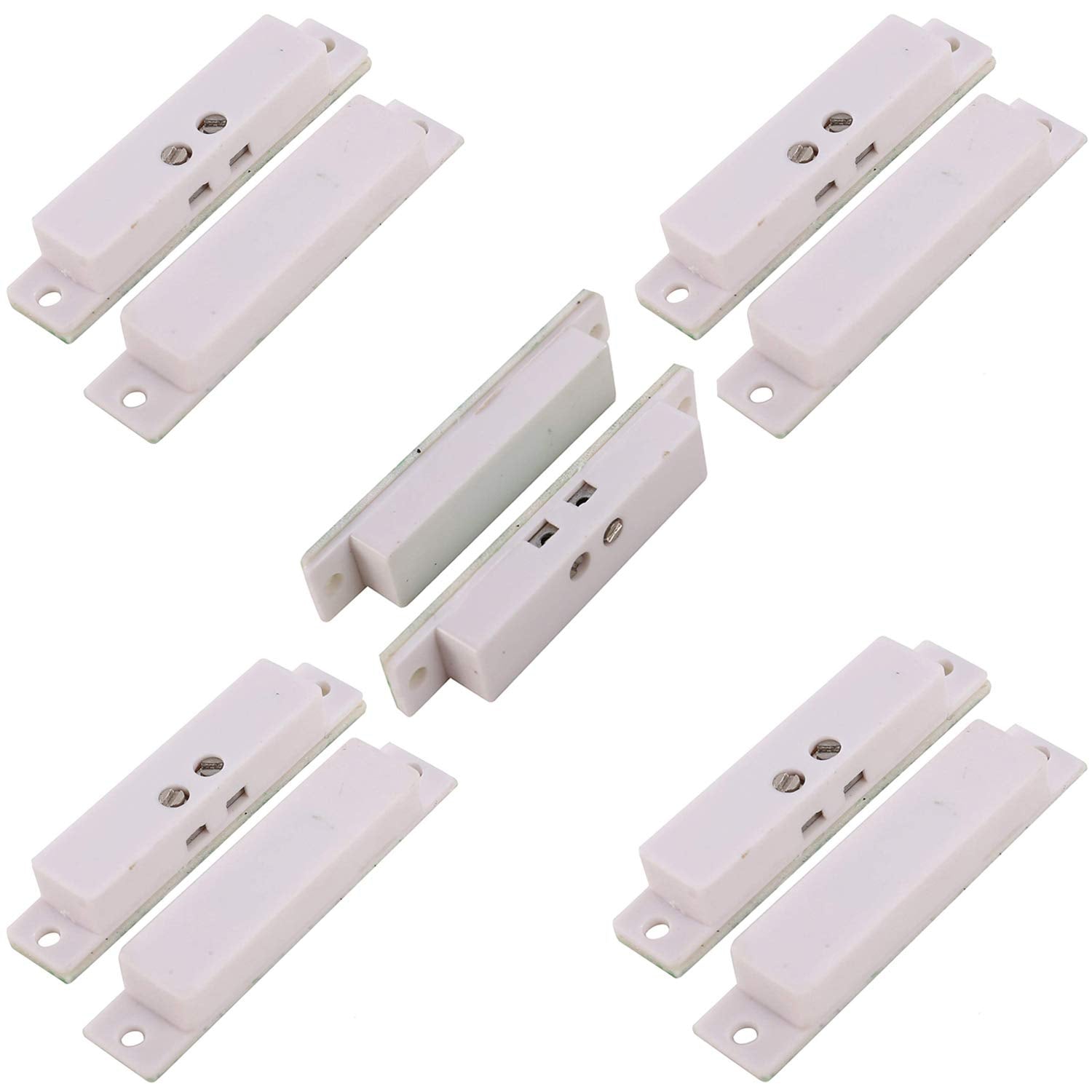

5 x Wired contacts
• Switch Type: NC (Normal closed type)
• This Contact Works with Any Access Control or Burglar Alarm System Available
• This contact can't connect directly to power, it works with your alarm system provide a switch signal. Working current under 12V
• Great for use in family and factory window, door. etc.
• NC means Normally Closed: When the magnet together, the circuit is conductive (light on); When the magnet separate, the circuit is not conductive (light off).
