Description
Brand: UHPPOTE
• ?Can be used as a stand alone keypad. Doesn't need to connect on the computer, can works alone.
• ?Contactless RFID transponder technology
• ?Lock output current short circuit protection
• ?The access control keypad is made of high quanlity ABS plastic and the panel is made of hard shell rubber film.
• ?It is widely used in factories, houses, residential quarters, offices, mechanical and electrical control equipment and so on.

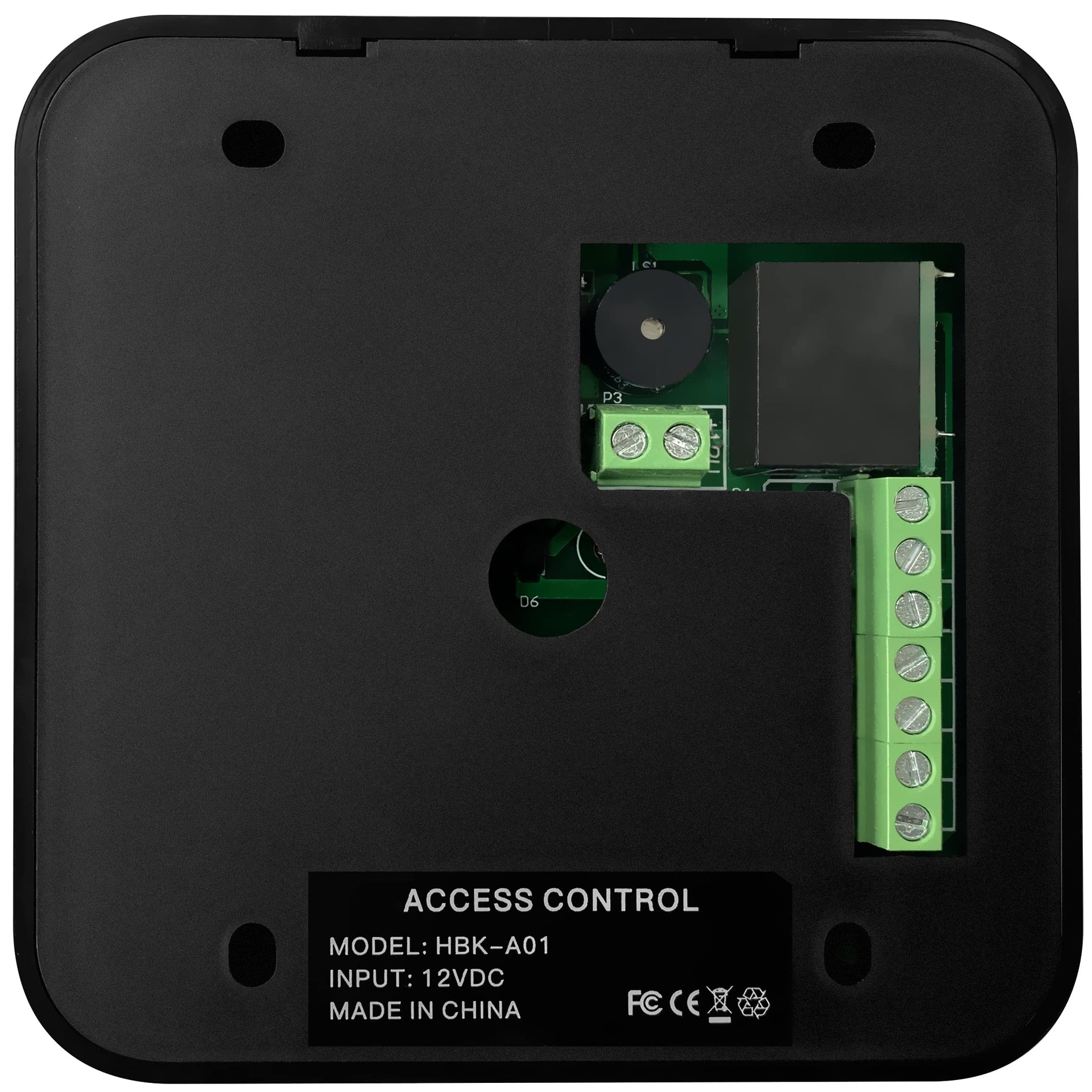

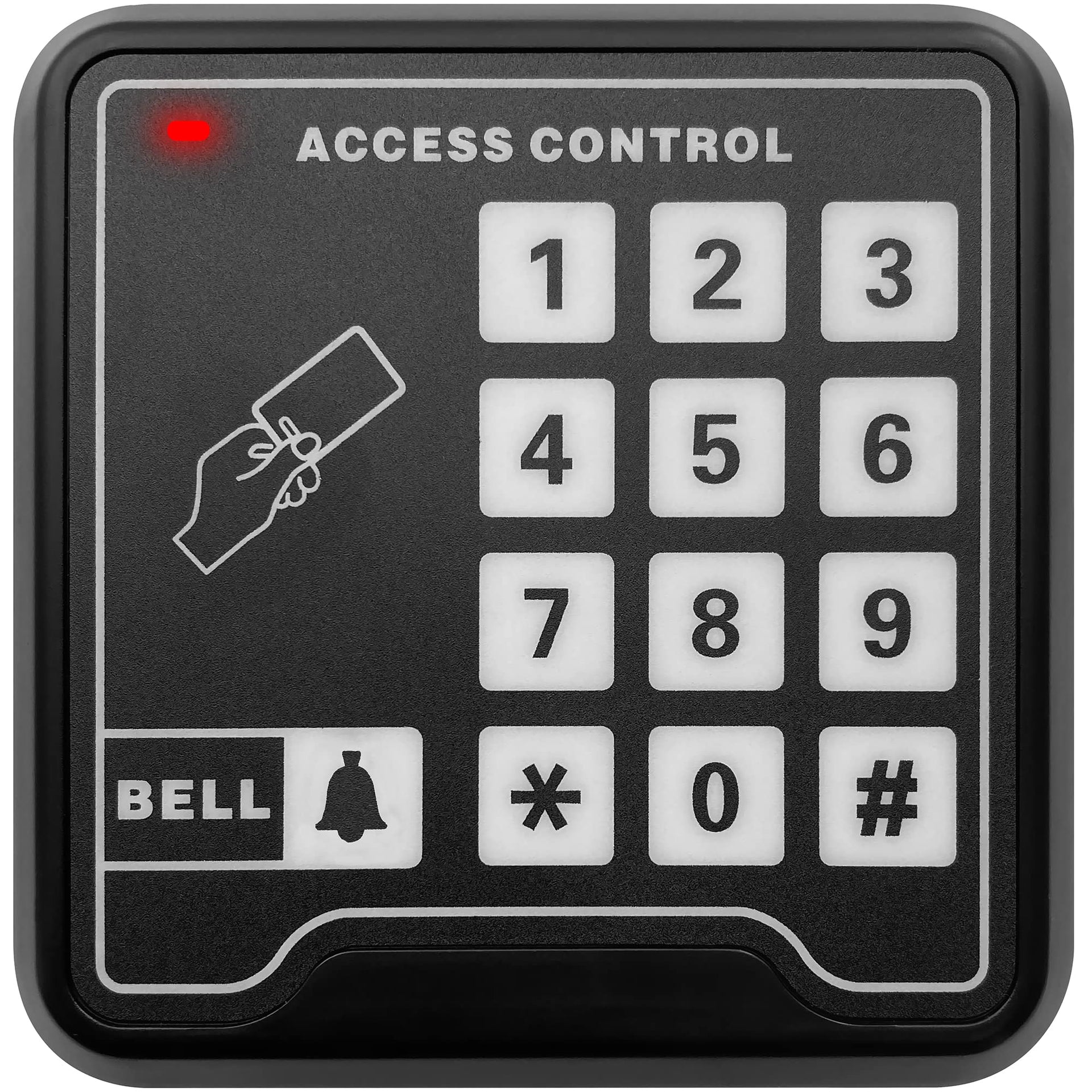

Access Keypad:
Full programming from the keypad
Adjustable door open time (0-99 seconds)
Built-in buzzer; No keypad backlight
Operating Voltage: 12VDC
RFID Card Capacity: 500
User PIN Capactity: 500
PIN Digits: 4-8 digits
Card Type: Standard 125KHz EM
Card Reading Distance: Max. 6cm (2-23/64")
External Reader: Not support
Waterproof: Not support
Keypad Backlight: Not support
Shell Material: Plastic
Shell Size: 100x100x18.5mm (3-15/16"x3-15/16"x47/64")
Door Open Options (admin user selectable): Card Only / Password Only / Card + Password / Card or Password
Working Temperature: -30°C-60°C / -22°F-140°F
Working Humidity: 10%-90%RH
Power Supply:
Input Voltage: AC110-240V
Input Frequency: 50-60Hz
Output Voltage: DC12V/3A
Time Delay: 0-15 seconds
Material of Enclosure: Aluminum Alloy
Enclosure Color: Gray
Enclosure Dimensions: 4-29/64"x3-5/64"x1-17/64" / 113x78x32mm

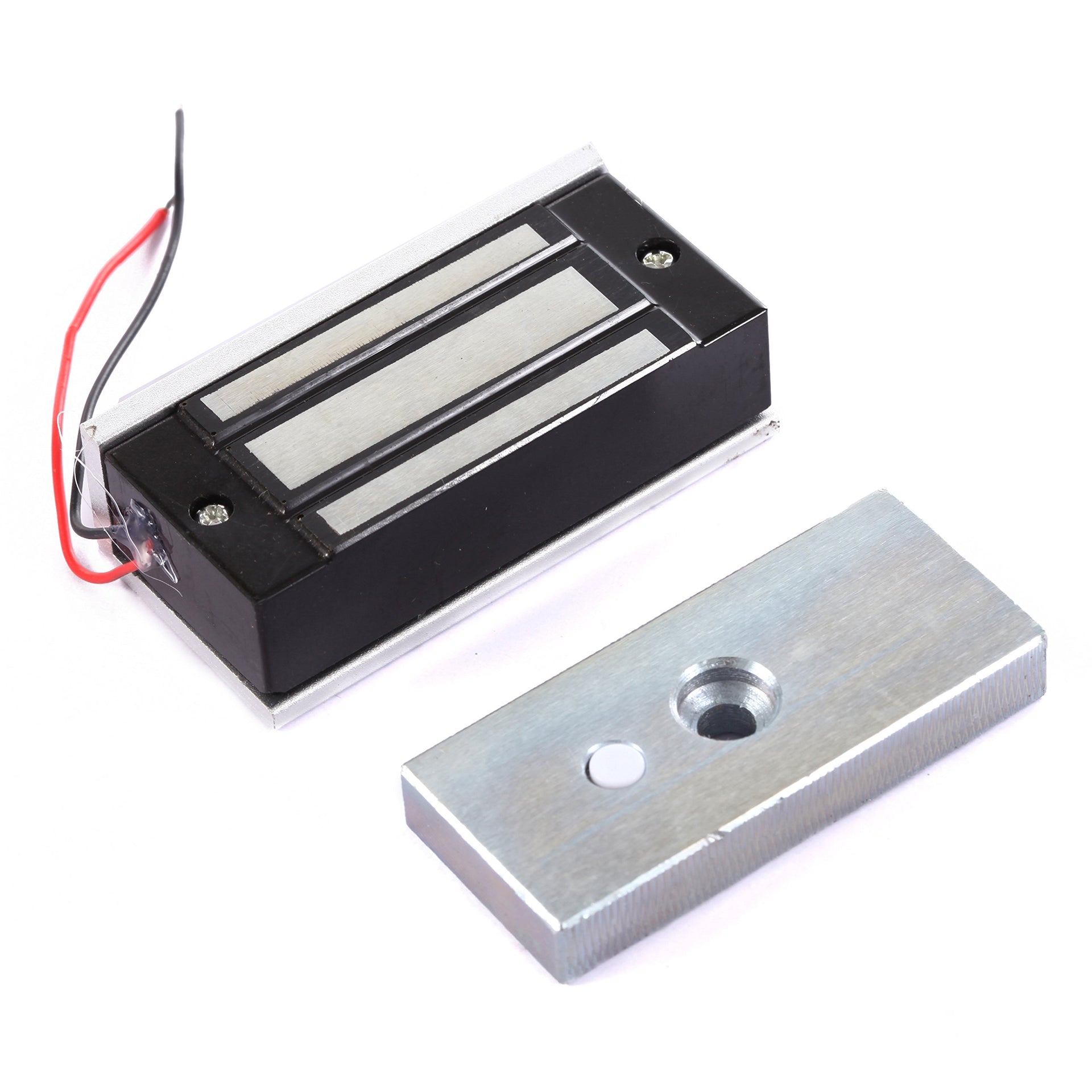

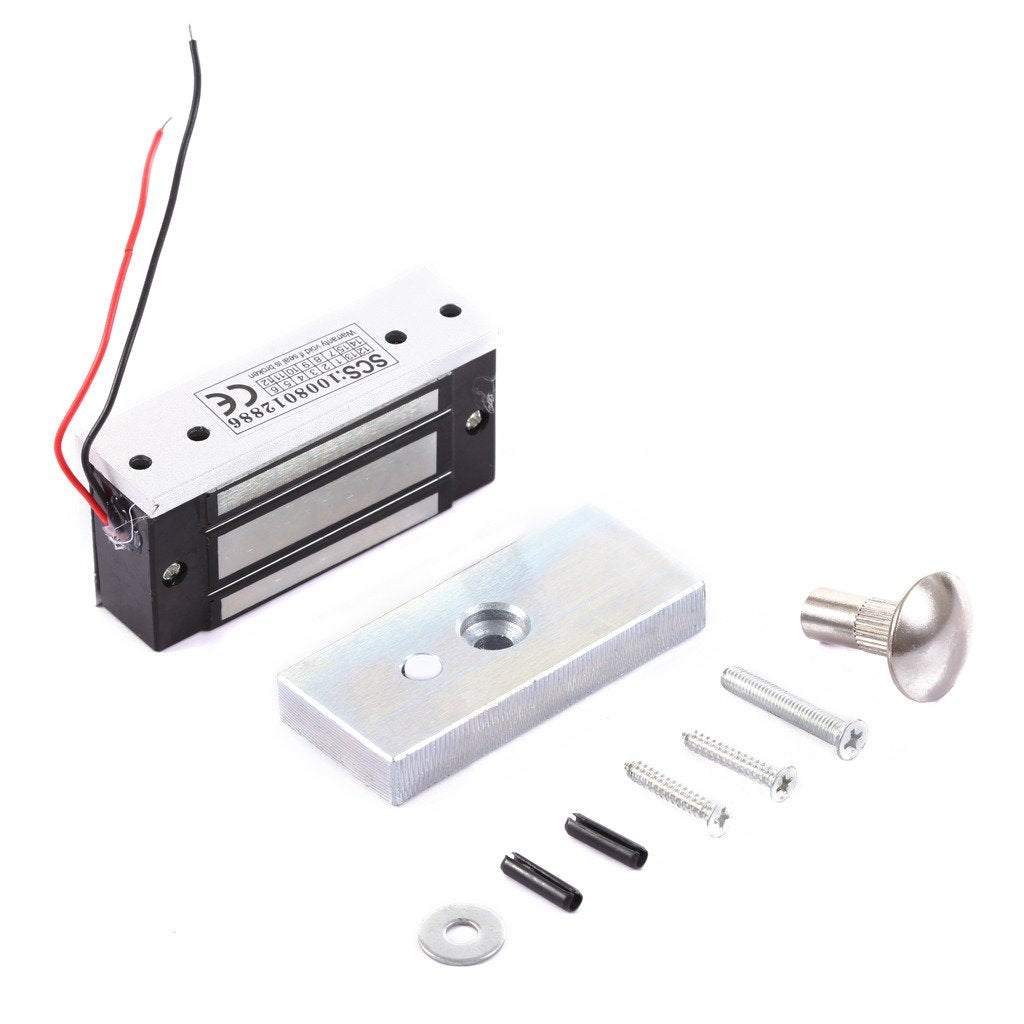

Electric Magnetic Lock:
Voltage: DC12V/100mA
Holding Force: 60kg / 130Lbs
NC mode - (locked while supplied with power), fail safe
Lock Body Size: 80Lx39Wx24.5H(mm) / 3.15Lx1.54Wx0.96H(in)
Cover Finish: Anodized aluminum
Lock Finish: Zinc
Armature Plate Finish: Zinc
Keyfobs:
Operation Frequency: 125KHz
Standard: EM-ID compatible
Each keyfob has an unique ID number.Read only and not rewritable

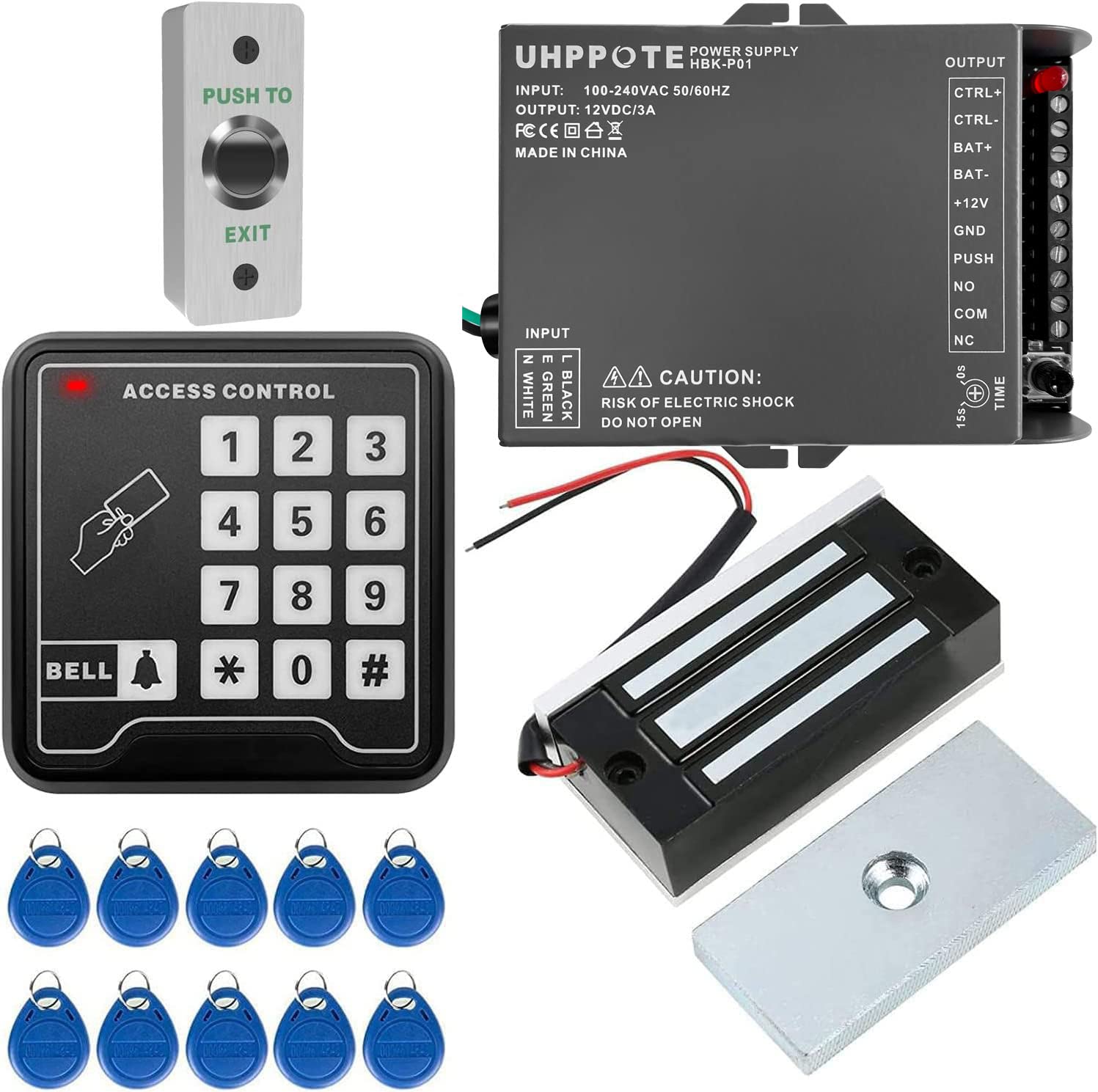

Package:
1 x Access control keypad
1 x Electric magnetic lock
1 x Power supply controller
1 x Exit button
10 x Keyfobs
1 x English user Manual
Caution:
A. The screw of armature plate should not be fixed too tight. Proper elasticity should be guaranteed for the rubber ring so that the armature plate can adjust itself to the appropriate position
B. Please keep the surface of the lock clean, or the force will be reduced because of the dust, glue or scotch tape on it
• ?Can be used as a stand alone keypad. Doesn't need to connect on the computer, can works alone.
• ?Contactless RFID transponder technology
• ?Lock output current short circuit protection
• ?The access control keypad is made of high quanlity ABS plastic and the panel is made of hard shell rubber film.
• ?It is widely used in factories, houses, residential quarters, offices, mechanical and electrical control equipment and so on.
