Description
Brand: UHPPOTE
• ? NC mode - (locked while supplied with power), fail safe mode.
• ? Complete mounting hardware for typical installations.
• ? Dual Voltage 12 or 24 VDC (Optional).
• ? Built-in dual-colored status LED and bond sensor to show locking status of each door
• ? Suitable For: Wooden door, Glass door, Metal door, Fireproof door.
Features:
Collinear Load Test 280kgx2
Dual Voltage 12 or 24 VDC(optional)
The Standard Voltage is 12VDC when Finished
LED Indicates the door Status
MOV Provides Reverse Current Protection
Anti-Residual Magnetism Designed
High Strength Material, Anodized Aluminum Housing
Design without Mechanical Failure
Increase the holding Force,Dual Insulative Housing
Specifications:

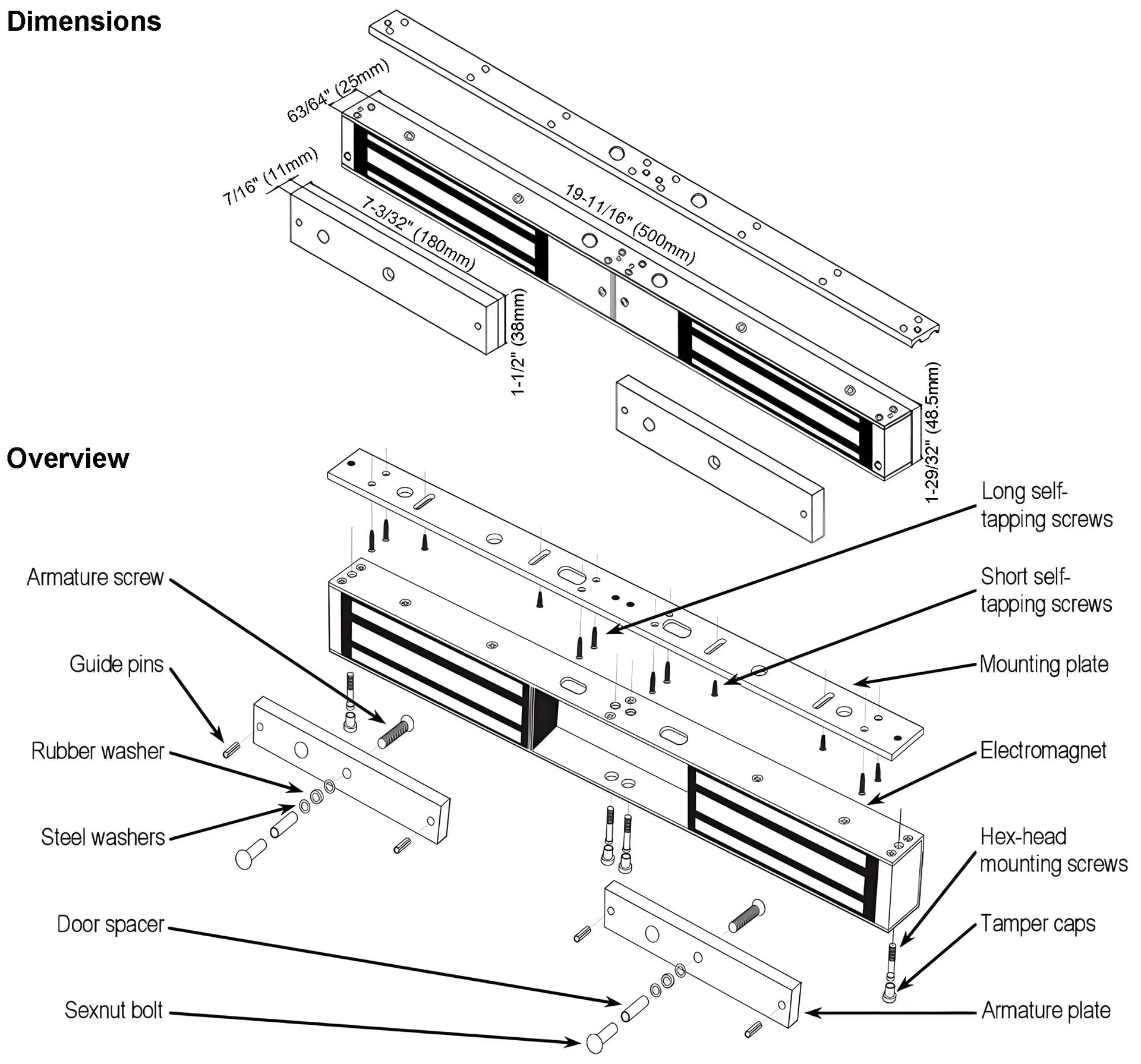

Size: 500x48.5x25(mm)
Armature Plate Dimension: 180x38x11(mm)
Holding Force: 280kgx2
Input Voltage: 12 or 24VDC
Current Draw: 12V/500mAx2 or 24V/250mAx2
Suitable: Wooden door, Glass door, Metal door, Fireproof door
Surface Temp: Less than +50? / 122?
Operating Temp: -10?~+55?(14?~131?)
Humidity: 0~90%(non-condensing)
Cover Finish: Anodized aluminum
Lock Finish: Zinc
Armature Plate Finish: Zinc
LED: Red shows locked ;Green shows unlocked
Signal Output: Lock signal(NO/NC/COM)
Weight: 4.2kg
Package:
1 x Electric Magnetic Lock
1 x User manual
1 x Installation Kit

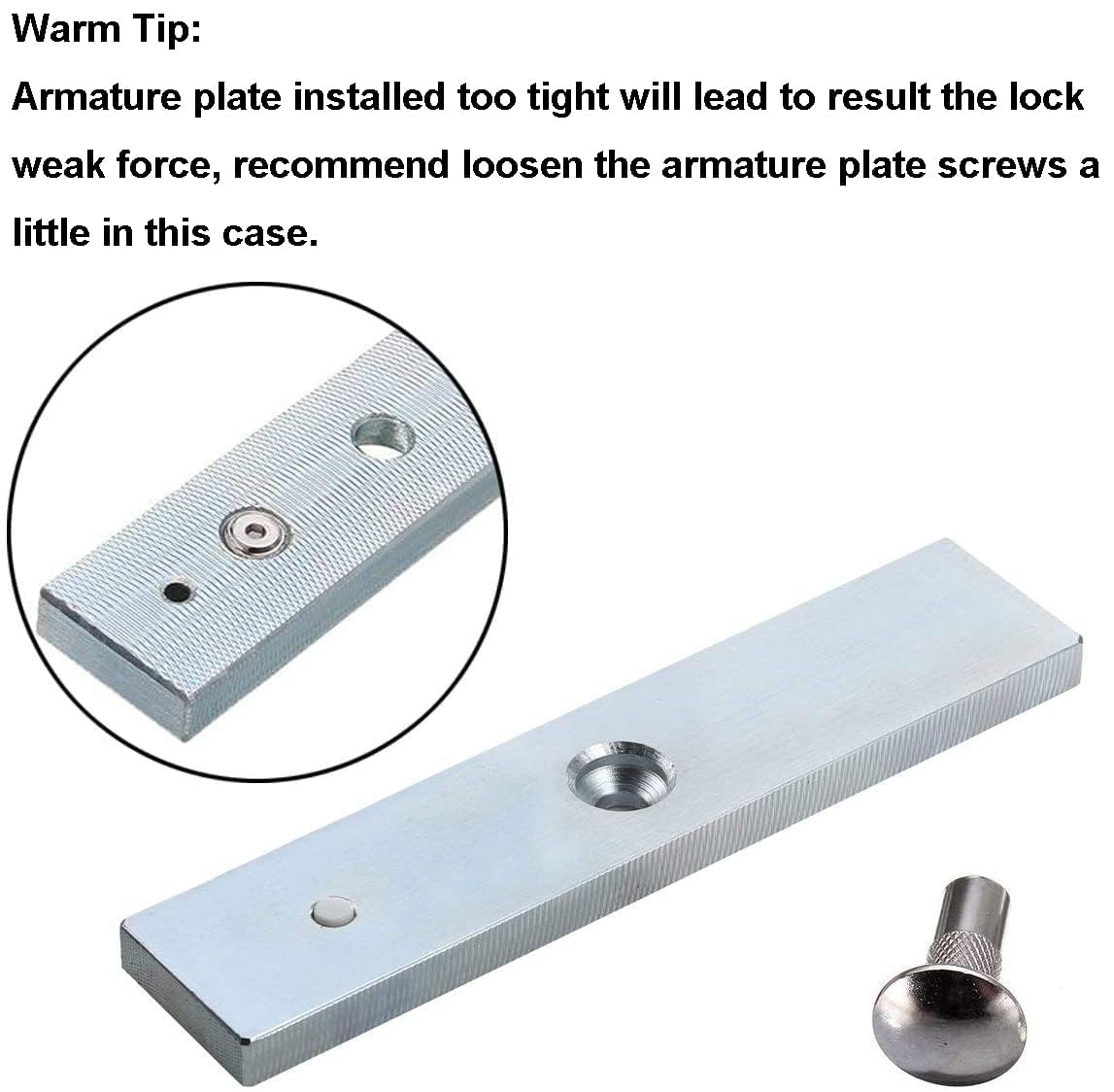

Warm Tip:
Armature Plate installed too tight will lead to result the lock weak force, recommend loosen the Armature Plate screws a little in this case.
• ? NC mode - (locked while supplied with power), fail safe mode.
• ? Complete mounting hardware for typical installations.
• ? Dual Voltage 12 or 24 VDC (Optional).
• ? Built-in dual-colored status LED and bond sensor to show locking status of each door
• ? Suitable For: Wooden door, Glass door, Metal door, Fireproof door.
