Description
Brand: UHPPOTE
Features:
Multiple Interactive infrared beams shooting. Adjacently 2 beams interruption detection
NC/NO relay output
Easy alignment with visual LED indicator and audible buzzer
High quality aluminum alloys cover
Digital frequency conversion
CPU microprocessor, good performance against outdoor interference
AGC pure digital circuit design, DSP digital chip programming, really reduce false alarm
Horizontal optical angle can be easy to adjust (180°)
Resistant to rain, fog, snow and frost
Features:
Multiple Interactive infrared beams shooting. Adjacently 2 beams interruption detection
NC/NO relay output
Easy alignment with visual LED indicator and audible buzzer
High quality aluminum alloys cover
Digital frequency conversion
CPU microprocessor, good performance against outdoor interference
AGC pure digital circuit design, DSP digital chip programming, really reduce false alarm
Horizontal optical angle can be easy to adjust (180°)
Resistant to rain, fog, snow and frost
Technical Parameters:
Detecting distance: 60m / 197ft
Height: 76cm / 2.49ft
Beams: 4 Beams
Response speed: 40msec

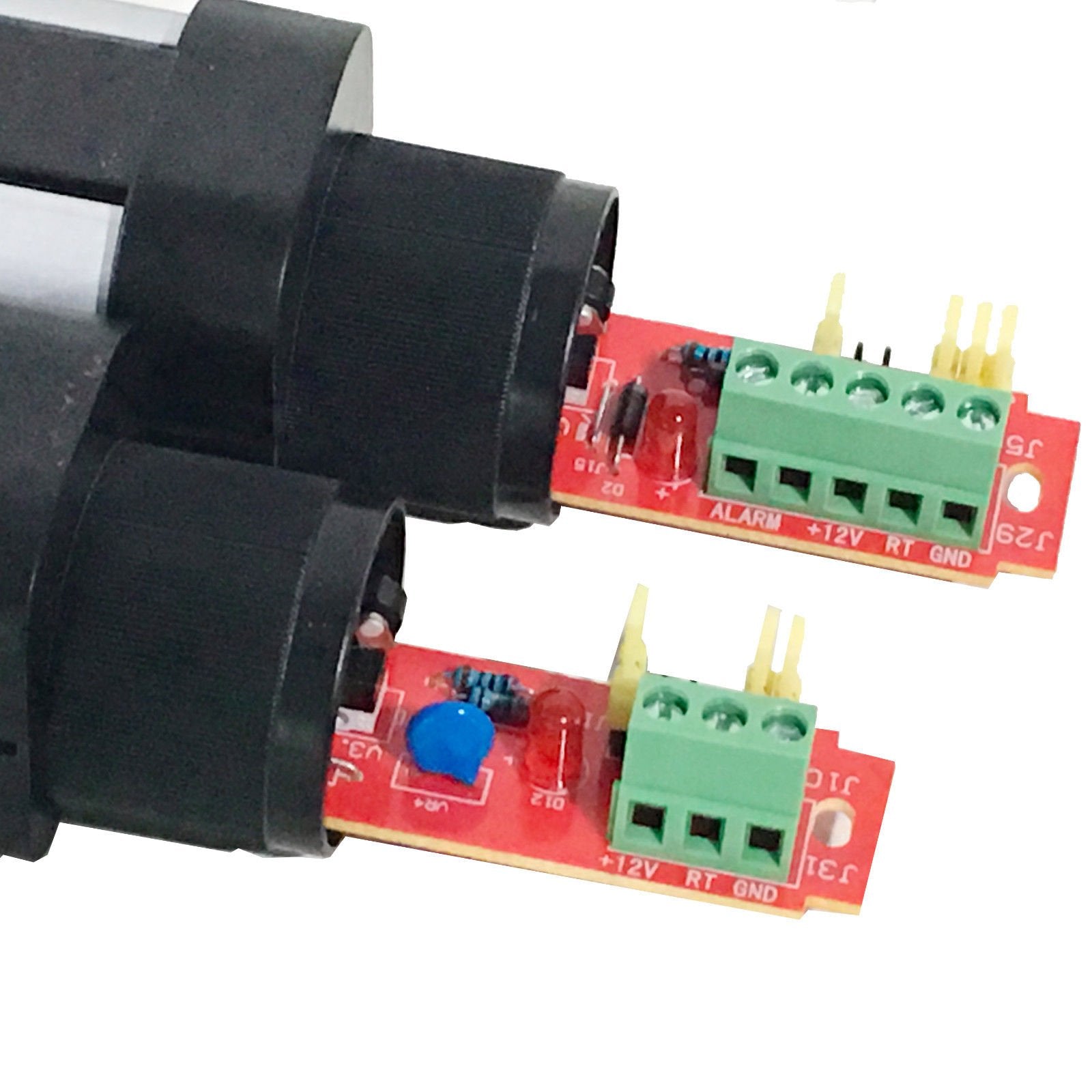

Alarm output: Switch signal output (NO/NC)
Tamper: NC/NO. 1B contact output, DC26V/0.5A Max.
Power and voltage: DC10-18V
Operation current: 50-90mA(max)
Working temperature: -25?-55? / -13?~131?
Package weight: 1.1kg / 2.4lb
Package:

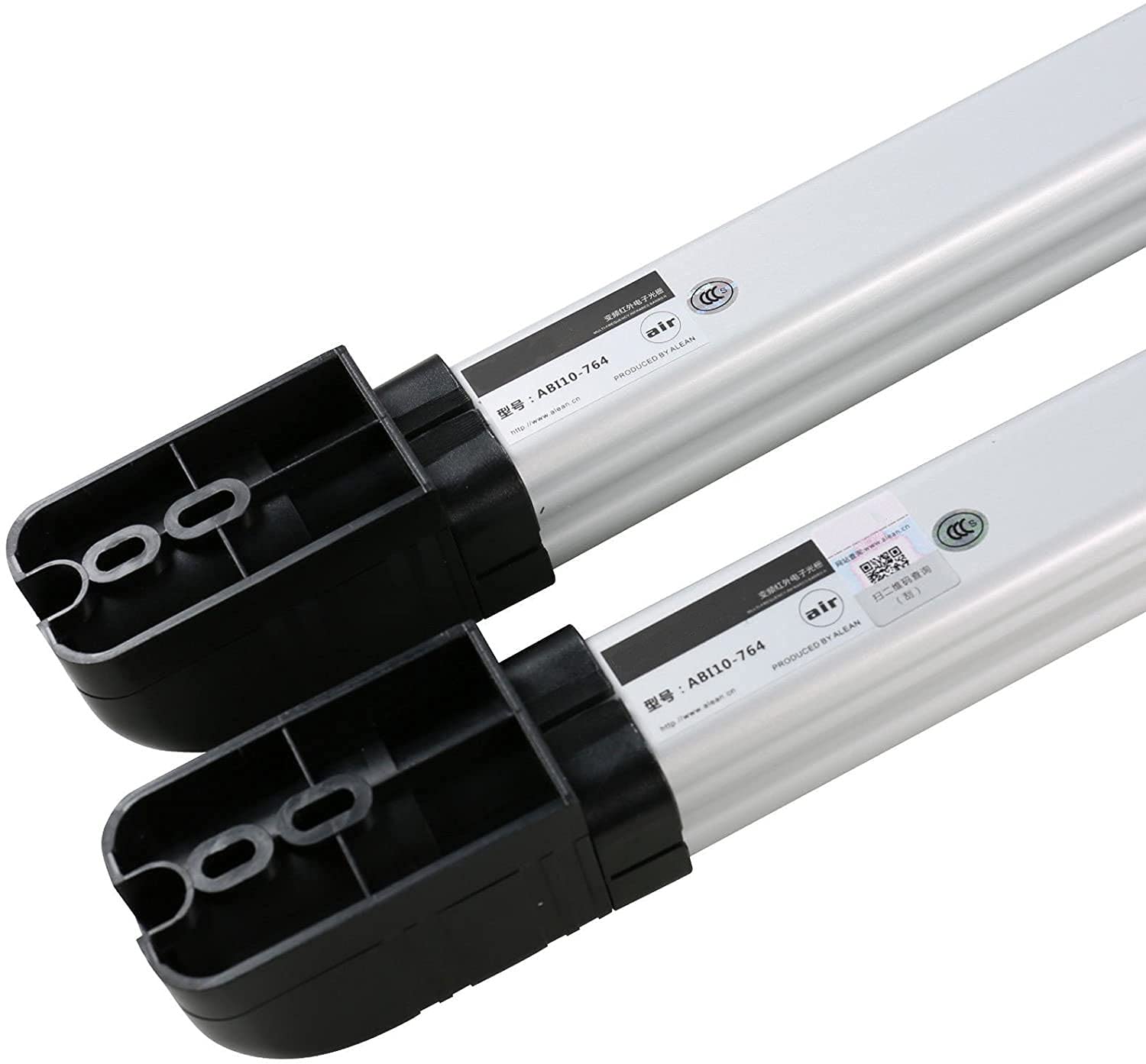

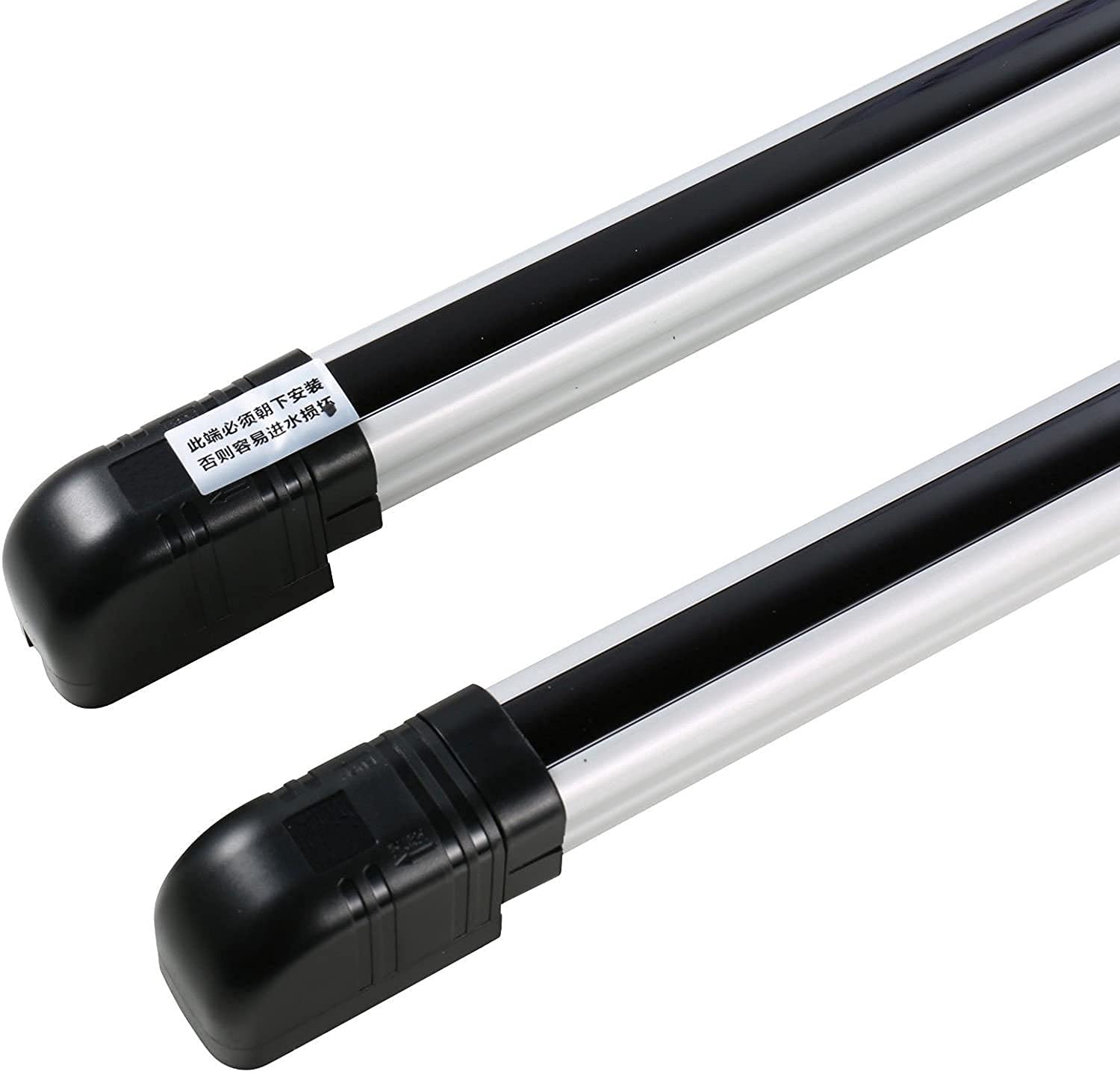

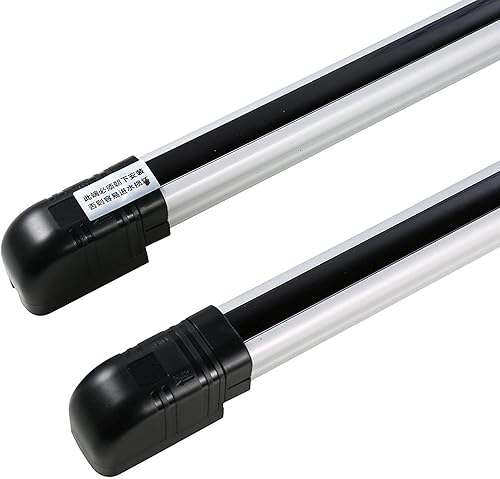

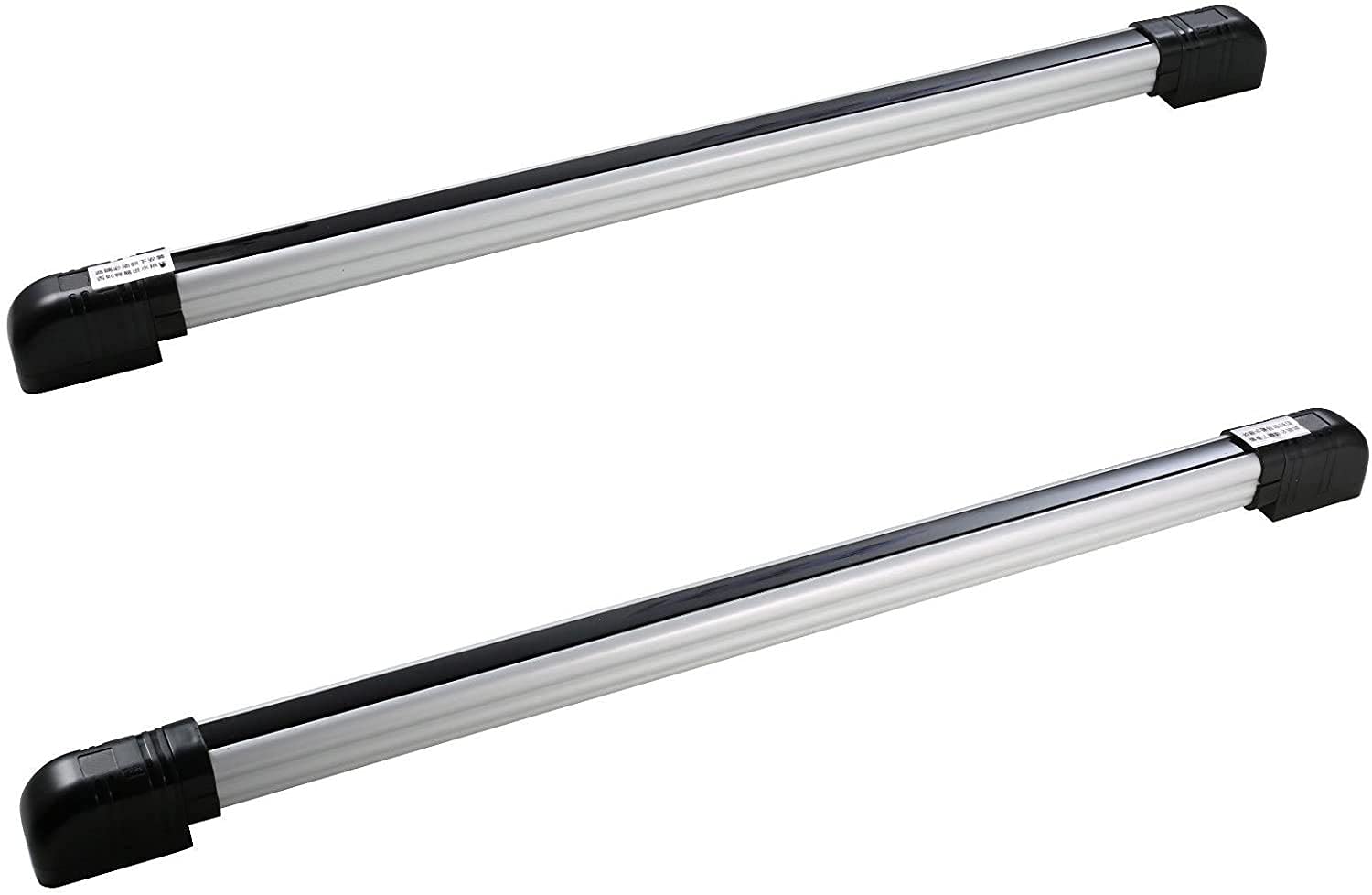

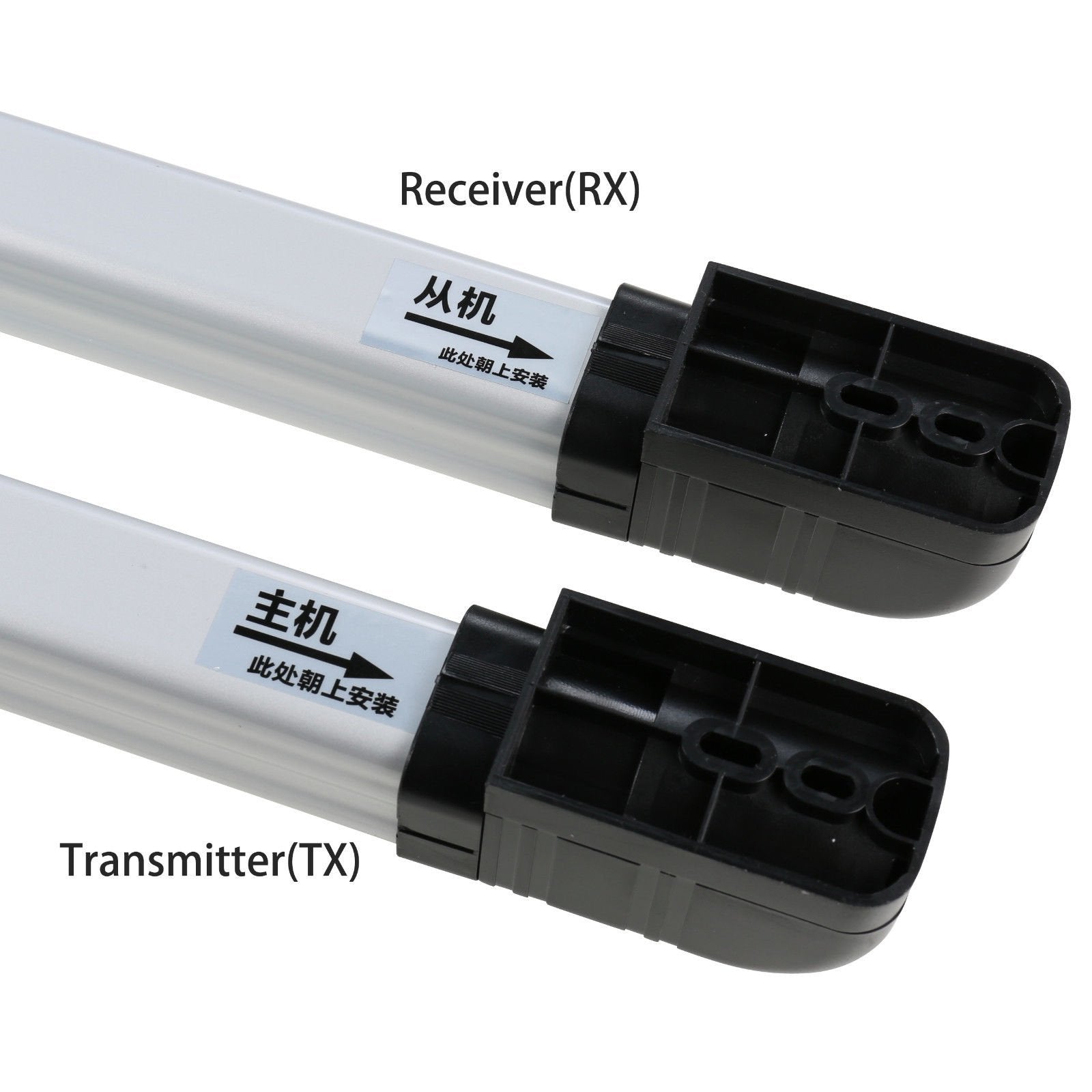

1 x Receiver & Transmitter
Caution:
Infrared barrier Can’t work alone, need work with alarm control panel.
• NC/NO relay output
• High quality aluminum alloys cover
• Easy alignment with visual LED indicator and audible buzzer
• CPU microprocessor, good performance against outdoor interference
• Horizontal optical angle can be easy to adjust (180°)
