Description
Brand: Tupavco

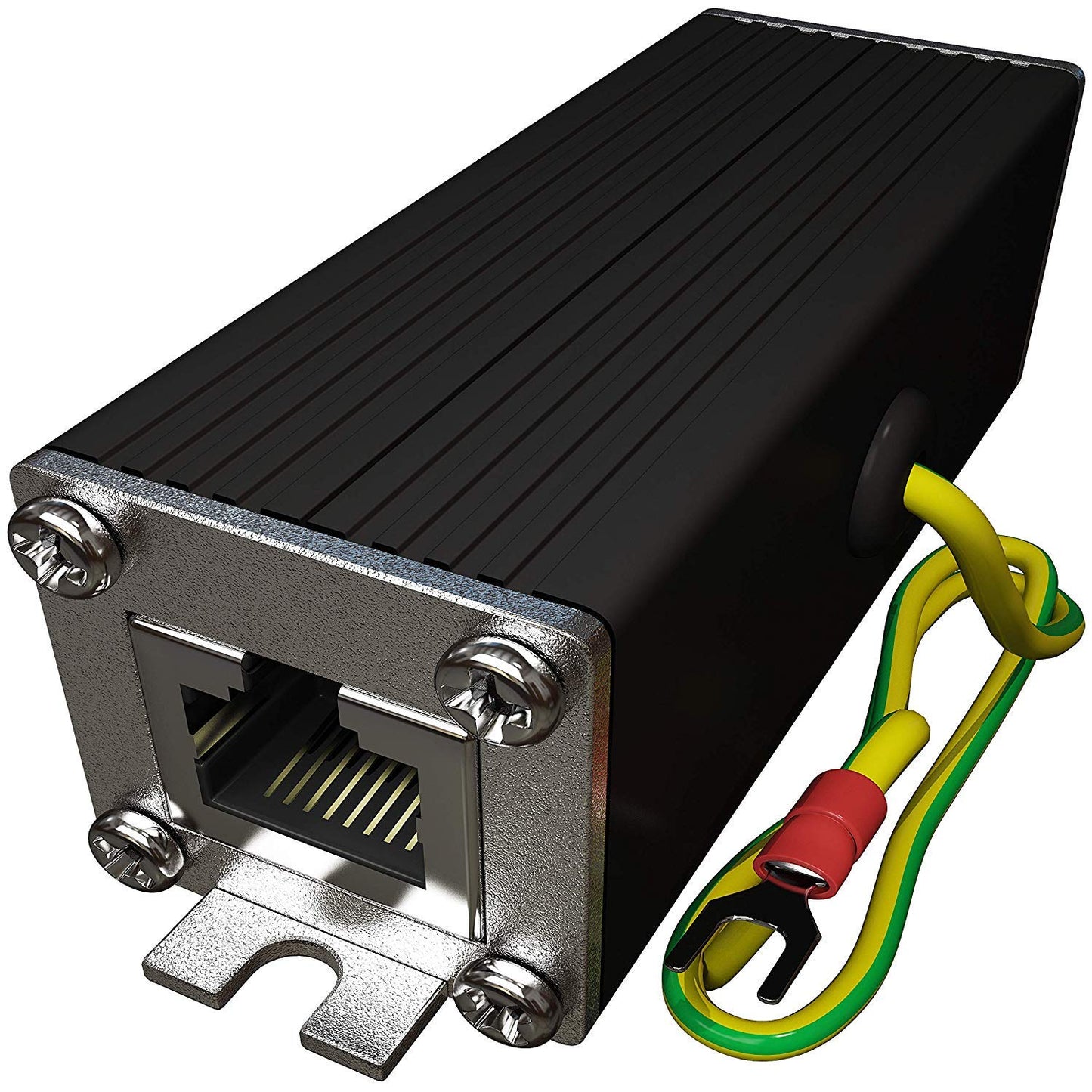

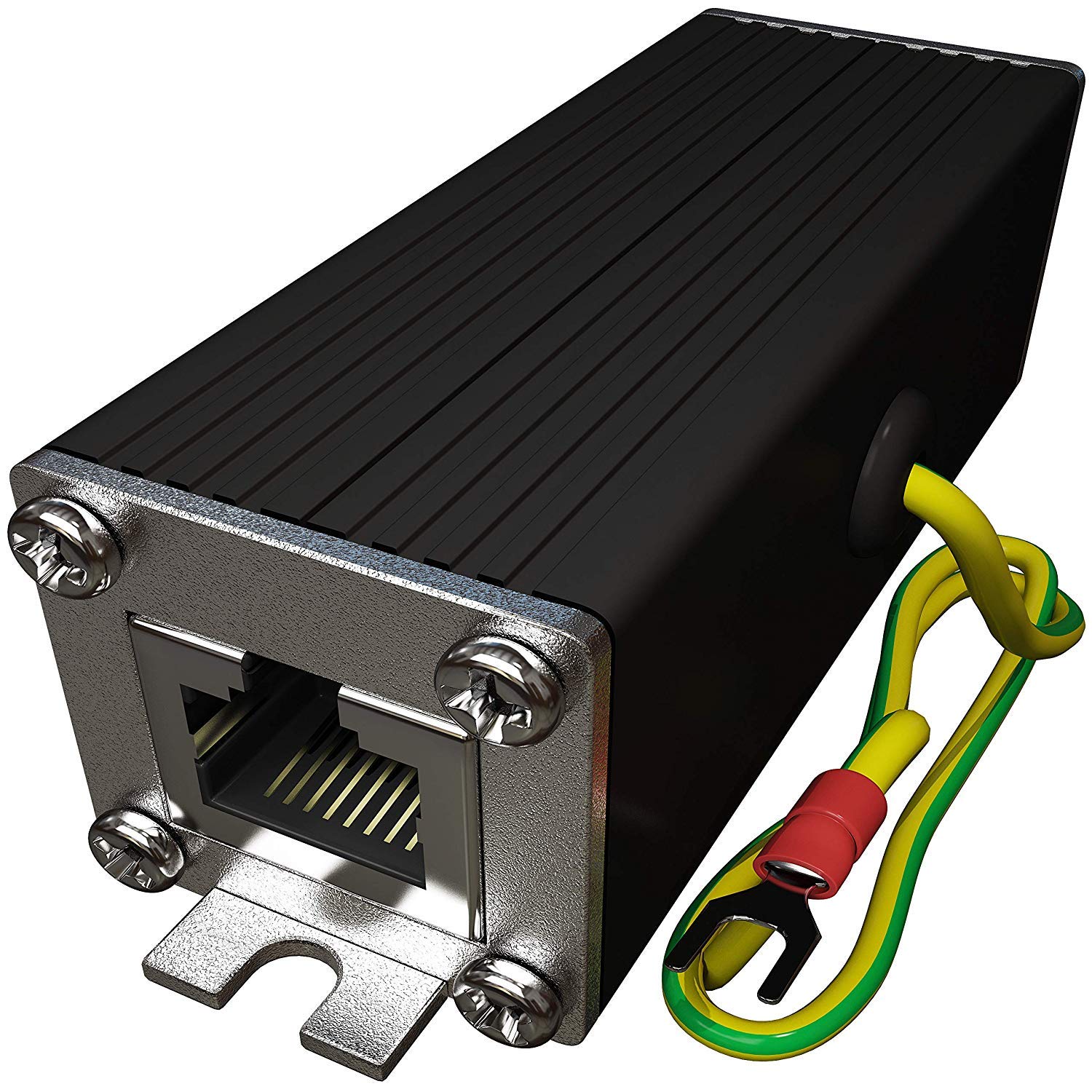

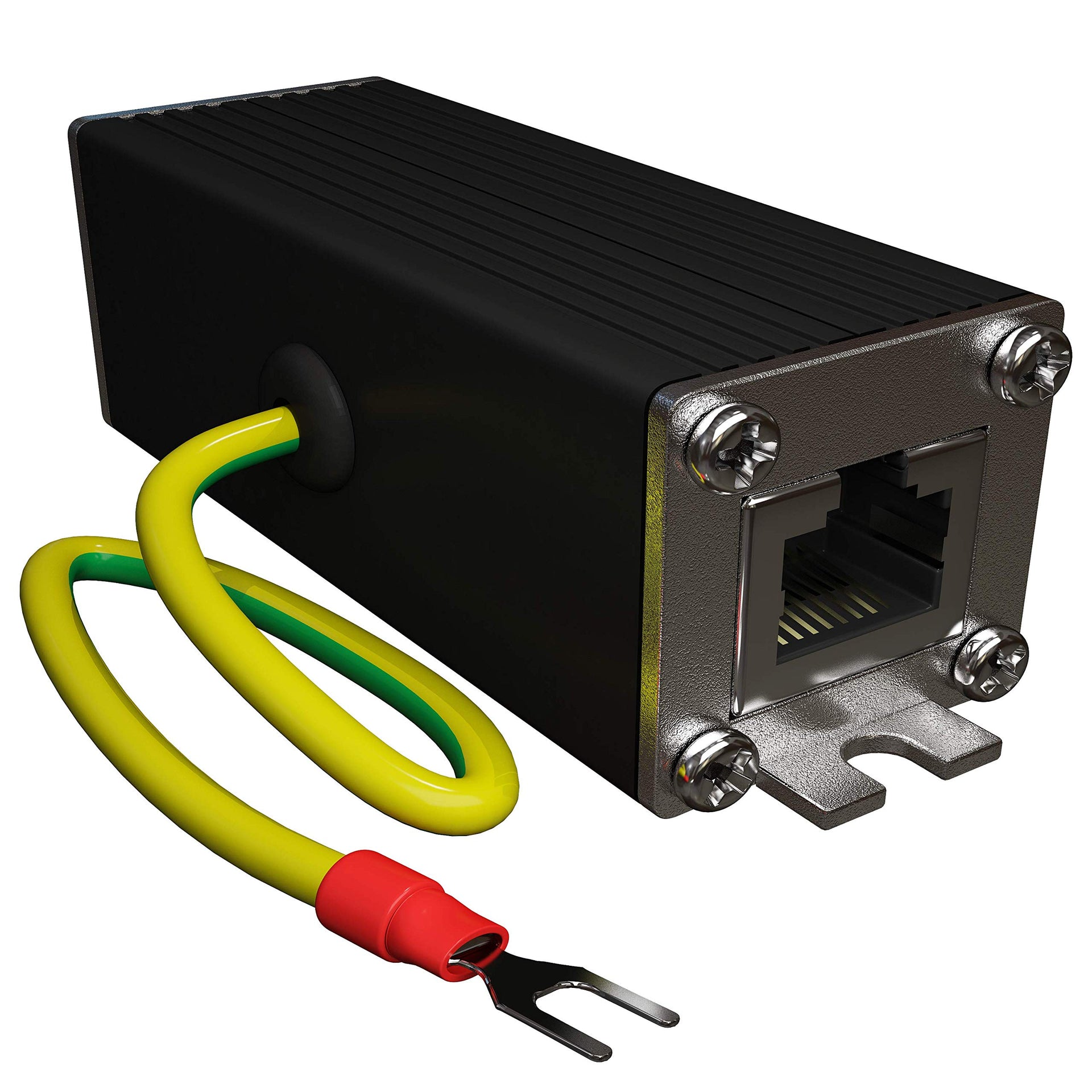

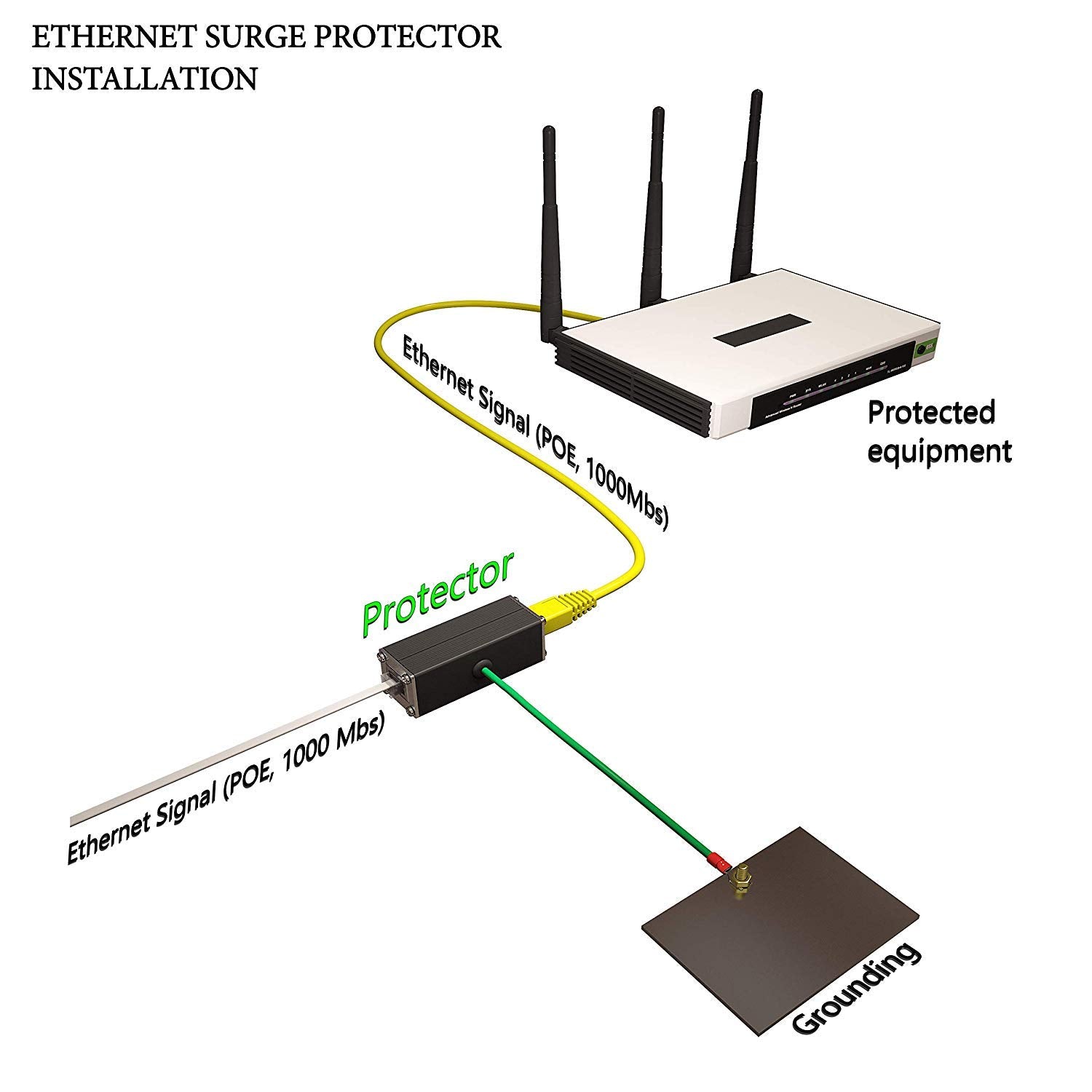

Ethernet Surge Protector is a surge protection device (SPD) that is inserted inline on an RJ45 CAT6/CAT5/CAT5e cable to prevent damage of electronic networking equipment.The thunder arrestor also offers secondary protection, which will arrest EMF induced surges (nearby lightning ethernet).Ethernet Surge Suppressor TP302 use a Gas Discharge Tube (GDT) on all 4 pairs (8 wires).Gigabit (GbE) 10/100/1000 Mbps data rate transfer supports an ultra-fast maximum data rate of 1 Gigabit per second.POE Surge Protector allows a single RJ-45 cable to provide both data connection and electric power to device.Mounting flange on the both sides of lightning suppressor allows easy mounting to a wall, network panel, cabinet, or rack attaching by screws (not included).The ethernet ground wire (12 Inch - 12 AWG) on the surge protector needs to be connected to ground through the shortest path.The lightning arrestor can be used with unshielded twisted pair (UTP) or shielded (STP) cables. The aluminum enclosure allows shielded current to be passed through the metal case of the network surge protector.
Ethernet Surge Protector TP302 - LAN Network ESD Thunder Lightning Surge Arrester Gigabit PoE++ RJ45 CAT5 CAT5E CAT6 Suppressor Ethernet Surge Protector TP302 offers multiple stages protection Gas Discharge Tubes.Gigabit ethernet arrestor is capable of protecting a wide array of valuable technology products. Small, extremely well-built, provide deep protective measures for numerous devices. In the event of lightning strikes, or other elements that put your devices at risk, the surge arrestors goes to work immediately. LAN surge protector has a distinct reputation for ethernet lightning protection reliability. Ethernet Suppressor is easy to set up, and it is just as easy to use. These network surge protectors represent one of the most cost-effective solutions for protecting your devices and networks.
• Ethernet Surge Protector for Gigabit GbE PoE/High PoE++ (HPoE) 1000 Mbps LAN Ethernet Network
• Gas Discharge Tubes for Full Protection GDT - Lightning Suppressor RJ45 Cable Protection CAT6/CAT5
• Aluminum Case,Ground Wire 12AWG,Line-Line Line-Ground Protection,Bidirectional Clamping,20KA 8/20?s
• Thunder Arrestor Protects Computer Networking Equipment Devices like Router,Modem,Camera,Switch etc
• Provide transient protection for the protected differential line pair to IEEE 802.3 af/at/bt (PoE++ 15V/24V/30V/48V/50V/56V Transmission) Mode A and B IEC 61000-4-5 (Lightning/Surge) 20KA (8/20?s) with PoE current of 1.6A / 2 pairs and 3.2A / 4 pairs (154W/48V max).

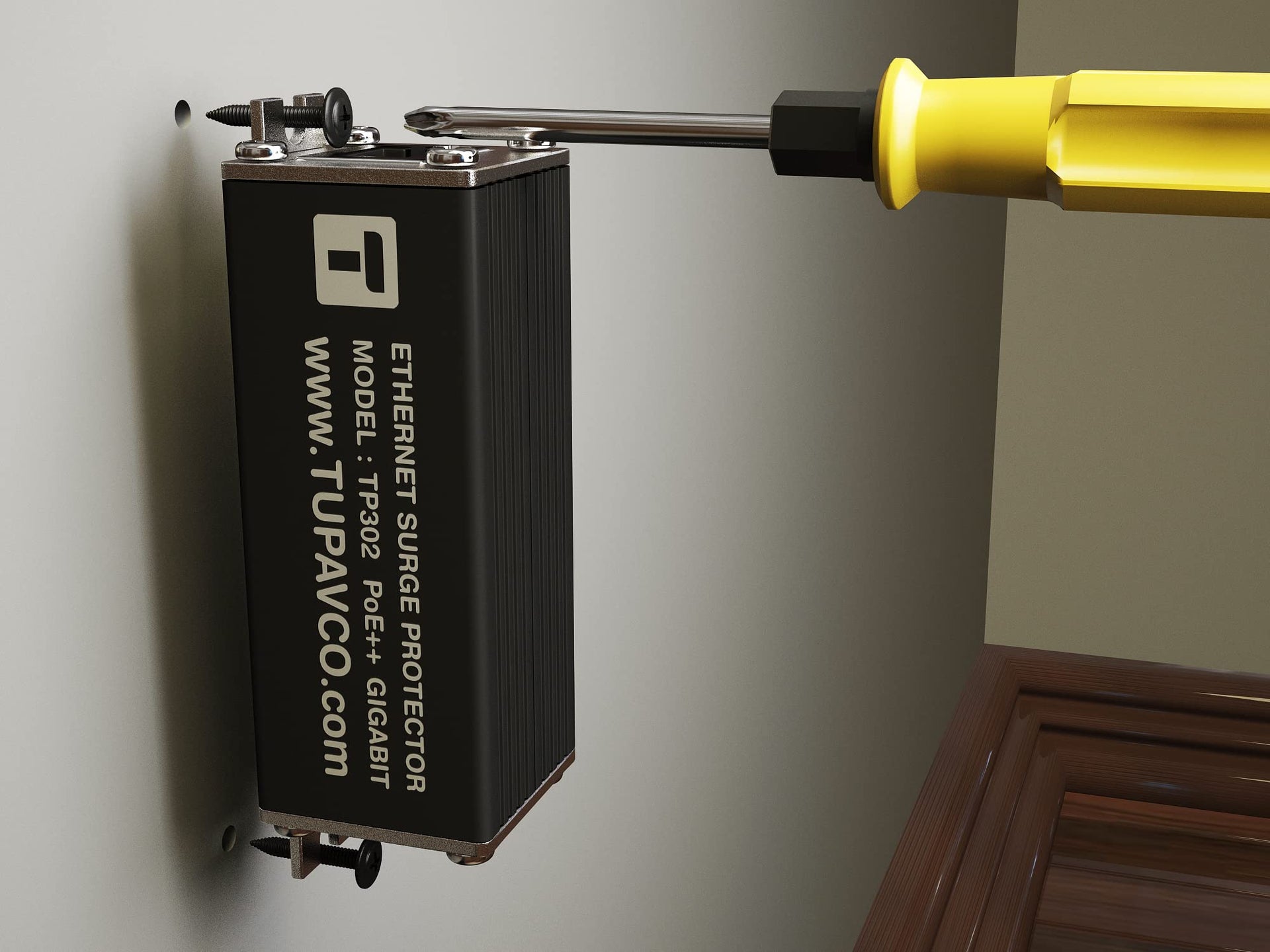

• Mounting Flanges provide option for screw mount to the Wall, Electric Panel or Network Rack Cabinet
Ethernet Surge Protector is a surge protection device (SPD) that is inserted inline on an RJ45 CAT6/CAT5/CAT5e cable to prevent damage of electronic networking equipment.The thunder arrestor also offers secondary protection, which will arrest EMF induced surges (nearby lightning ethernet).Ethernet Surge Suppressor TP302 use a Gas Discharge Tube (GDT) on all 4 pairs (8 wires).Gigabit (GbE) 10/100/1000 Mbps data rate transfer supports an ultra-fast maximum data rate of 1 Gigabit per second.POE Surge Protector allows a single RJ-45 cable to provide both data connection and electric power to device.Mounting flange on the both sides of lightning suppressor allows easy mounting to a wall, network panel, cabinet, or rack attaching by screws (not included).The ethernet ground wire (12 Inch - 12 AWG) on the surge protector needs to be connected to ground through the shortest path.The lightning arrestor can be used with unshielded twisted pair (UTP) or shielded (STP) cables. The aluminum enclosure allows shielded current to be passed through the metal case of the network surge protector.
Ethernet Surge Protector TP302 - LAN Network ESD Thunder Lightning Surge Arrester Gigabit PoE++ RJ45 CAT5 CAT5E CAT6 Suppressor Ethernet Surge Protector TP302 offers multiple stages protection Gas Discharge Tubes.Gigabit ethernet arrestor is capable of protecting a wide array of valuable technology products. Small, extremely well-built, provide deep protective measures for numerous devices. In the event of lightning strikes, or other elements that put your devices at risk, the surge arrestors goes to work immediately. LAN surge protector has a distinct reputation for ethernet lightning protection reliability. Ethernet Suppressor is easy to set up, and it is just as easy to use. These network surge protectors represent one of the most cost-effective solutions for protecting your devices and networks.
• Ethernet Surge Protector for Gigabit GbE PoE/High PoE++ (HPoE) 1000 Mbps LAN Ethernet Network
• Gas Discharge Tubes for Full Protection GDT - Lightning Suppressor RJ45 Cable Protection CAT6/CAT5
• Aluminum Case,Ground Wire 12AWG,Line-Line Line-Ground Protection,Bidirectional Clamping,20KA 8/20?s
• Thunder Arrestor Protects Computer Networking Equipment Devices like Router,Modem,Camera,Switch etc
• Provide transient protection for the protected differential line pair to IEEE 802.3 af/at/bt (PoE++ 15V/24V/30V/48V/50V/56V Transmission) Mode A and B IEC 61000-4-5 (Lightning/Surge) 20KA (8/20?s) with PoE current of 1.6A / 2 pairs and 3.2A / 4 pairs (154W/48V max).
• Mounting Flanges provide option for screw mount to the Wall, Electric Panel or Network Rack Cabinet
