Zoom
Description
Brand: TUOLNK
<p> <br /> <strong>Specifications of BNC to SMA RF connector kits:</strong><br /> 4 type of SMA to BNC coax connector kit<br /> 1:SMA Male to BNC Male connector<br /> 2: SMA Male to BNC Female connector<br /> 3: SMA Female to BNC Male connector<br /> 4: SMA Female to BNC Female connector<br /> Materials: gold plated copper & nickel plated brass<br /> Impedance: 50 ohm, Low-loss<br /> Temp range: -65 ?+165? (PE Cable -40 ?+85?)<br /> Mounting Type: Free hanging<br /> Working Voltage: 335V max<br /> Frequency Range: DC?12.4GHz<br /> Insulation resistance? 5000 M? Insertion loss?0.15 dB/6GHz<br /> Vibration: MIL-STD-202, Method 213<br /> Center Contact : ? 3 m?, Outer Contact : ?2m?<br /> Durability (mating) ?500 (cycles)<br /> <br /> <strong>Packaging Includes?</strong><br /> 4 type of SMA to BNC coaxial adapter<br /> 1 pc of SMA Male to BNC Male connector<br /> 1 pc of SMA Male to BNC Female connector<br /> 1 pc of SMA Female to BNC Male connector<br /> 1 pc of SMA Female to BNC Female connector<br /> <br /> <strong>Attention:</strong><br /> Please confirm which type of connector your device is needed before purchasing to ensure you got the correct cable.

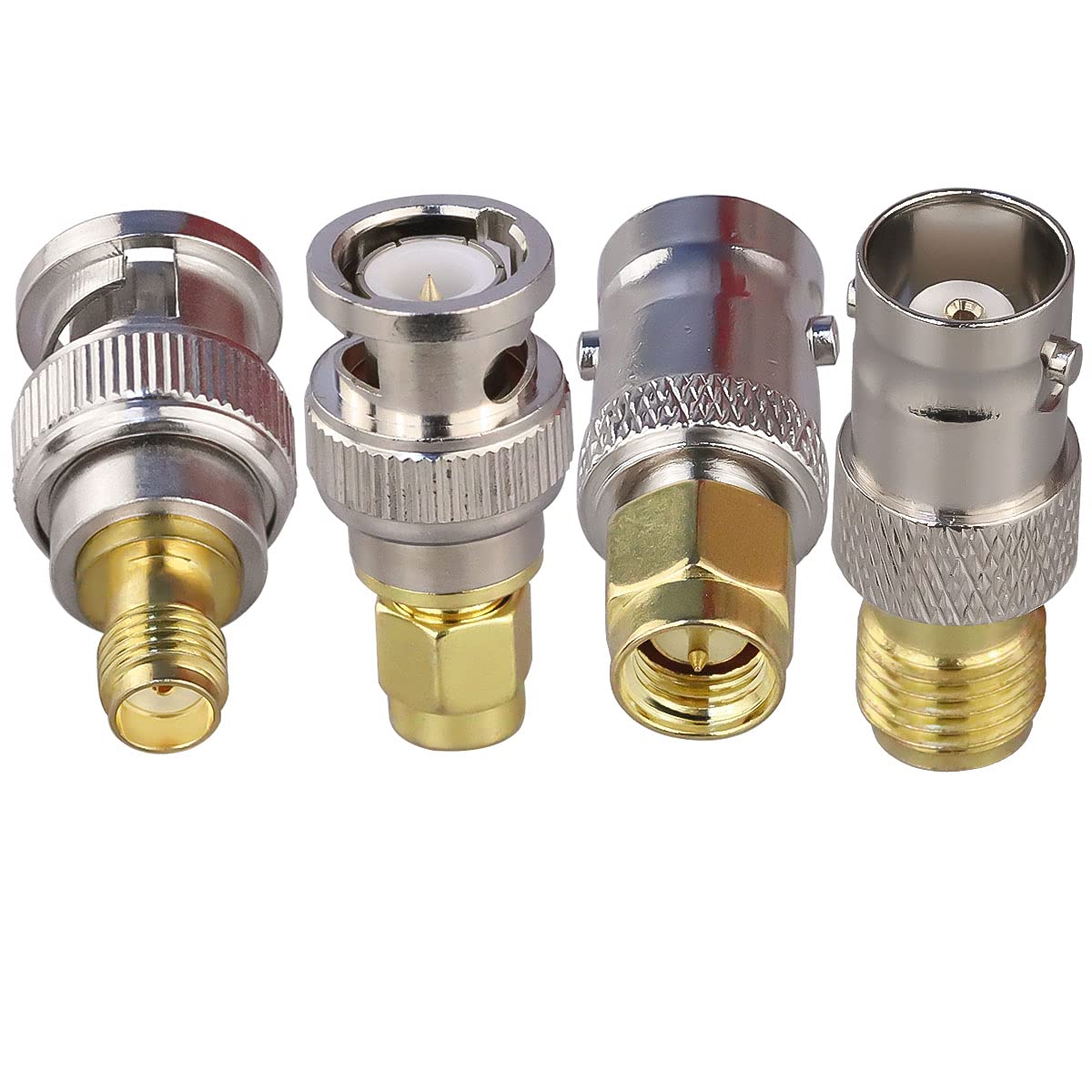

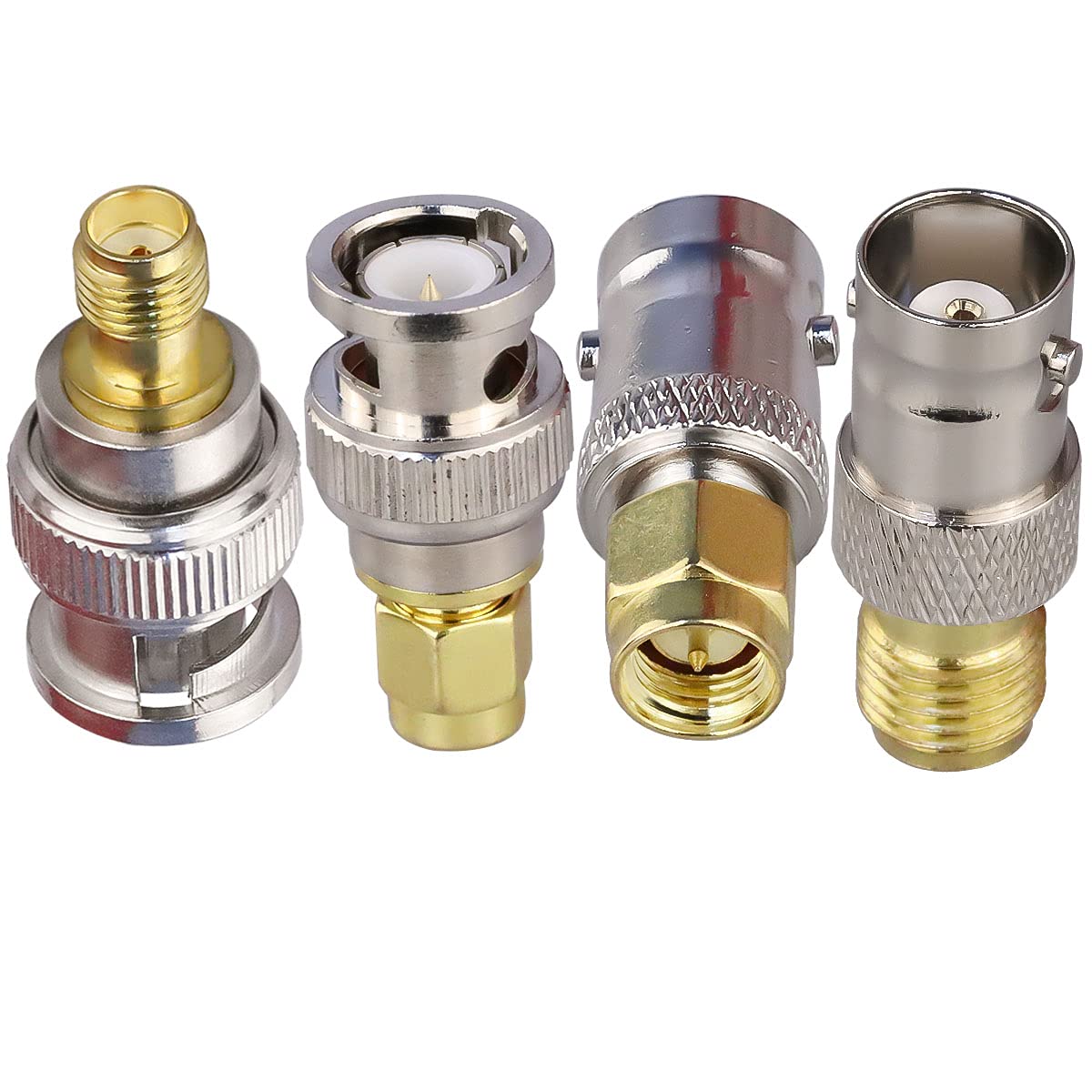

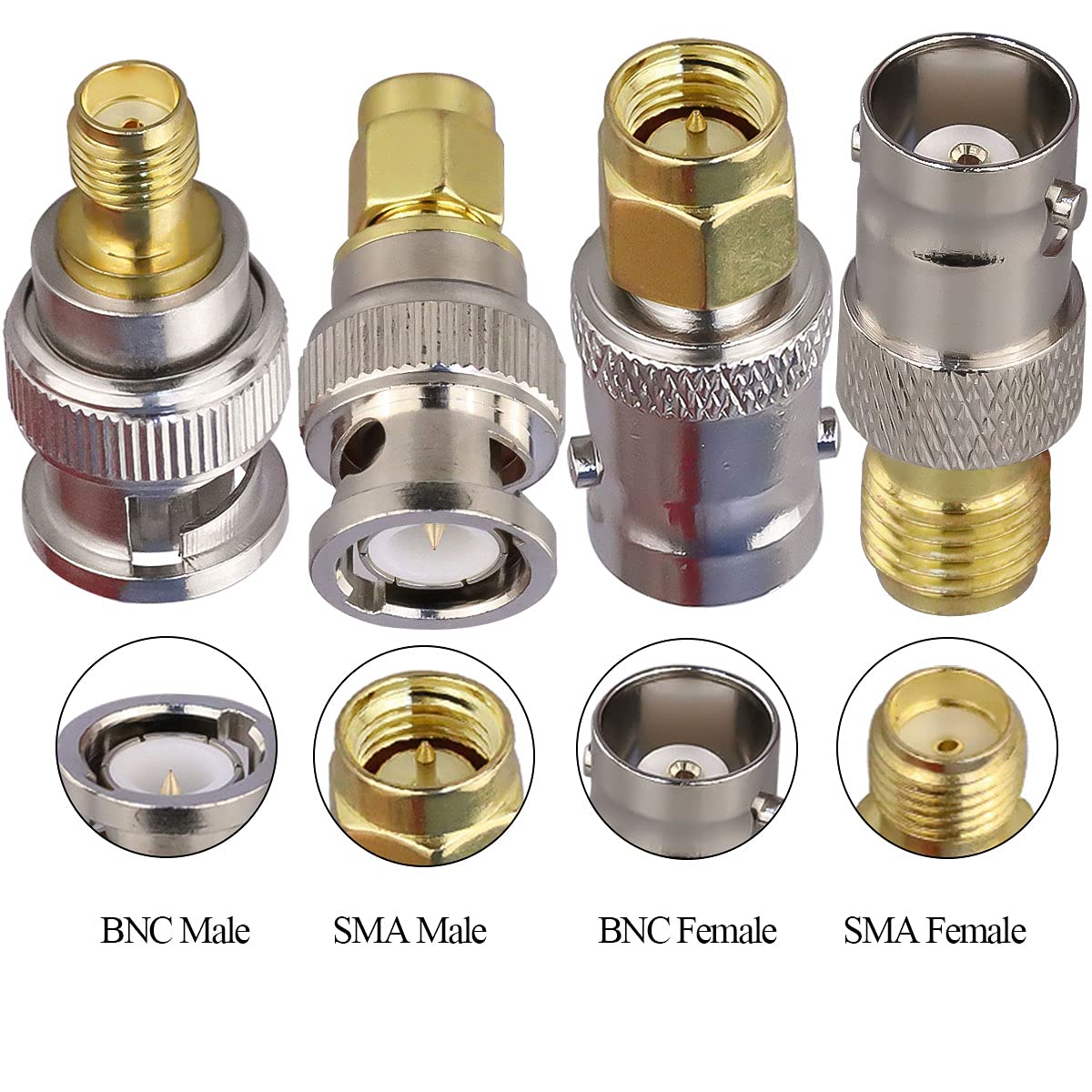

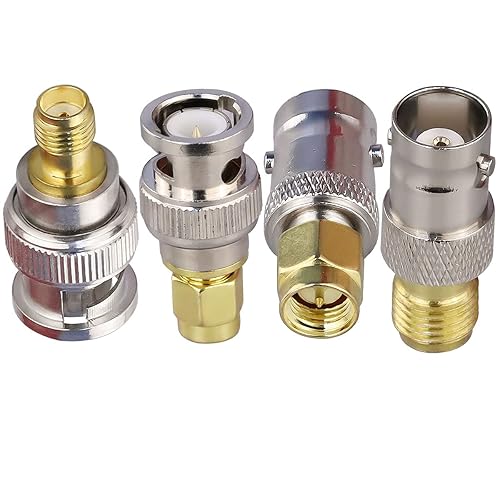

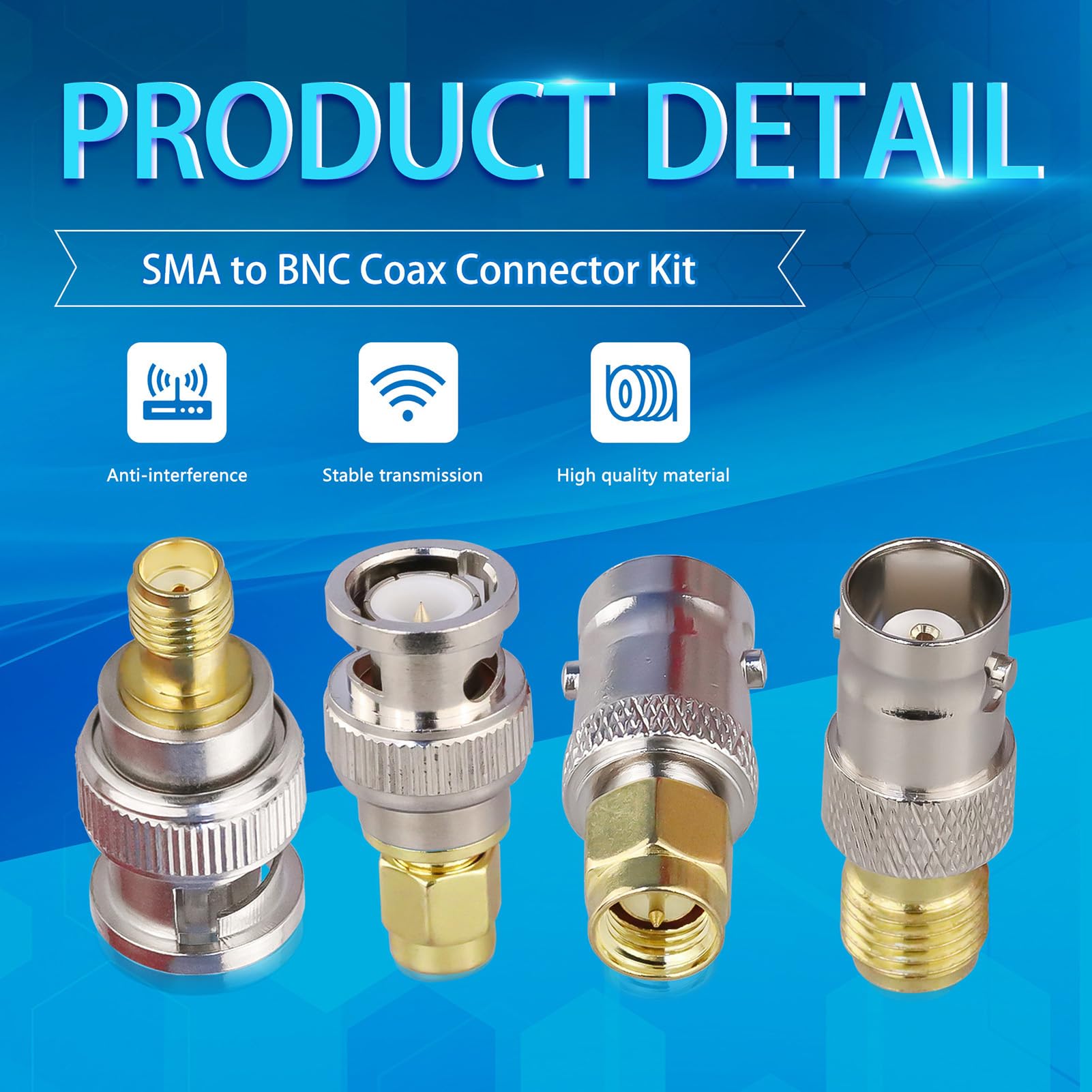

• Type and Details SMA to BNC connector kit (4 set of)
• Color: gold and silver
• Material: gold plated copper and nickel plated brass
• Helping you to connect SMA to BNC devices
• Durability and Performance: The connector is made of gold plated copper and nickel plated brass to ensure it's durability and recycling usage. High quality adapter ensure low loss in signal transmission and good conductivity

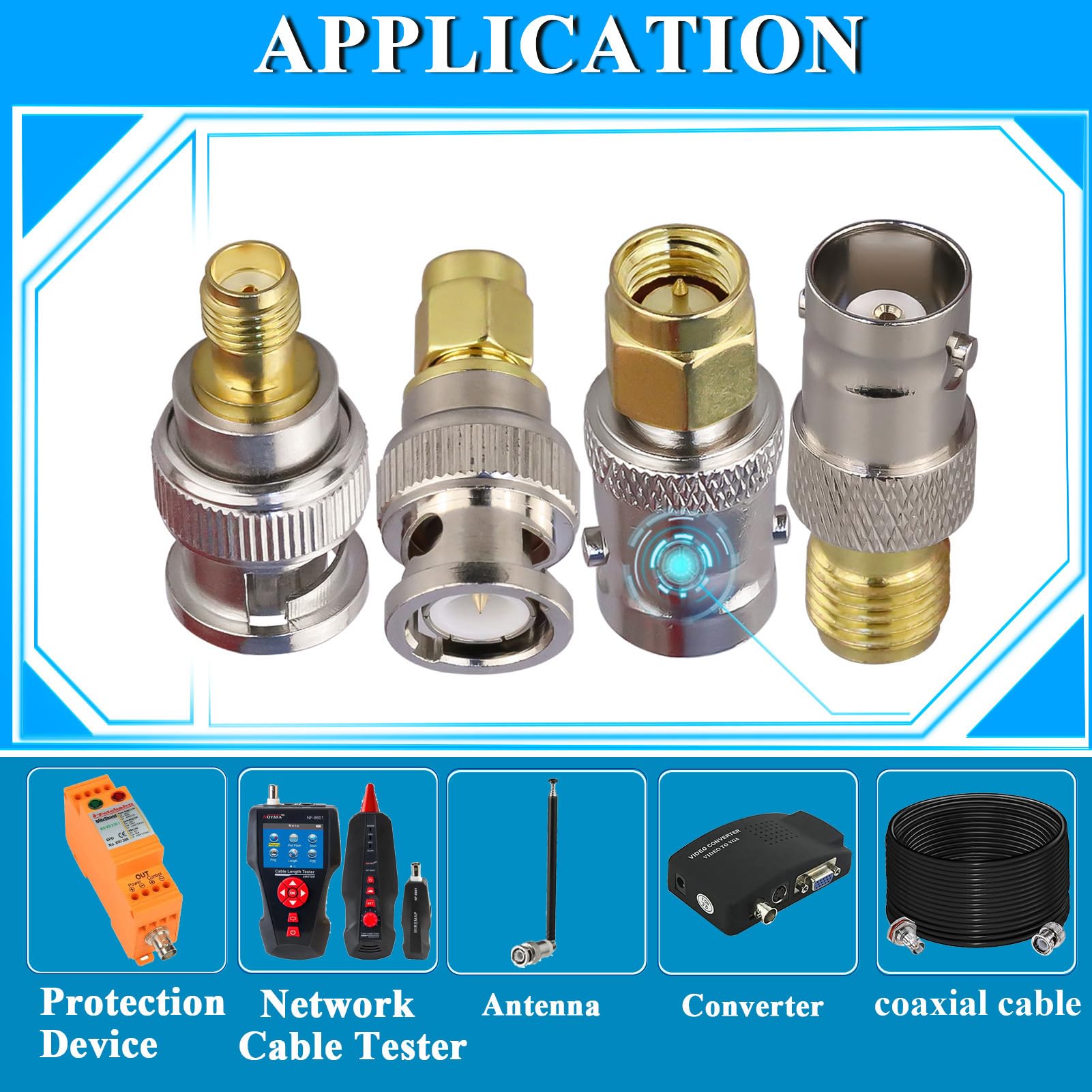

• Application: FPV Antennas, Extension cable, Coaxial cable, CCTV, Wifi Radios, Radio transceivers, LMA, Video, Telecom, Wireless and Wired device, Antennas, Broadcast and so on
• Package Includes: 4 set of SMA to BNC connector (1 pc of SMA Male to BNC Male connector, 1 pc of SMA Male to BNC Female connector, 1 pc of SMA Female to BNC Male connector, 1 pc of SMA Female to BNC Female connector)
• Easy to Install: The user-friendly design of TUOLNK coaxial adapter saves time and effort, and the installation process does not require any tool, plug and play. Say goodbye to complex installations and provide smooth and reliable connections for your needs
Model: L7Kit
Color: Gold and Silver
<p> <br /> <strong>Specifications of BNC to SMA RF connector kits:</strong><br /> 4 type of SMA to BNC coax connector kit<br /> 1:SMA Male to BNC Male connector<br /> 2: SMA Male to BNC Female connector<br /> 3: SMA Female to BNC Male connector<br /> 4: SMA Female to BNC Female connector<br /> Materials: gold plated copper & nickel plated brass<br /> Impedance: 50 ohm, Low-loss<br /> Temp range: -65 ?+165? (PE Cable -40 ?+85?)<br /> Mounting Type: Free hanging<br /> Working Voltage: 335V max<br /> Frequency Range: DC?12.4GHz<br /> Insulation resistance? 5000 M? Insertion loss?0.15 dB/6GHz<br /> Vibration: MIL-STD-202, Method 213<br /> Center Contact : ? 3 m?, Outer Contact : ?2m?<br /> Durability (mating) ?500 (cycles)<br /> <br /> <strong>Packaging Includes?</strong><br /> 4 type of SMA to BNC coaxial adapter<br /> 1 pc of SMA Male to BNC Male connector<br /> 1 pc of SMA Male to BNC Female connector<br /> 1 pc of SMA Female to BNC Male connector<br /> 1 pc of SMA Female to BNC Female connector<br /> <br /> <strong>Attention:</strong><br /> Please confirm which type of connector your device is needed before purchasing to ensure you got the correct cable.
• Type and Details SMA to BNC connector kit (4 set of)
• Color: gold and silver
• Material: gold plated copper and nickel plated brass
• Helping you to connect SMA to BNC devices
• Durability and Performance: The connector is made of gold plated copper and nickel plated brass to ensure it's durability and recycling usage. High quality adapter ensure low loss in signal transmission and good conductivity
• Application: FPV Antennas, Extension cable, Coaxial cable, CCTV, Wifi Radios, Radio transceivers, LMA, Video, Telecom, Wireless and Wired device, Antennas, Broadcast and so on
• Package Includes: 4 set of SMA to BNC connector (1 pc of SMA Male to BNC Male connector, 1 pc of SMA Male to BNC Female connector, 1 pc of SMA Female to BNC Male connector, 1 pc of SMA Female to BNC Female connector)
• Easy to Install: The user-friendly design of TUOLNK coaxial adapter saves time and effort, and the installation process does not require any tool, plug and play. Say goodbye to complex installations and provide smooth and reliable connections for your needs
Model: L7Kit
Color: Gold and Silver
