Brand: TUOLNK
<p> <strong>Specifications of N Female to SMA Male 4 Holes Panel Mount connector:</strong><br /> 2 pcs of N Female to SMA Male 4 hole panel mount connector.<br /> 1: N Female connector<br /> 2: SMA Male connector<br /> Materials: brass & nickel plated<br /> Impedance: 50 ohm, Low-loss<br /> Frequency Range: DC~11GHz<br /> Working Voltage: 1000V r.m.s at sea level<br /> Withstanding Voltage: 2500V r.m.s at sea level<br /> Insulation resistance: ?5000M?<br /> Center Conductor retention force: ?0.56N<br /> Durability(mating): ?500times(cycles)<br /> Insulators: PTFE<br /> VSWR: ?1.15<br /> Temperature Range: -55~+155?<br /> <br /> <strong>Packaging Includes?</strong><br /> 2 pcs of N Female to SMA Male Jack 4 Hole panel mount connector<br /> <br /> <strong> Attention:</strong><br /> Pls make sure which type of connector you need, in case of your inconvenient by buying the wrong product which is not suitable for your adapter.

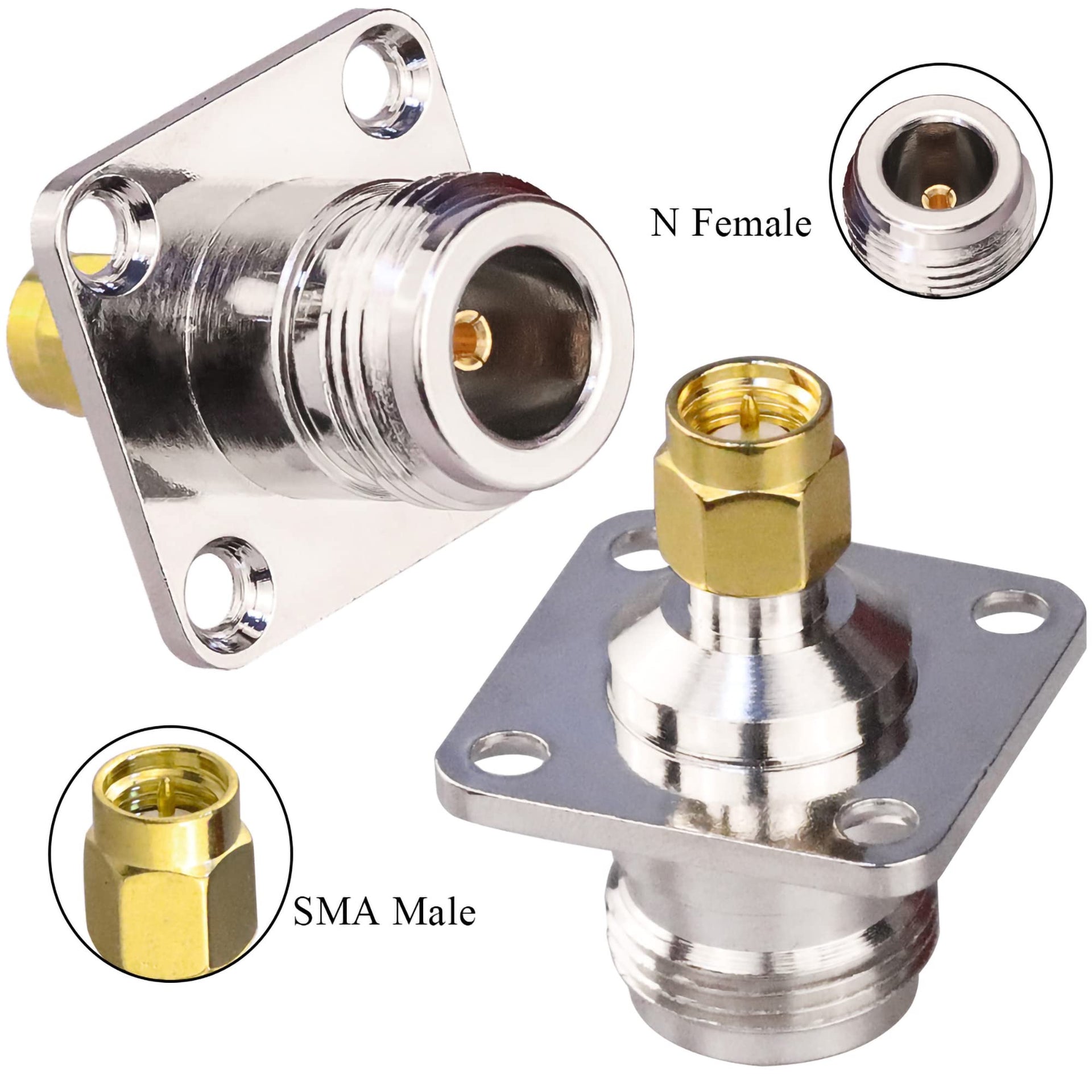

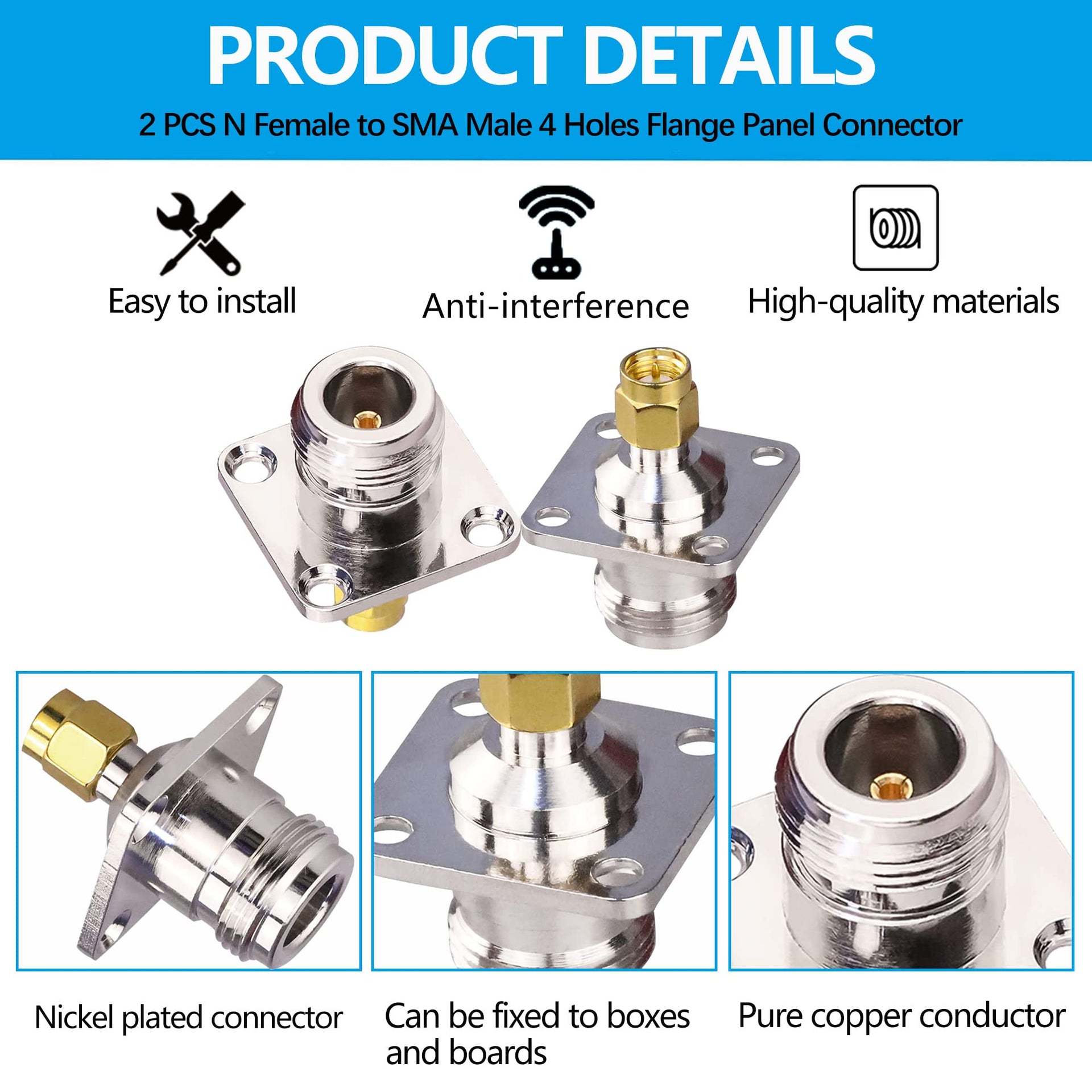

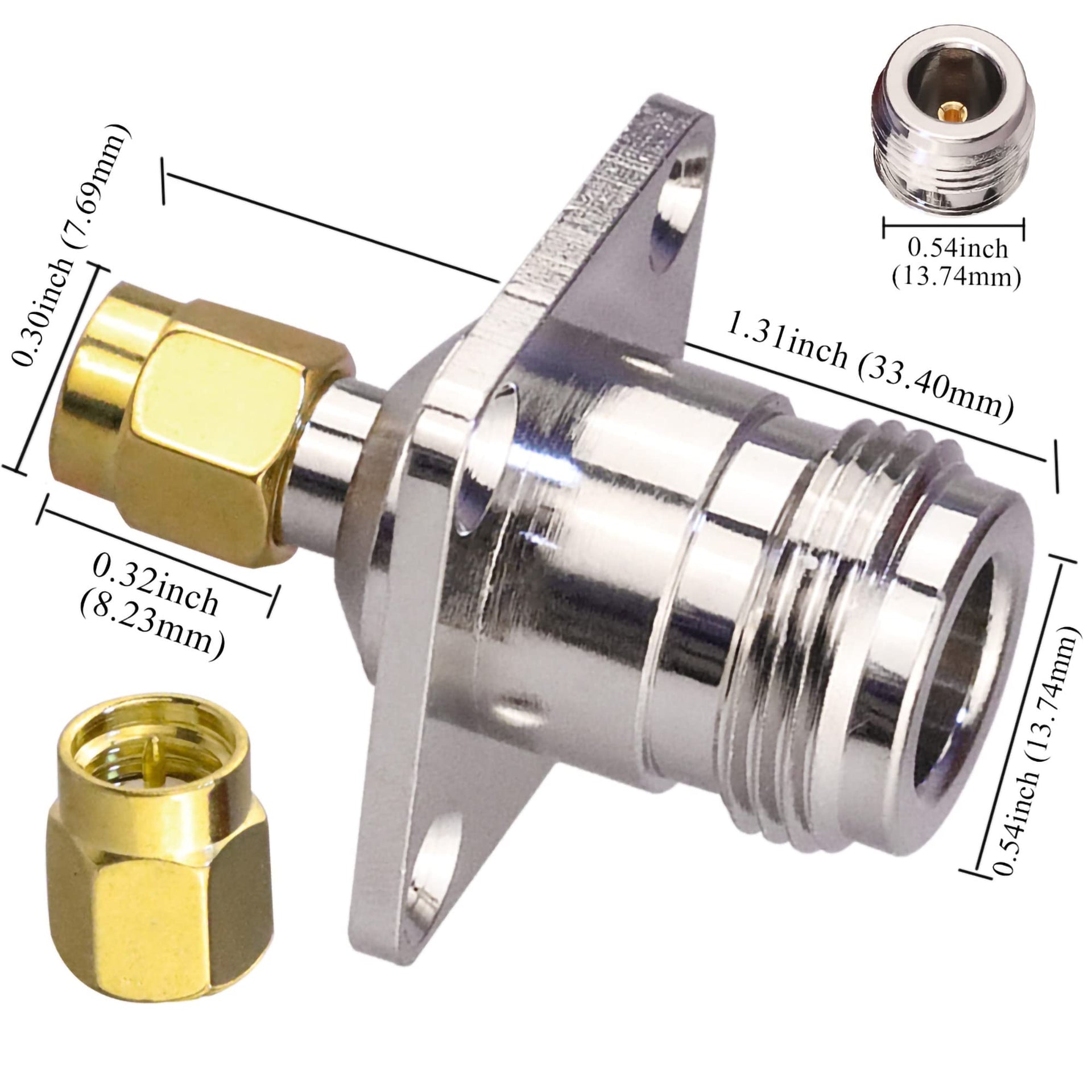

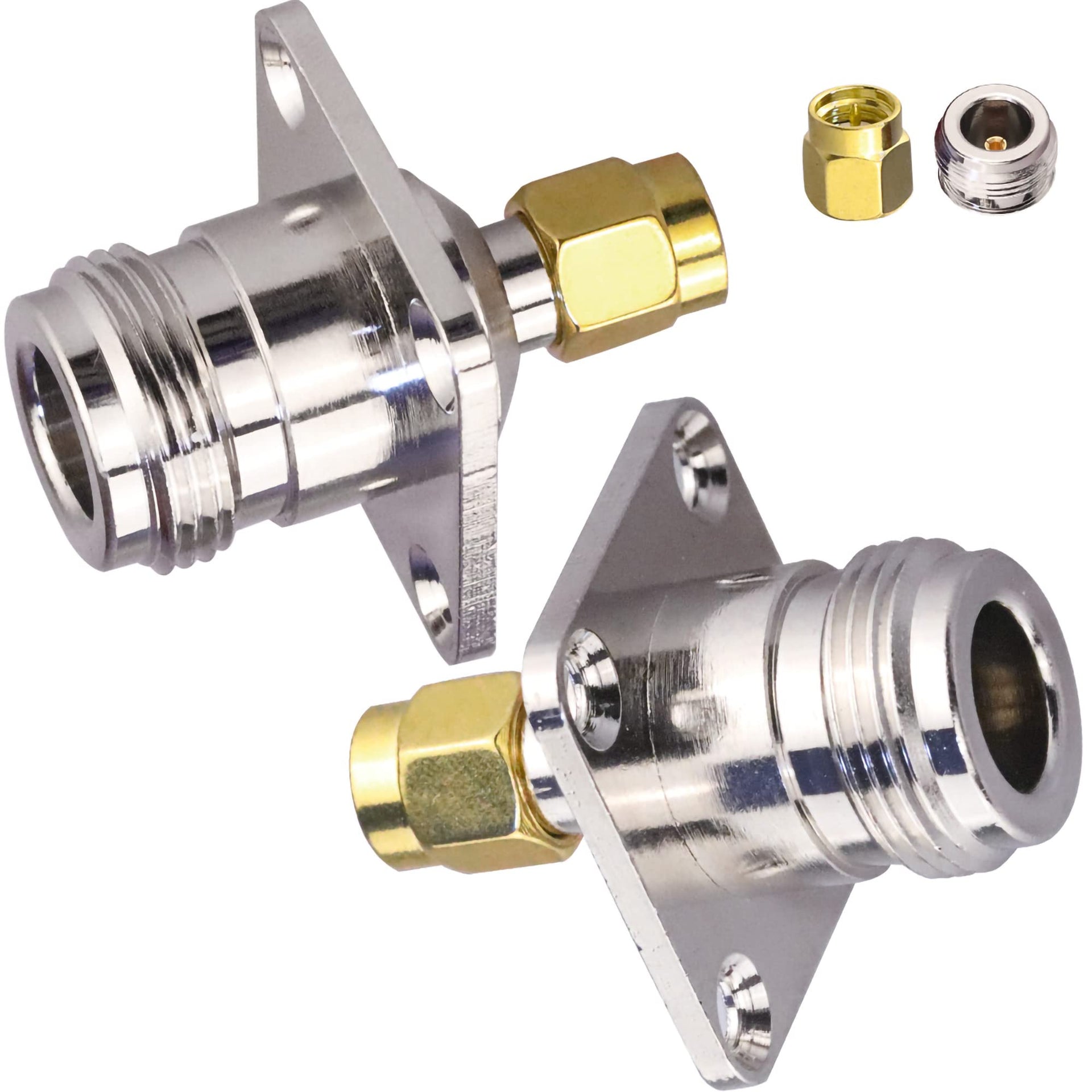

• Type and Details N Female to SMA Male 4 hole panel mount adapter
• Color: gold and silver
• Material: brass and nickel plated
• Helping you to connect N to SMA devices
• Durability and Performance: The connector is made of brass and nickel plated to ensure it's durability and recycling usage. High quality adapter ensure low loss in signal transmission and good conductivity
• Application: RF, Microwave Applications, Lighting, Extension cable, Coaxial cable, CCTV, Wifi Radios, Telecom, Antenna, Digital Communication System, Broadcast, Wireless devices, LMR and so on
• Package Includes: 2 pcs of N Female to SMA Male 4 hole panel mount connector.(Connector 1: N Female connector, Connector 2: SMA Male connector)
• Easy to Install: The user-friendly design of TUOLNK coaxial adapter saves time and effort, and the installation process does not require any tool, plug and play. Say goodbye to complex installations and provide smooth and reliable connections for your needs
Model: 1S8
Color: silver
<p> <strong>Specifications of N Female to SMA Male 4 Holes Panel Mount connector:</strong><br /> 2 pcs of N Female to SMA Male 4 hole panel mount connector.<br /> 1: N Female connector<br /> 2: SMA Male connector<br /> Materials: brass & nickel plated<br /> Impedance: 50 ohm, Low-loss<br /> Frequency Range: DC~11GHz<br /> Working Voltage: 1000V r.m.s at sea level<br /> Withstanding Voltage: 2500V r.m.s at sea level<br /> Insulation resistance: ?5000M?<br /> Center Conductor retention force: ?0.56N<br /> Durability(mating): ?500times(cycles)<br /> Insulators: PTFE<br /> VSWR: ?1.15<br /> Temperature Range: -55~+155?<br /> <br /> <strong>Packaging Includes?</strong><br /> 2 pcs of N Female to SMA Male Jack 4 Hole panel mount connector<br /> <br /> <strong> Attention:</strong><br /> Pls make sure which type of connector you need, in case of your inconvenient by buying the wrong product which is not suitable for your adapter.
• Type and Details N Female to SMA Male 4 hole panel mount adapter
• Color: gold and silver
• Material: brass and nickel plated
• Helping you to connect N to SMA devices
• Durability and Performance: The connector is made of brass and nickel plated to ensure it's durability and recycling usage. High quality adapter ensure low loss in signal transmission and good conductivity
• Application: RF, Microwave Applications, Lighting, Extension cable, Coaxial cable, CCTV, Wifi Radios, Telecom, Antenna, Digital Communication System, Broadcast, Wireless devices, LMR and so on
• Package Includes: 2 pcs of N Female to SMA Male 4 hole panel mount connector.(Connector 1: N Female connector, Connector 2: SMA Male connector)
• Easy to Install: The user-friendly design of TUOLNK coaxial adapter saves time and effort, and the installation process does not require any tool, plug and play. Say goodbye to complex installations and provide smooth and reliable connections for your needs
Model: 1S8
Color: silver
