Description
Brand: KGUSS

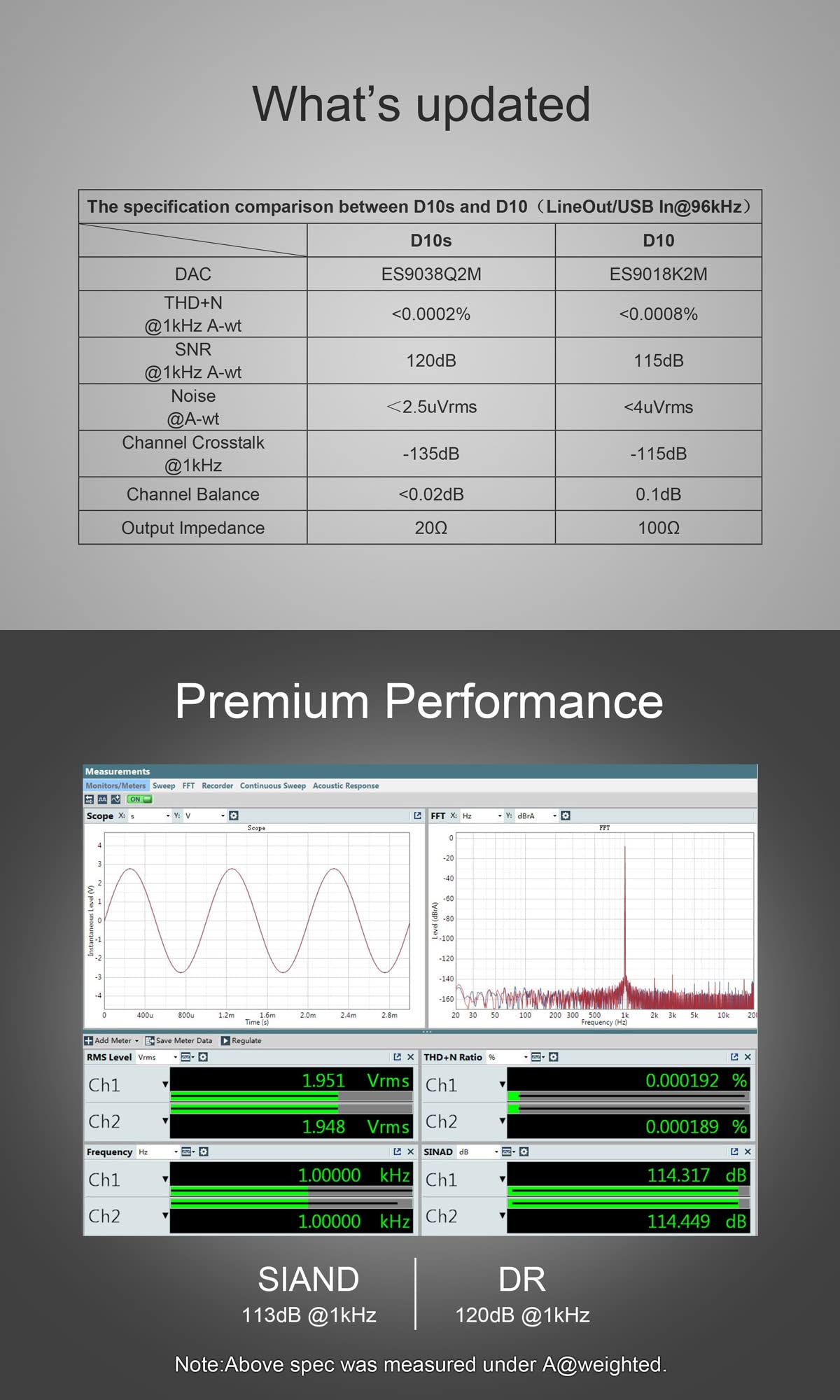

<b>D10 SPECIFICATIONS</b> <br> <br>DSD Sampling Frequencies:2.8224 MHz (DSD64),11.2896 MHz (DSD256),5.6448 MHz (DSD128) <br>PCM Word Length:16-bit,32-bit,24-bit <br>PCM Sampling Frequencies:88.2 kHz,48 kHz,352.8 kHz,96 kHz,176.4 kHz,192 kHz,44.1 kHz <br>USB Compatibility:Windows 8,Windows 10,Windows 7,Windows 8.1 <br>Analog output:Line out <br>Inputs:USB Type-B <br>Material:Metal <br>THD:?0.0008% <br>SNR:115dB <br>D/A Converter:ES9018K2M <br>Size:10.3cm x 14.6cm x 3.7cm <br>Weight:314g?Unit only) <br>Balance:0.1dB <br> <br> <b>D10s SPECIFICATIONS</b> <br> <br>Measured: 10.3cmx 14.6cm x 3.7cm <br>Weight: 323g <br>Power input: DC5V / 0.5A(USB power supply ) <br>Colour: Black/Silver <br>Input: USB <br>Output: COAX/OPT/RCA <br>Display: Customized digital tube <br>USB IN: <br>44.1kHz- 384kHz/16Bit-32Bit <br>DSD64-DSD256(Native) <br>DSD128(Dop) <br>OPT/COAX Out: <br>44.1kHz- 192kHz/16Bit- 24Bit DSD64 (Dop) <br><br>D10s decoding specification(LineOut/USB In@96kHz)</b> <br>THD+N @1kHz A-wt: <0.0002% <br>SNR @1kHz A-wt: 120dB <br>Dynamic Range @1kHz A-wt: 120dB <br>Frequency Response: <br>20Hz-20kHz(+0.1dB), 20Hz-40kHz(+0.4dB) <br>Output Level: 2Vrms @0dBFS <br>Noise @A-wt: <2.5uVrms <br>Channel Crosstalk @1kHz: -135dB <br>Channel Balance: <0.02dB <br>Output Impedance:20?

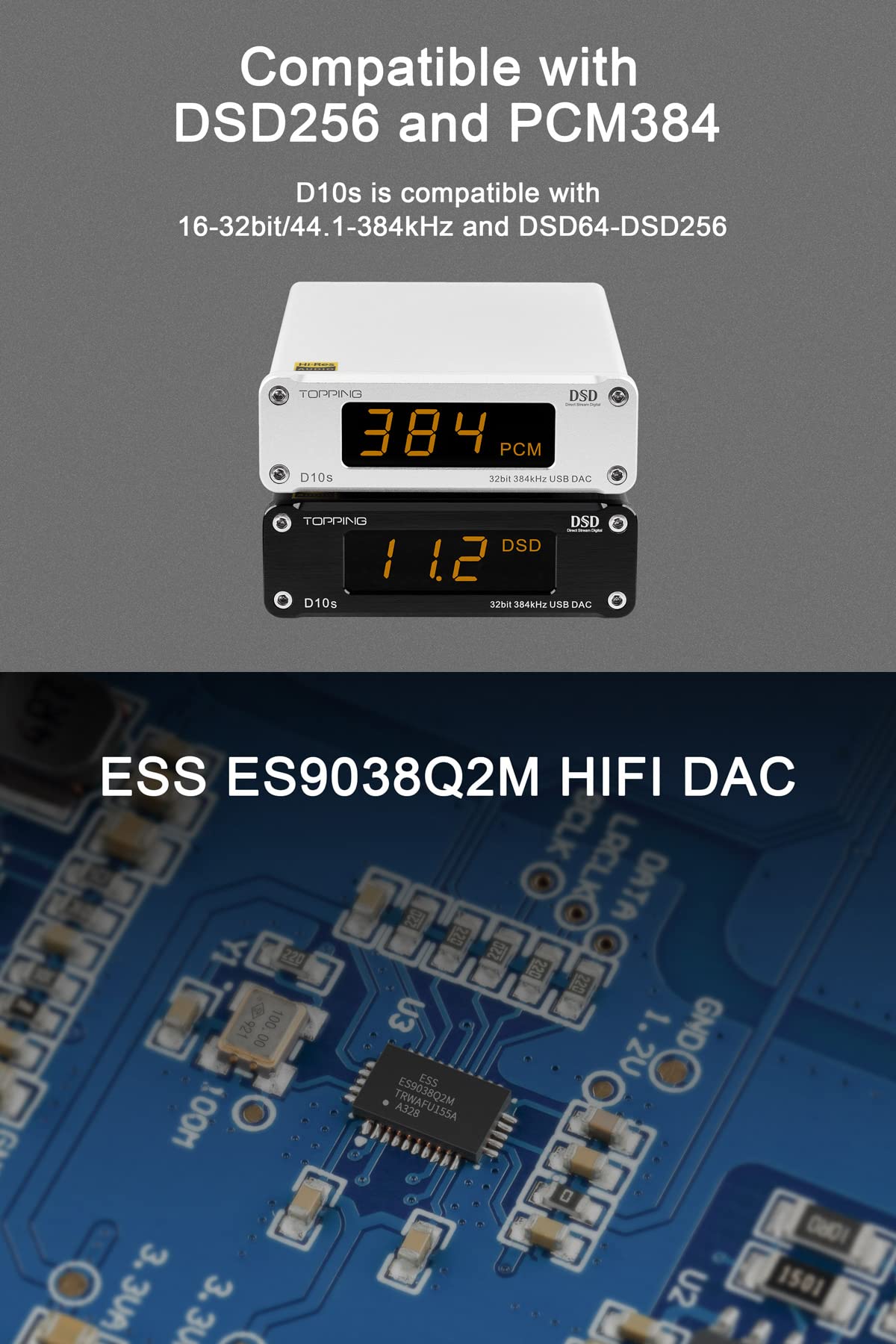

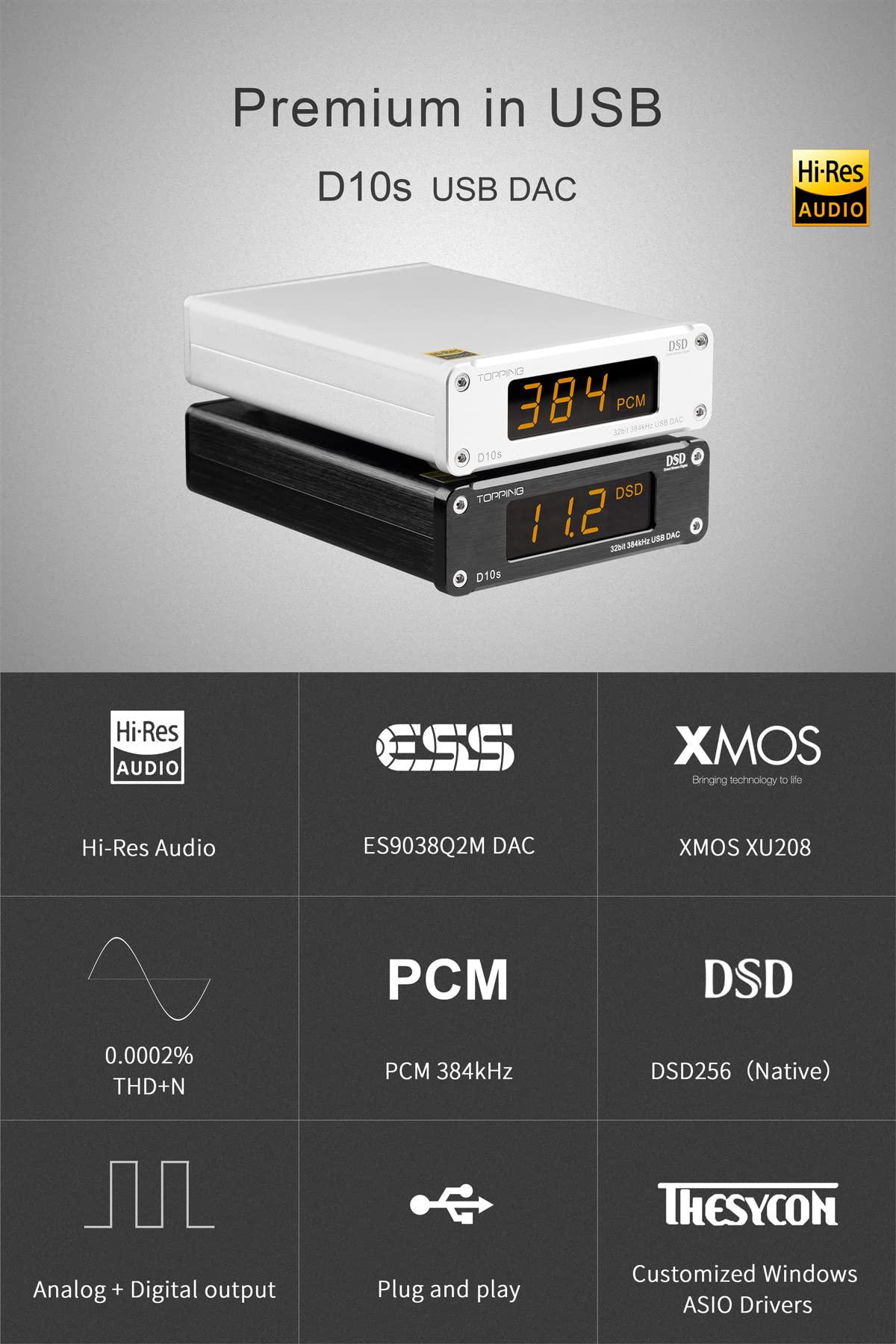

• Compatible with DSD256 and PCM384 - D10s is compatible with 16-32bit/44.1-384kHz and DSD64 - DSD256(support both Dop and Native)If you need a DSD configuration guide, please contact the seller HIFI COLLEGE

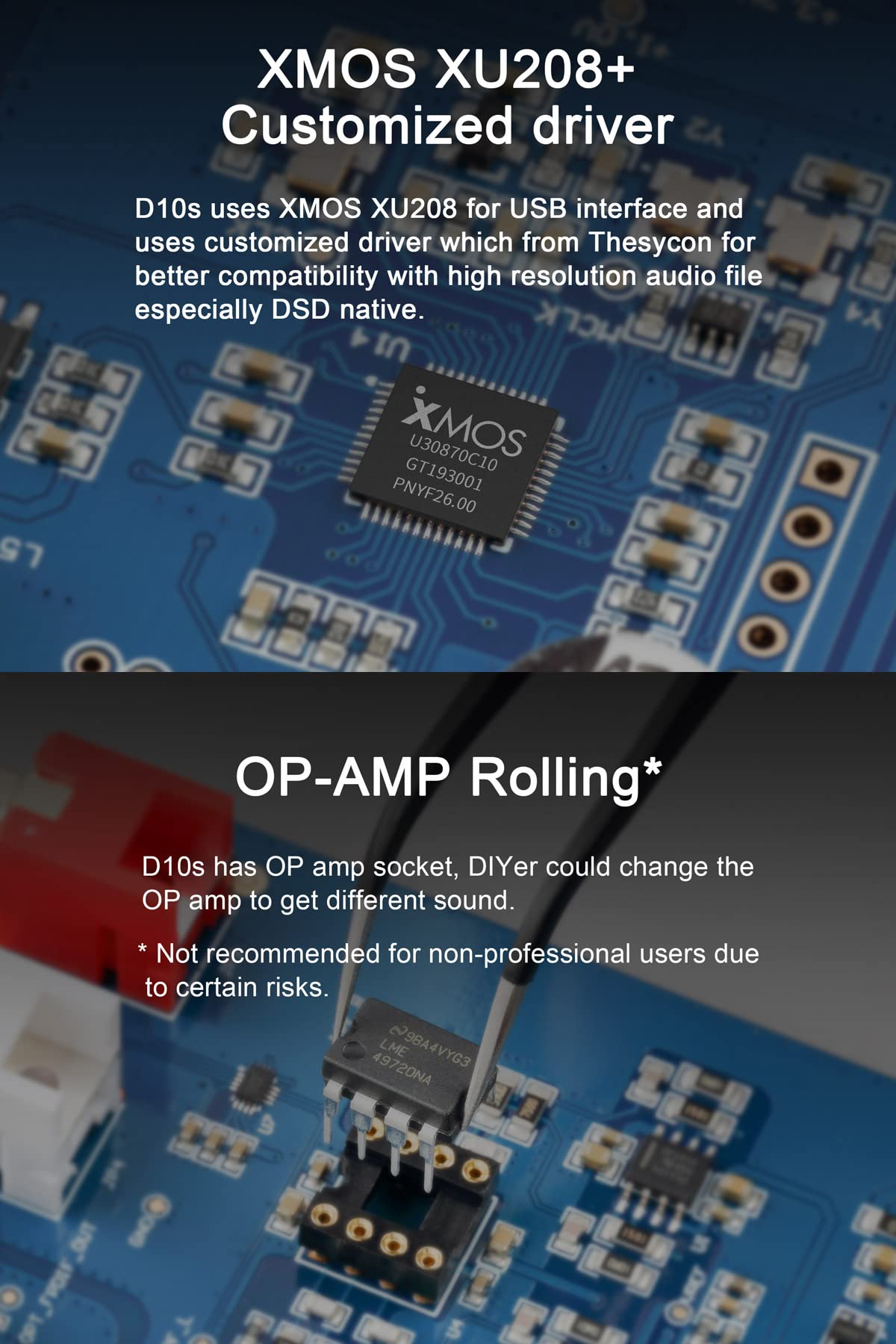

• XMOS XU208 and Customized Driver - D10s use XMOS XU208 for USB interface and use customized driver which from Thesycon for better compatibility with high resolution audio file especially DSD native.And use ESS ES9038Q2M to make THD+N as low as 0.0002%@1kHz
• Automatic Power On/Off - Although the USB port support power after PC has shutdown,D10 still will synchronously power on/off with PC
• Replaceable OP - It has OP amp socket,DIYer could change the OP amp to get different sound.Notice:D10's electrical parameters will change if use other OP
• Multiple Applications - ?Connect D10s to your active speakers.D10s Provide not only DSD and higher-specification PCM compatibility but also a better sound quality than your computer's built-in sound card or a regular DAC
• ?You can connect D10s's line out to your amplifier/headphone amplifier's input to make D10s one part of your HIFI system??You also can connect D10s's coaxial/optical output to your DAC, then D10s serve as a USB interface
Model: D10s
Color: Sliver-01
<b>D10 SPECIFICATIONS</b> <br> <br>DSD Sampling Frequencies:2.8224 MHz (DSD64),11.2896 MHz (DSD256),5.6448 MHz (DSD128) <br>PCM Word Length:16-bit,32-bit,24-bit <br>PCM Sampling Frequencies:88.2 kHz,48 kHz,352.8 kHz,96 kHz,176.4 kHz,192 kHz,44.1 kHz <br>USB Compatibility:Windows 8,Windows 10,Windows 7,Windows 8.1 <br>Analog output:Line out <br>Inputs:USB Type-B <br>Material:Metal <br>THD:?0.0008% <br>SNR:115dB <br>D/A Converter:ES9018K2M <br>Size:10.3cm x 14.6cm x 3.7cm <br>Weight:314g?Unit only) <br>Balance:0.1dB <br> <br> <b>D10s SPECIFICATIONS</b> <br> <br>Measured: 10.3cmx 14.6cm x 3.7cm <br>Weight: 323g <br>Power input: DC5V / 0.5A(USB power supply ) <br>Colour: Black/Silver <br>Input: USB <br>Output: COAX/OPT/RCA <br>Display: Customized digital tube <br>USB IN: <br>44.1kHz- 384kHz/16Bit-32Bit <br>DSD64-DSD256(Native) <br>DSD128(Dop) <br>OPT/COAX Out: <br>44.1kHz- 192kHz/16Bit- 24Bit DSD64 (Dop) <br><br>D10s decoding specification(LineOut/USB In@96kHz)</b> <br>THD+N @1kHz A-wt: <0.0002% <br>SNR @1kHz A-wt: 120dB <br>Dynamic Range @1kHz A-wt: 120dB <br>Frequency Response: <br>20Hz-20kHz(+0.1dB), 20Hz-40kHz(+0.4dB) <br>Output Level: 2Vrms @0dBFS <br>Noise @A-wt: <2.5uVrms <br>Channel Crosstalk @1kHz: -135dB <br>Channel Balance: <0.02dB <br>Output Impedance:20?
• Compatible with DSD256 and PCM384 - D10s is compatible with 16-32bit/44.1-384kHz and DSD64 - DSD256(support both Dop and Native)If you need a DSD configuration guide, please contact the seller HIFI COLLEGE
• XMOS XU208 and Customized Driver - D10s use XMOS XU208 for USB interface and use customized driver which from Thesycon for better compatibility with high resolution audio file especially DSD native.And use ESS ES9038Q2M to make THD+N as low as 0.0002%@1kHz
• Automatic Power On/Off - Although the USB port support power after PC has shutdown,D10 still will synchronously power on/off with PC
• Replaceable OP - It has OP amp socket,DIYer could change the OP amp to get different sound.Notice:D10's electrical parameters will change if use other OP
• Multiple Applications - ?Connect D10s to your active speakers.D10s Provide not only DSD and higher-specification PCM compatibility but also a better sound quality than your computer's built-in sound card or a regular DAC
• ?You can connect D10s's line out to your amplifier/headphone amplifier's input to make D10s one part of your HIFI system??You also can connect D10s's coaxial/optical output to your DAC, then D10s serve as a USB interface
Model: D10s
Color: Sliver-01
