Brand: TOPENS

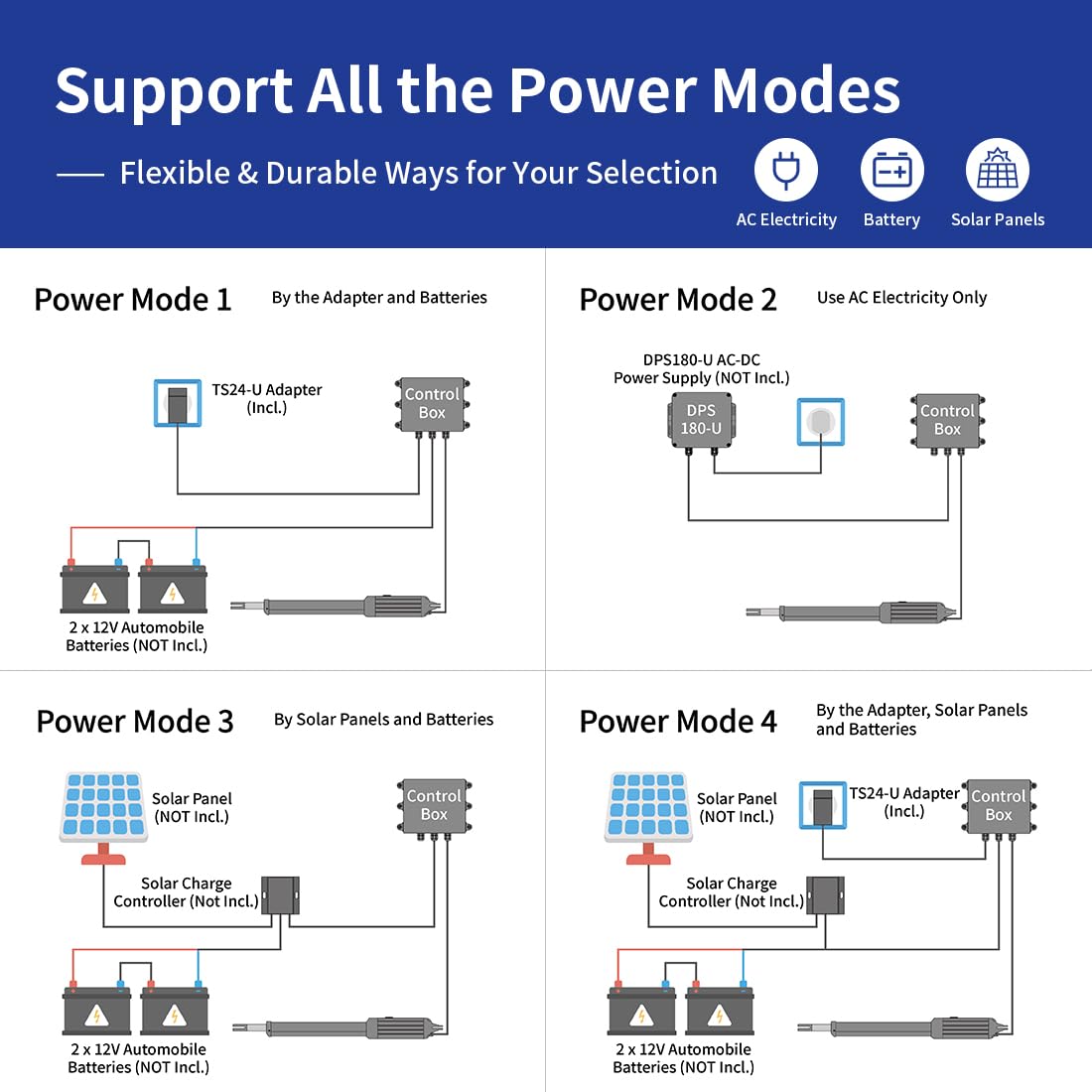

The energy-conservation solar capable system supports all the power modes:

• By the adapter and batteries (batteries NOT incl.)
• Use AC electricity only (DPS180-U power supply NOT incl.)
• By solar panels and batteries (solar panels and UPS01 power supply NOT incl.)
• By the adapter, solar panels and batteries

Optional Accessories

Comes with a smart control panel, this swing gate operator is compatible with a wide range of accessories, TC196 WiFi Remote Control, TEW3 Vehicle Sensor Exit Wand, ET24 Electric Gate Lock, TC188 Universal Keypad, etc.

Specifications:

Product Model: A8 Gate Opener

Motor Voltage: 24VDC

Motor Power: 80W

Rated Current: 3A

Gate Opening / Closing Time: approx. 15 seconds (ideal condition)

Max. Opening Angle: 68°- 120° depends on the installation mode

Operation Range for the Remote Control: 65ft.

Max. # of Remote Control Supported: 8 pcs on its own, up to 250 with the TOPENS ERM12 External Receiver (NOT incl.)

Working Temperature: 0°F to 120°F (-20?~+50?)

Sound Level: 50 dB

Protection Class: IP44 Waterproof

Dimension of the Arm (Actuator): 33.7 x 3.3 x 4.1" (855 x 84 x 104 mm)

Dimension of the Control Box: 5.7 x 4.7 x 2.4" (145 x 120 x 60 mm)

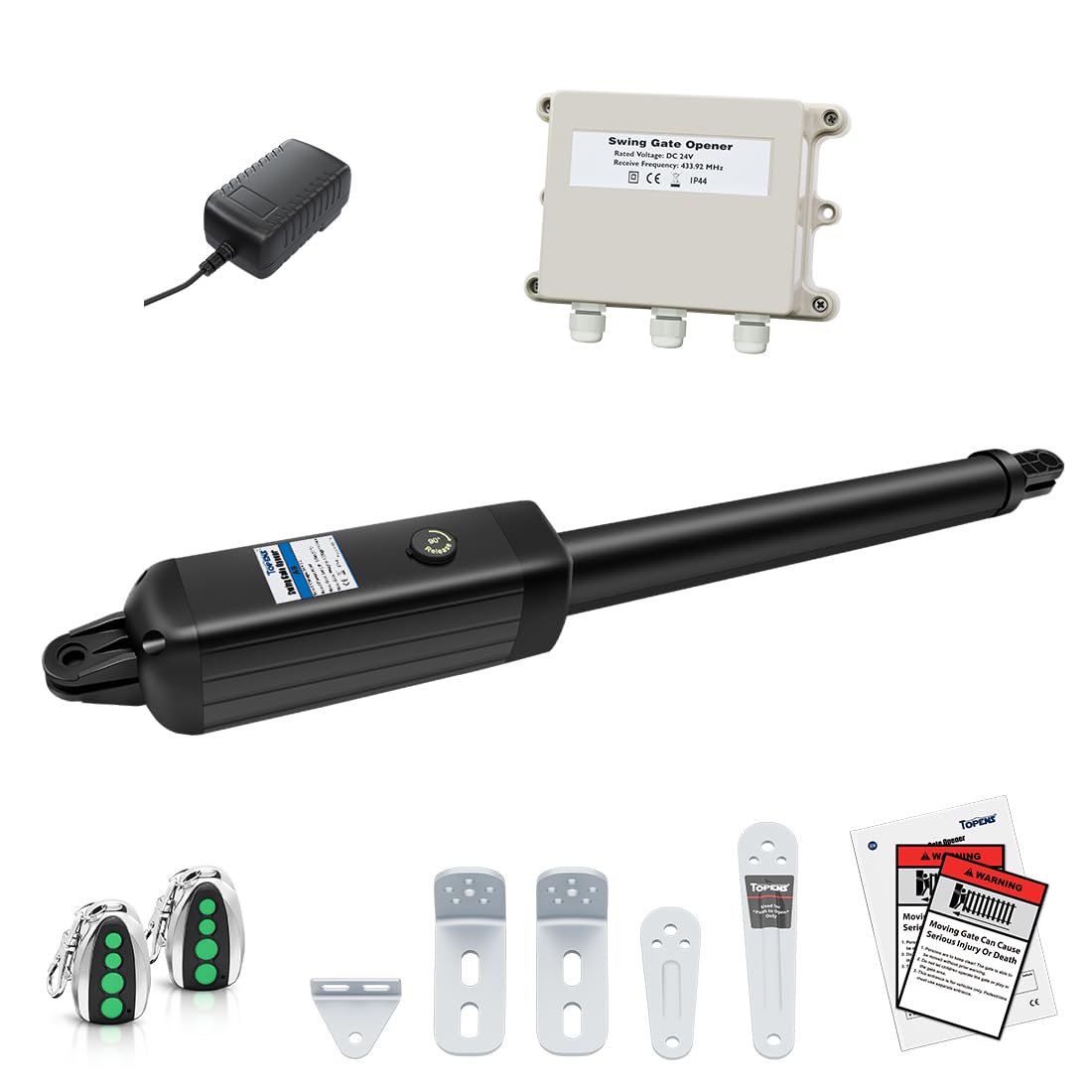

Packing List:

1 x Gate Opener Actuator (Arm), with a 5 feet 5-Conductor Cable

1 x Waterproof Control Box

2 x M12 Remote Control Transmitter

1 x TS24-U Adapter, with a 4 feet Cord (ONLY Used to Charge the Battery)

2 x Emergency Release Key

1 x Pull-to-Open Bracket (Used in Pull-to-Open Installation Mode for Opening Inwards)

1 x Push-to-Open Bracket (Used in Push-to-Open Installation Mode for Opening Outwards)

1 x Full Set of Required Installation Hardware

2 x Warning Sign

1 x Detailed Installation Manual

• Why TOPENS - Over 25 years of specialized experience in the gate automation industry, TOPENS is dedicated to providing safe, reliable and smart gate operator systems.

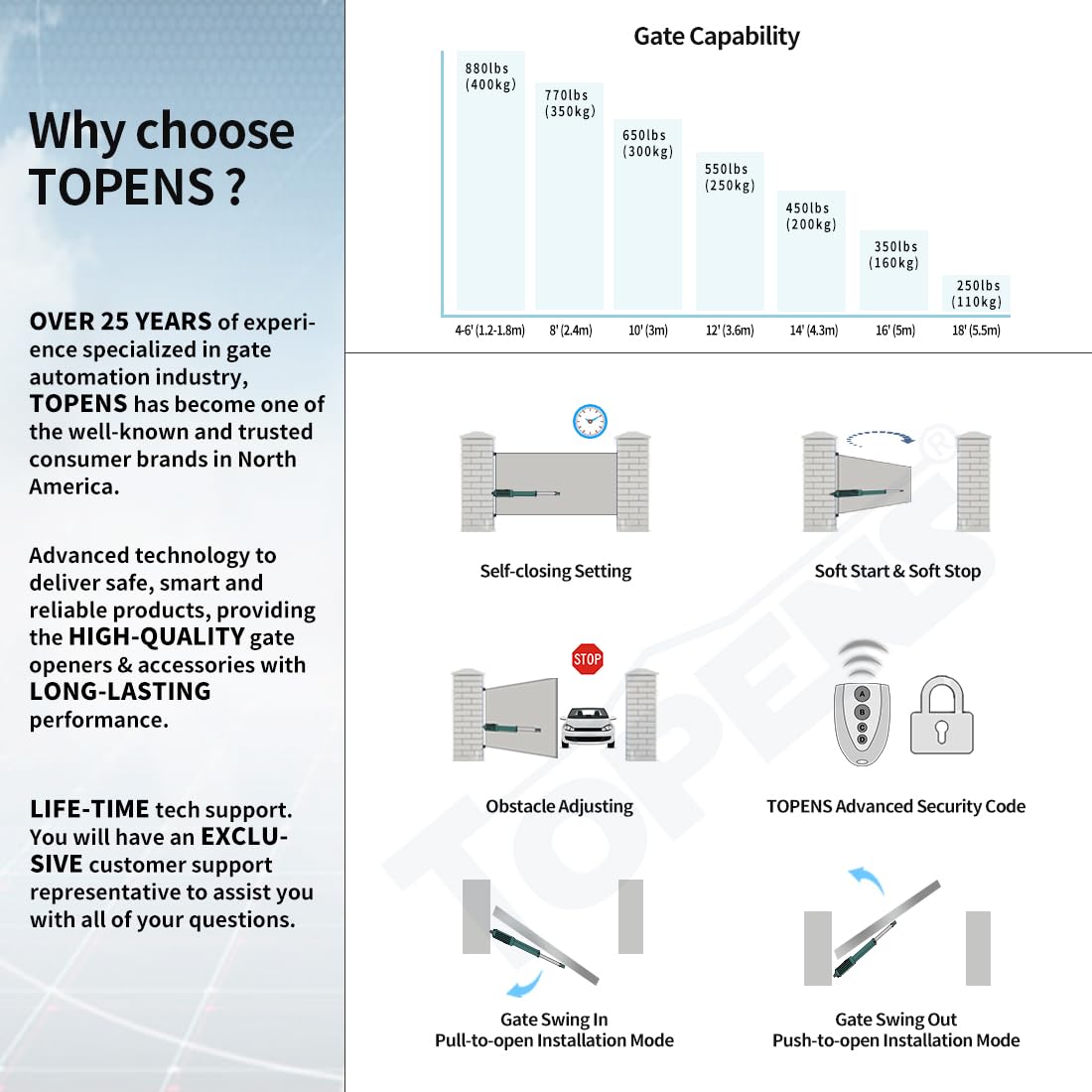

• TOPENS Gate Opener - TOPENS A8 automatic gate opener, equipped with a STABLE 24VDC 80W motor, effortlessly operates heavy-duty single swing gate up to max 880lbs. in weight OR max 18ft. in length. This ultra-quiet electric gate motor ensures convenient and comfortable gate operation, enhancing your family's lifestyle.
• Wide Usage - A8 is compatible with various types of single swing gates. You can open the gate inward or outward depending on your preferences (Pull-to-Open or Push-to-Open installation). It works great in residential area, courtyard, ranch, farm, etc.
• Easy Installation - The installation process is easy and you only need the basic tools to install. Please refer to the user manual or the installation video for step-by-step guidance.

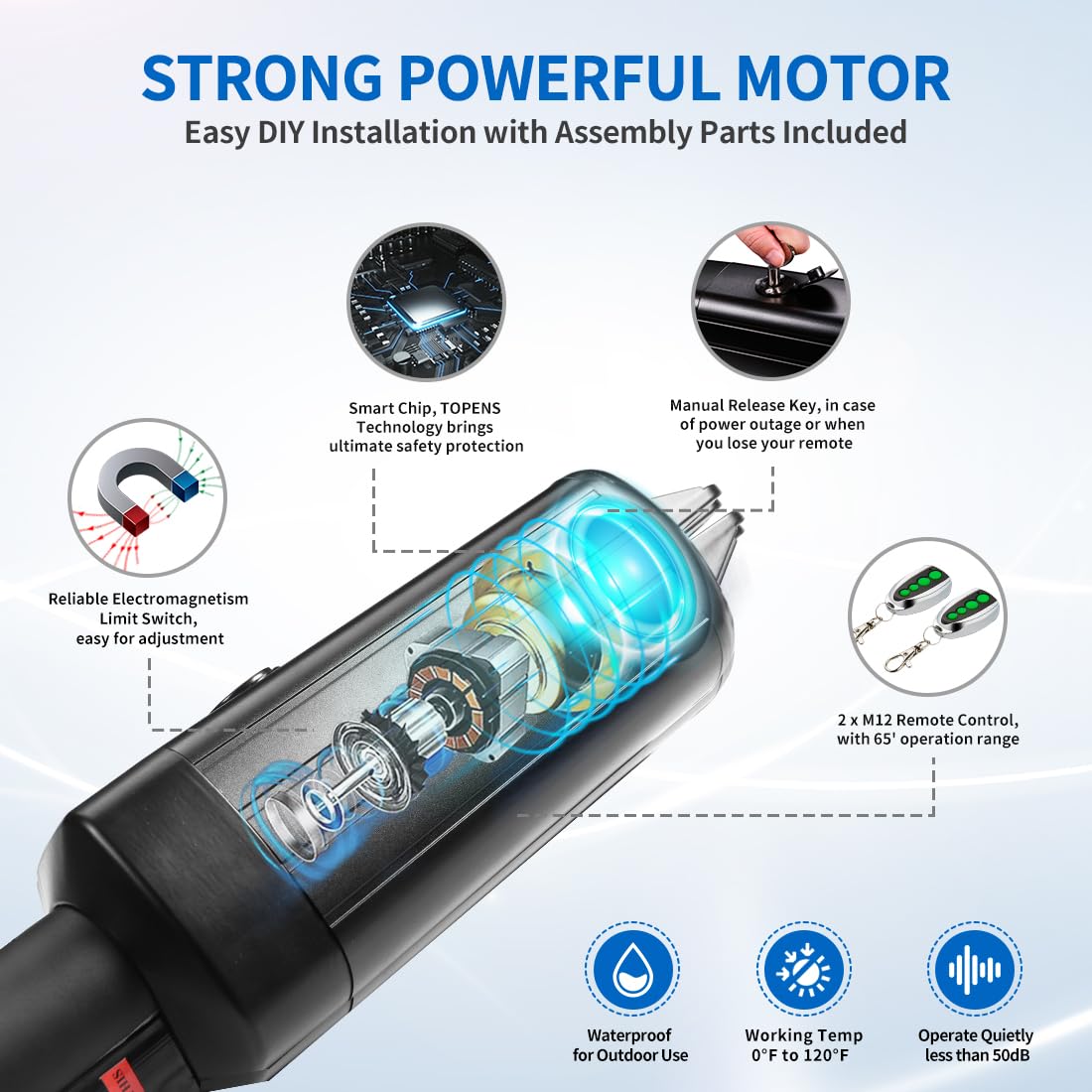

• Multiple Guard - Our remotes utilize advanced TOPENS code technology, providing multiple protection against unauthorized access and ensuring safety. The reliable electromagnetism limit switch can be easily adjusted. The stop-and-reverse function is used for obstacle detection in the process of gate operation. The "auto-close" feature secures your property after you leave. And the "soft start and soft stop" function extends the motor's lifespan. The manual release key (incl.) is for back-up use.
• Personalized Design - This kit is designed for energy-conservation. It offers the flexibility to be powered by both AC electricity and batteries and also compatible with solar power. Some other accessories to power this model are REQUIRED to purchase but NOT INCLUDED: 24V 12Ah automotive/marine type battery or DPS180-U AC-DC Power Supply, UPS01 adapter, 20W solar panel. Please refer to the pictures of the product page or the user manual for more details.
• Customer Service and Technical Support - All the TOPENS products come with a 12-month war-ranty against defects, a 30-day exchange & return and excellent tech support. Visit TOPENS website for the user manual, installation video, and personalized service. TOPENS is ready to offer professional solutions for any questions or assistance. Enjoy an easier and smarter life by ordering other TOPENS accessories.
