Brand: Titanium

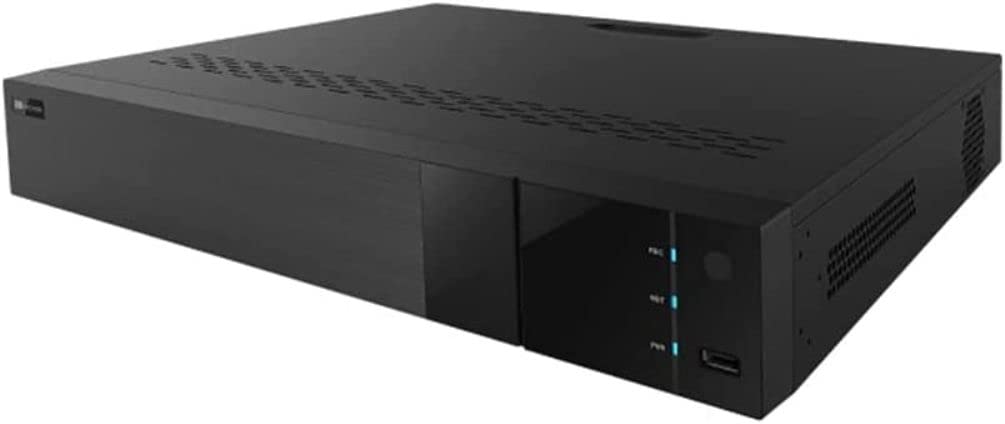

Titanium ED9632H5NV-16P-A 32-Channels 16PoE 8MP Face Recognition Network Video Recorder, Embedded Linux OS, 256/256 Mbps Bandwidth, 2 USB, HDMI/VGA, 2 RS485, Audio/Alarm, 4 SATA
Key Features
- Support 32 CH 8MP/5MP/4MP/3MP/1080P/960P/720P IP input
- Adopt standard H.265 and H.264 high profile compression format to get high-quality video at a much lower bit rate
- Intuitive and user-friendly Graphic User Interface (GUI), Windows style operation by mouse
- Support face detection and comparison
- Express and flexible backup via USB, network and so on
- Pentaplex: preview, record, playback, backup, and remote access
- DHCP, DDNS, PPPoE network protocol and CMS supported
- Remote control via Web or CMS: preview, playback, backup, PTZ and configuration
- 16 PoE network ports, support IPC direct connection to NVR; support PoE power supply
- Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with the mobile device
- Multi-user online simultaneously
- Authorization management, log view and device status view
- 4K output, true high-resolution display
- Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
- Support NAT function and QRCode scanning by mobile phone and PAD
- Powerful mobile surveillance by smartphones with iOS and Andriod OS
Specifications
- OS: Embedded Linux
- Network Input: 32 CH IPC
- 2-way Audio: RCA x1
- Record Stream: Dual stream recording
- Simultaneous Playback: Max. 16 CH
- Interface: RJ 45 x1 (10/100/1000Mbps)
- Access/Transfer Bandwidth: 256/256 Mbps
- HDD: SATA x4, max 8T
- RS485: RS485 x2, connect to PTZ or keyboard
- USB: 1x USB 2.0, 1x USB 3.0
- Power Supply: ATX
- Consumption: ?30W
- Work Environment: -10~50°C, 10%~90% humidity
- Dimensions: 440x390x70mm
- Weight: 12.26 lbs
• Support 32 CH 8MP/5MP/4MP/3MP/1080P/960P/720P IP input
• Adopt standard H.265 and H.264 high profile compression format to get high-quality video at a much lower bit rate
• Intuitive and user-friendly Graphic User Interface (GUI), Windows style operation by mouse
• Remote control via Web or CMS: preview, playback, backup, PTZ and configuration
• Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with the mobile device
Titanium ED9632H5NV-16P-A 32-Channels 16PoE 8MP Face Recognition Network Video Recorder, Embedded Linux OS, 256/256 Mbps Bandwidth, 2 USB, HDMI/VGA, 2 RS485, Audio/Alarm, 4 SATA
Key Features
- Support 32 CH 8MP/5MP/4MP/3MP/1080P/960P/720P IP input
- Adopt standard H.265 and H.264 high profile compression format to get high-quality video at a much lower bit rate
- Intuitive and user-friendly Graphic User Interface (GUI), Windows style operation by mouse
- Support face detection and comparison
- Express and flexible backup via USB, network and so on
- Pentaplex: preview, record, playback, backup, and remote access
- DHCP, DDNS, PPPoE network protocol and CMS supported
- Remote control via Web or CMS: preview, playback, backup, PTZ and configuration
- 16 PoE network ports, support IPC direct connection to NVR; support PoE power supply
- Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with the mobile device
- Multi-user online simultaneously
- Authorization management, log view and device status view
- 4K output, true high-resolution display
- Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
- Support NAT function and QRCode scanning by mobile phone and PAD
- Powerful mobile surveillance by smartphones with iOS and Andriod OS
Specifications
- OS: Embedded Linux
- Network Input: 32 CH IPC
- 2-way Audio: RCA x1
- Record Stream: Dual stream recording
- Simultaneous Playback: Max. 16 CH
- Interface: RJ 45 x1 (10/100/1000Mbps)
- Access/Transfer Bandwidth: 256/256 Mbps
- HDD: SATA x4, max 8T
- RS485: RS485 x2, connect to PTZ or keyboard
- USB: 1x USB 2.0, 1x USB 3.0
- Power Supply: ATX
- Consumption: ?30W
- Work Environment: -10~50°C, 10%~90% humidity
- Dimensions: 440x390x70mm
- Weight: 12.26 lbs
• Support 32 CH 8MP/5MP/4MP/3MP/1080P/960P/720P IP input
• Adopt standard H.265 and H.264 high profile compression format to get high-quality video at a much lower bit rate
• Intuitive and user-friendly Graphic User Interface (GUI), Windows style operation by mouse
• Remote control via Web or CMS: preview, playback, backup, PTZ and configuration
• Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with the mobile device
