Brand: Thermaltake

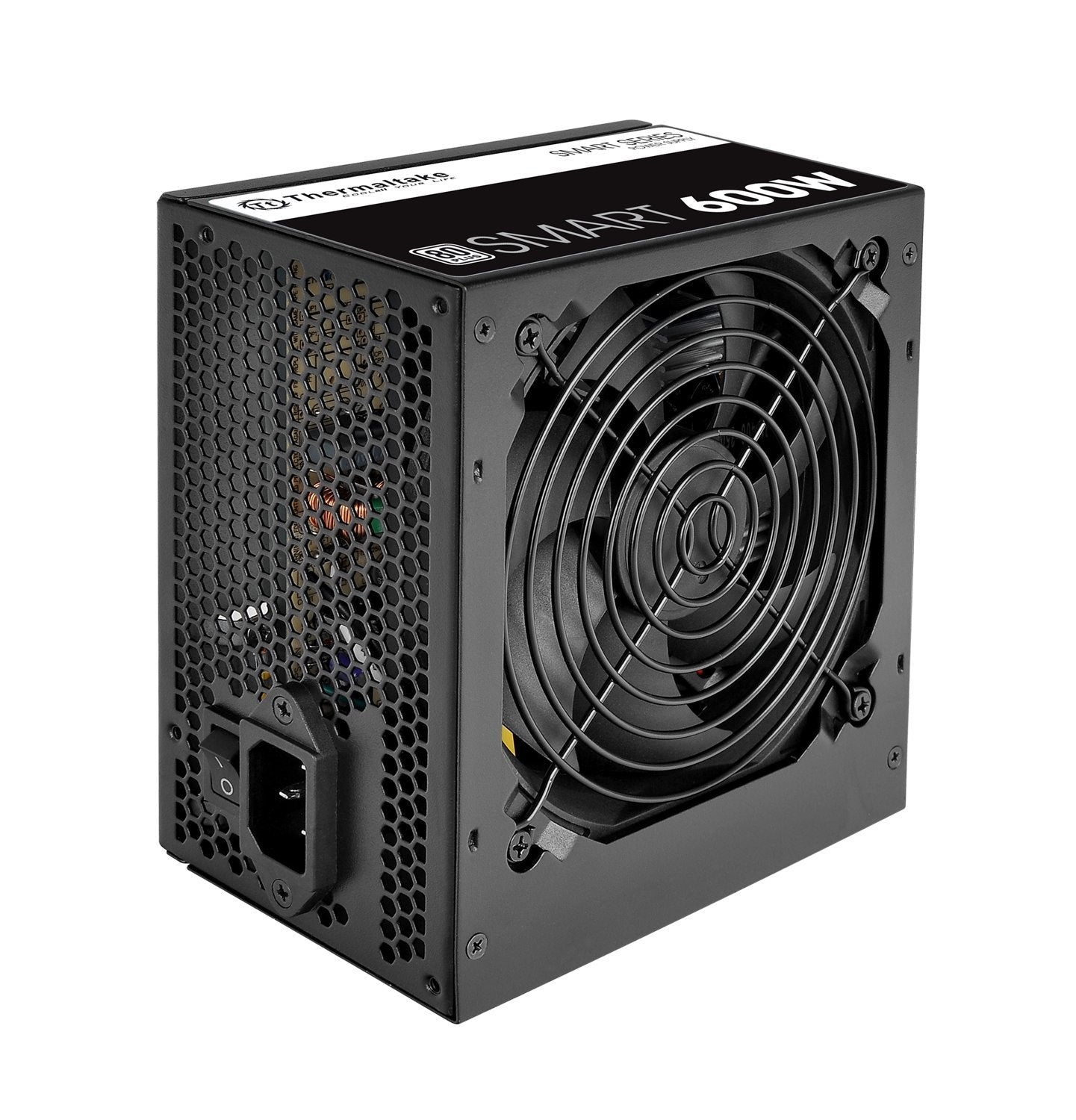

Incorporating various high-quality components, the Smart Series - models are rated from 500W to 700W - saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.P/N: PS-SPD-0600NPCW**-WShort P/N: SPD-0600PModel: SP-600AH2NKWType: Intel ATX 12V 2.3Max. Output Capacity : 600WColor: BlackDimension (H x W x D): 86mm x 150mm x 140mmPFC ?Power Factor Correction?: Active PFCPower Good Signal: 100-500 msecHold Up Time : 16msec (minimum) within 60% loadInput current: 10A maxInput Frequency Range: 50 Hz - 60 HzInput Voltage: 100Vac - 240VacOperating Temperature: 5? to +40?Operating Humidity: 20% to 85%,non-condensingOperating Temperature: -40 ? to +55 ?Storage Humidity: 10% to 95%, non-condensingCooling System: 120mm Fan: 1800 R.P.M. ± 10%Efficiency: 82-86% efficiency @ 20-100% loadMTBF: 100,000 hrs minimumSafety Approval: CE/CB/TUV/ UL/ FCCPCI-E Connector: PCI-E 6+2pin x 2.

Features:

• Delivers 600W Continuous output at plus 40?. Compliance with Intel ATX 12V 2. 31 and EPS 12V 2. 92 standards
• 80 PLUS Certified - 80% efficiency under typical load. Power good signal is 100-500 millisecond
• Supports (2) PCI-E 6 plus 2pin Connectors. Active (PFC) Power Factor Correction, MTBF: 100, 000 hours
• Industry Grade Protections: (OPP) Over Power Protection, (OVP) Over Voltage Protection, (SCP) Short Circuit Protection
• Hold up time is 16 millisecond minimum within 60 percent load. Input frequency range 50 - 60 in Hz
• High-Quality Components
• Equipped with a powerful plus 12V rail, superior performance under all types of system loading
• 5 Year
• Maximum Output Capacity is 600 Watts

Product Details:

• Color: Black
• Size: 600W
• Model: PS-SPD-0600NPCWUS-W
• Package Quantity: 1
