Brand: Envistia

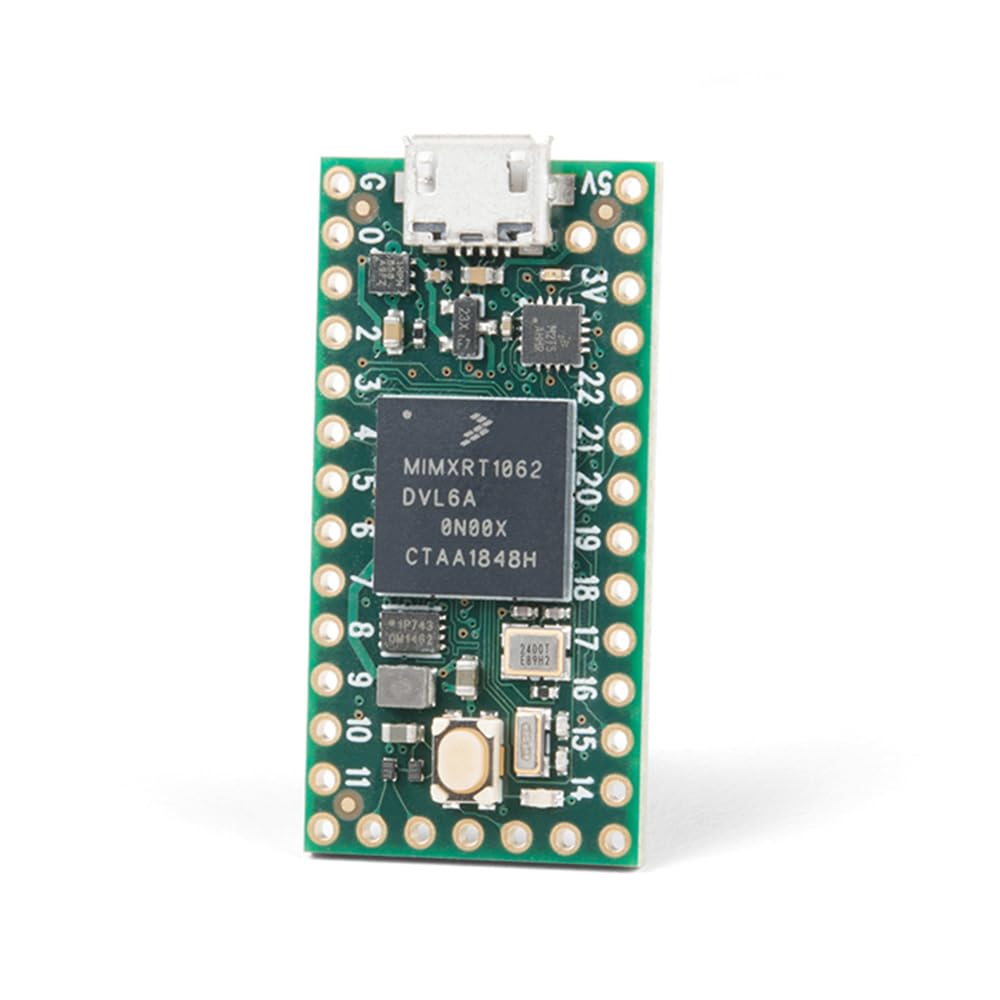

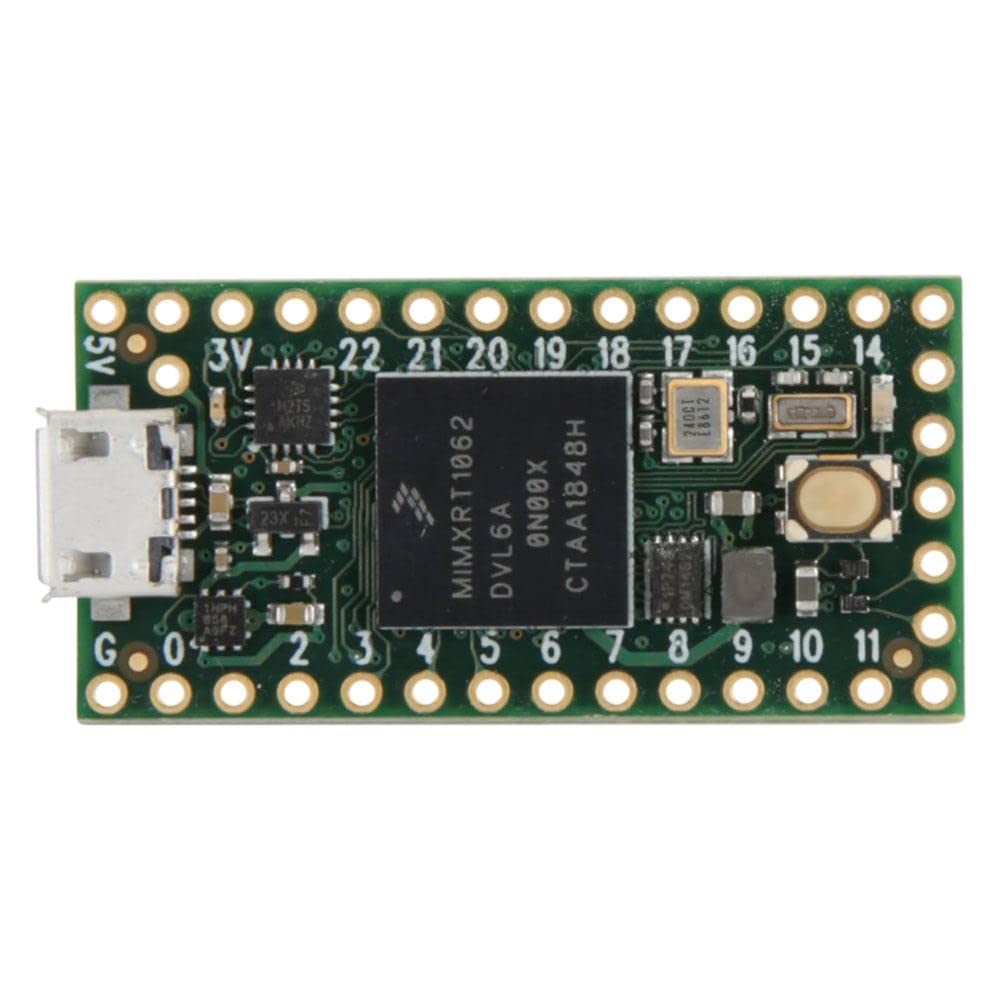

Teensy 4.0 is the latest Teensy microcontroller development board from PJRC, based on the NXP iMXRT1062 ARM Cortex-M7 running at 600MHz with the ability to be overclocked. It is designed into a very compact ‘Teensy’ board outline of 1.4 by 0.7 inch (3.6 x 1.8 cm) for easy embedding into projects or for use with solderless breadboards. Teensy 4.0 is the same size and shape as the Teensy 3.2 and retains compatibility with most of its pin functions.<br><br> Teensy 4.0 is compatible with the Arduino IDE programming environment as well as many of the existing Arduino libraries, so it is easy to get programmed and running, unlike other advanced microcontrollers on the market.<br><br> This Teensy 4.0 includes a 40-pin male header that can be broken or cut to the appropriate length using a wire cutter or pliers and soldered onto the microcontroller, giving you the flexibility to choose how to connect the Teensy to your circuitry.<br><br> The LOCKABLE version of the Teensy 4.0 can be permanently locked into a secure mode. This implements encryption of the software and prevents unauthorized copying or cloning of the software. This version is identified with a lock symbol stamped on the CPU. The lockable version will operate like a standard Teensy 4.0 if it is not locked, but it removes some of the safeguards that are built into the standard Teensy 4.0 to prevent permanently bricking the module with bad software. For this reason, it is recommended for use only when code security is a requirement, usually for commercial applications.<br><br> When code security is not required, we recommend the STANDARD (NON-LOCKABLE) version.<br><br>

Features:

• HIGH-PERFORMANCE MICROCONTROLLER: Features an ARM Cortex-M7 processor at 600MHz (can be overclocked), with a NXP iMXRT1062 chip, the most powerful microcontroller available today
• ARDUINO-COMPATIBLE: The Teensy is compatible with the Arduino IDE programming environment as well as many of the existing Arduino libraries, so it is easy to get programmed and running
• RAM: 1024K RAM (512K is tightly coupled)
• 2048K Flash (64K reserved for recovery & EEPROM emulation)
• MULTIPLE I/O: 2 USB ports, both 480 MBit/sec
• 3 CAN Bus (1 with CAN FD)
• 31 PWM pins
• 40 digital pins, all interrupt capable
• 14 analog pins, 2 ADCs on chip
• 2 I2S Digital Audio
• LOCKABLE PROGRAM CODE OPTION: The LOCKABLE version of the Teensy 4.0 is suitable for commercial products and secure applications to protect your program code from unauthorized access and copying. When code security is not required, we recommend the STANDARD NON-LOCKABLE version.
• TEENSY 3.2 COMPATIBLE: Same size and shape as the Teensy 3.2 and retains compatibility with most of its pin functions

Product Details:

• Model: Lockable Version
• Package Quantity: 1
