Brand: Taidacent
Product Name:

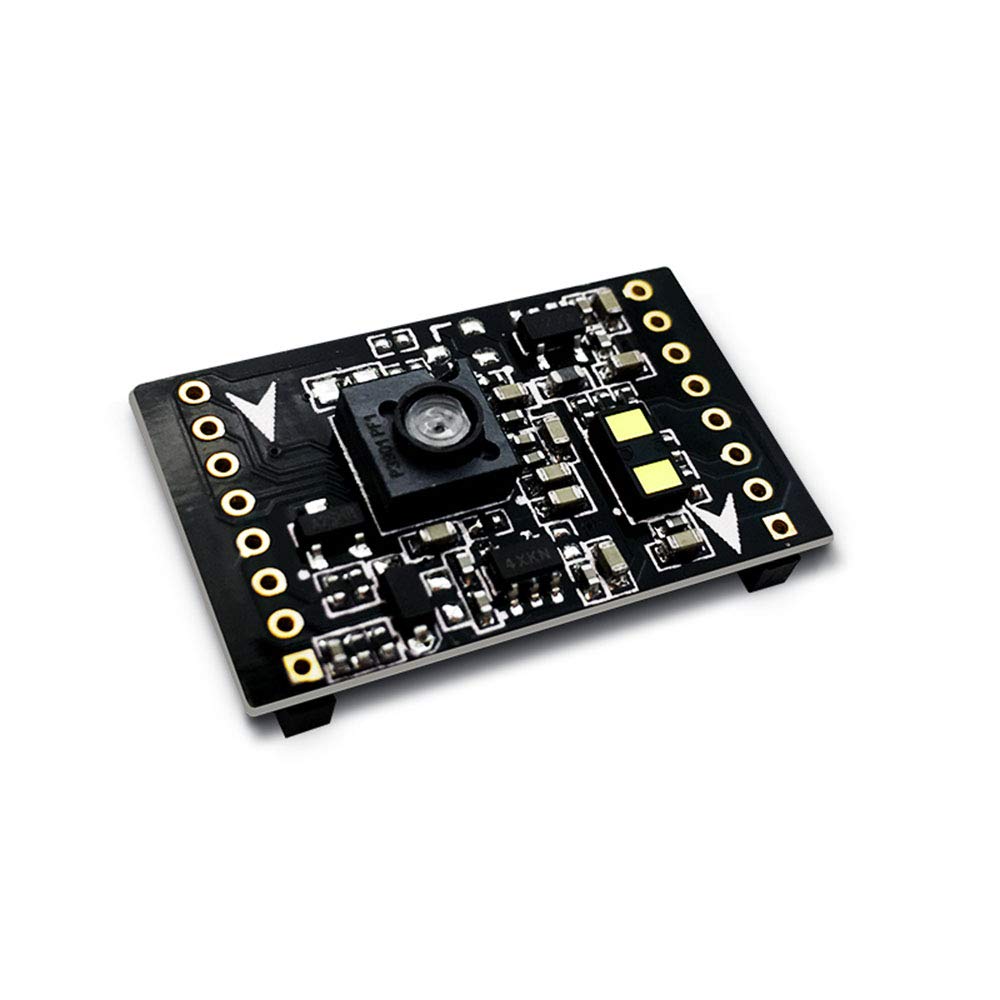

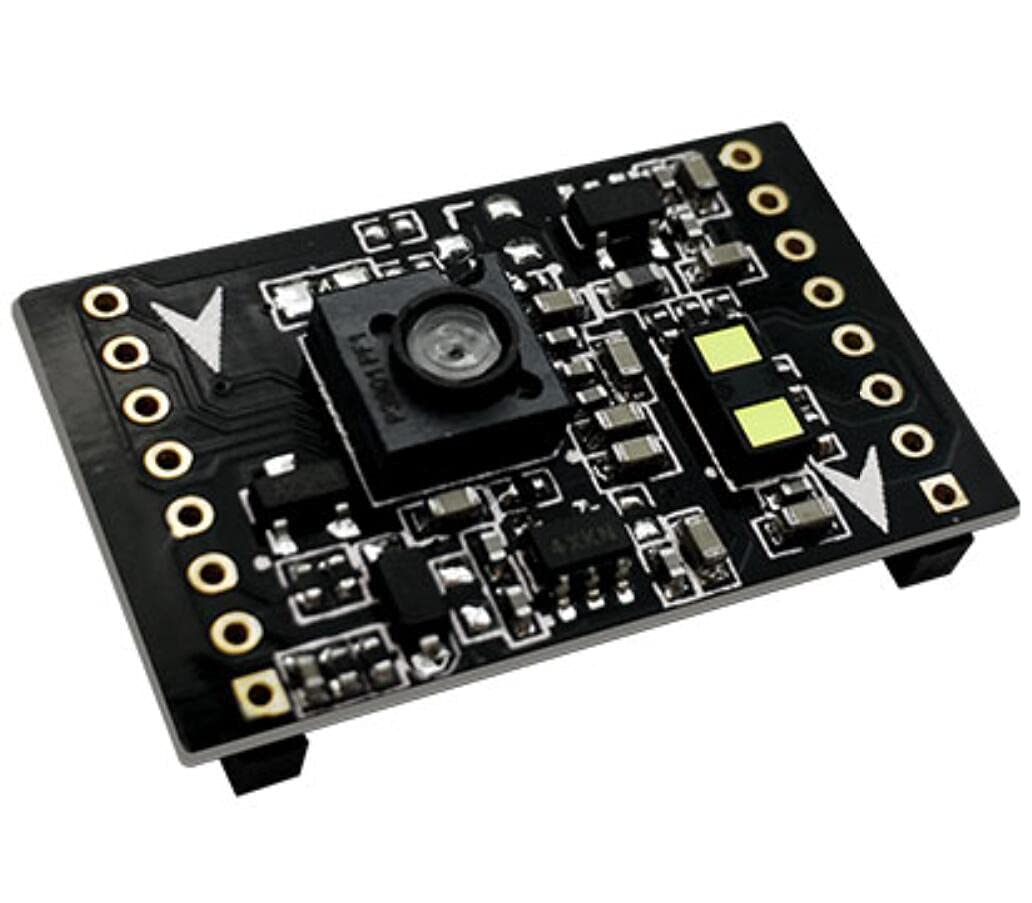

ATK-PMW3901 Optical Flow Module
Product specifications:
Size: length x width 27.5mm × 16.5mm
Weight: 1.6g
Product parameters:
Interface characteristics 3.3V-4.2VDC@20mA

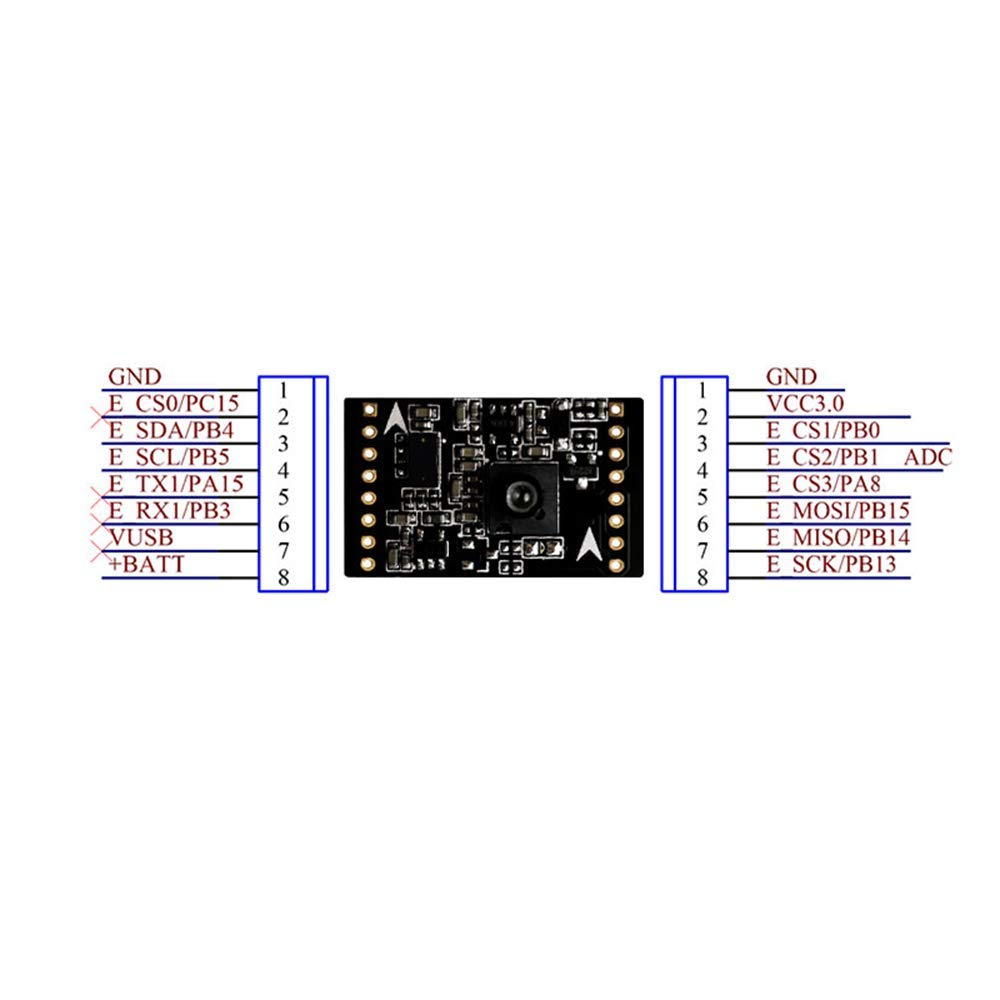

Communication interface
PMW3901 sensor: SPI2@2Mhz
VL53LXX sensor: simulation IIC@400Khz(max)
Output rate:
PMW3901 sensor: >100Hz (>60Lux)
VL53LXX sensor: 30Hz (long-distance mode, indoor)
PMW3901 sensor:
>8cm (recommended to use measurement range within 400cm
2M version: VL53LOX sensor: 3cm~200cm (30Hz)
4M version: VL53L1X sensor: 4cm~400cm(30Hz)
Integrated dual sensor
High-precision low-power optical tracking sensor PMW3901 and high-precision laser sensor VL53LXX (VL53L0X for 2m version, VL53L1X for 4m version, VL53LXX)
The PMW3901 optical flow sensor is responsible for measuring horizontal movement, and the VL53LXX laser sensor is responsible for measuring distance

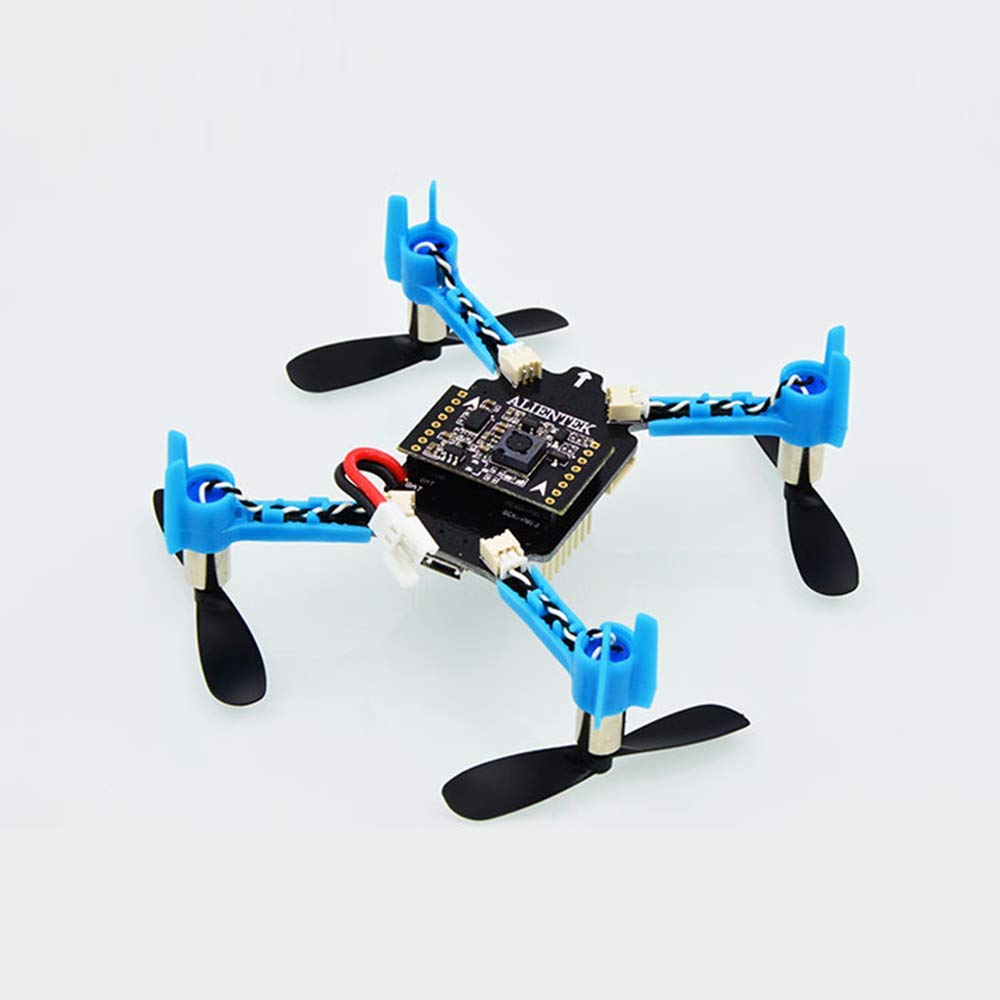

Minifly connection
Connected through double row mother and small four axis
Minifly easily achieves high-precision hovering by merging optical flow + laser height + air pressure and using cascade PlD.
Stable hover
MiniFly can be used to achieve stable hover with the module.
The remote control is set to fixed point mode
• High-precision low-power optical tracking sensor PMW3901 and high-precision laser sensor VL53LXX
• The PMW3901 optical flow sensor is responsible for measuring horizontal movement
• VL53LXX laser sensor is responsible for measuring distance
• Connected through double row mother and small four axis
• MiniFly can be used to achieve stable hover with the module.
Product Name:
ATK-PMW3901 Optical Flow Module
Product specifications:
Size: length x width 27.5mm × 16.5mm
Weight: 1.6g
Product parameters:
Interface characteristics 3.3V-4.2VDC@20mA
Communication interface
PMW3901 sensor: SPI2@2Mhz
VL53LXX sensor: simulation IIC@400Khz(max)
Output rate:
PMW3901 sensor: >100Hz (>60Lux)
VL53LXX sensor: 30Hz (long-distance mode, indoor)
PMW3901 sensor:
>8cm (recommended to use measurement range within 400cm
2M version: VL53LOX sensor: 3cm~200cm (30Hz)
4M version: VL53L1X sensor: 4cm~400cm(30Hz)
Integrated dual sensor
High-precision low-power optical tracking sensor PMW3901 and high-precision laser sensor VL53LXX (VL53L0X for 2m version, VL53L1X for 4m version, VL53LXX)
The PMW3901 optical flow sensor is responsible for measuring horizontal movement, and the VL53LXX laser sensor is responsible for measuring distance
Minifly connection
Connected through double row mother and small four axis
Minifly easily achieves high-precision hovering by merging optical flow + laser height + air pressure and using cascade PlD.
Stable hover
MiniFly can be used to achieve stable hover with the module.
The remote control is set to fixed point mode
• High-precision low-power optical tracking sensor PMW3901 and high-precision laser sensor VL53LXX
• The PMW3901 optical flow sensor is responsible for measuring horizontal movement
• VL53LXX laser sensor is responsible for measuring distance
• Connected through double row mother and small four axis
• MiniFly can be used to achieve stable hover with the module.
