Description
Brand: Taidacent
Model: LT3045
Module model single LT3045
Module type linear regulator buck
Input voltage +20V(MAX)
Output voltage +5V, +9V, +12V, +15V
Output current 500mA (MAX)
Input and output pressure difference <500mV
Output power 6w (12V/0.5A)
Load regulation rate ±0.5%
Voltage regulation rate ±1%
Static power consumption 1mA
Output ripple better than 1mV
No-load module noise 0.8uVRMS (10Hz-100kHz)

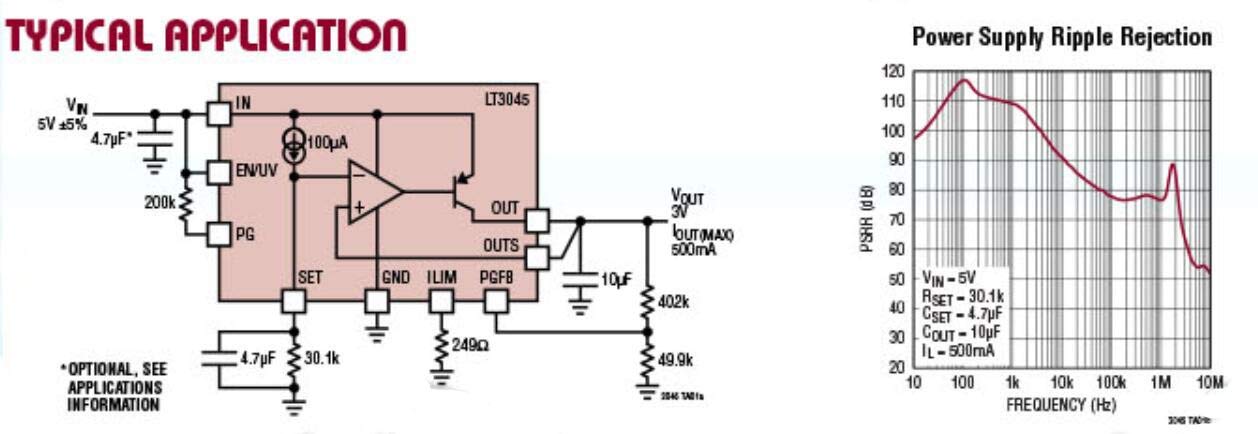

Module PSRR 76dB at 1MHz
Module enable
Module protection none No reverse connection protection, no fuse
Module characteristics
Single output, users can connect in parallel to increase output current
Module application multiple
Precision operational amplifier, high-speed/high-precision data converter,
Module weight 2.5g

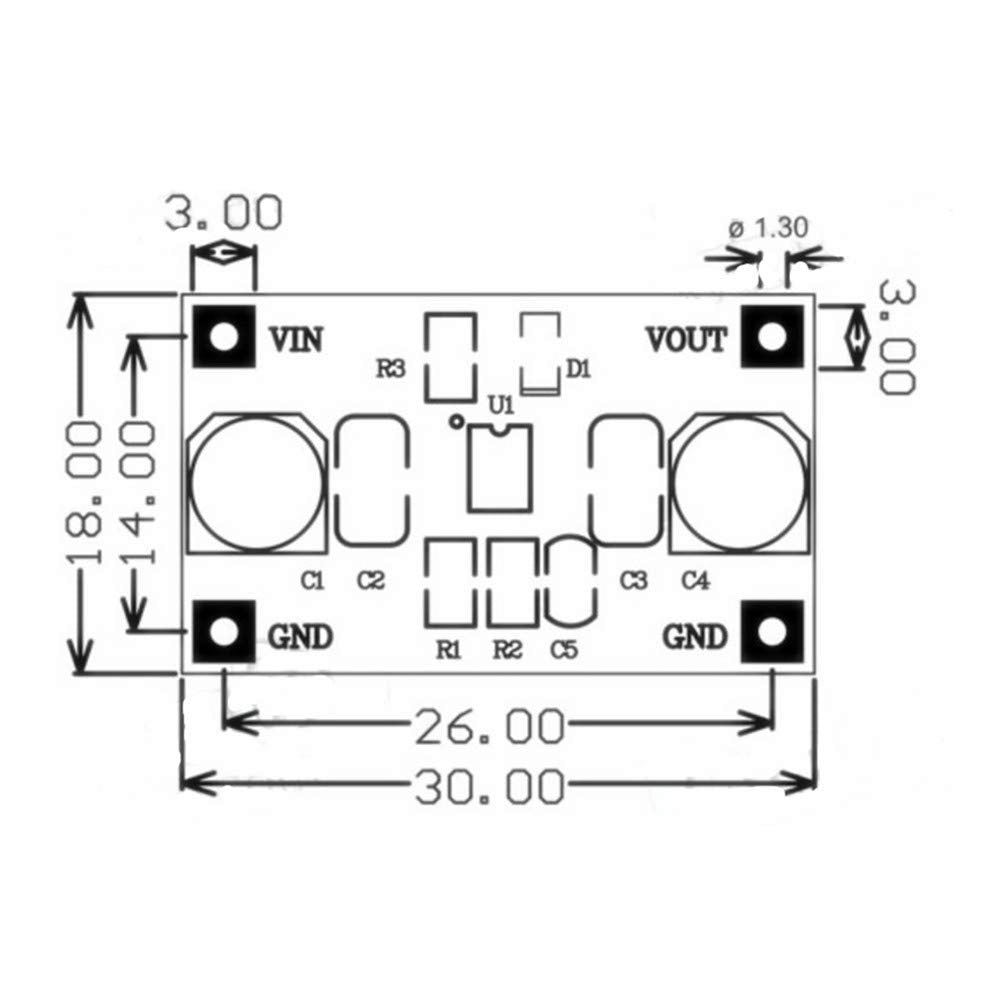

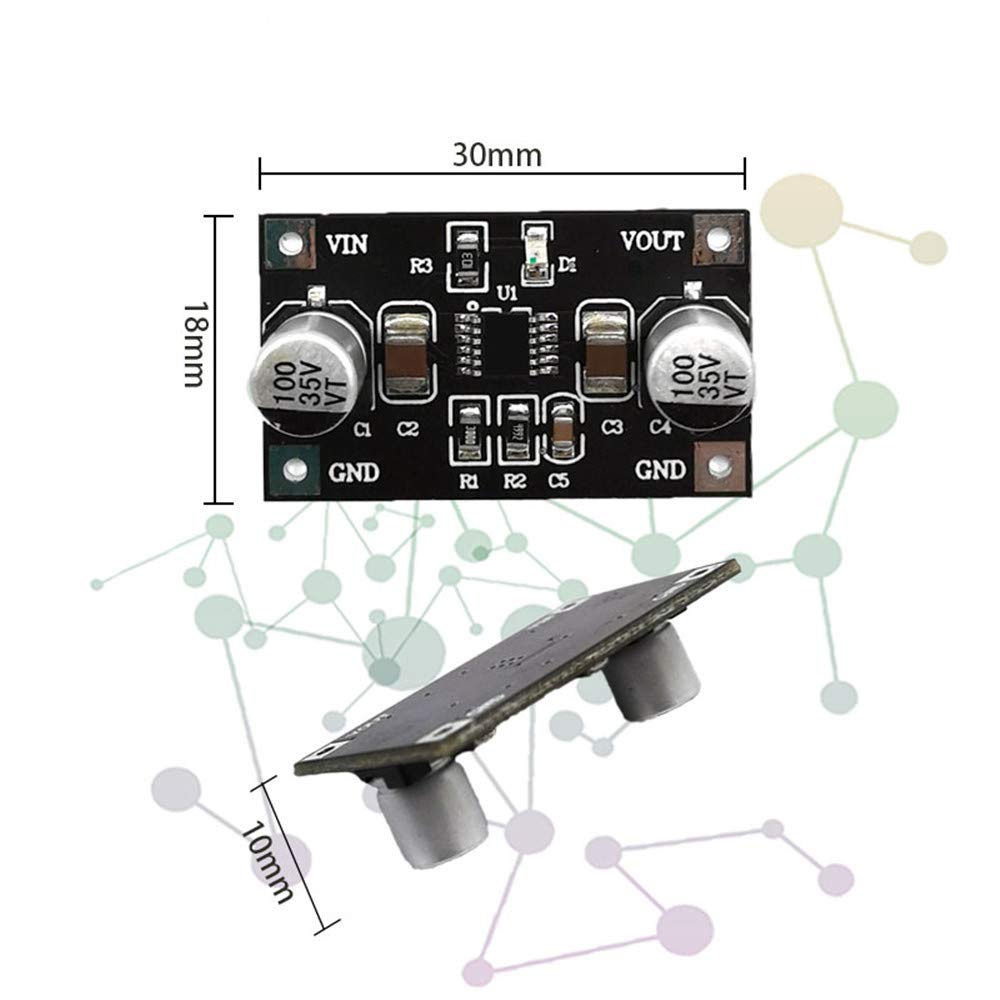

Module size 30*18(mm)
Module heating
Working temperature -25--+75℃
• linear regulator buck Input voltage +20V(MAX) Output voltage +5V, +9V, +12V, +15V Output current 500mA (MAX)
• Input and output pressure difference <500mV Output power 6w (12V/0.5A) Load regulation rate ±0.5%
• Voltage regulation rate ±1% Static power consumption 1mA Output ripple better than 1mV No-load module noise 0.8uVRMS (10Hz-100kHz)
• Module PSRR 76dB at 1MHz Module enable Module protection none No reverse connection protection, no fuse
• Single output, users can connect in parallel to increase output current
Power/Wattage: 9V output
Model: LT3045
Module model single LT3045
Module type linear regulator buck
Input voltage +20V(MAX)
Output voltage +5V, +9V, +12V, +15V
Output current 500mA (MAX)
Input and output pressure difference <500mV
Output power 6w (12V/0.5A)
Load regulation rate ±0.5%
Voltage regulation rate ±1%
Static power consumption 1mA
Output ripple better than 1mV
No-load module noise 0.8uVRMS (10Hz-100kHz)
Module PSRR 76dB at 1MHz
Module enable
Module protection none No reverse connection protection, no fuse
Module characteristics
Single output, users can connect in parallel to increase output current
Module application multiple
Precision operational amplifier, high-speed/high-precision data converter,
Module weight 2.5g
Module size 30*18(mm)
Module heating
Working temperature -25--+75℃
• linear regulator buck Input voltage +20V(MAX) Output voltage +5V, +9V, +12V, +15V Output current 500mA (MAX)
• Input and output pressure difference <500mV Output power 6w (12V/0.5A) Load regulation rate ±0.5%
• Voltage regulation rate ±1% Static power consumption 1mA Output ripple better than 1mV No-load module noise 0.8uVRMS (10Hz-100kHz)
• Module PSRR 76dB at 1MHz Module enable Module protection none No reverse connection protection, no fuse
• Single output, users can connect in parallel to increase output current
Power/Wattage: 9V output
